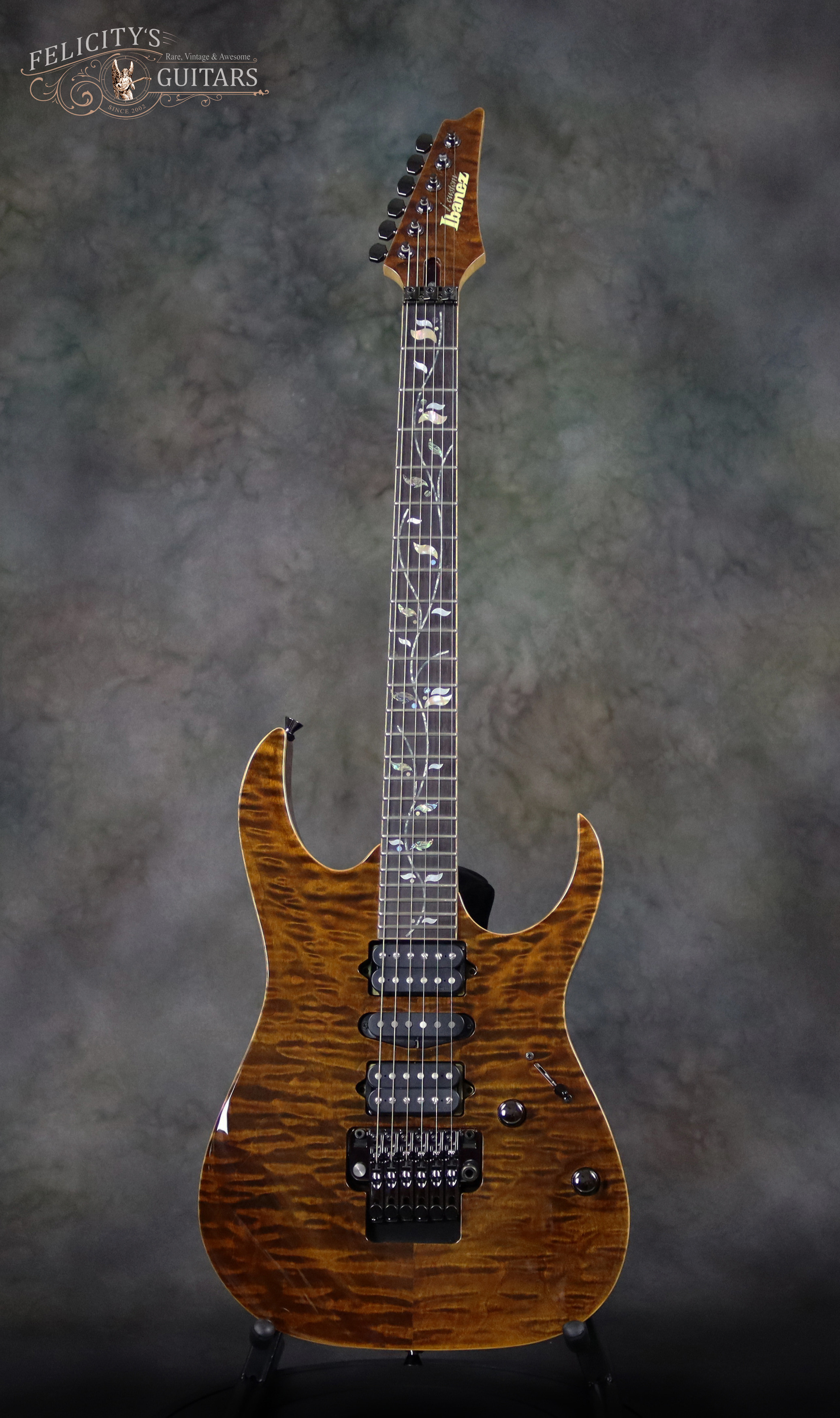

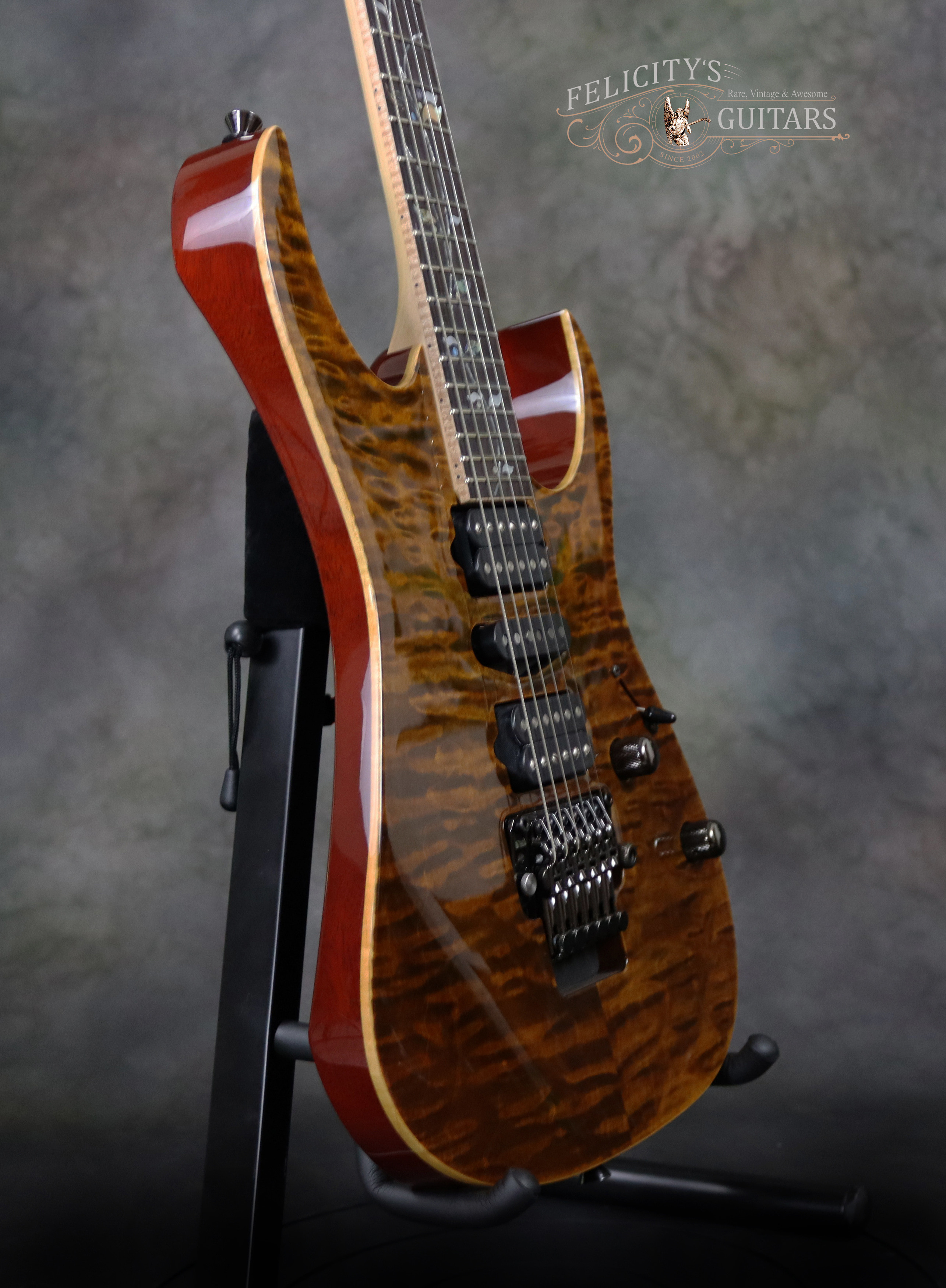

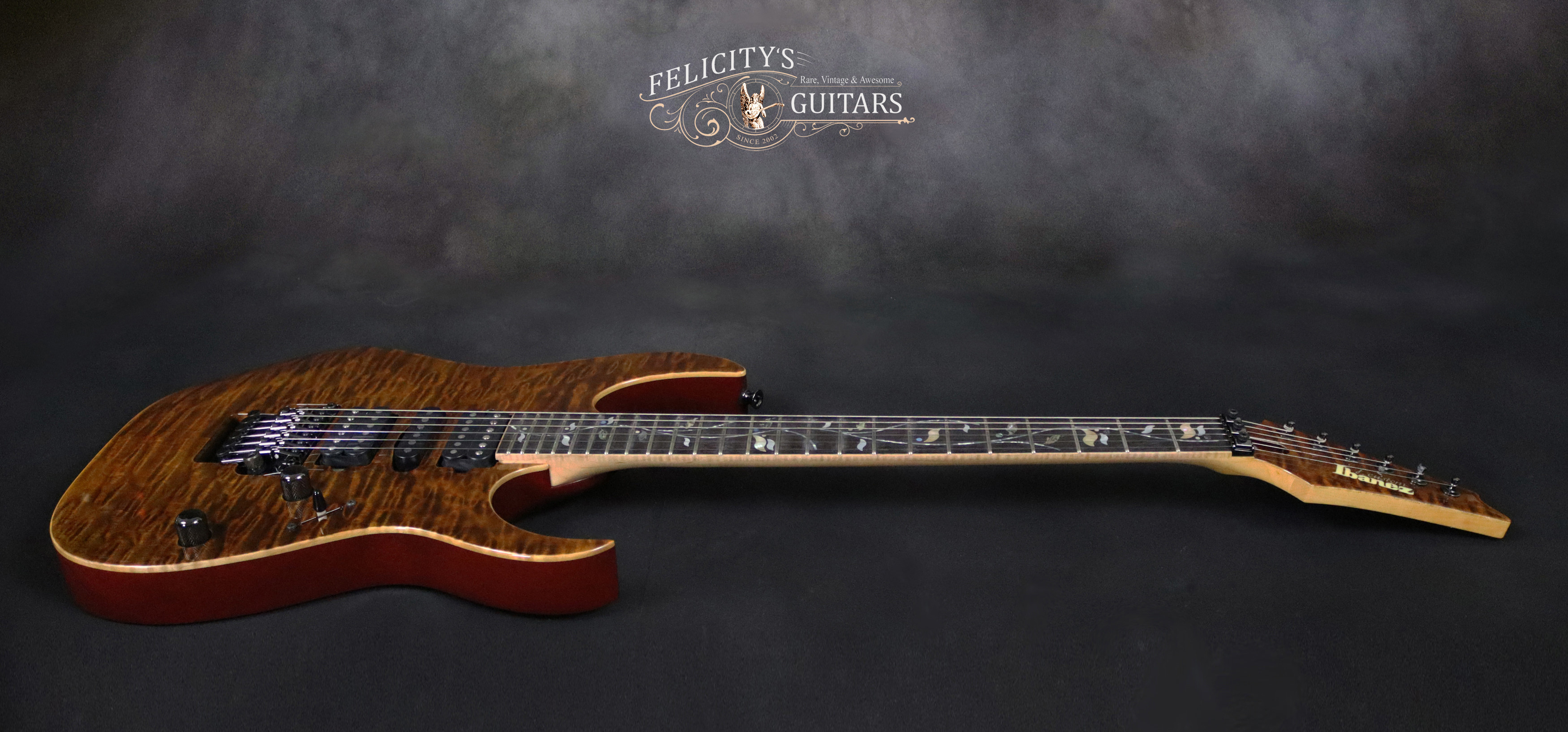

2017 IBANEZ J-CUSTOM RG20136-BSZ-00 LTD ED IN SMOKE BROWN TOPAZ FINISH

An instrument complimented with the pinnacle of professional appointments!

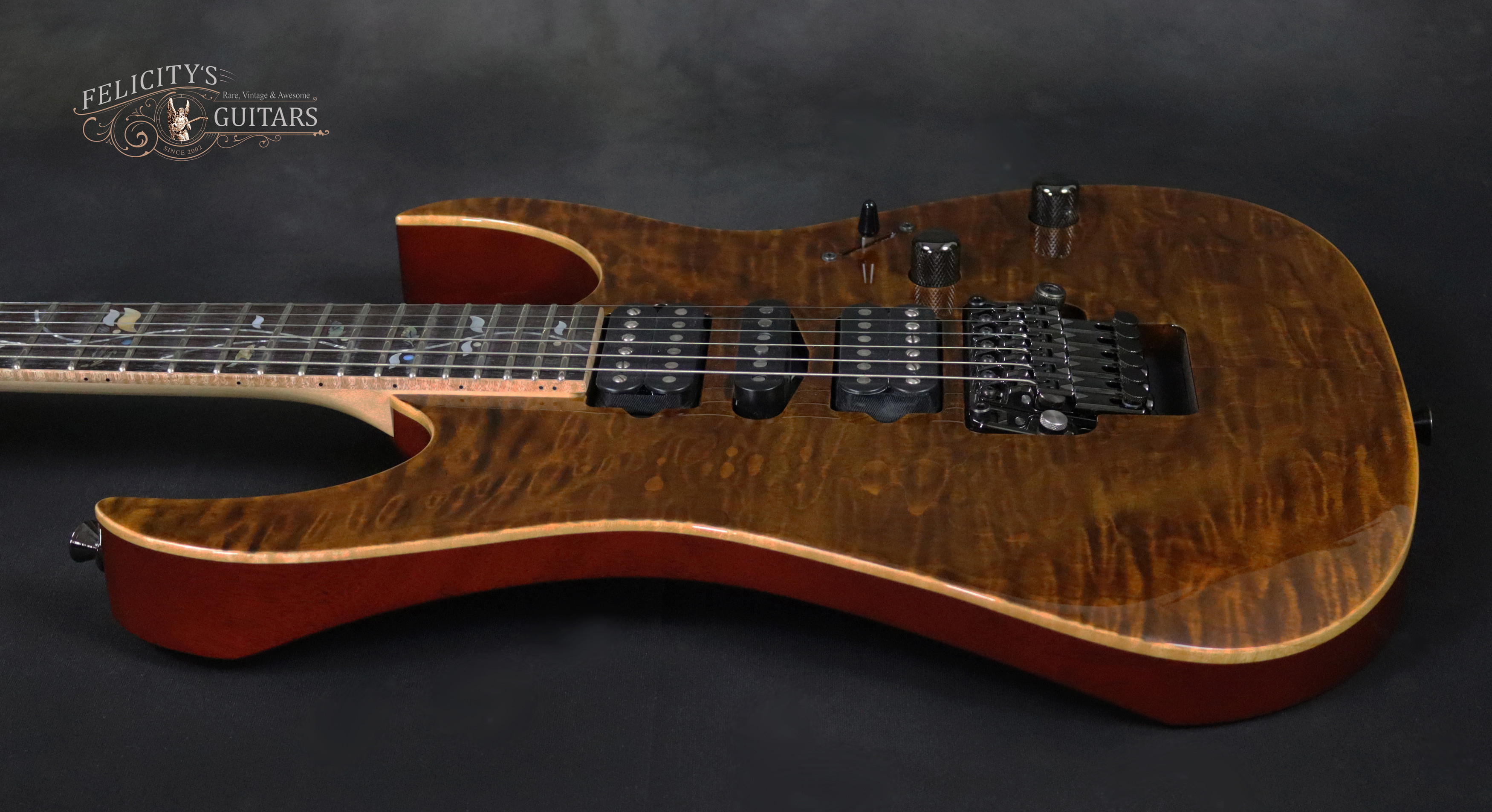

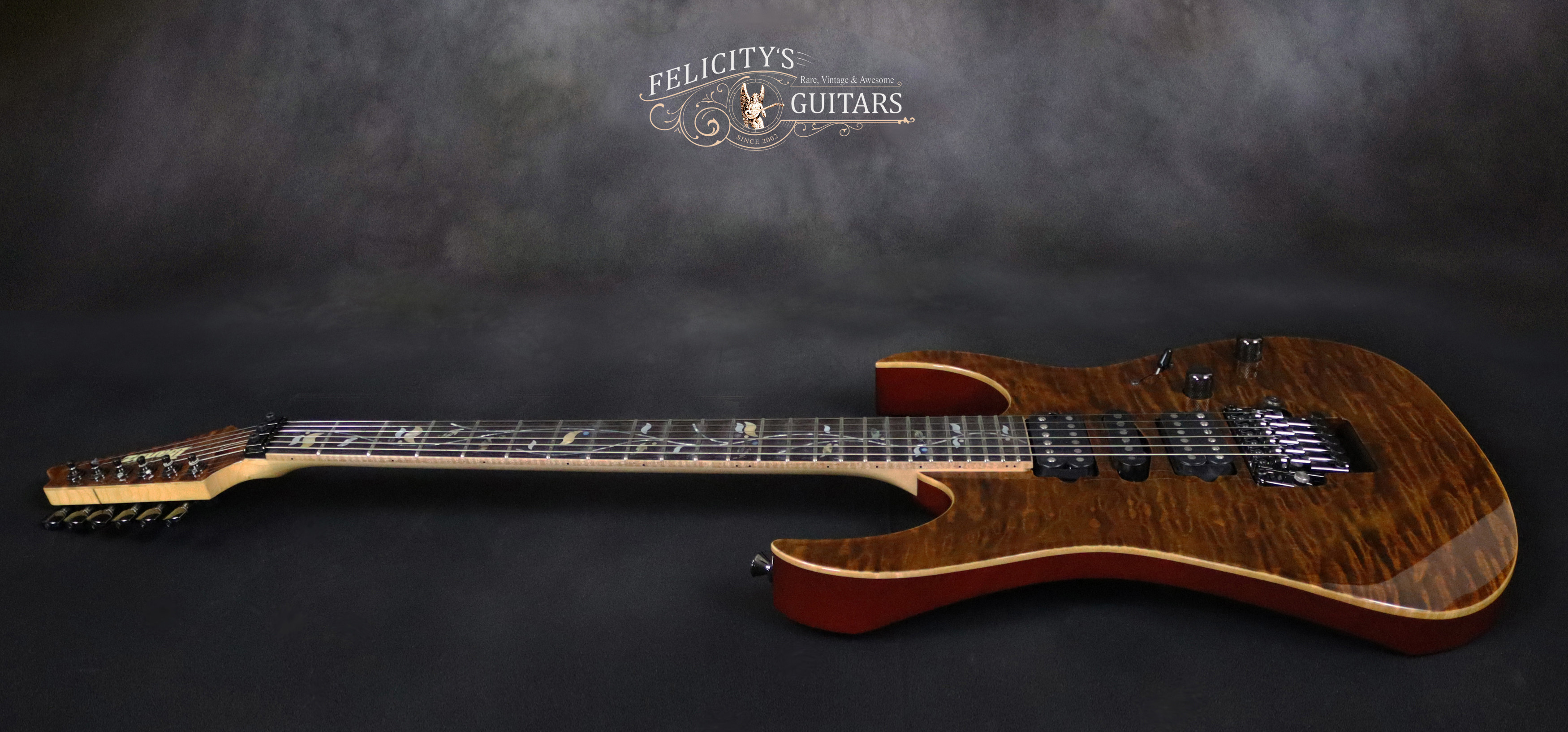

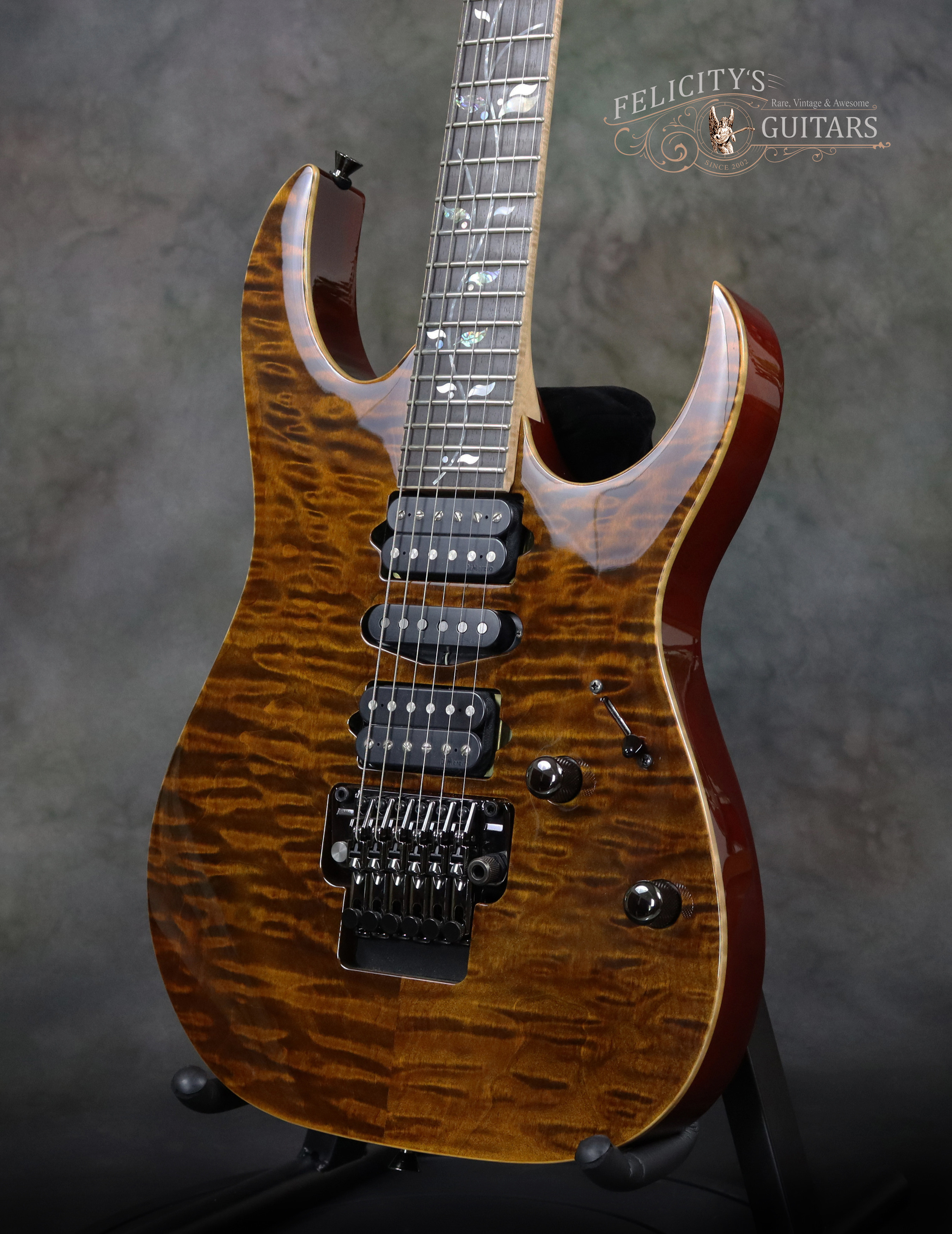

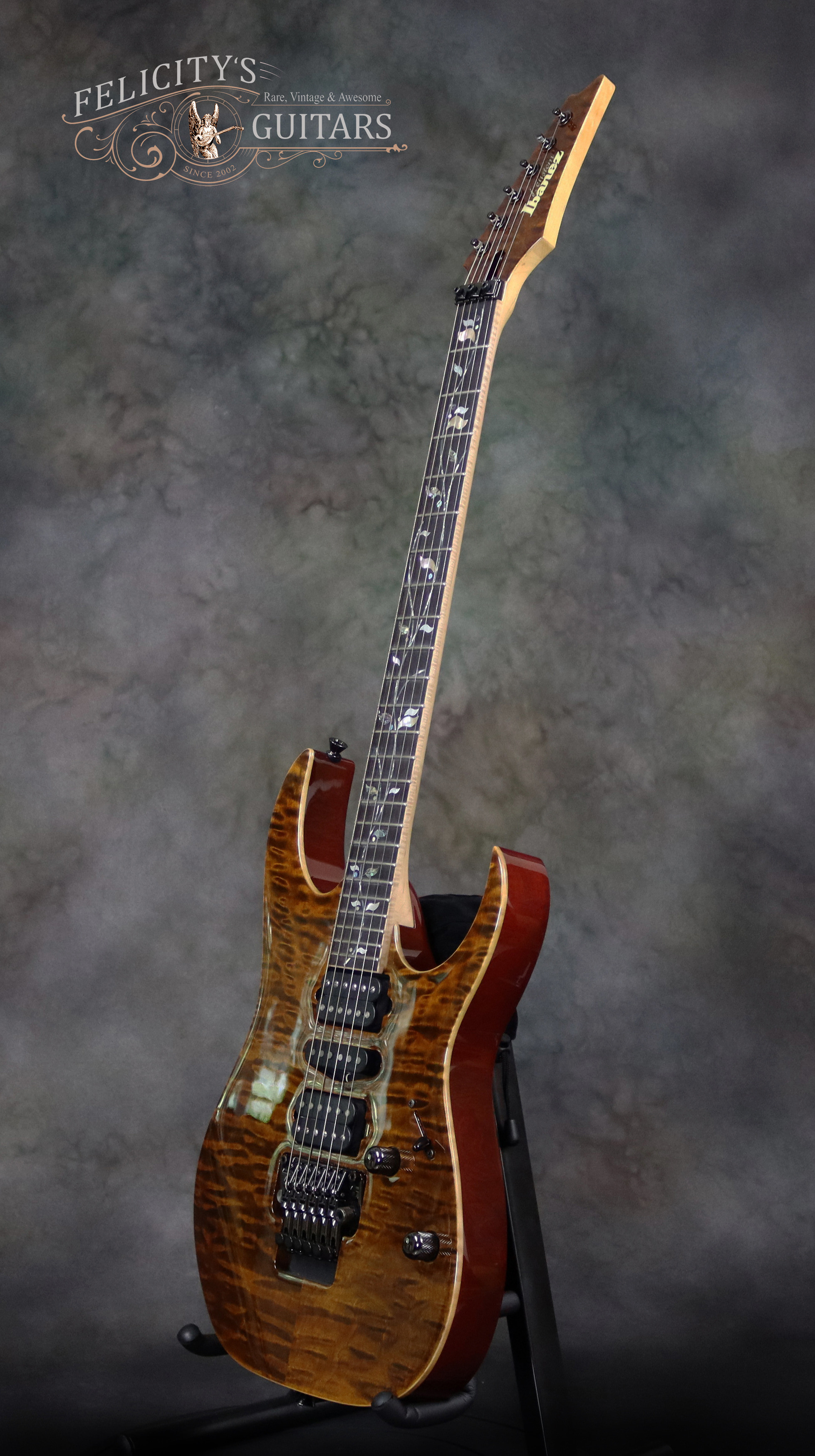

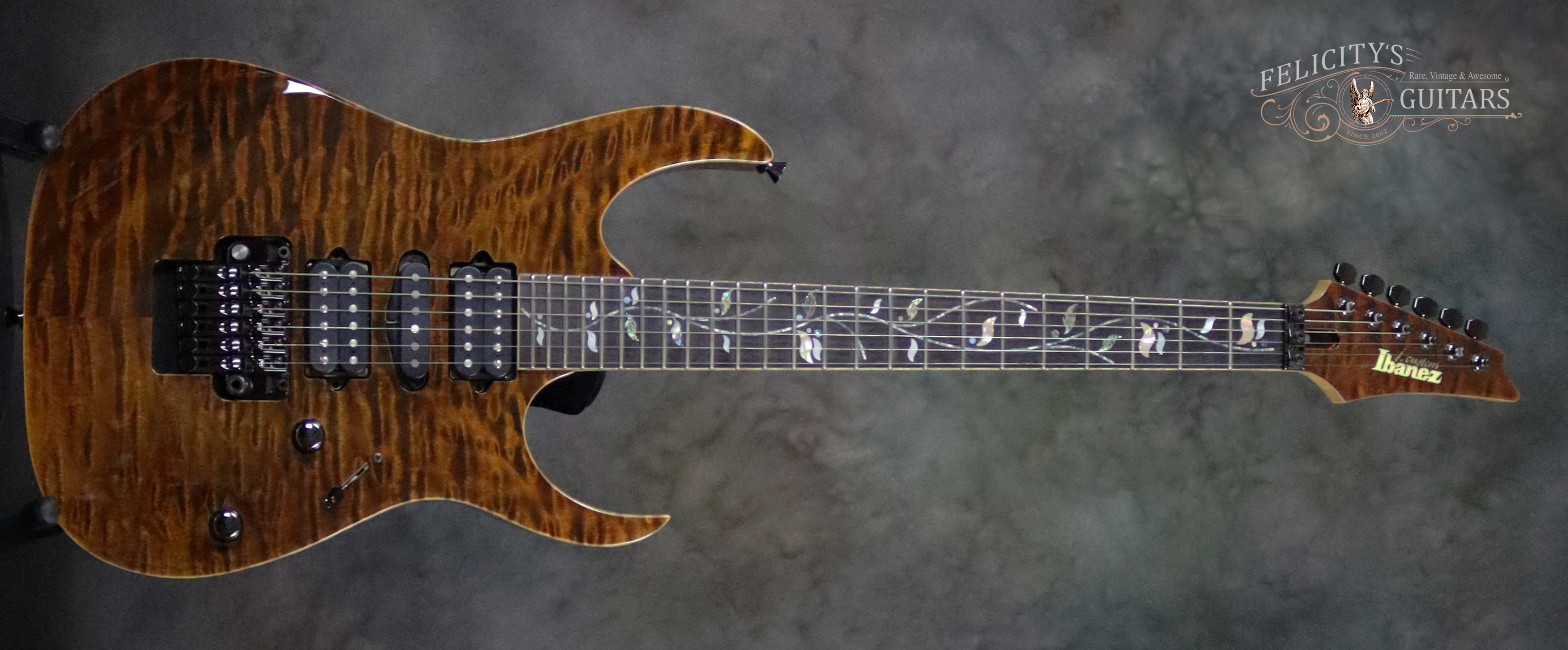

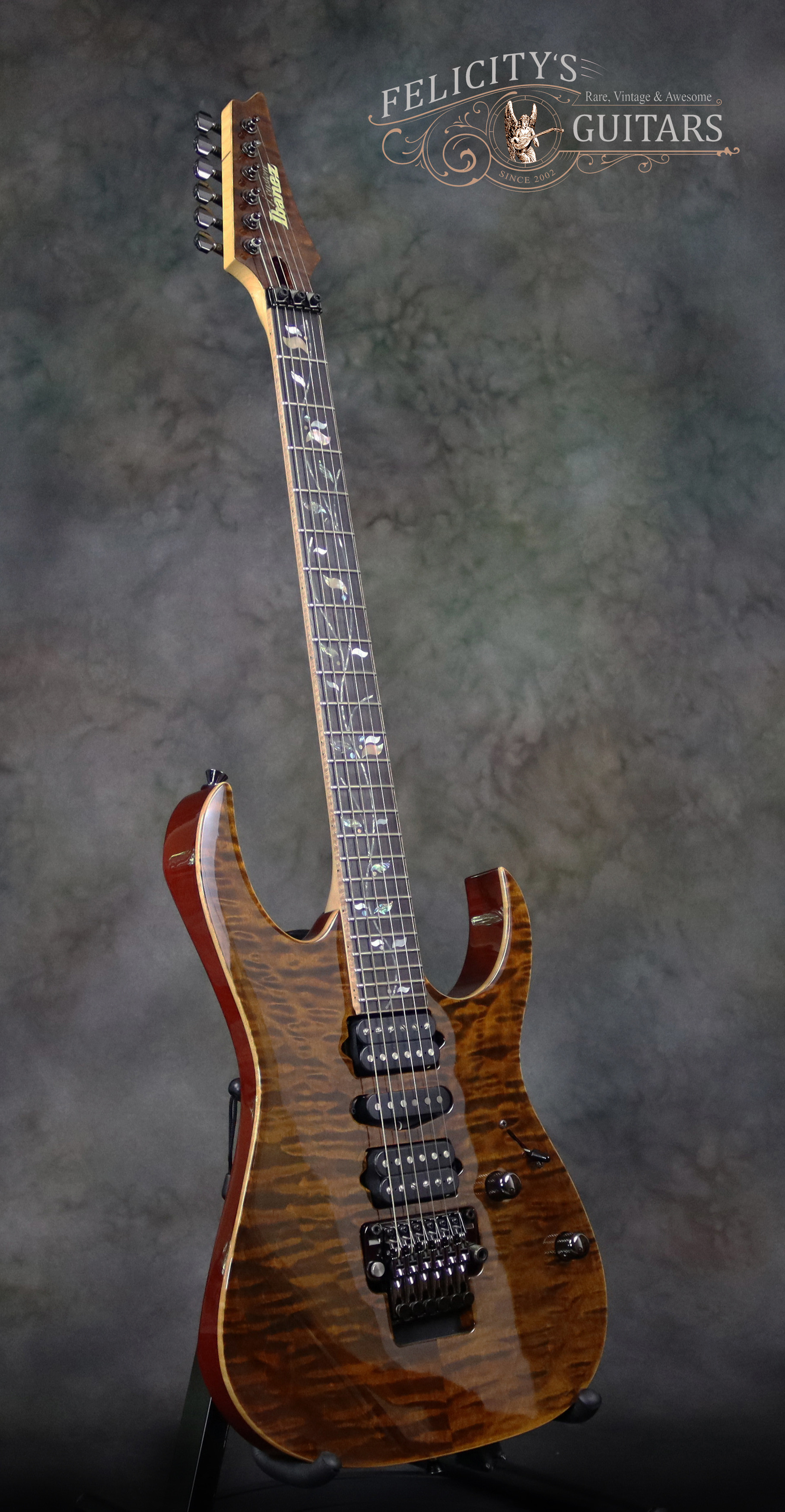

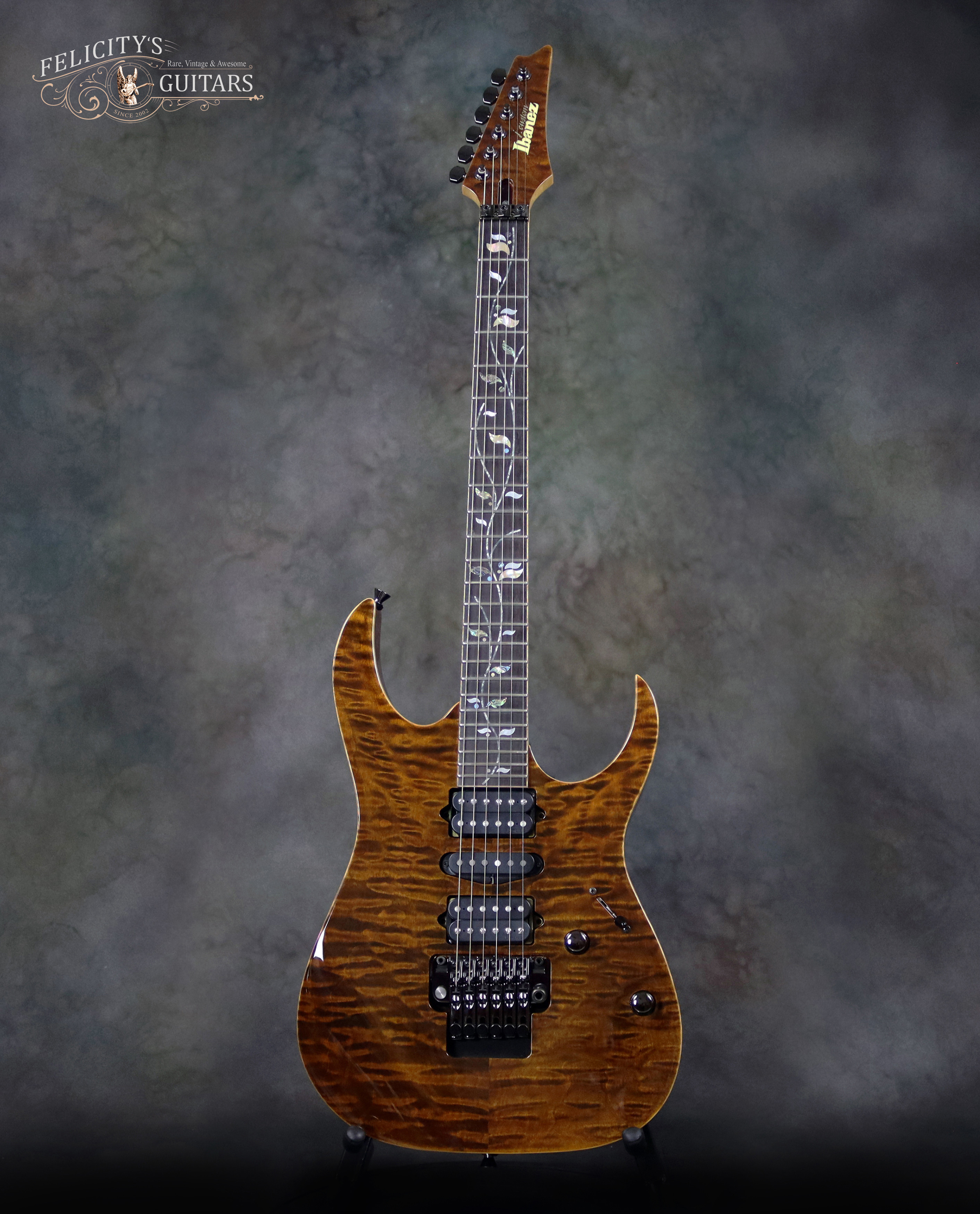

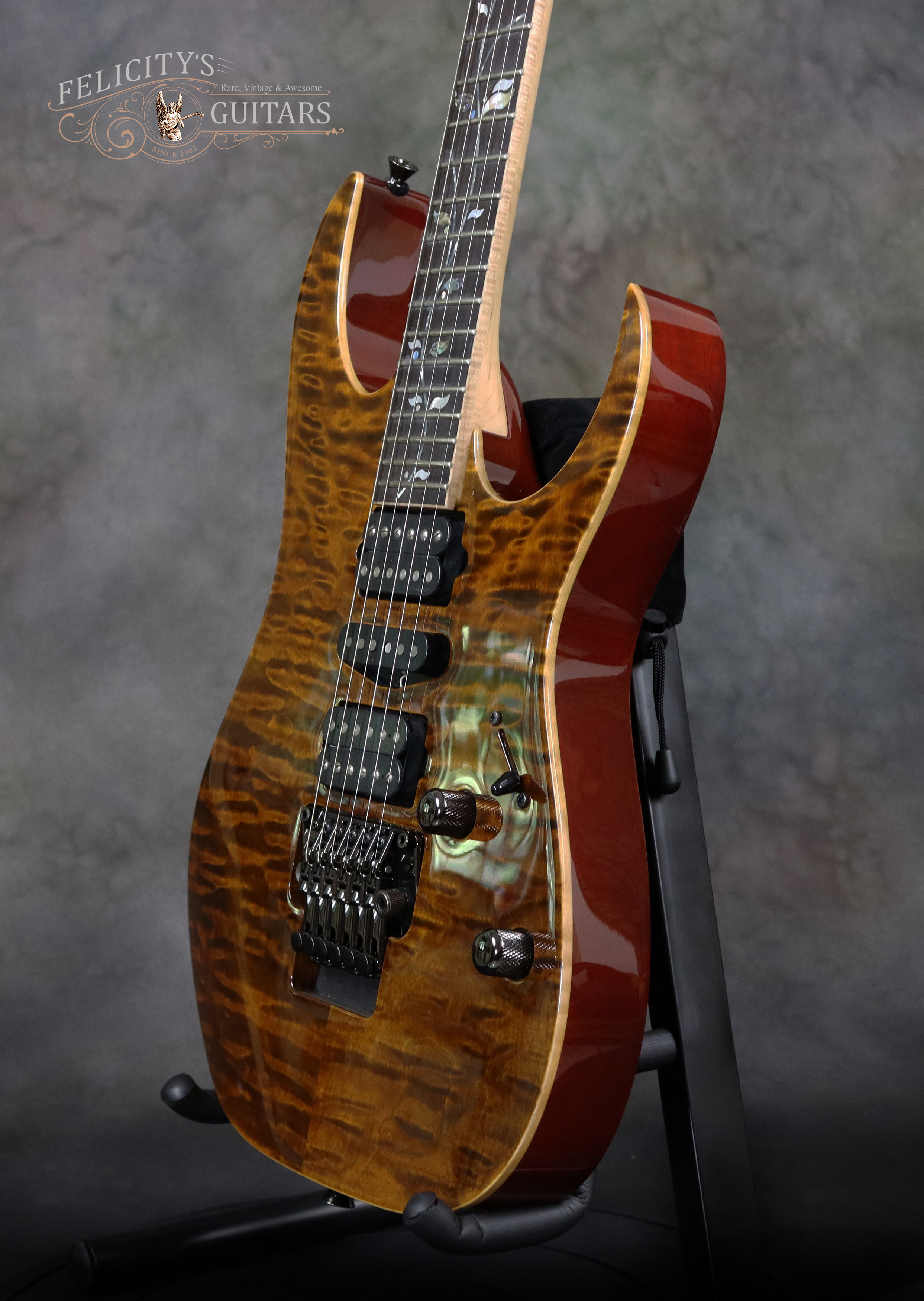

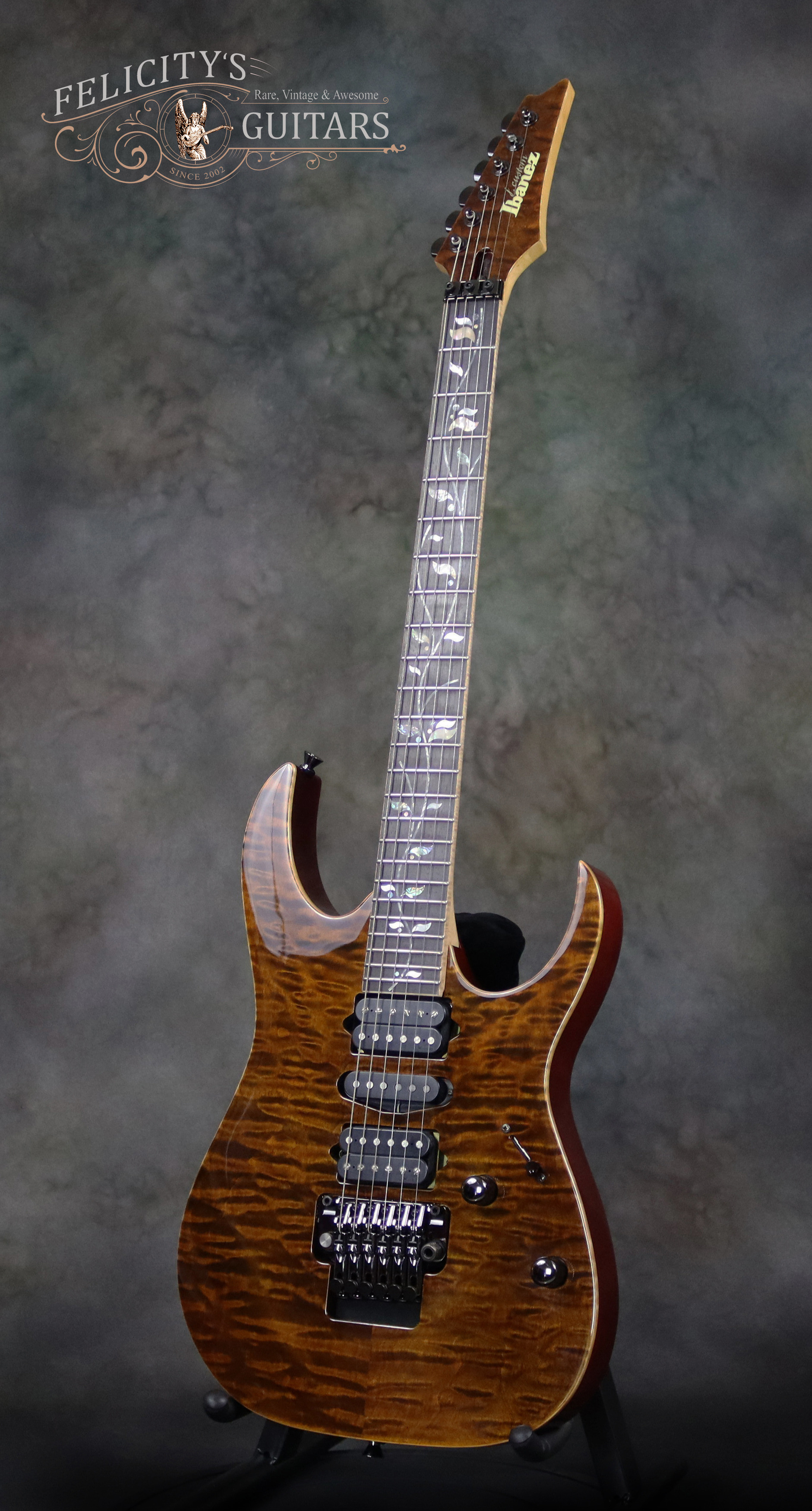

Ibanez J-Custom model guitar meticulously handcrafted by selected master builders at the Japanese Ibanez Custom Shop and at an outstanding price-quality threshold. The 40-mm African mahogany body with sublime 4-mm AAAA quilted maple top is a true thing of beauty and prime example of Ibanez’ master craftsmanship.

The 2013 Ibanez J-Custom RG20136-BSZ-00 Limited Edition at a glance:

Solid African Mahogany body with AAAA figured Maple top
Cosmo Black Hardware
RG J-Custom Super Wizard 5pc Maple/Wenge neck with KTS Titanium Reinforcement

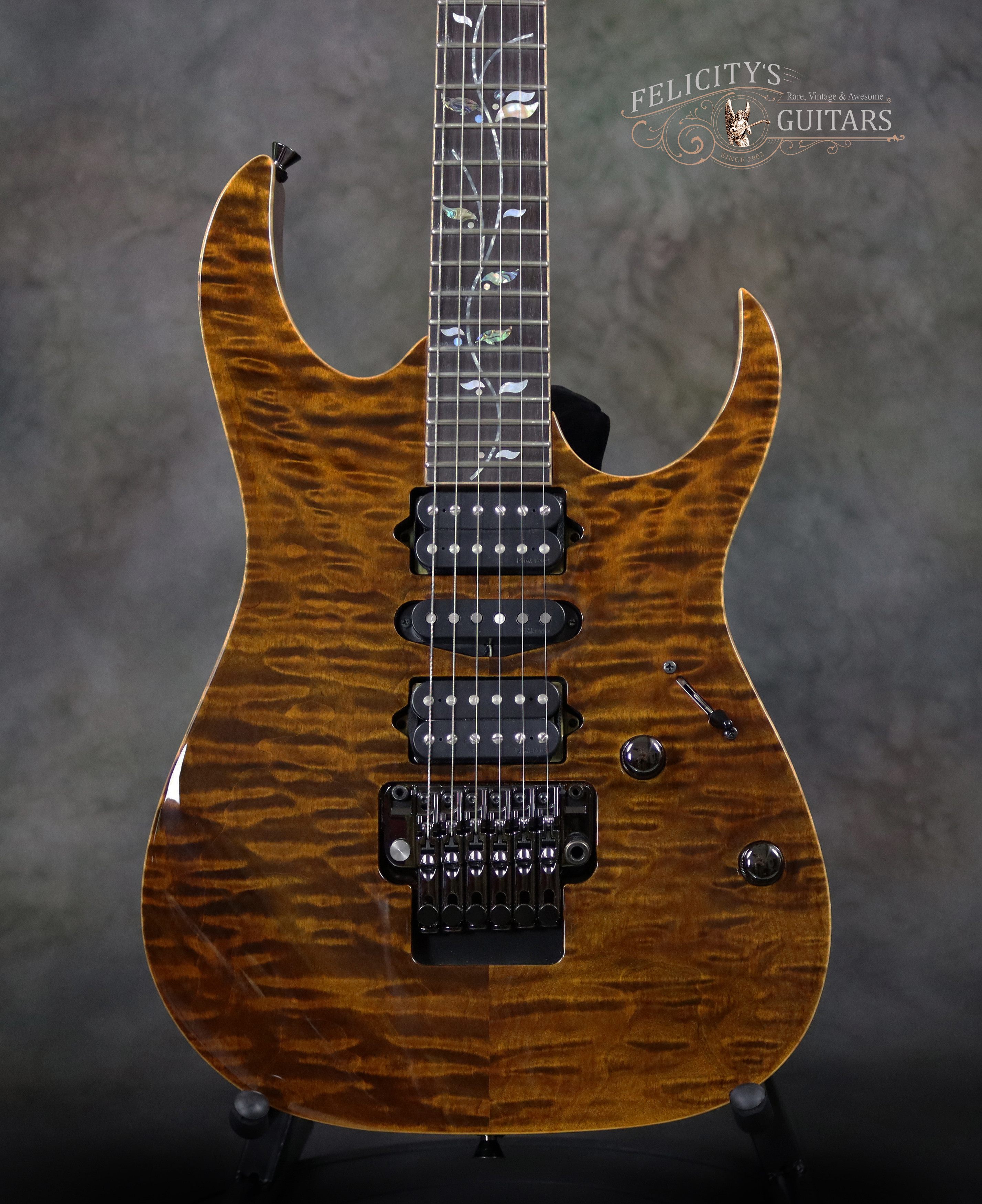

Trio of DiMarzio® Tone Zone™ Humbucking, True Velvet™ Singlecoil and Air Norton™ Humbucking Pickups
Ibanez® Edge Zero locking Tremolo ZPS3
Gotoh® Machine Heads with 16:01 tuning ratio
Gotoh® Strap Locking Pins
Limited Edition with Hardbound Certificate of Authenticity

2017-Ibanez-J-Custom-RG20136-Smoke-Brown-Topaz

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

Photo Gallery

description

The J-Custom’s 25.5”-in. scale, 5-pc maple & walnut neck with KTS titanium reinforcement and bolt-on neck construction enables a fast, precise attack response, while retaining a full, "fat" tone. The selected ebony fretboard with flamed maple binding and genuine Mother of Pearl "Tree Of Life" inlay makes for a warm and effortlessly smooth playing Axe as well as a very classy looking instrument!

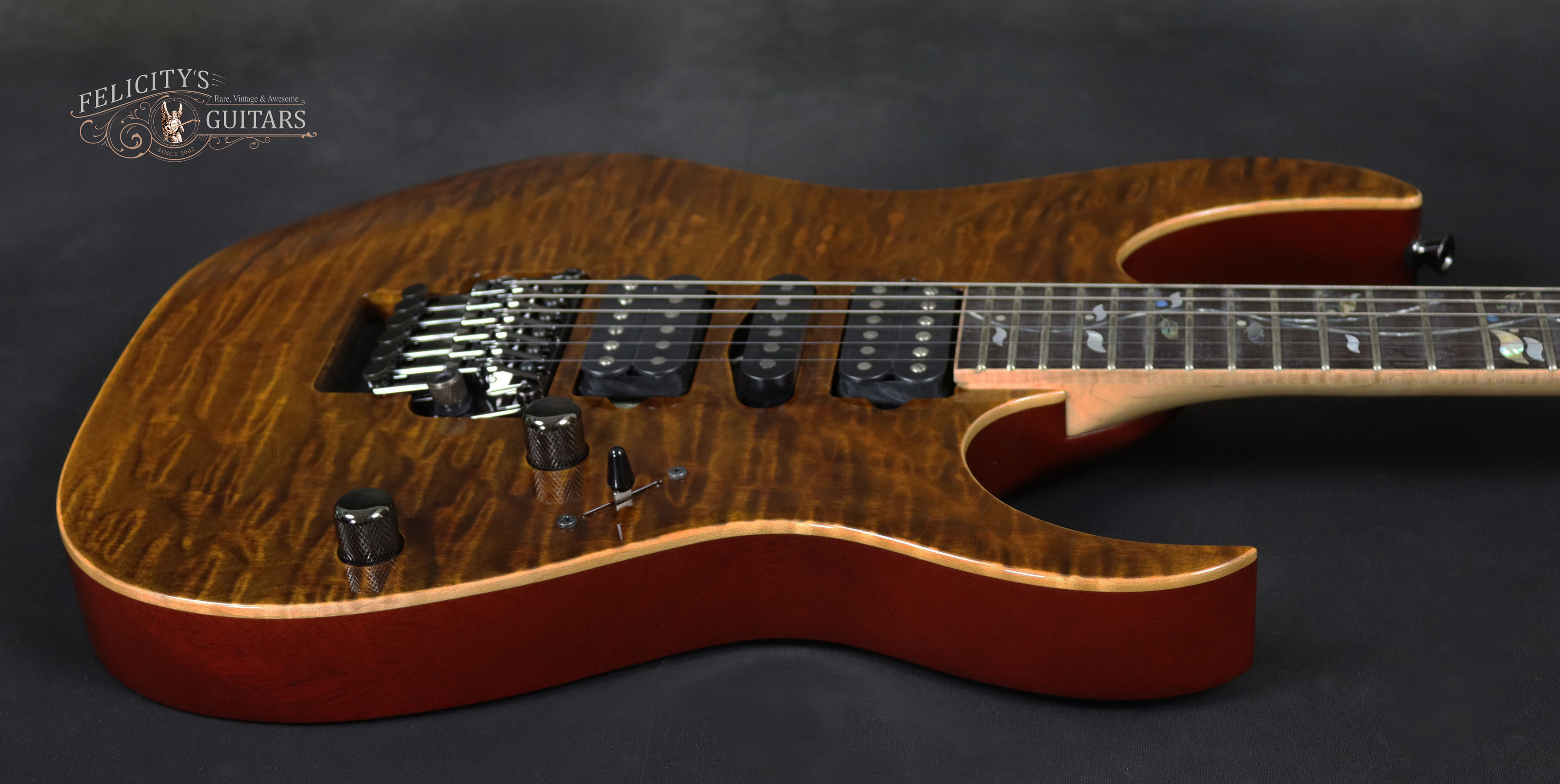

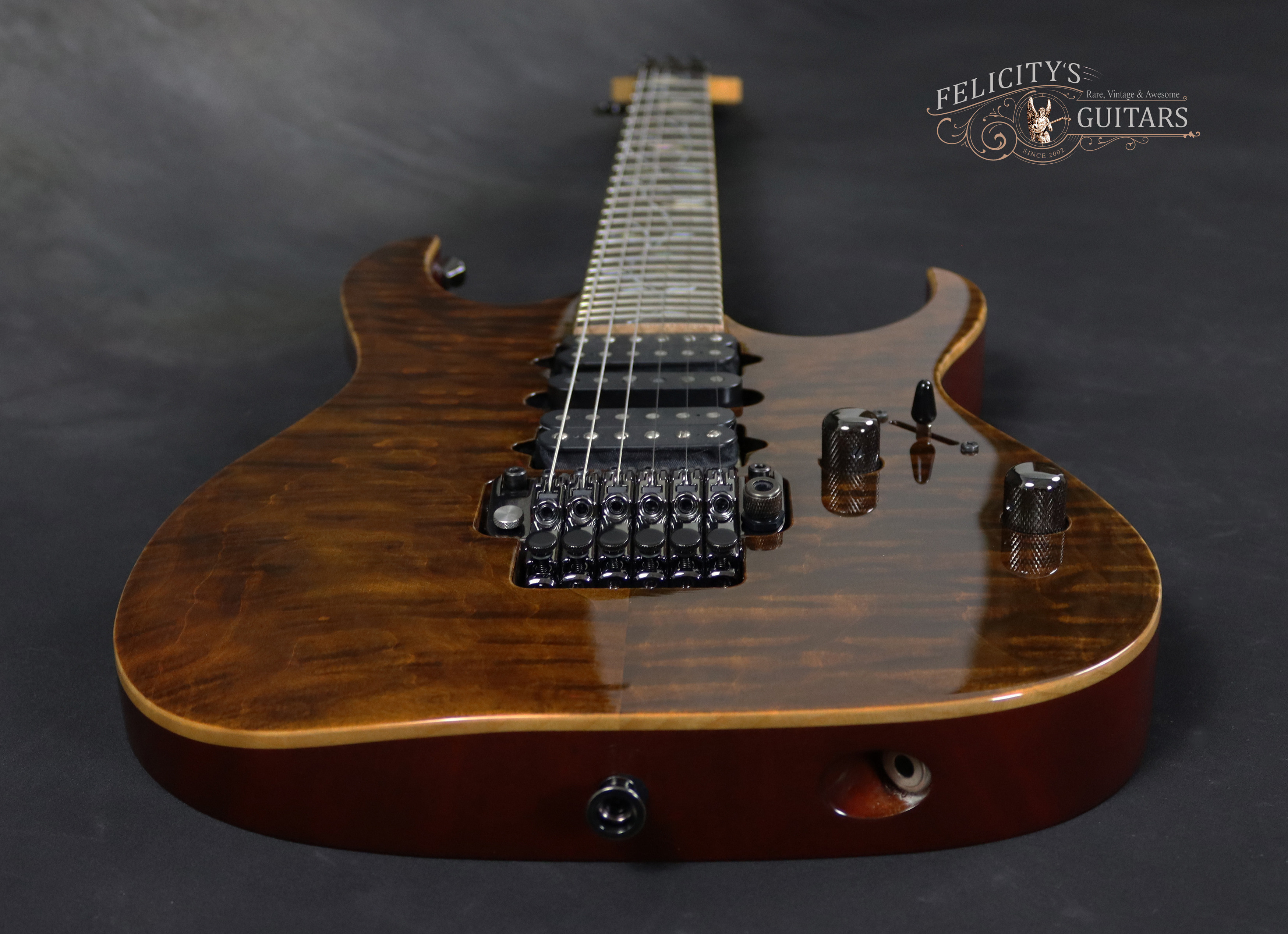

The Ibanez Edge Zero locking tremolo with Ibanez ZPS3 is the ultimate tremolo system loaded with unique features, such as the built-in intonation adjustment tool and the arm-holder adjustment screw. The Ibanez ZPS3 (Zero Point System) constructed with Duralumin prevents typical tuning problems of other locking tremolo systems. The onboard Dimarzio Air Norton (neck) humbucker, Dimarzio True Velvet (middle) singlecoil and Dimarzio Tone Zone (bridge) humbucker combination is extremely versatile, provides lots of gain for aggressive sounds as well as plenty of great clean sounds, and is ideal for drop-down tunings.

The guitar comes in the original Ibanez "Team J. Craft" form-fit case, with factory accessories & certificate of authenticity.

Specifications

General

Condition	New (NOS)
Number of Strings	6
Orientation	Right-handed
Country of Origin	Japan
Year	2013
Limited Edition / Series	Yes

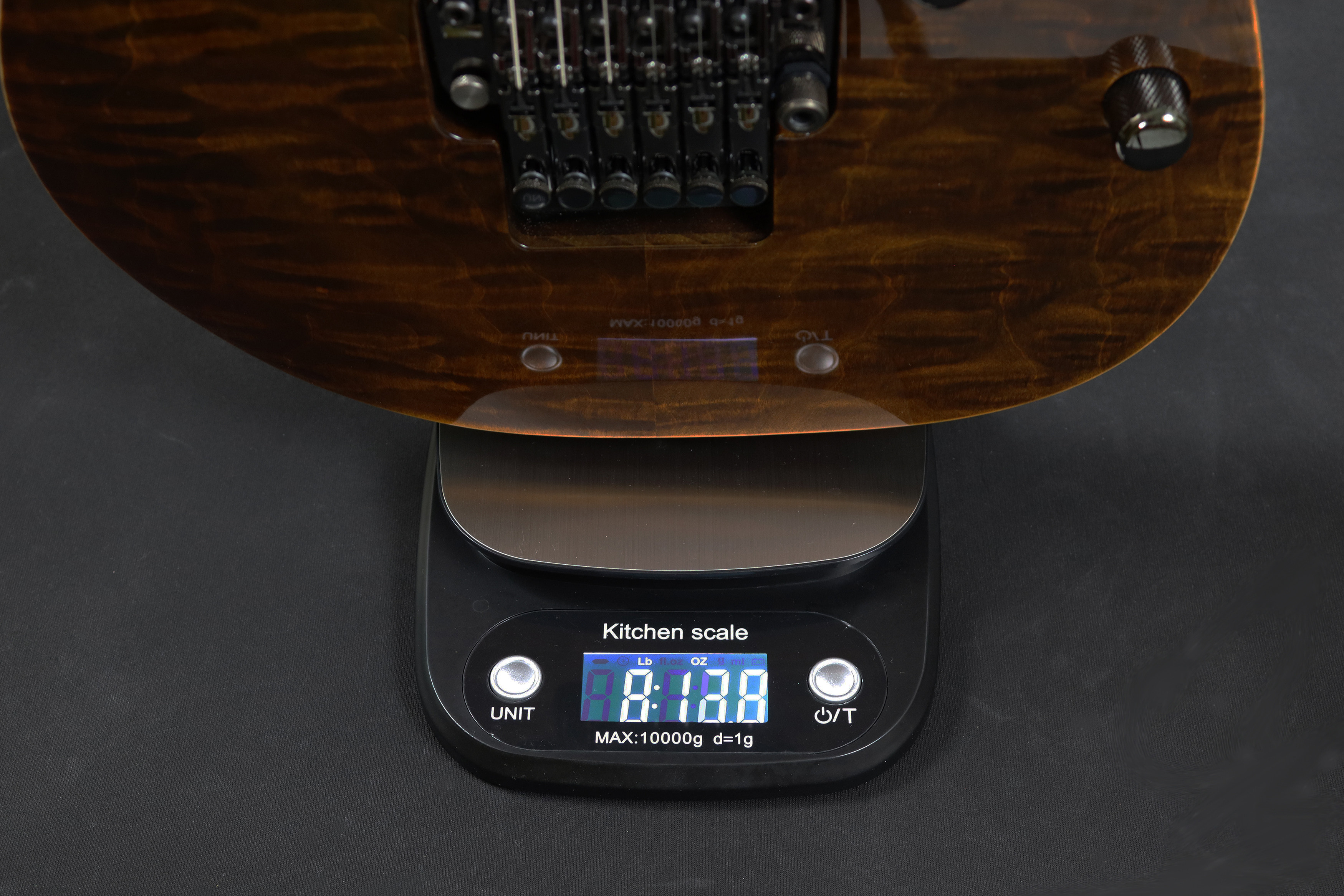

Weight	8-lbs 12.8-oz

body

Body Type	Solidbody
Body Shape	J-Custom Offset Double Cutaway

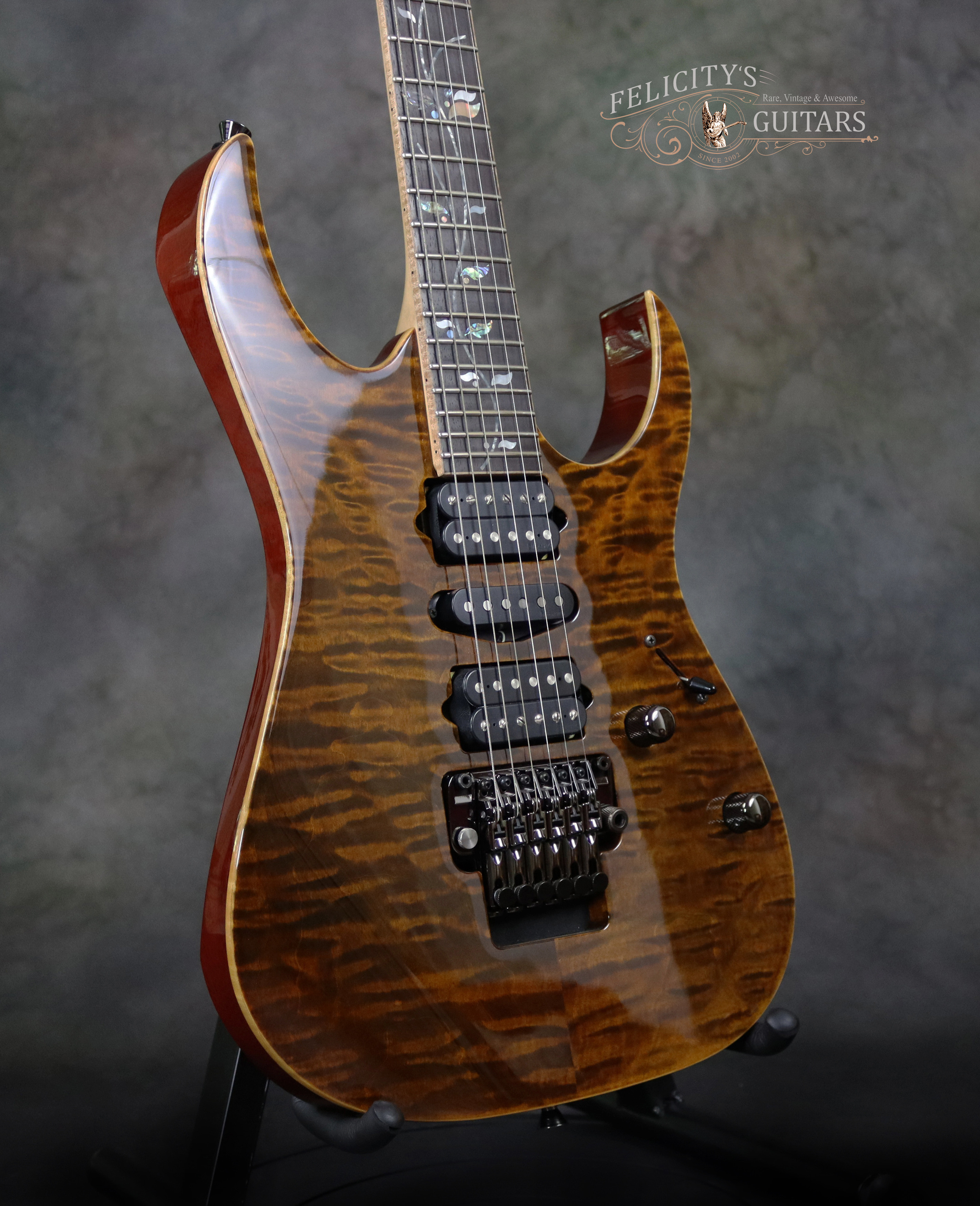

Body Material	2-pc African Mahogany with 2-pc Grade AAAA 4-mm Quilted Maple Top

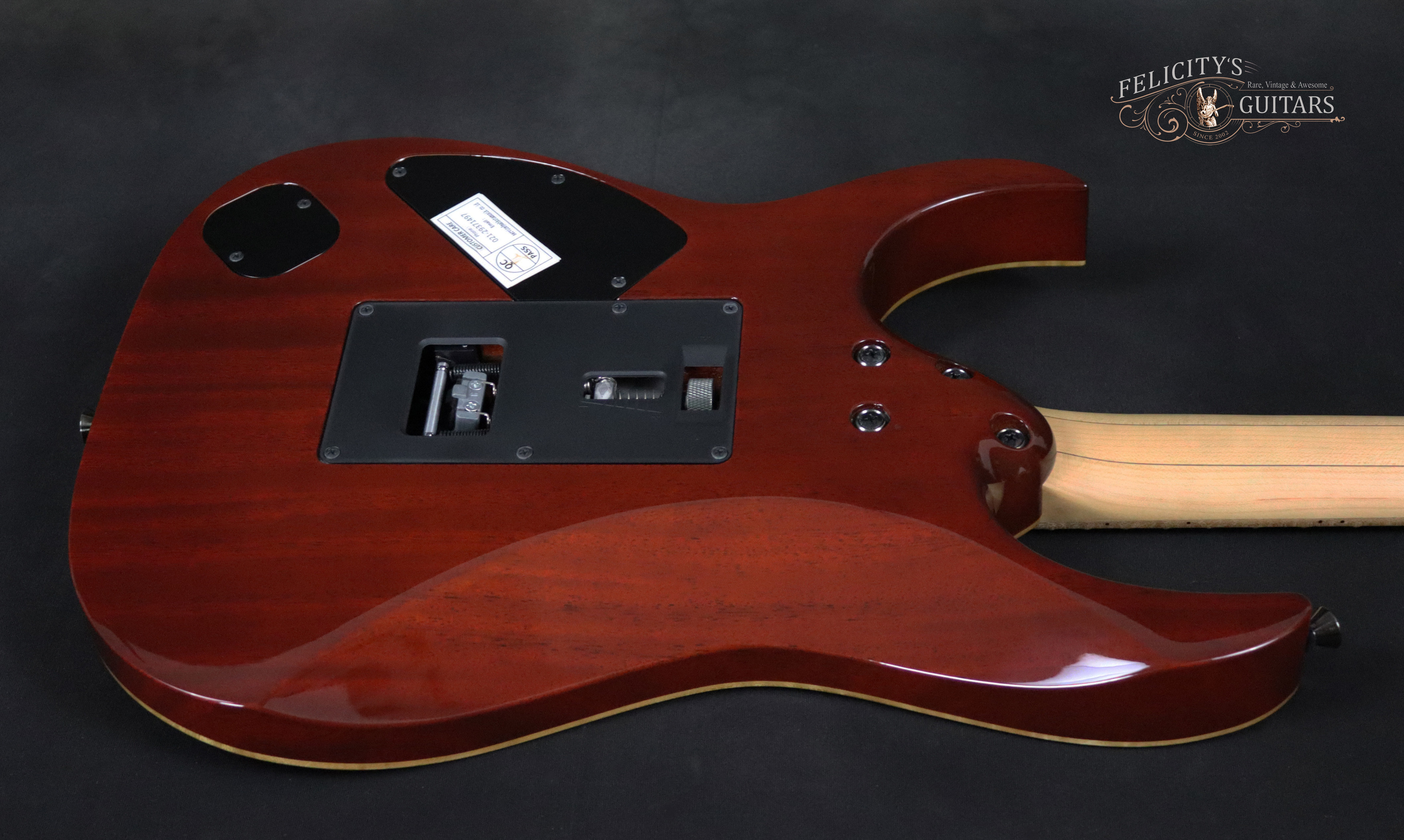

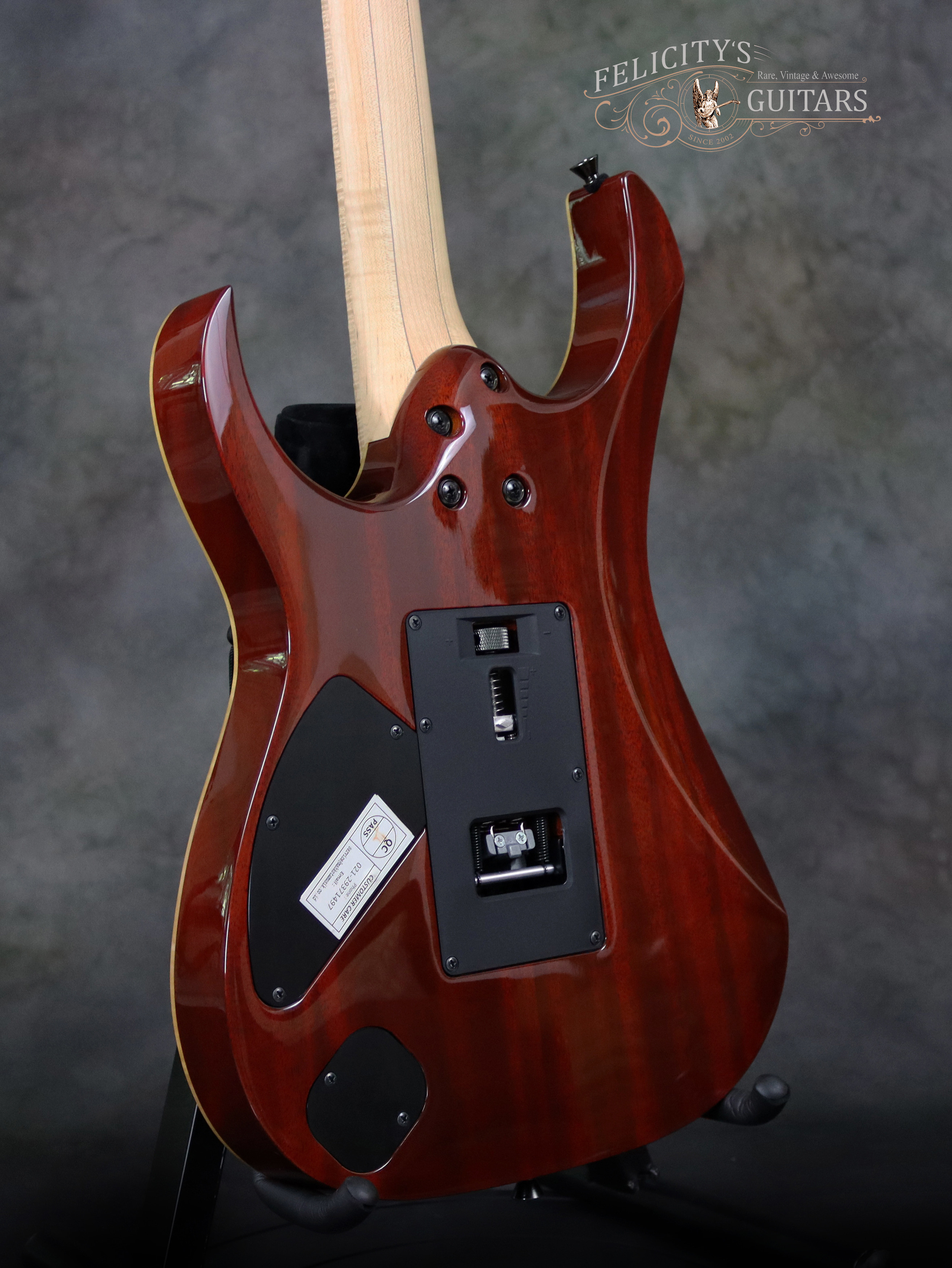

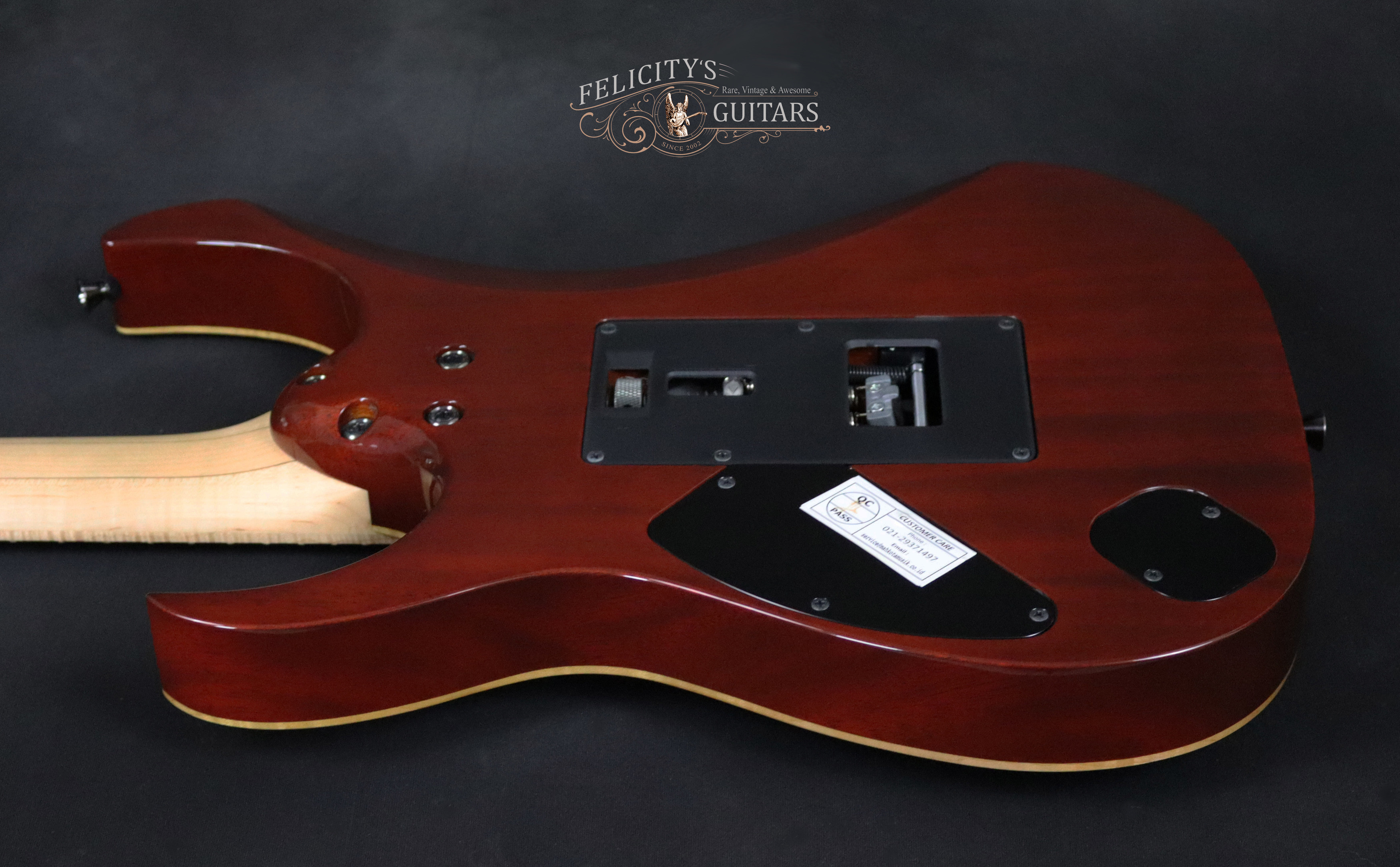

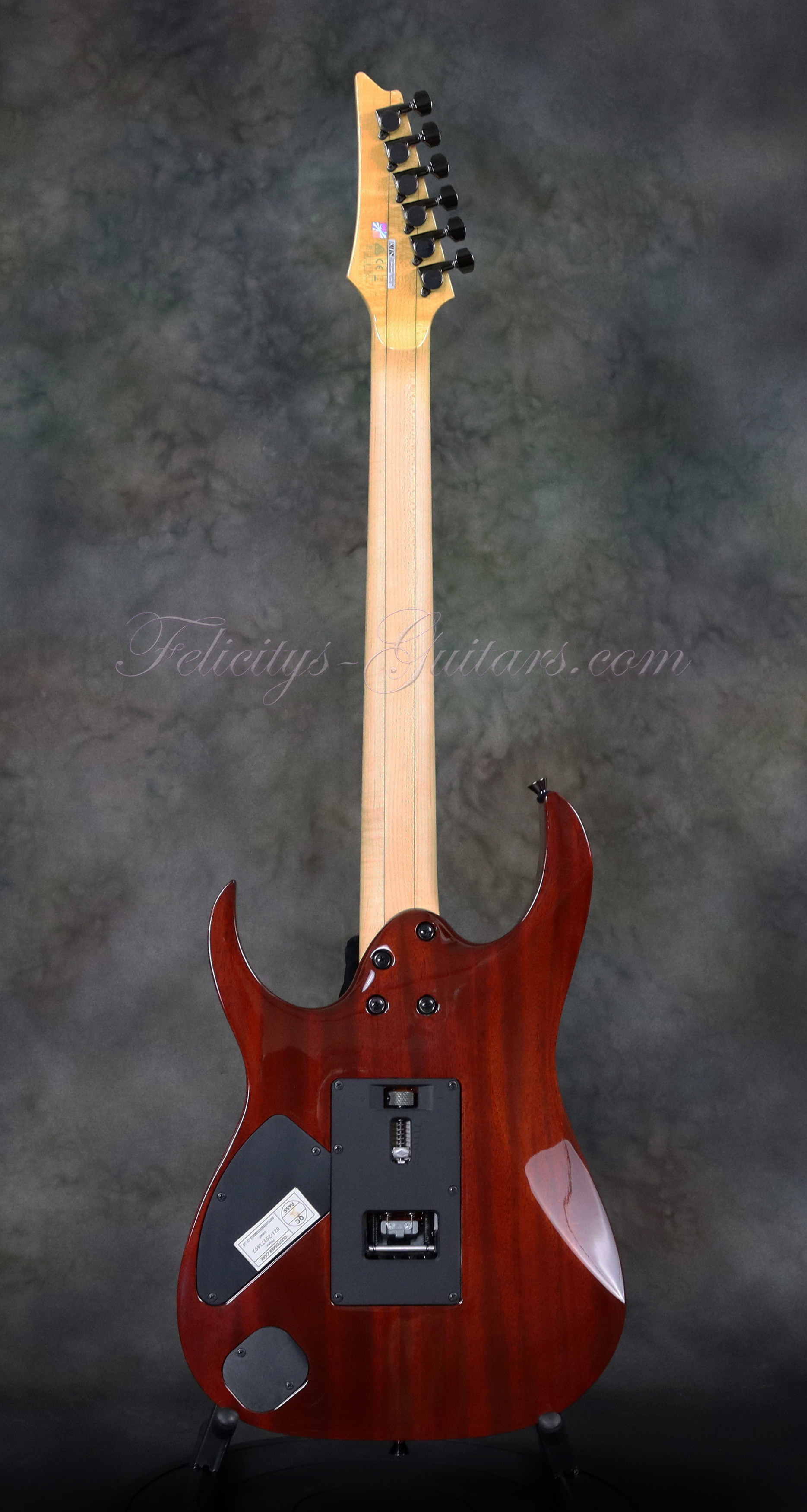

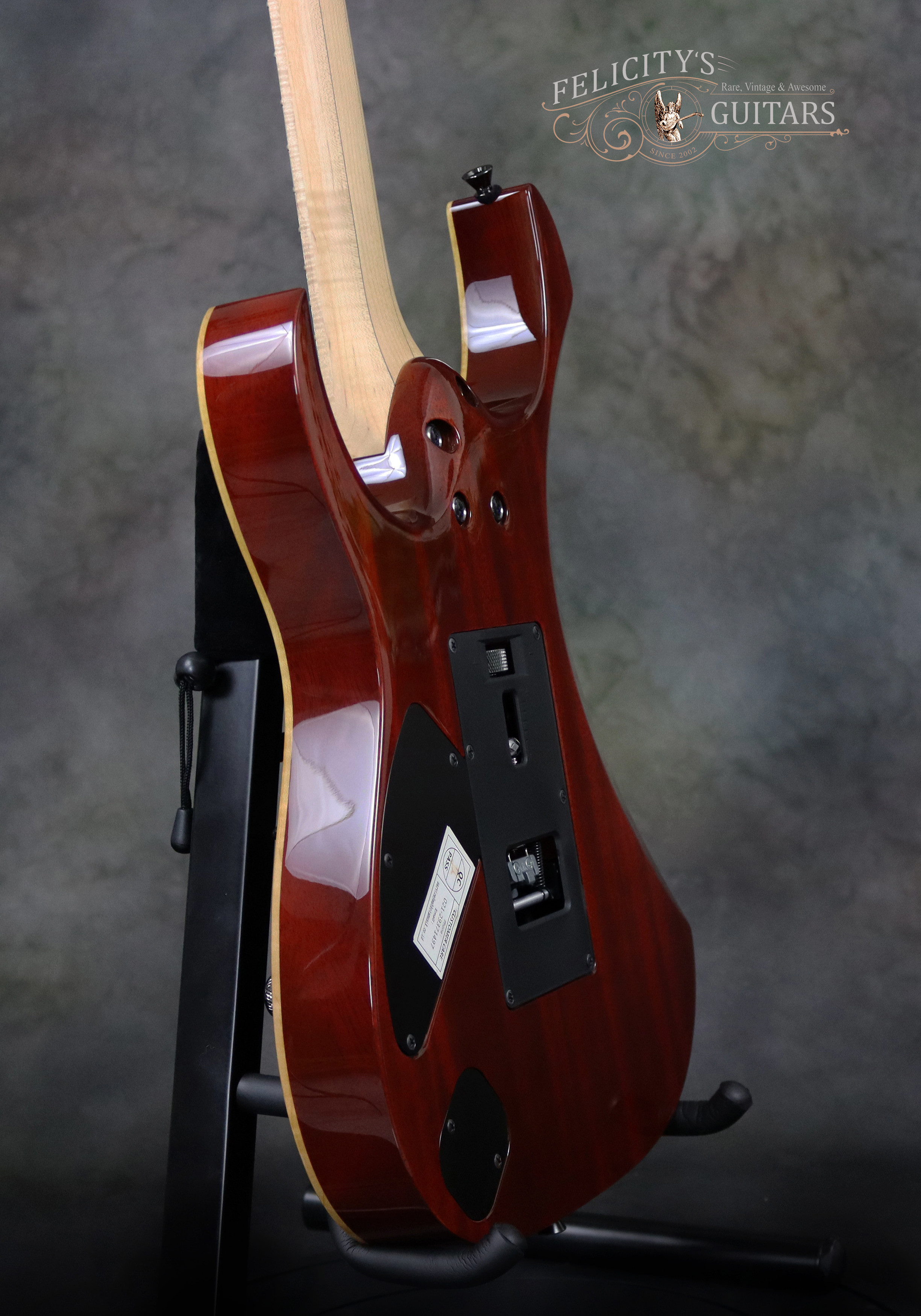

Body Carve	Front: Flat w/Arm Comfort Contour	Back: Flat w/Waist Contour
Body Binding	Front: 1-ply Flamed Maple	Back: Unbound
Weight Relief	Modern Chambered
Build Materials Used	Ibanez® Proprietary Bonding Adhesive
Body Finish Type	High-gloss Nitrocellulose Lacquer
Color	Front: Smoky Brown Topaz	Back & Neck: Transparent Burgundy

neck

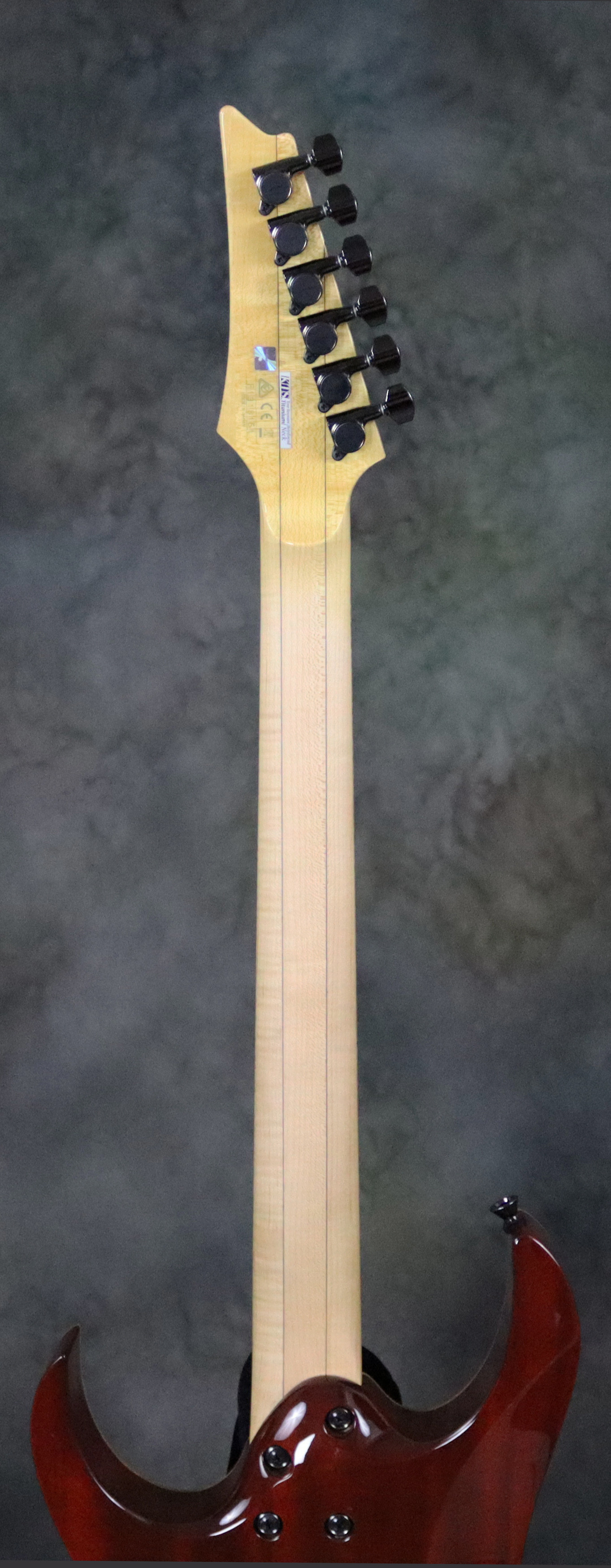

Neck Material	RG J-Custom Super Wizard 5pc Maple/Wenge neck with KTS Titanium Reinforcement
Truss Rod	2-way Adjustable Bi-flex
Truss Rod Cover	Uncovered

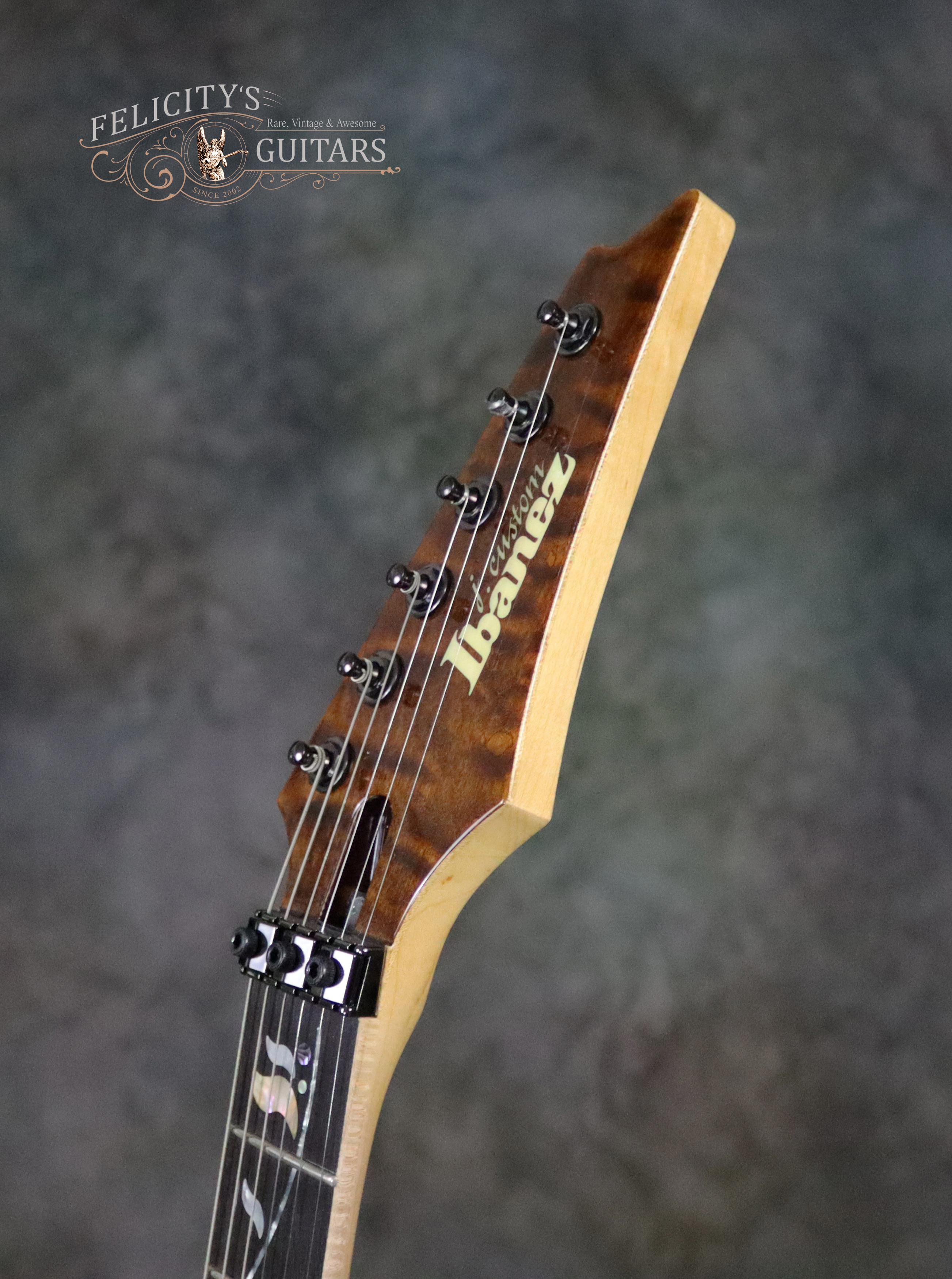

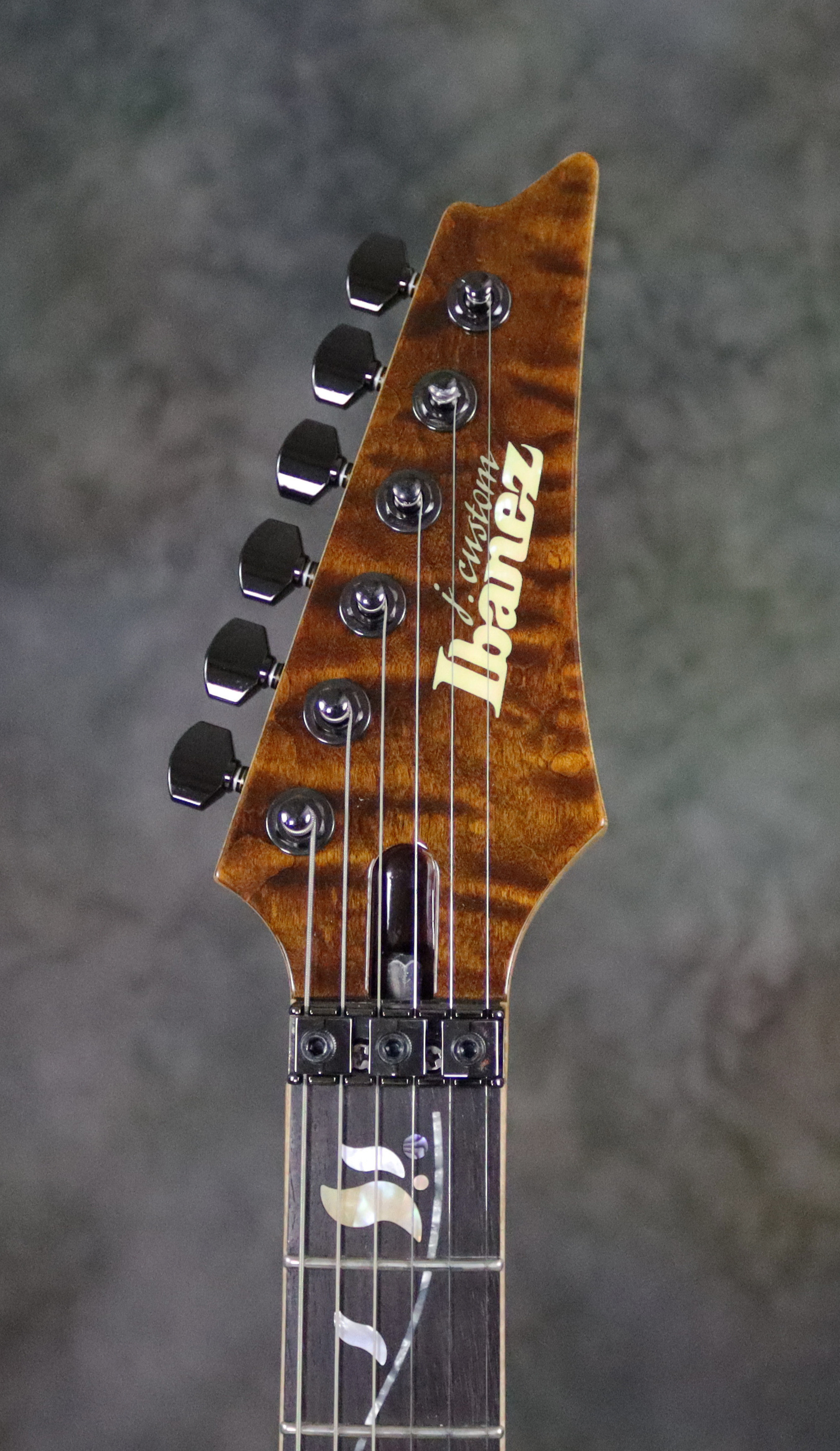

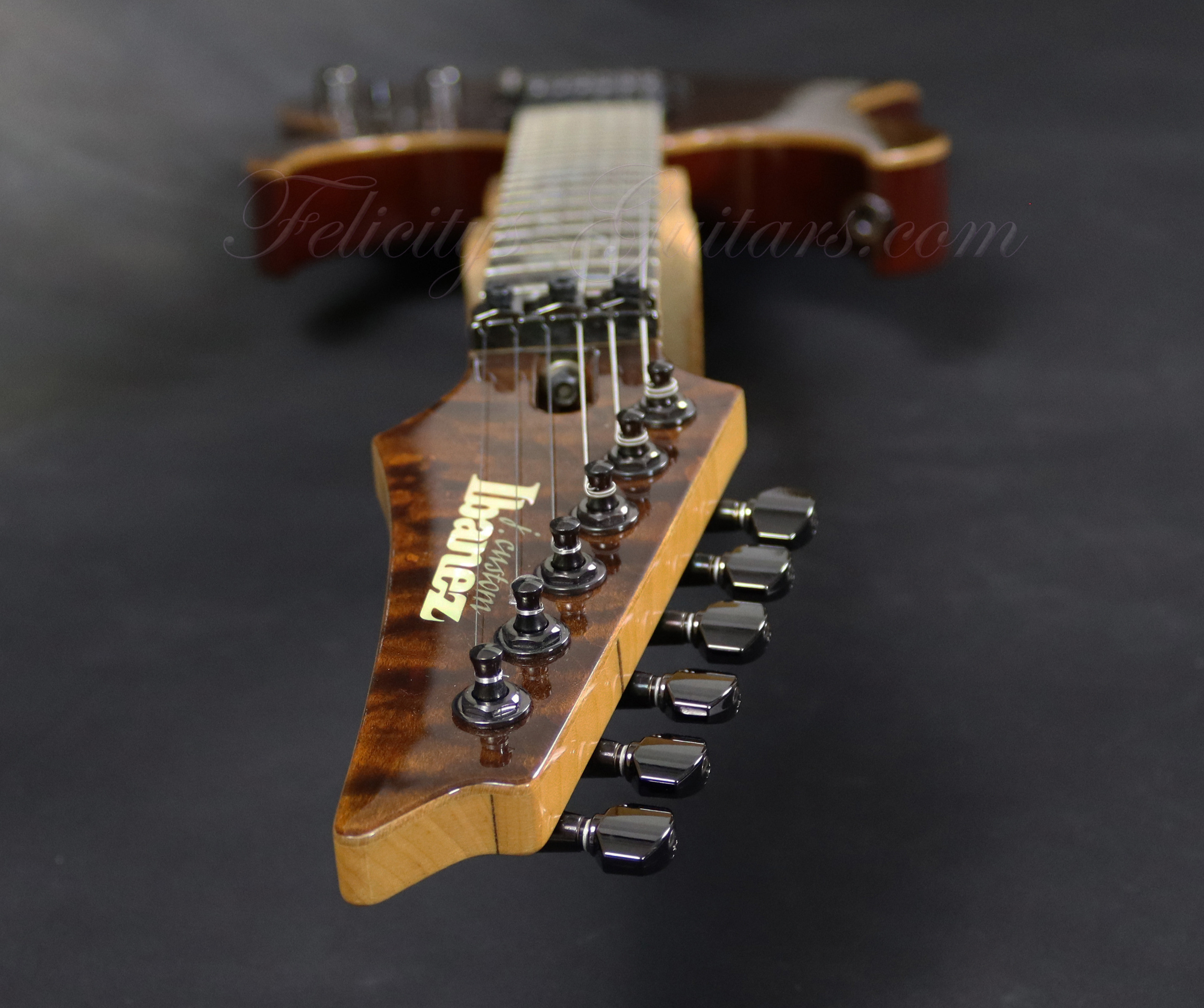

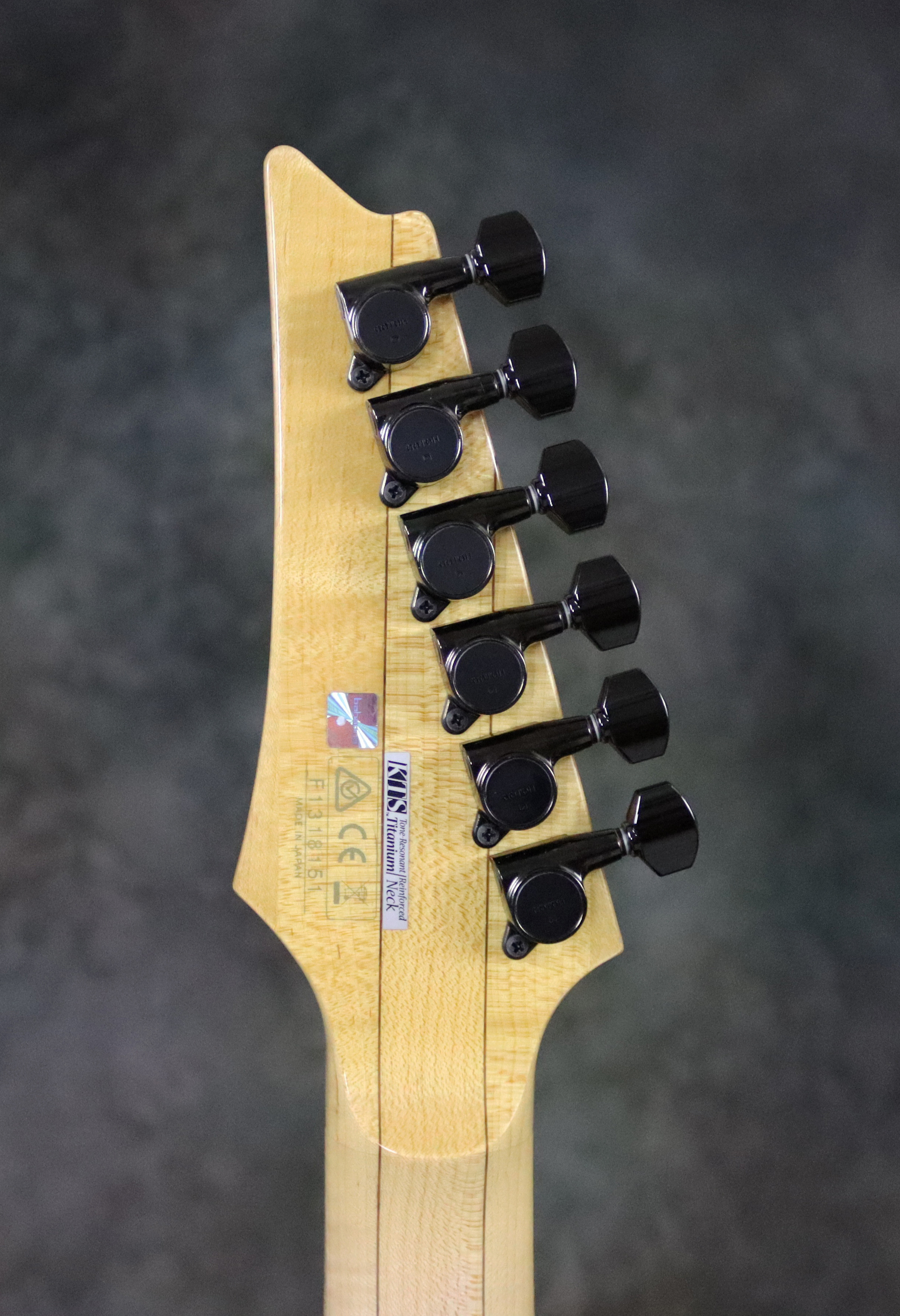

Peghead Particulars	Front: Unbound, RG-style matching headstock with Ibanez® Logo & J.custom Laminate
	Back: Hologram, KTS and Serial Number Decals
Neck Profile	Asymmetric ‘Super Wizard'
Fingerboard Material	Selected Bound Macassar Ebony
Fingerboard Radius	16.9”
Scale Length	25.5"
No. Frets / Type	24 Jumbo Frets / J-Custom fret edge treatment

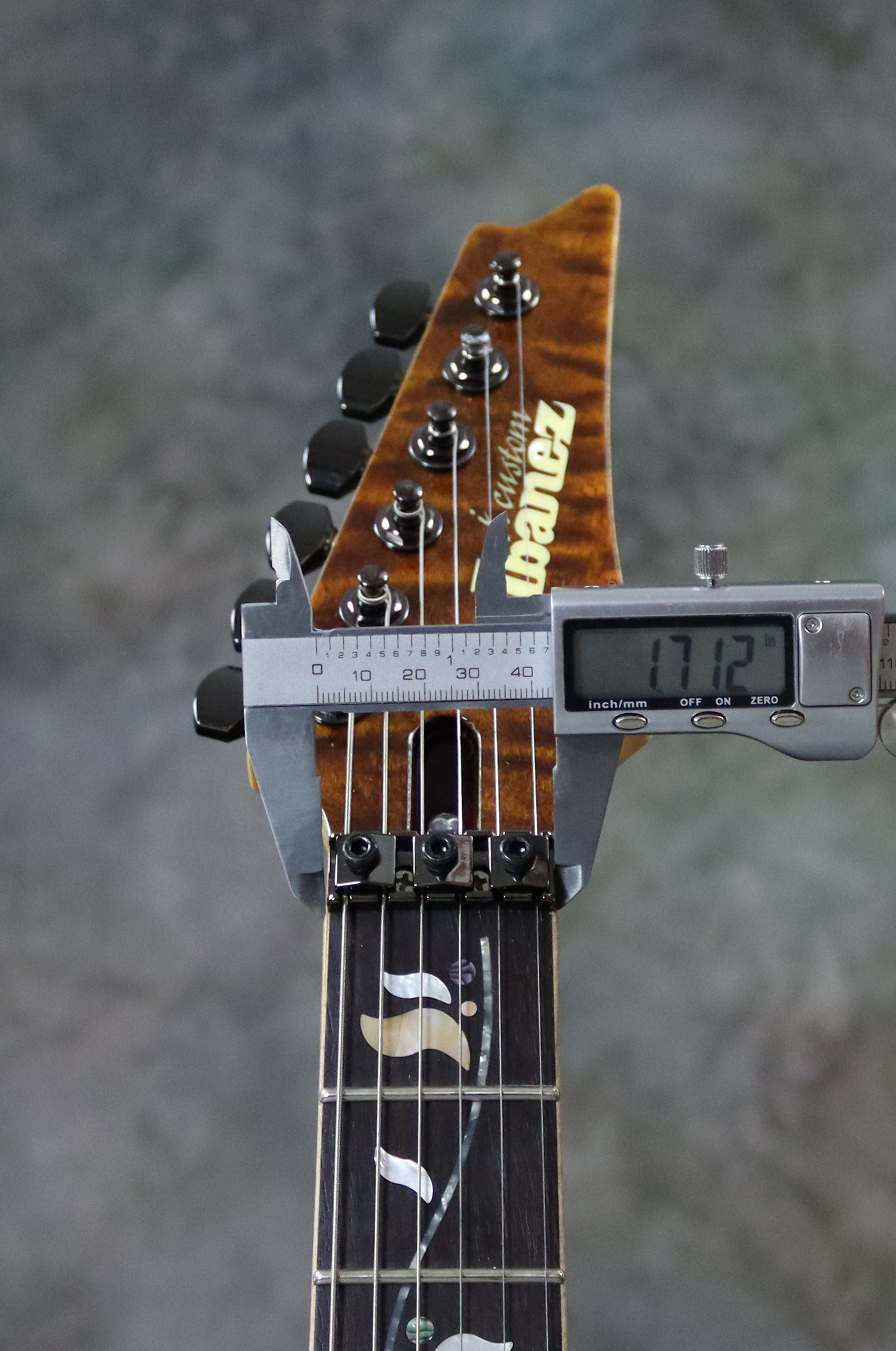

Nut Size / Material	1.693” / FR-style locking

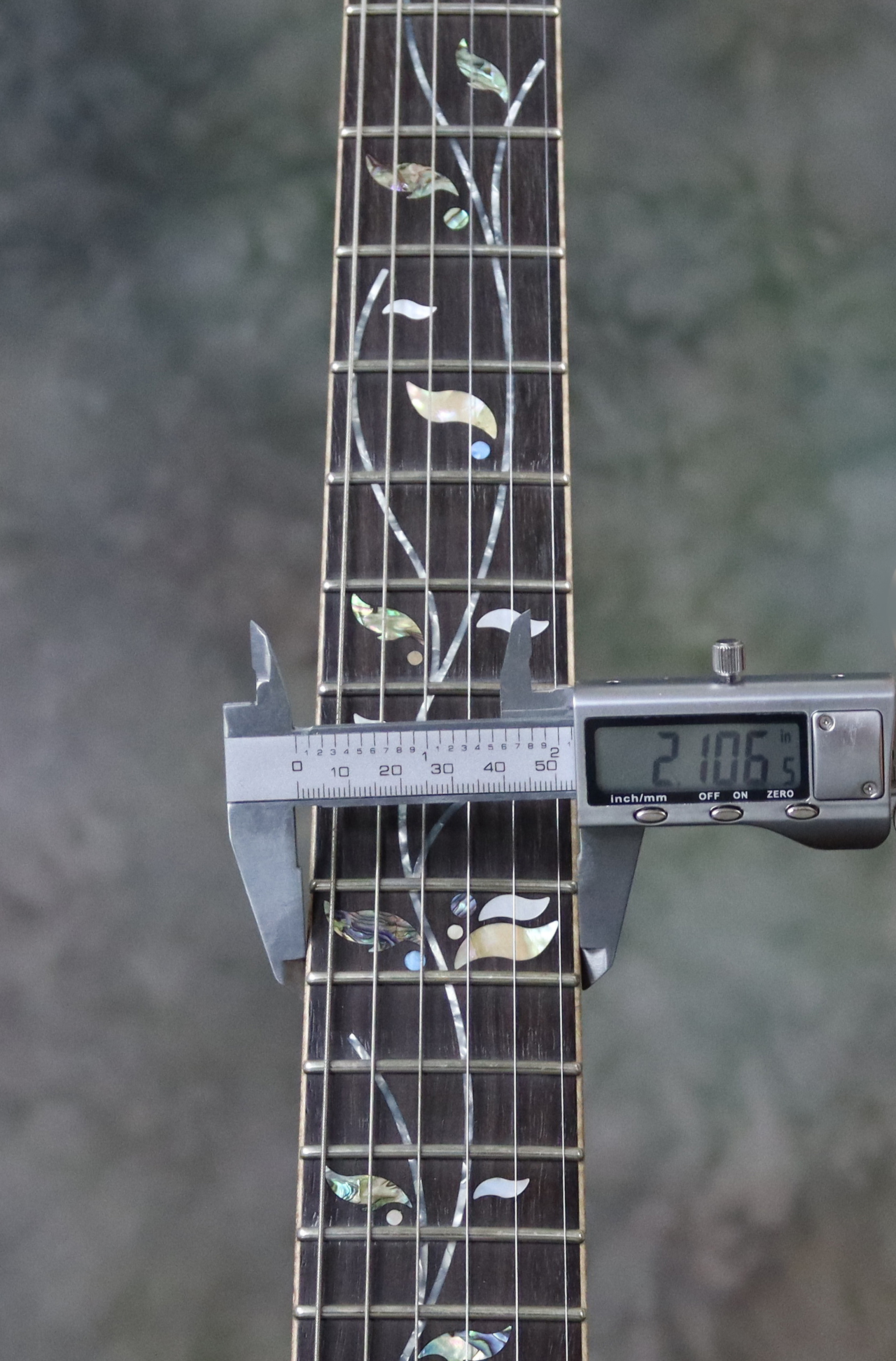

Neck Width	1.693” at 1st fret / 2.106” at 12th Fret / 2.283” at 24th fret
Neck Depth	0.669” at 1st Fret / 0.748” at 12th Fret

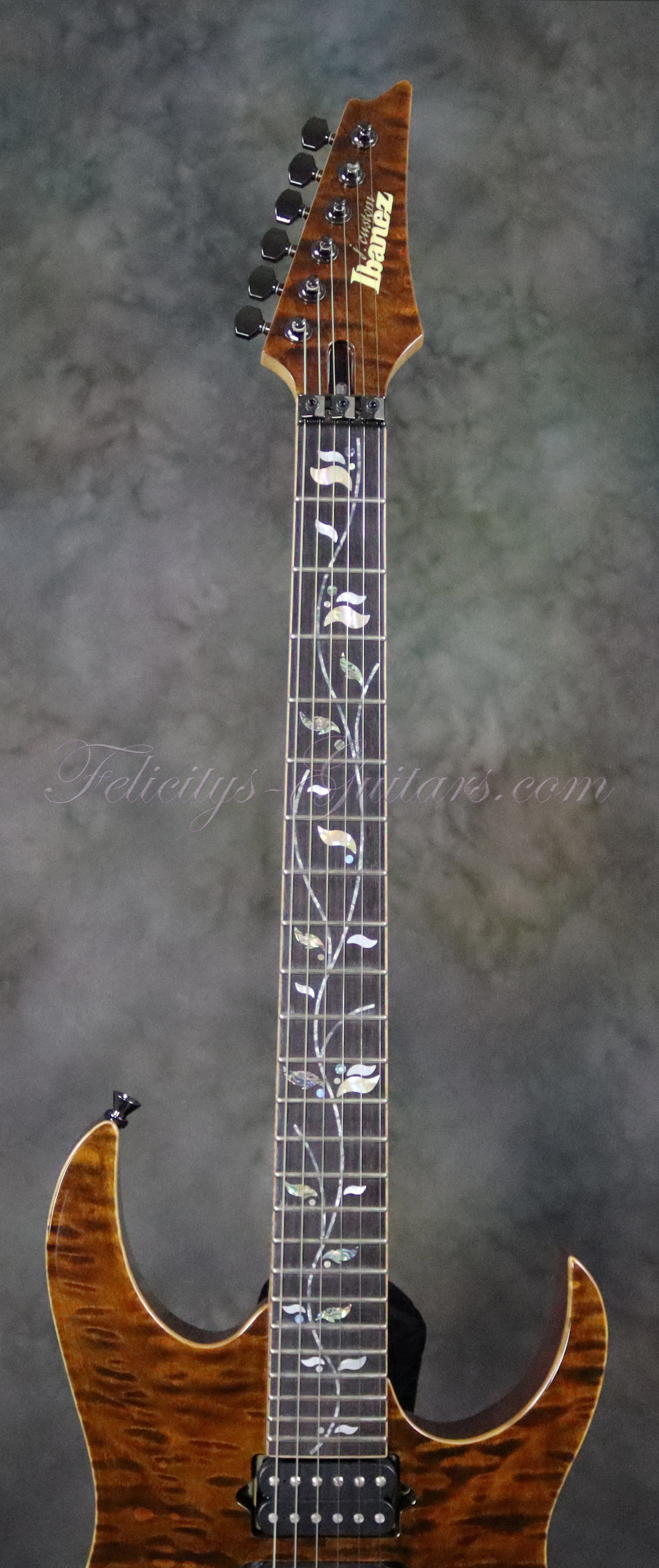

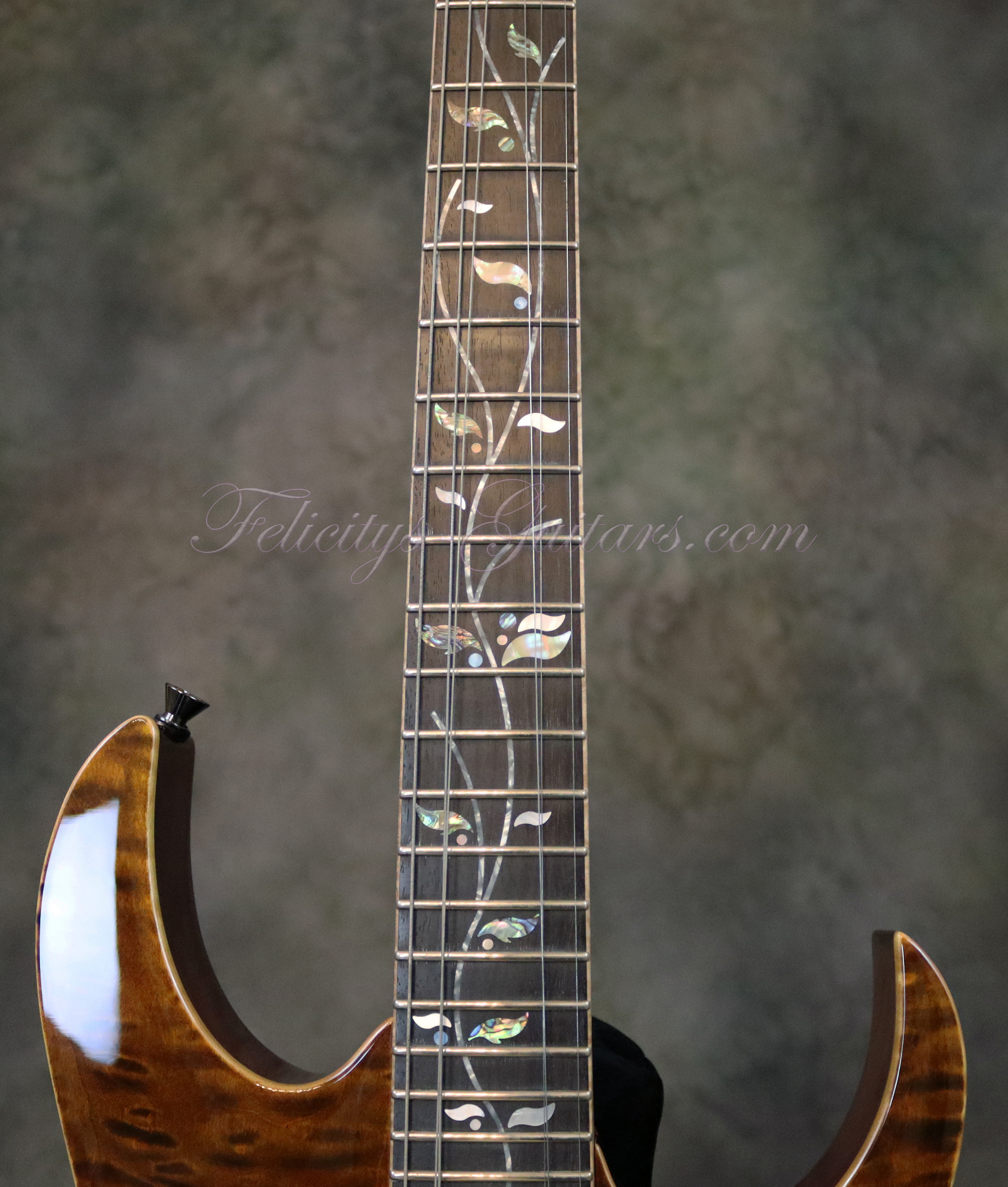

Fingerboard Inlays	Genuine Abalone and Mother of Pearl “Tree Of Life” inlays

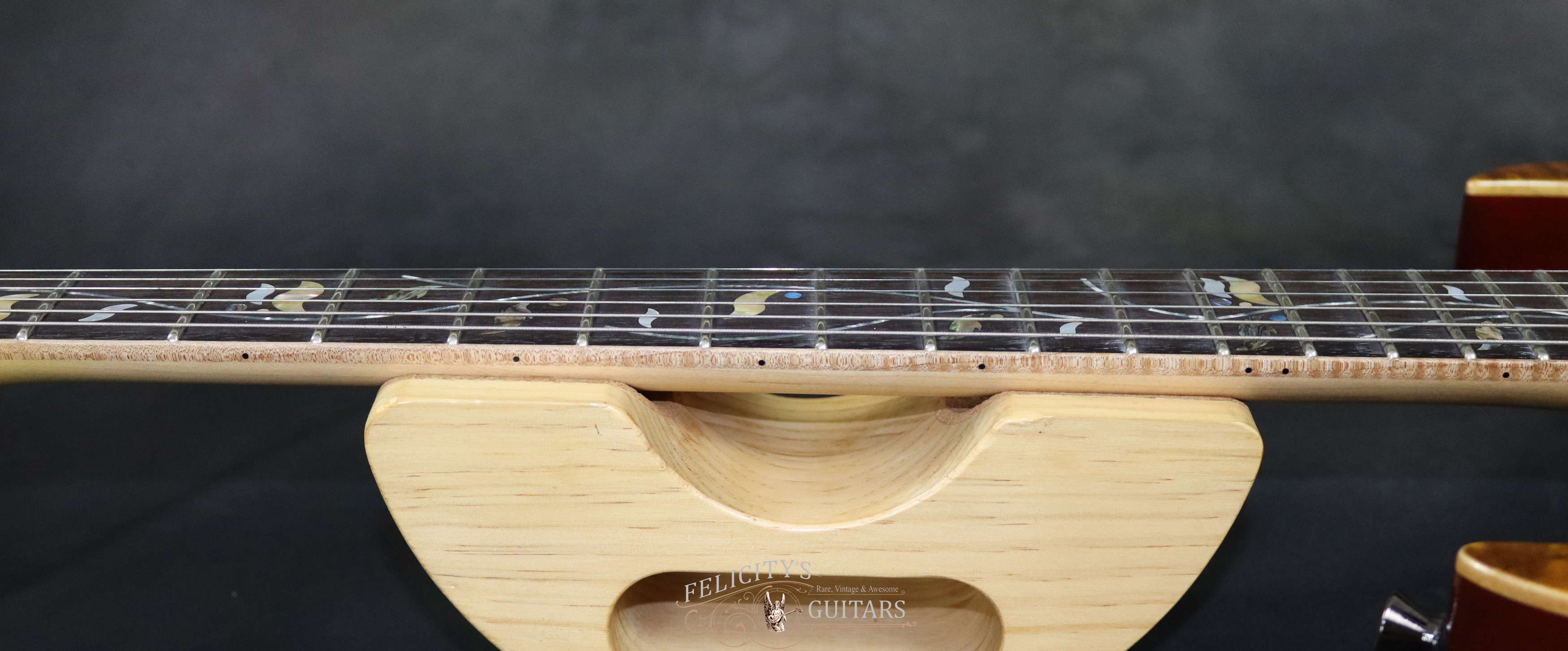

Neck Binding	Flamed Maplewood binding
Side Dots	Black

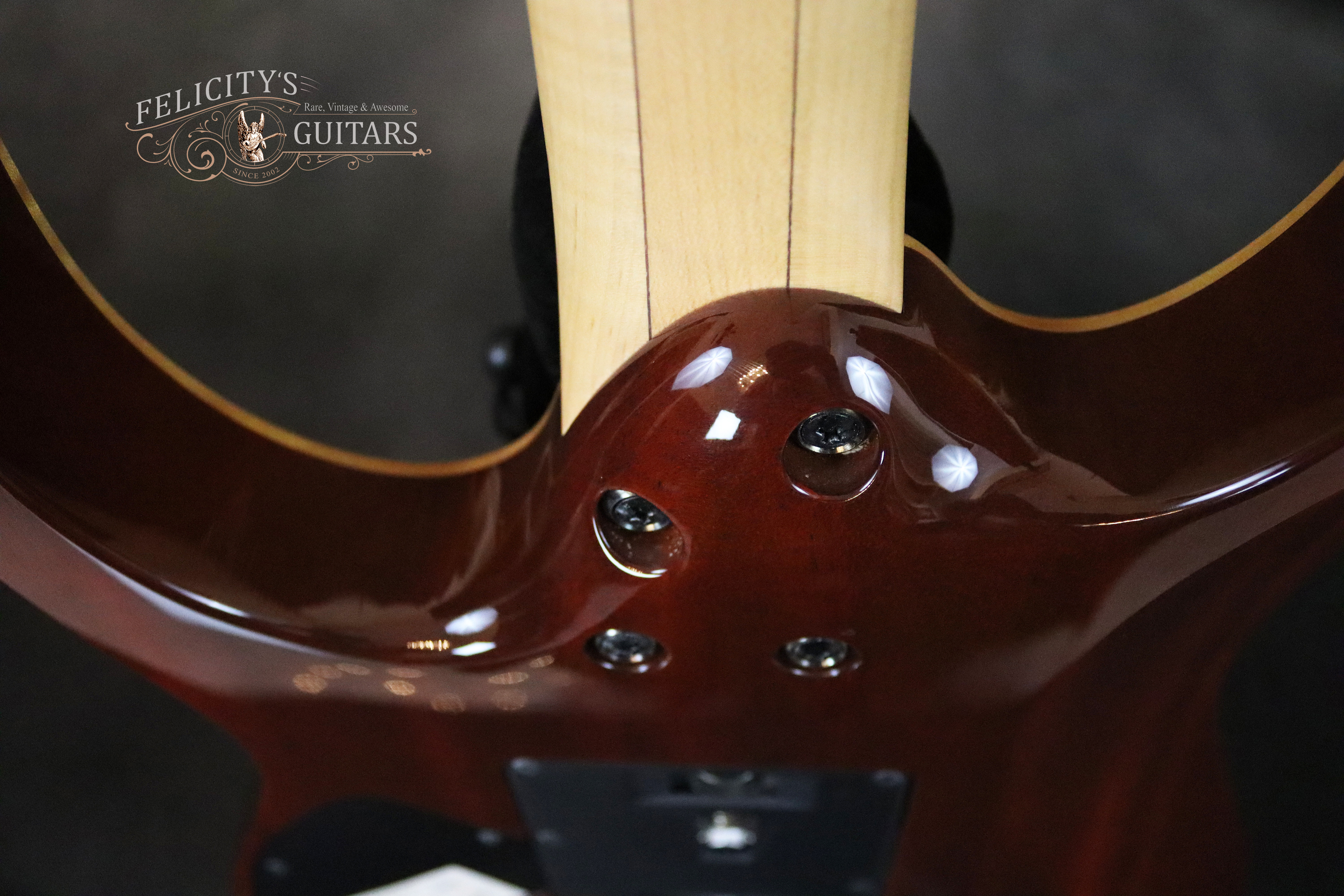

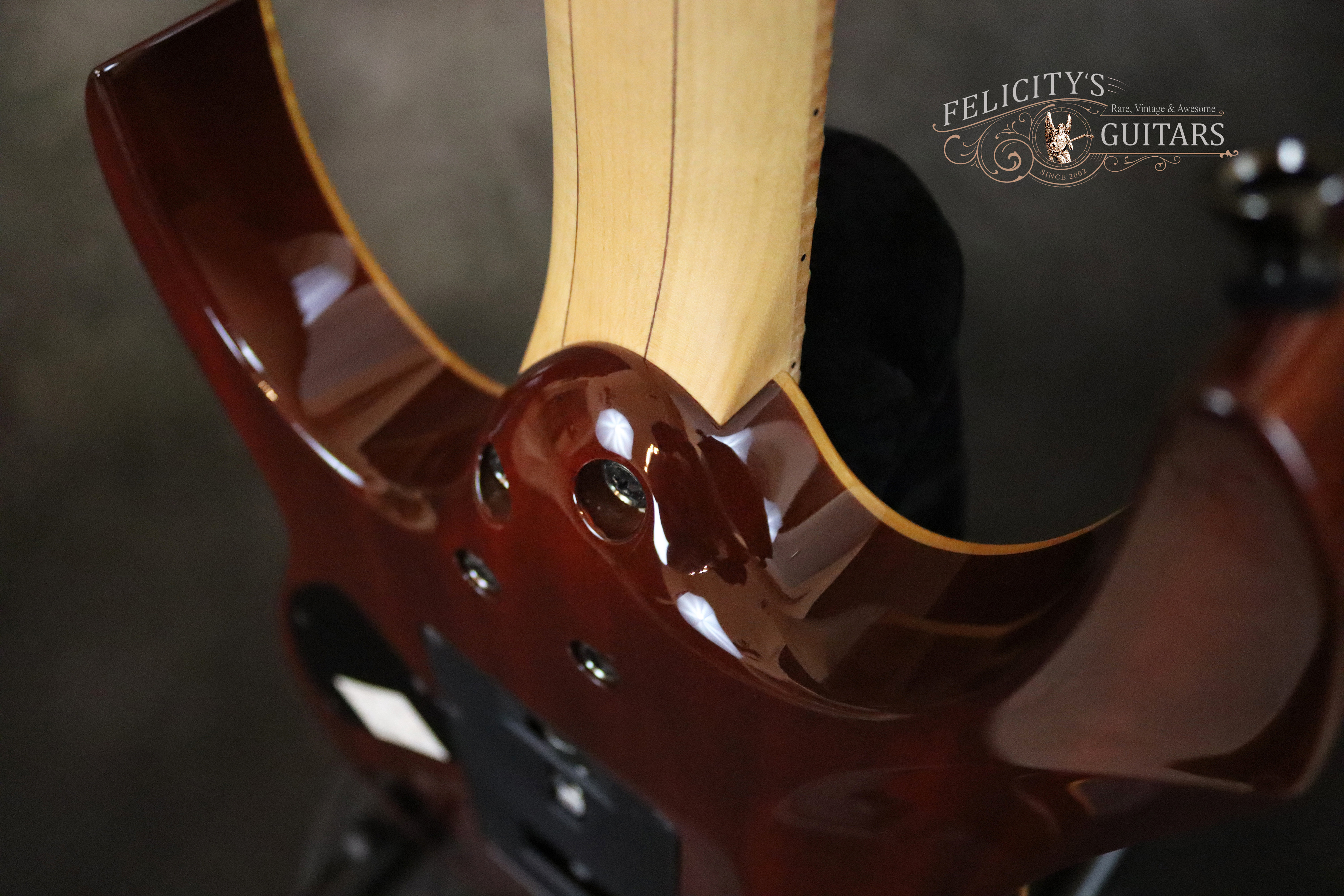

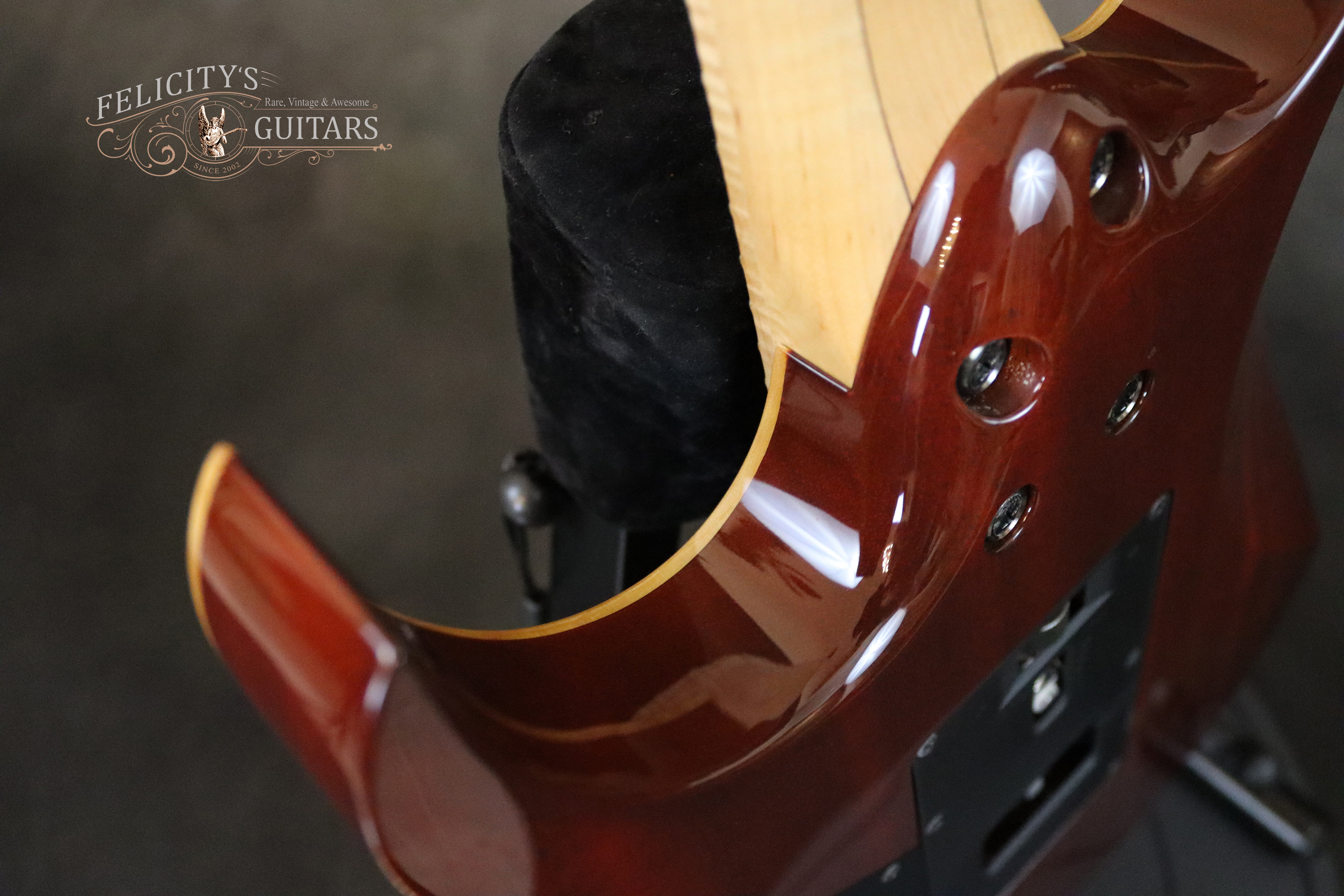

Neck Joint	Bolt-on w/Access Heel (AANJ)

hardware

Finish	Cosmo Black Chrome
Bridge / Tremolo	Ibanez® Edge Zero locking Tremolo ZPS3, Duralumin, 0.42520” String Spacing
Tailpiece	No

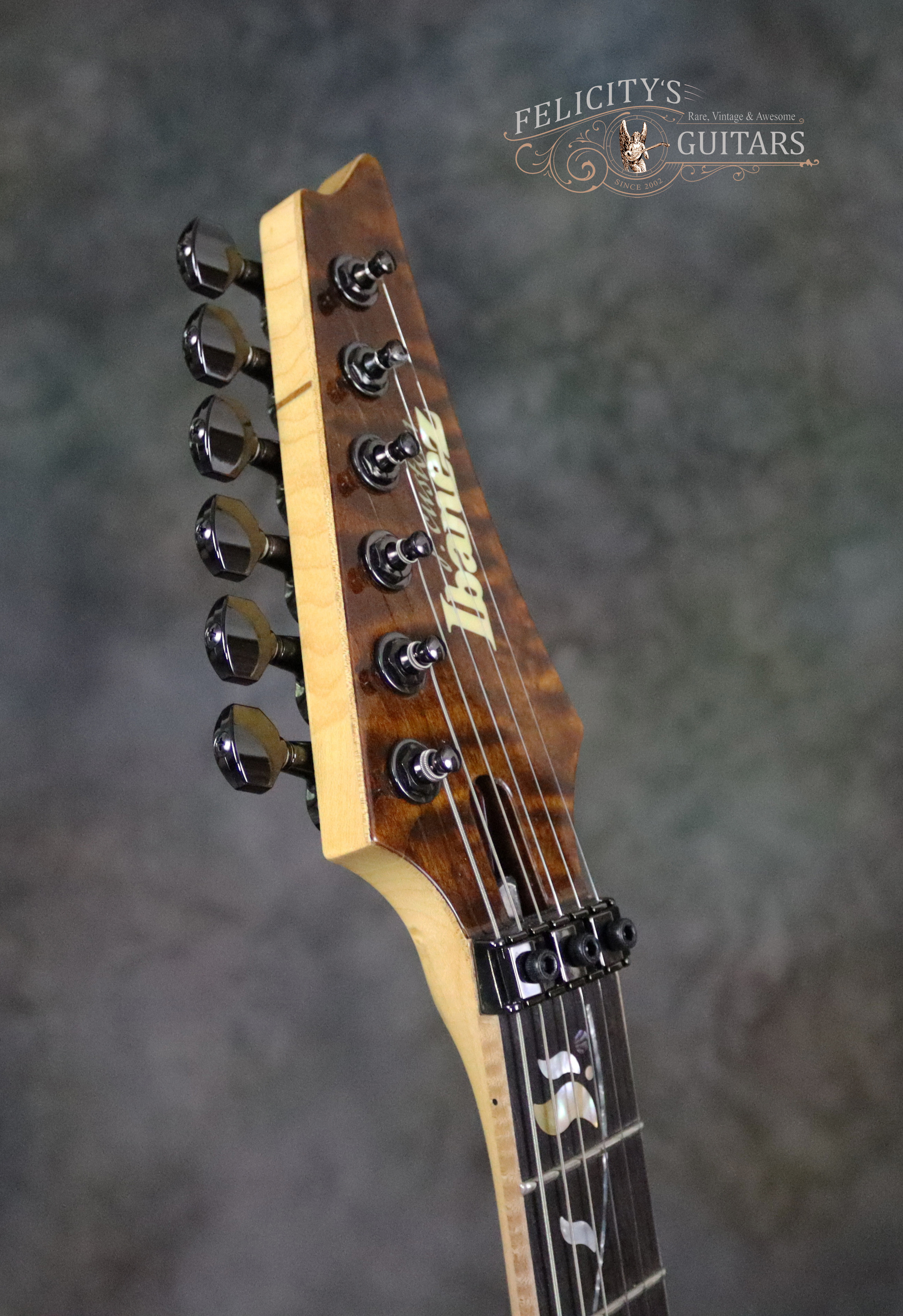

Tuning Machines	Gotoh® SG381 (non-locking) Machine Heads, 16:01 Ratio
Pickup Cover / Ring	Uncovered, no Mounts or Dress Rings
Strap Buttons	Gotoh® Free Lock Pins
Pickguard	No
Control Knobs	Knurled Body, Oval-top, with no Dial Pointers
Switch	Black Plastic Tip 5-pos Sliding (Strat Style)

electronics

Bridge Pickup	DiMarzio® Tone Zone™ Humbucking, Alnico V, DCR 17.31k
Middle Pickup	DiMarzio® True Velvet™ Singlecoil, Alnico V, DCR 6.21k
Neck Pickup	DiMarzio® Air Norton™ Humbucking, Alnico V, DCR 12.58 k
Active / Passive	Passive
Series / Parallel	Series
Controls	1 Volume, 1 Tone, 5-Way Pickup Toggle
Vol Potentiometer	500k
Tone Potentiometer	500k
Capacitors	.022uF – 20% − 100v values
Harness	Ibanez® J-Custom Hand-wired Harness
Push-pull	No
Piezo	No
Active EQ	No
Kill switch	No

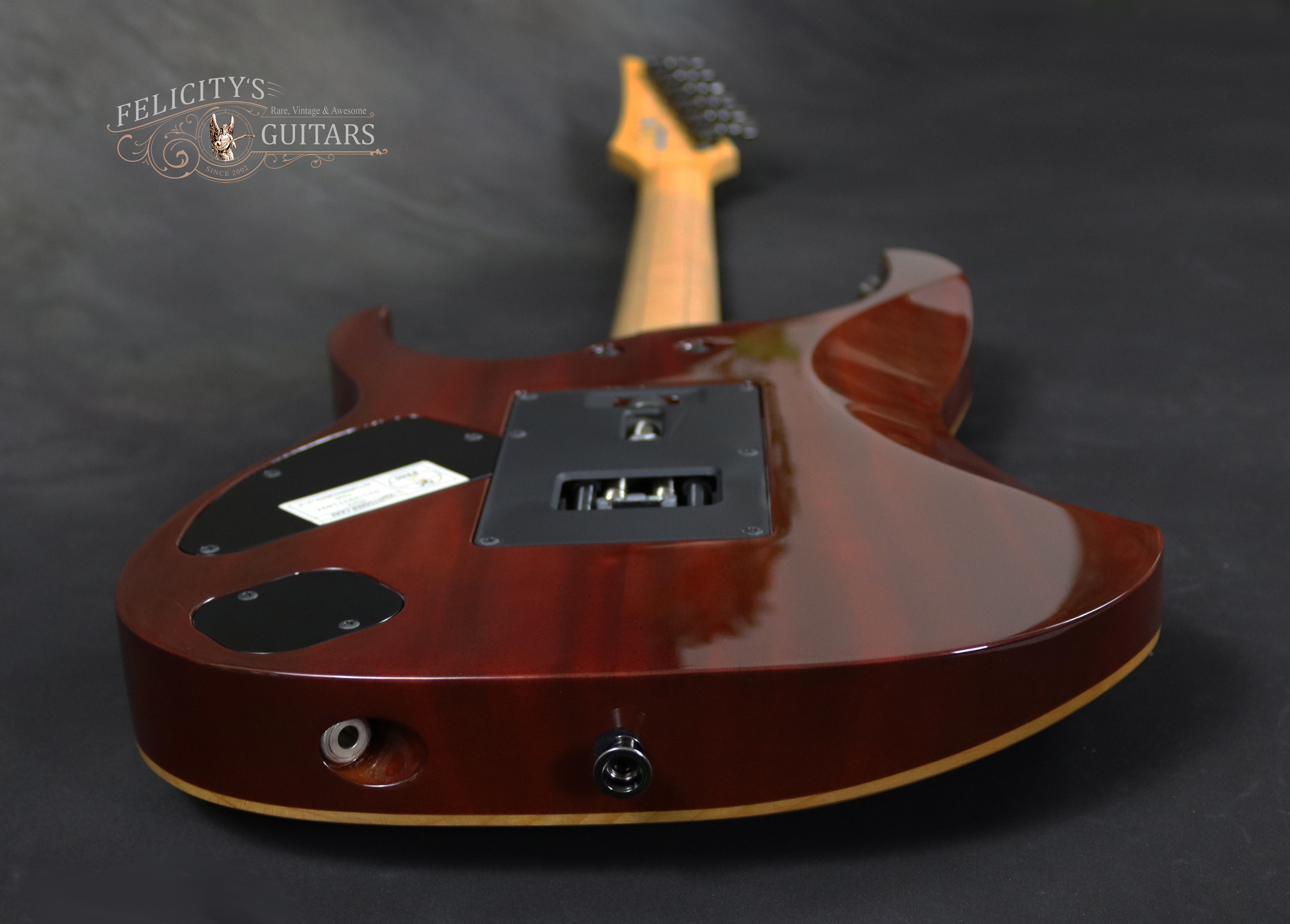

Output Jack	1/4" 2-Conductor

miscellaneous

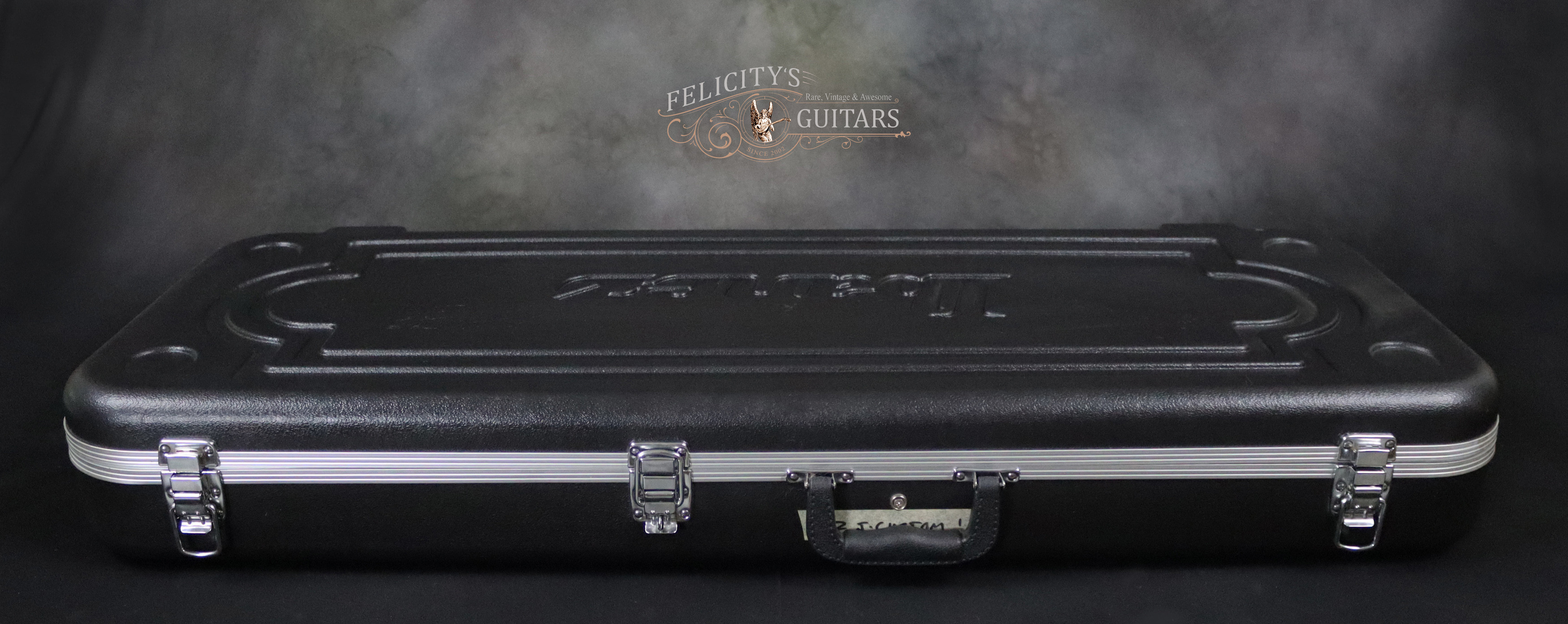

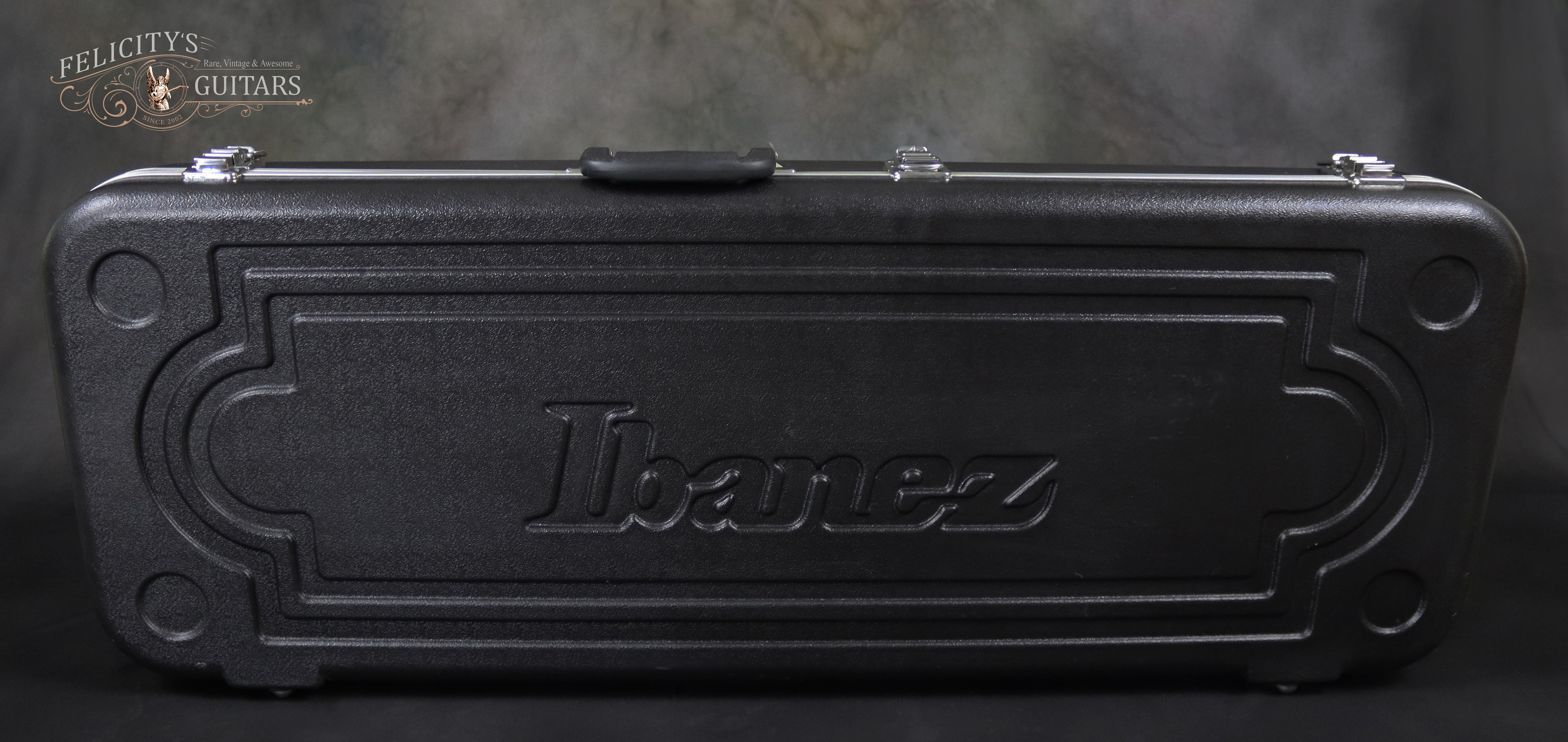

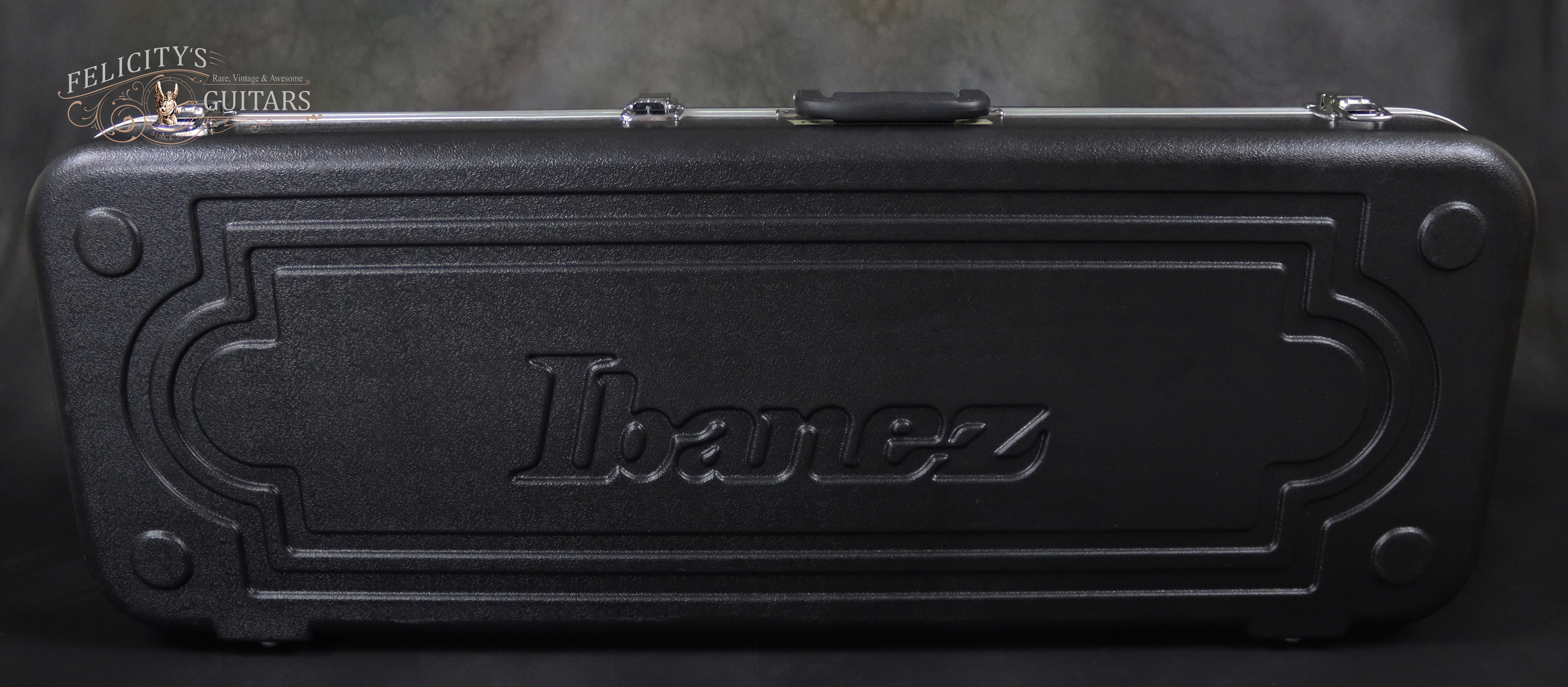

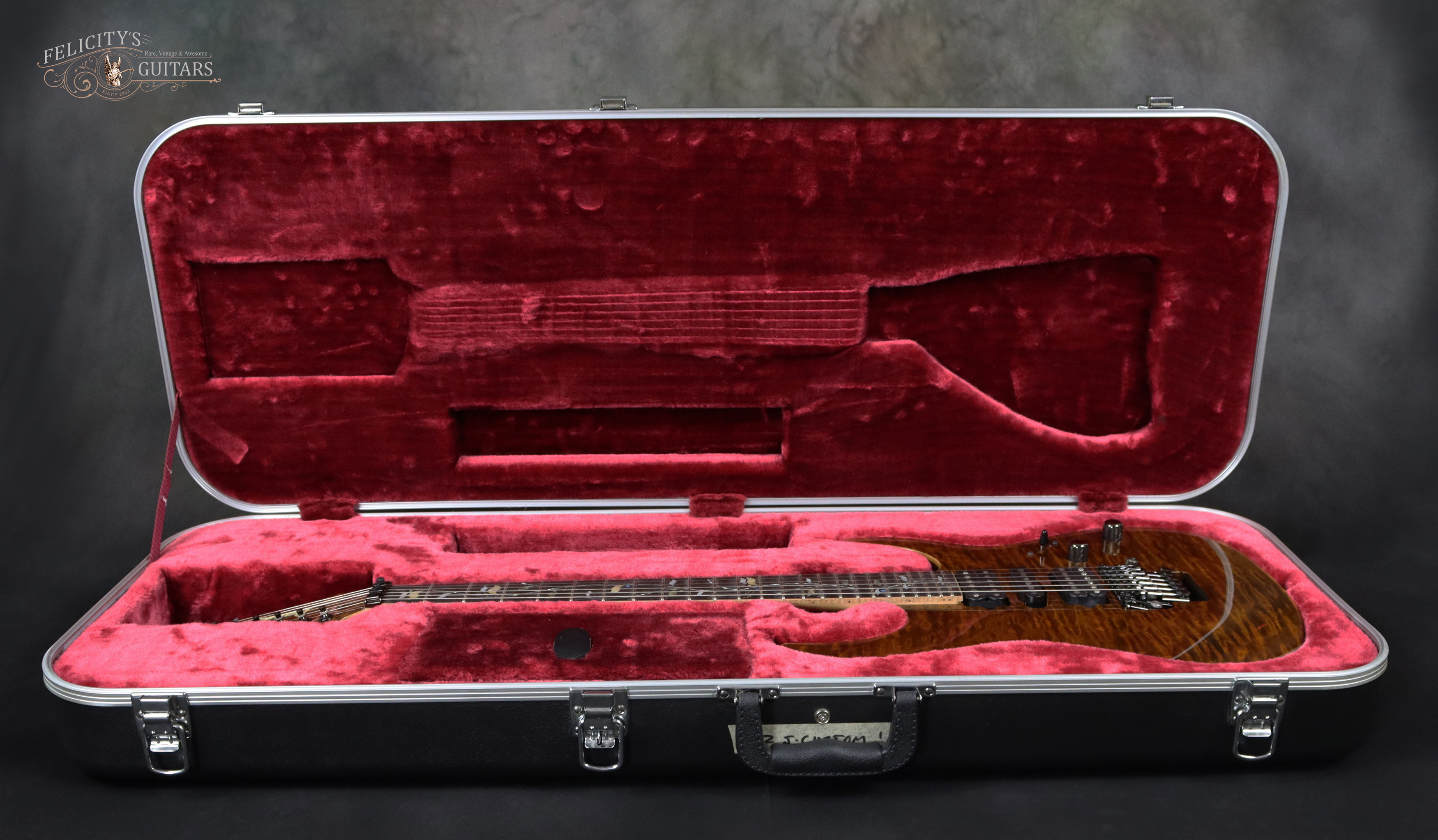

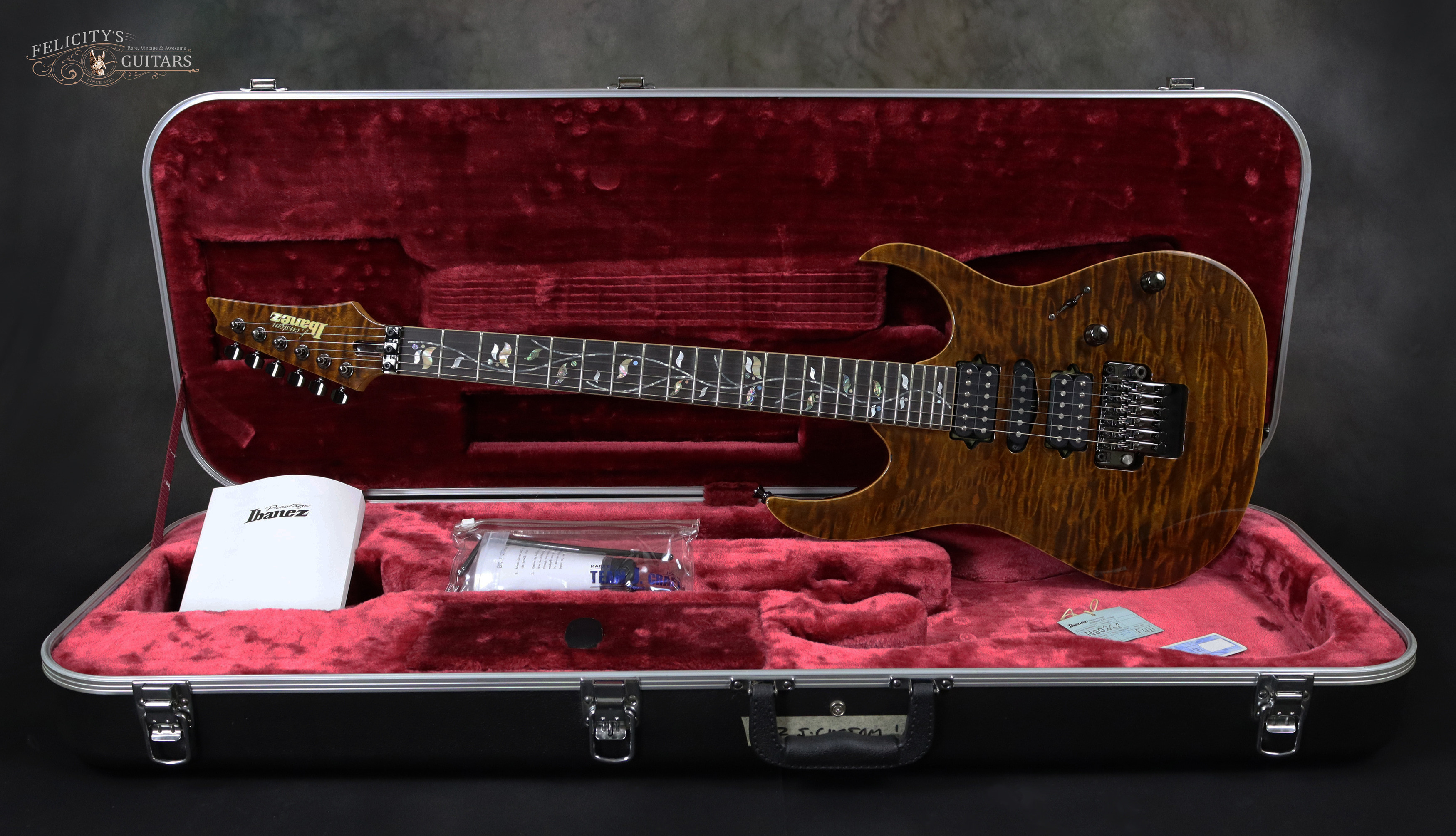

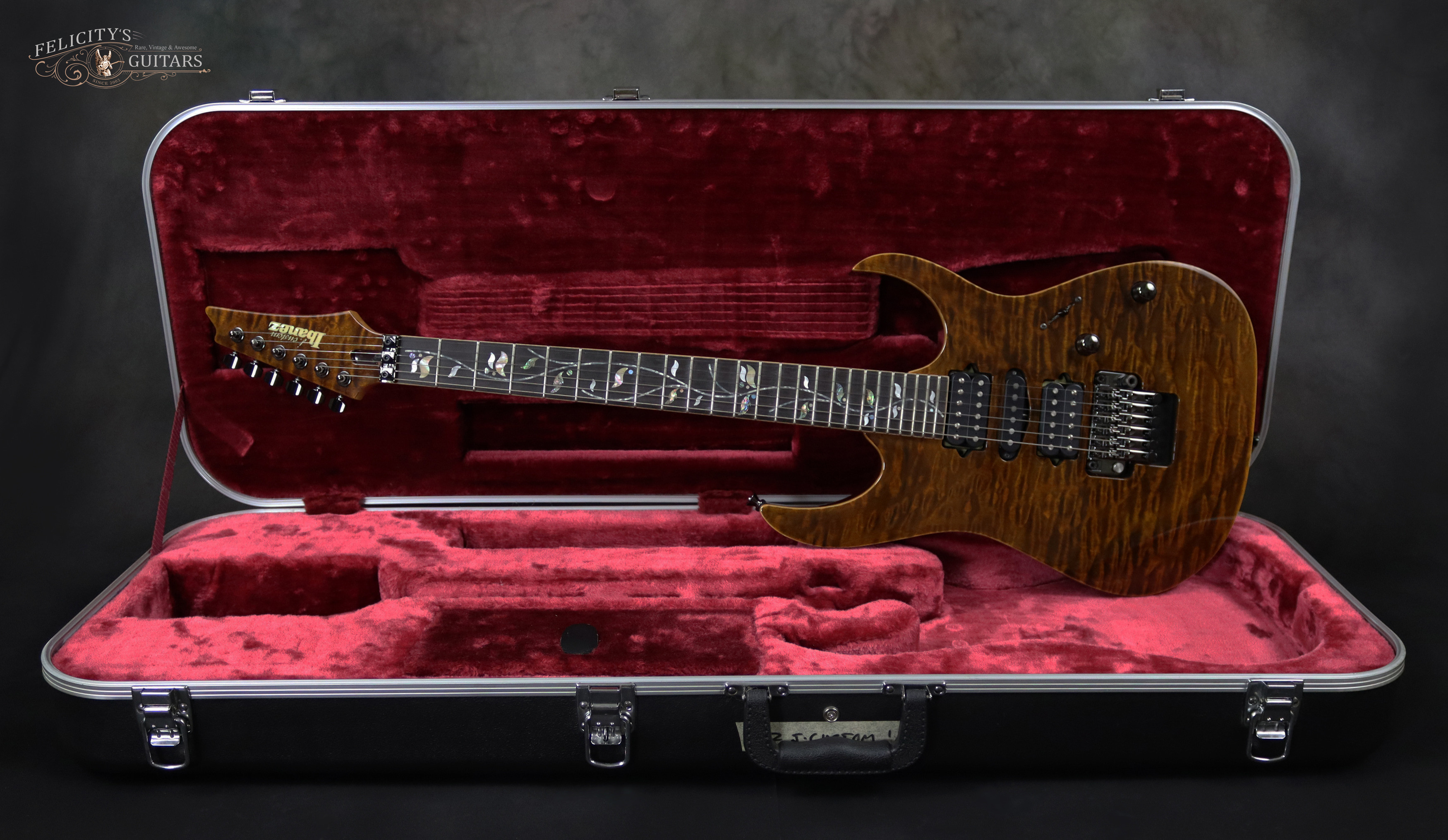

Case / Gigbag	Ibanez® "Team J. Craft" form-fit Hardshell Case with plush Cranberry Interior
Strap Locks	Gotoh®
Strings	D'Addario® EXL120 .009, .011, .016, .024, .032, .042 Gauges
Tools / Accessories	Factory accessories (sealed/unopened) Strap locks, Tremolo Arm, Truss Rod Wrench
Manual / Literature	Ibanez® Japan (Multi-lingual) Owner’s Manual, Warranty Card and all Hang-tags
C.O.A.	Hardbound Certificate of Authenticity
Other	No
Weight	Is the actual weighed-value in US Standard Units

Disclosure	Some technical specs above are taken from Ibanez® website / internet archives. The words Ibanez® / Gotoh®/ DiMarzio® and the associated designs are registered trademarks of Hoshino Gakki Co. Ltd., Inc. and the other named manufacturers, respectively.
