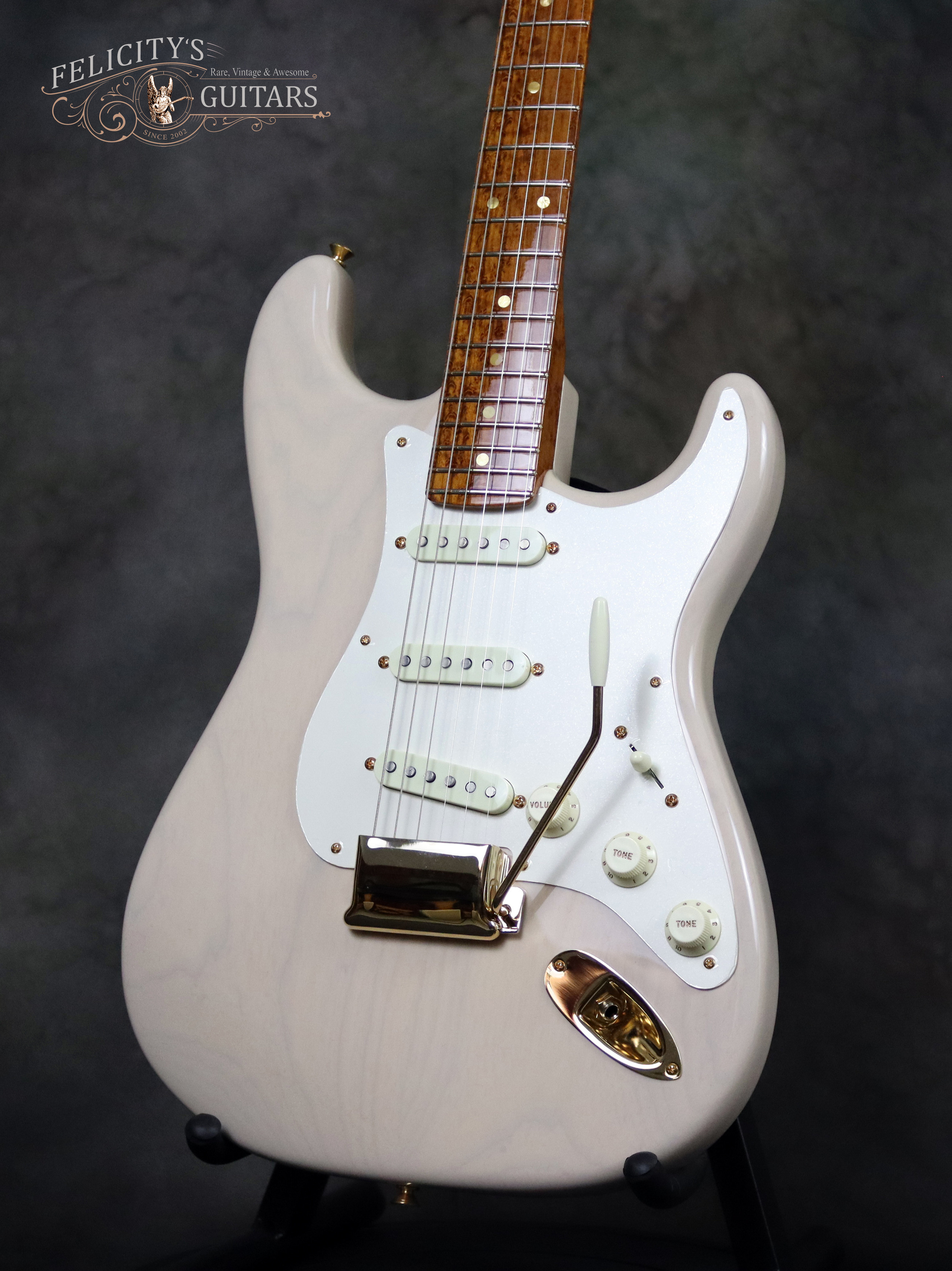

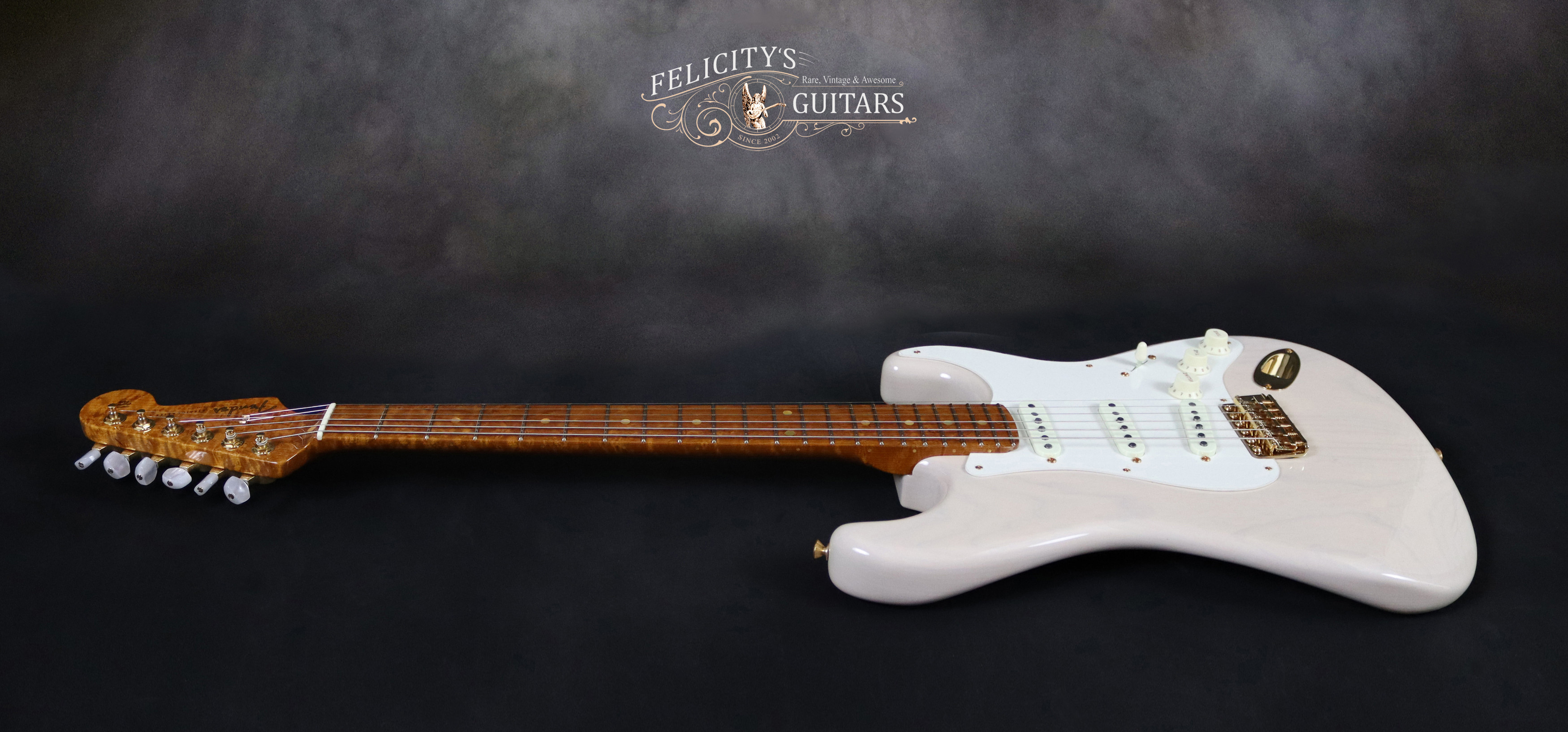

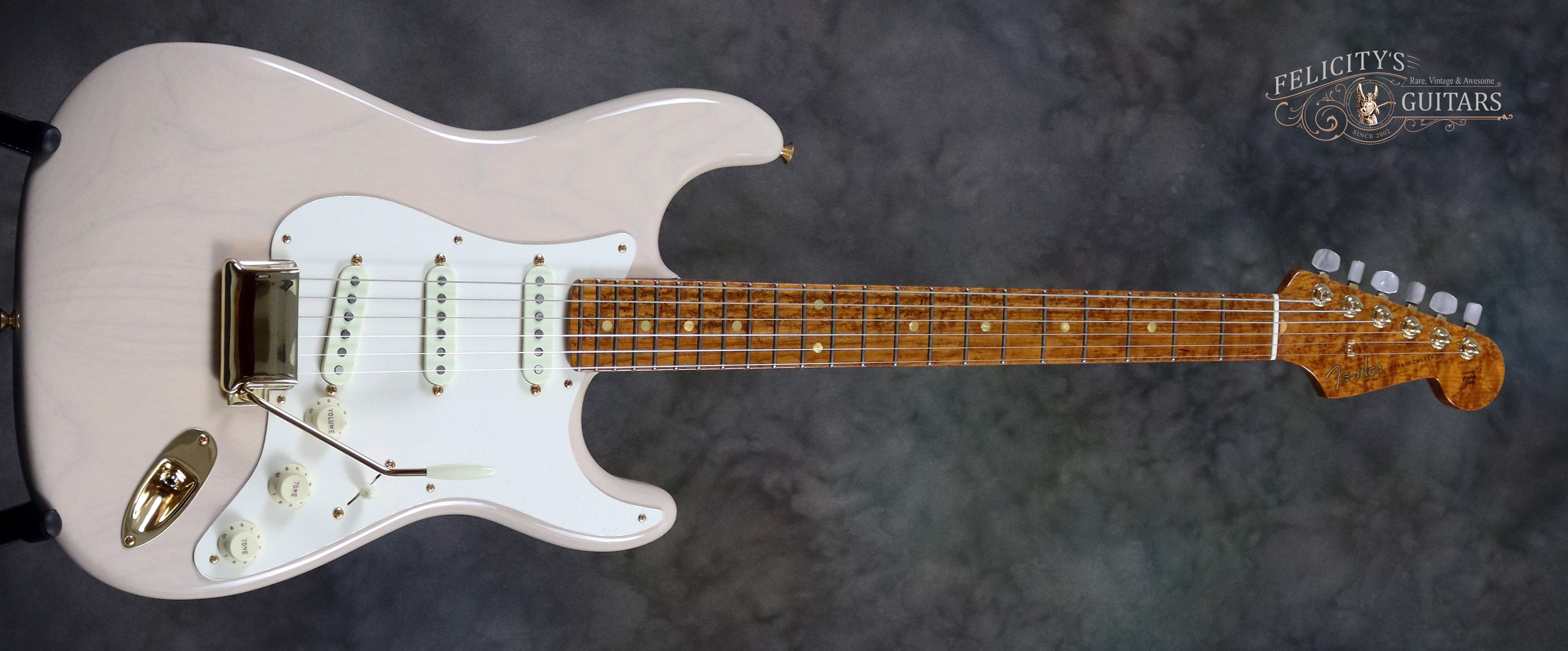

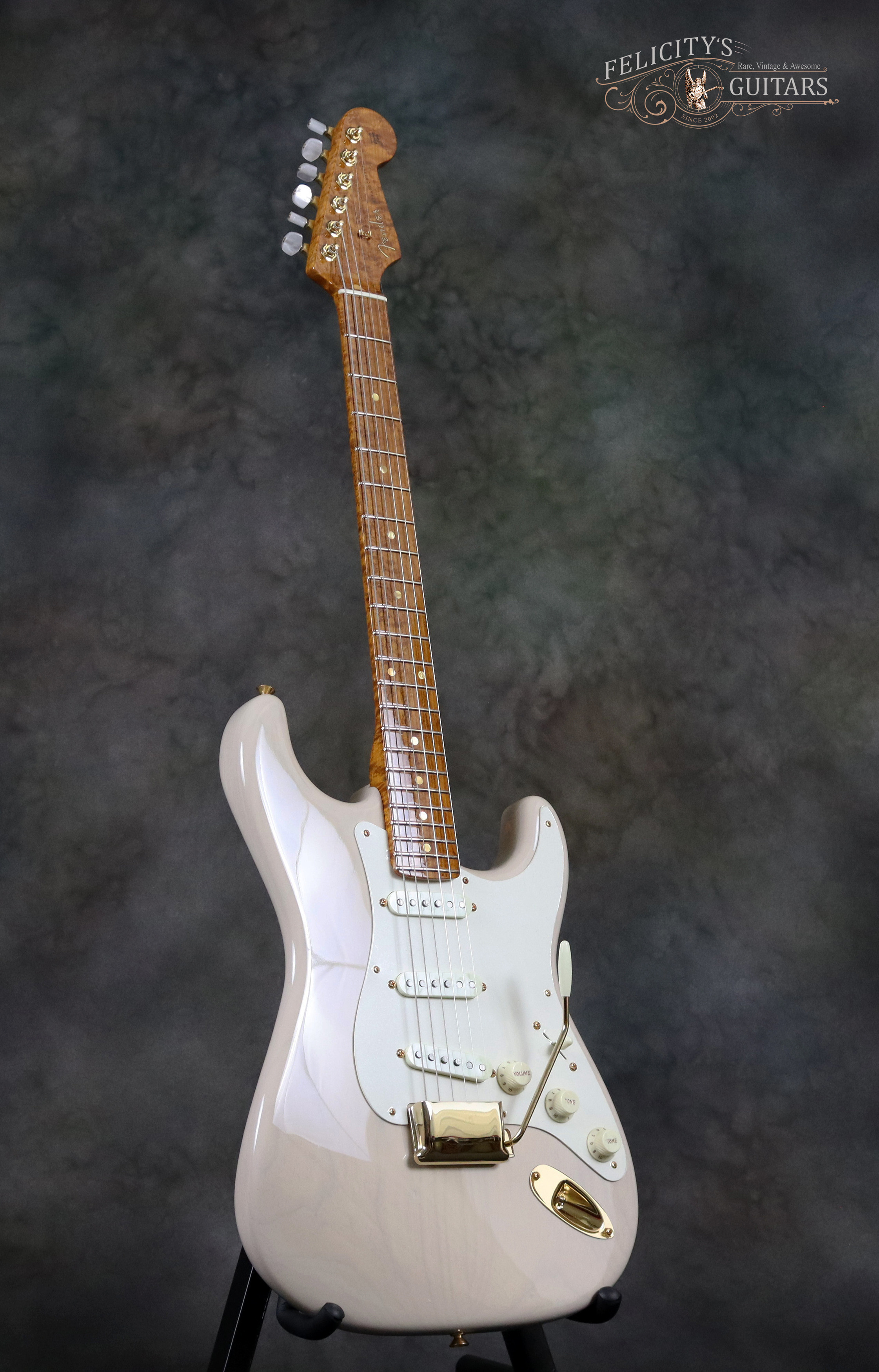

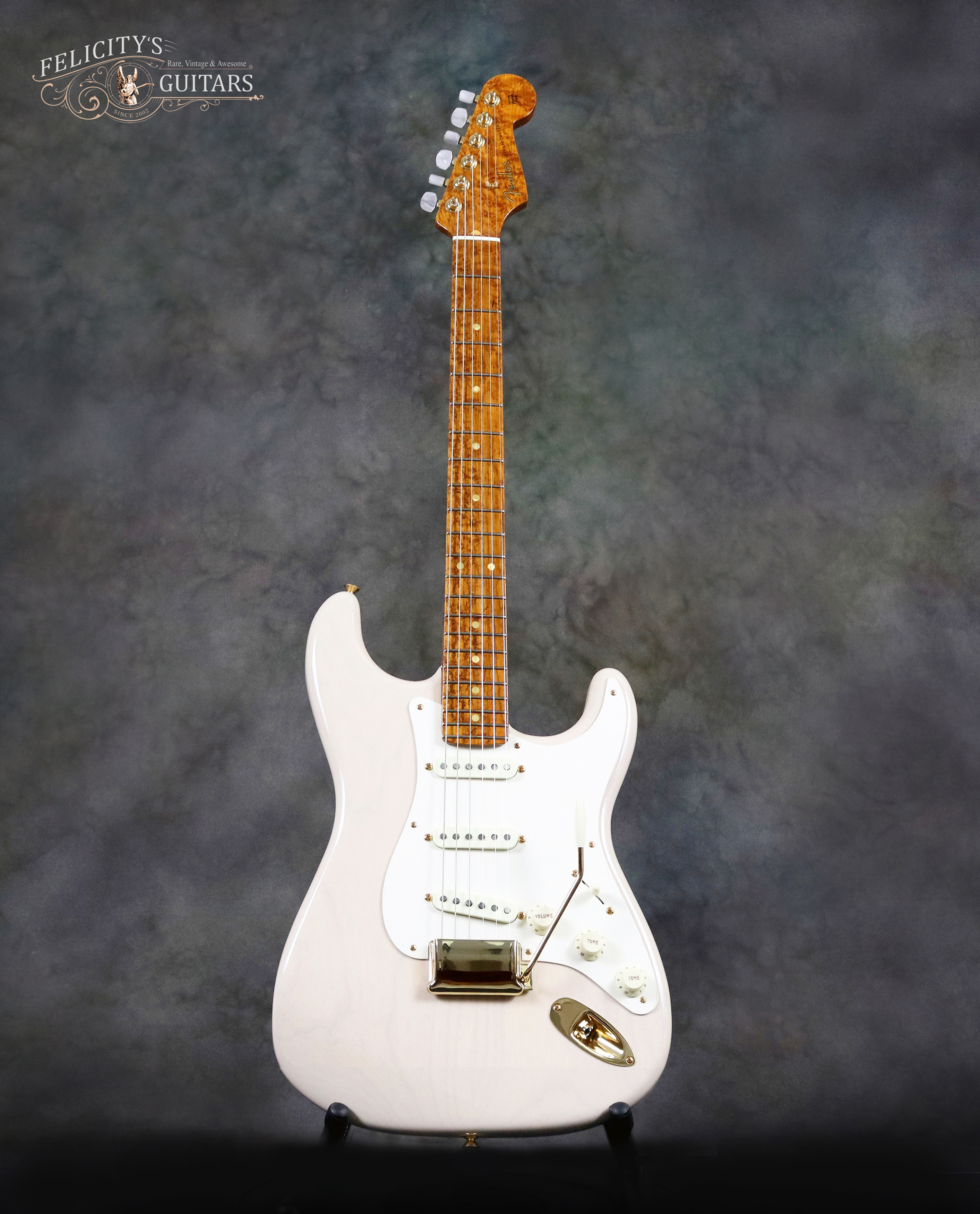

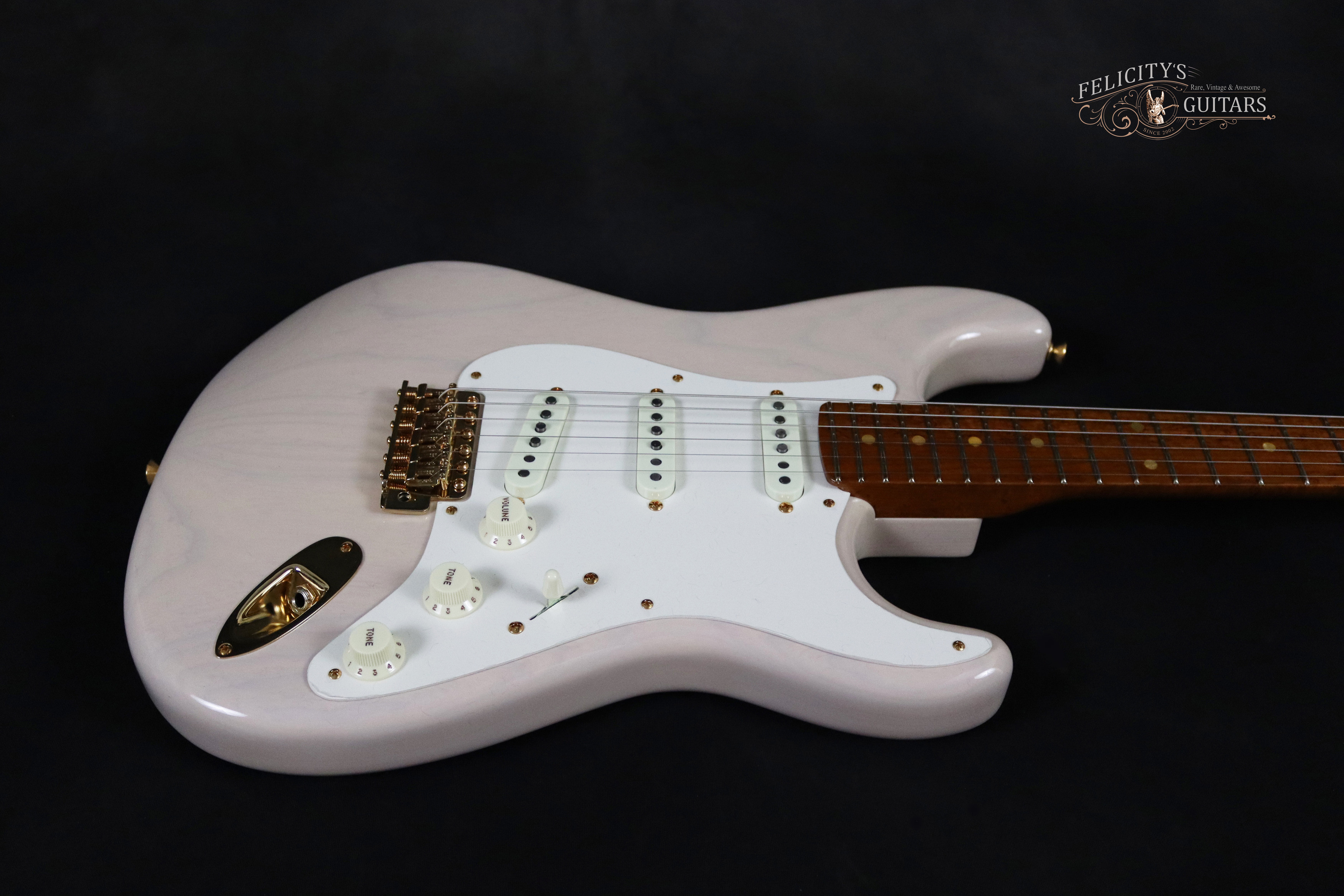

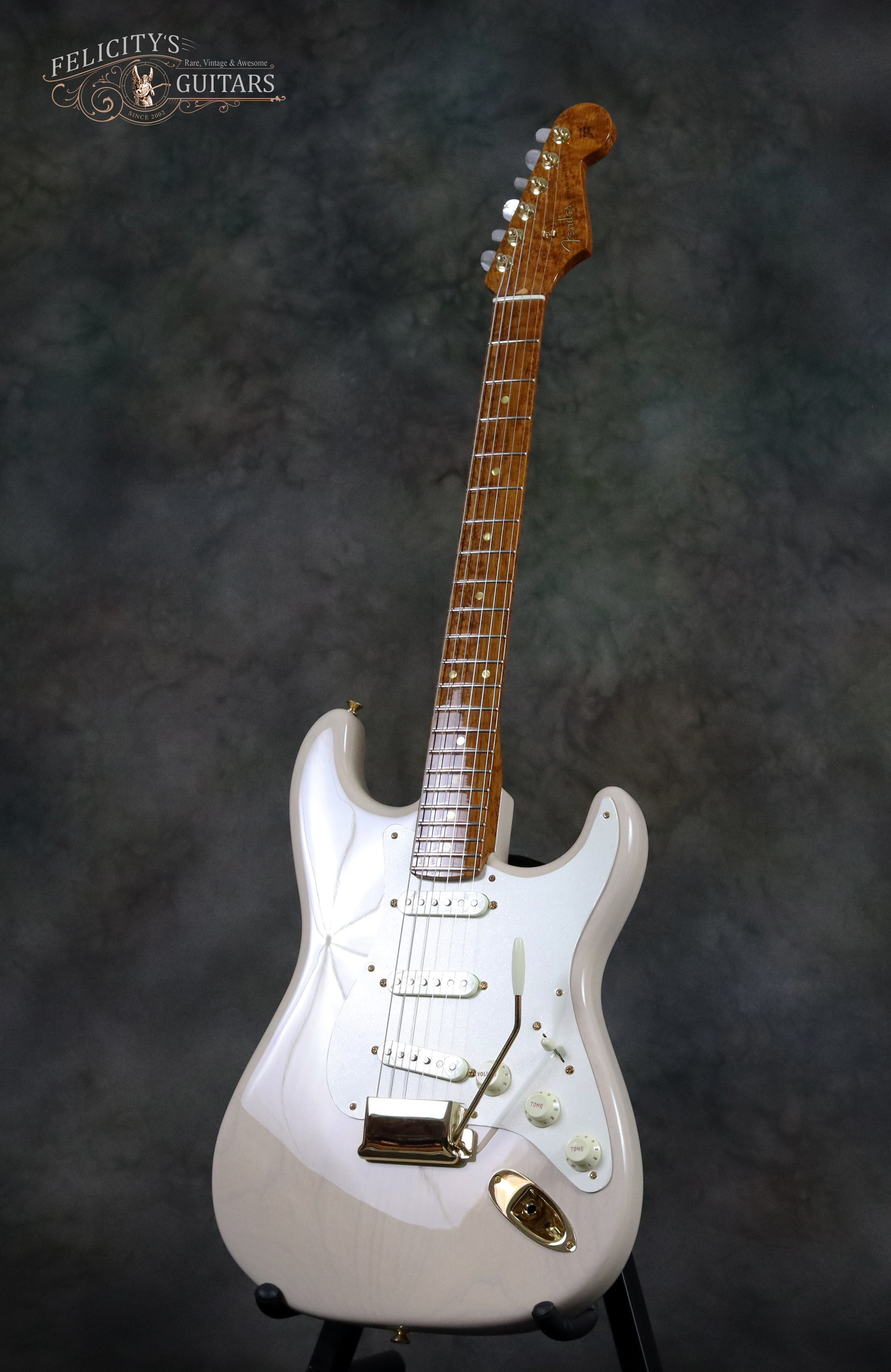

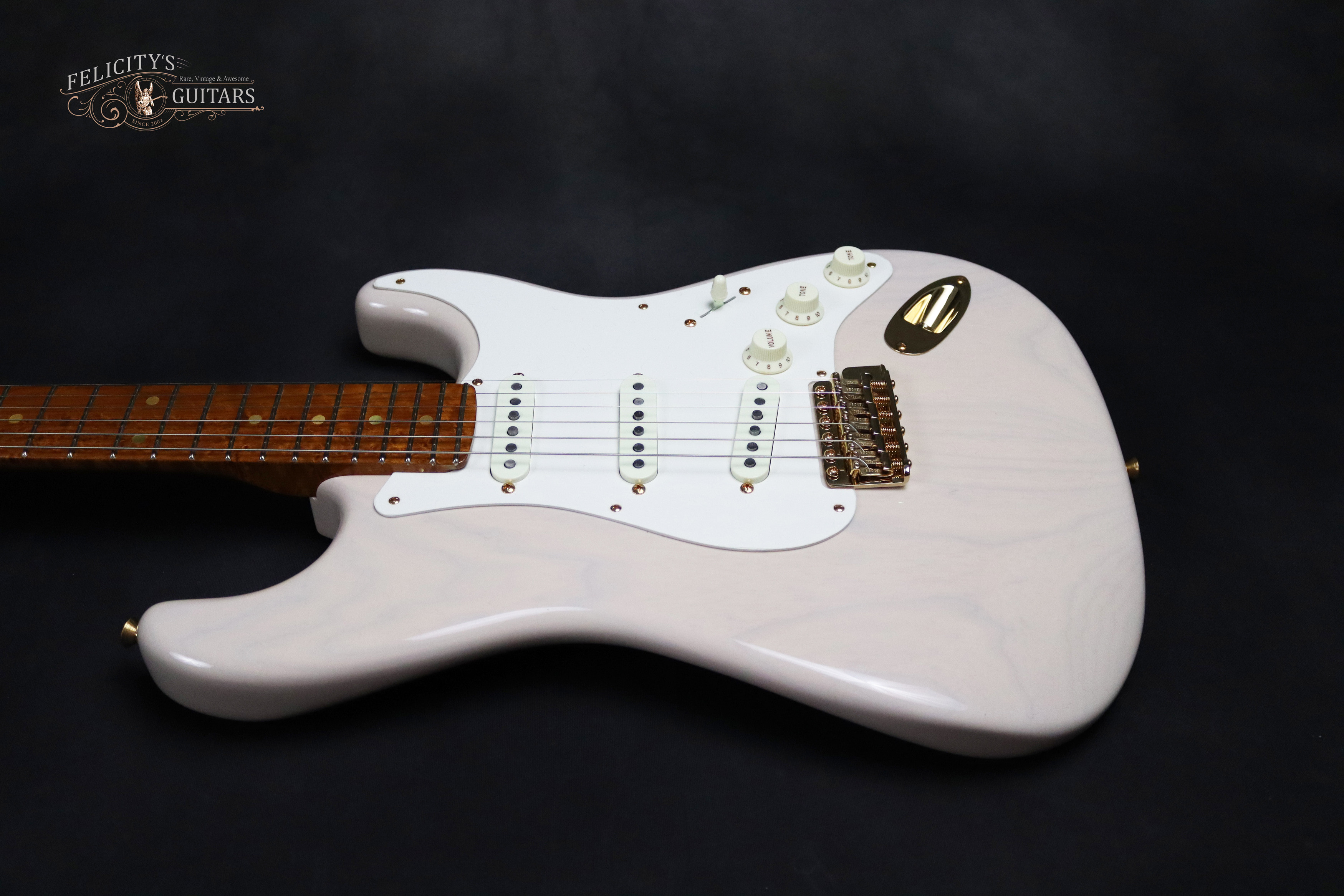

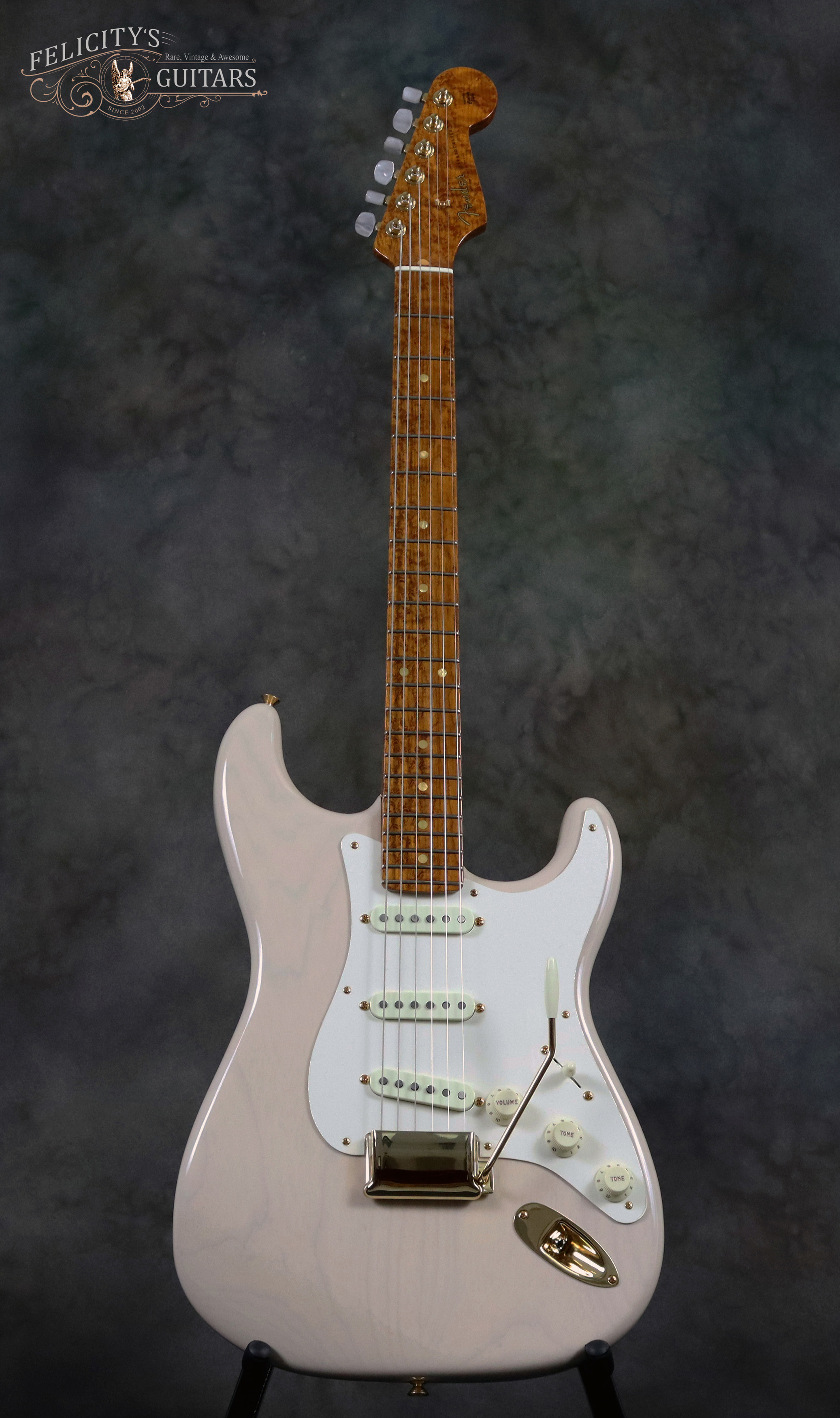

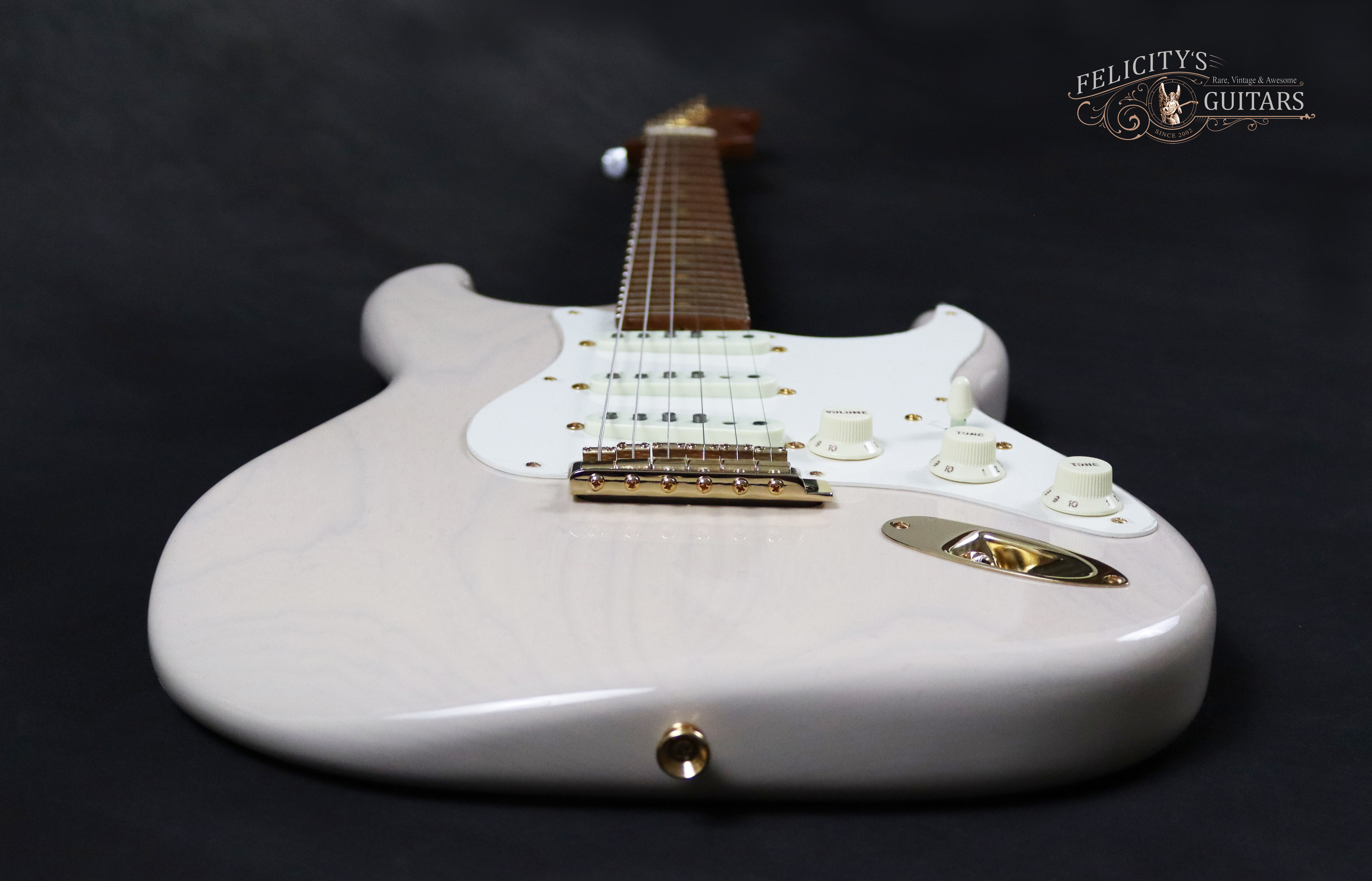

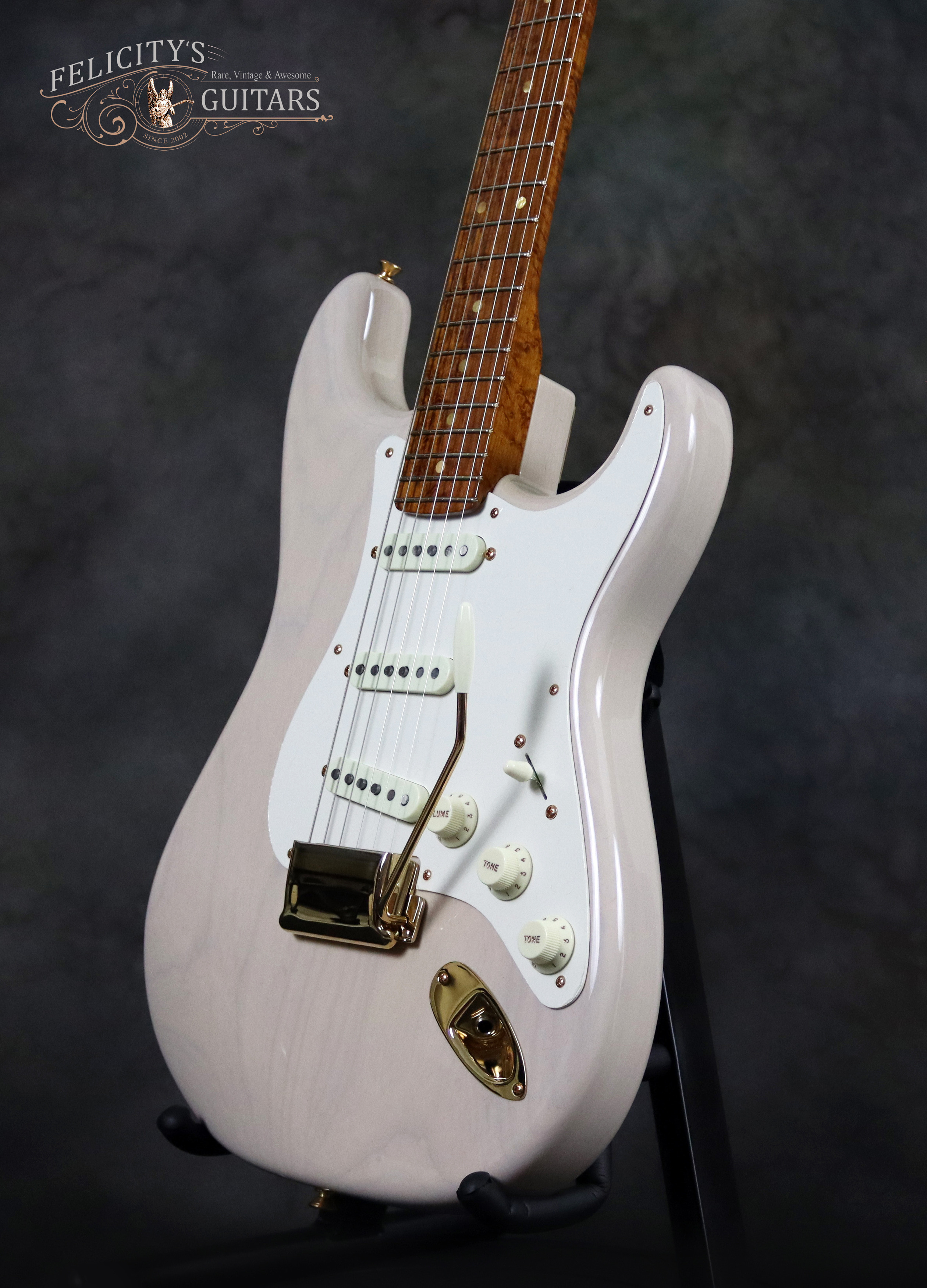

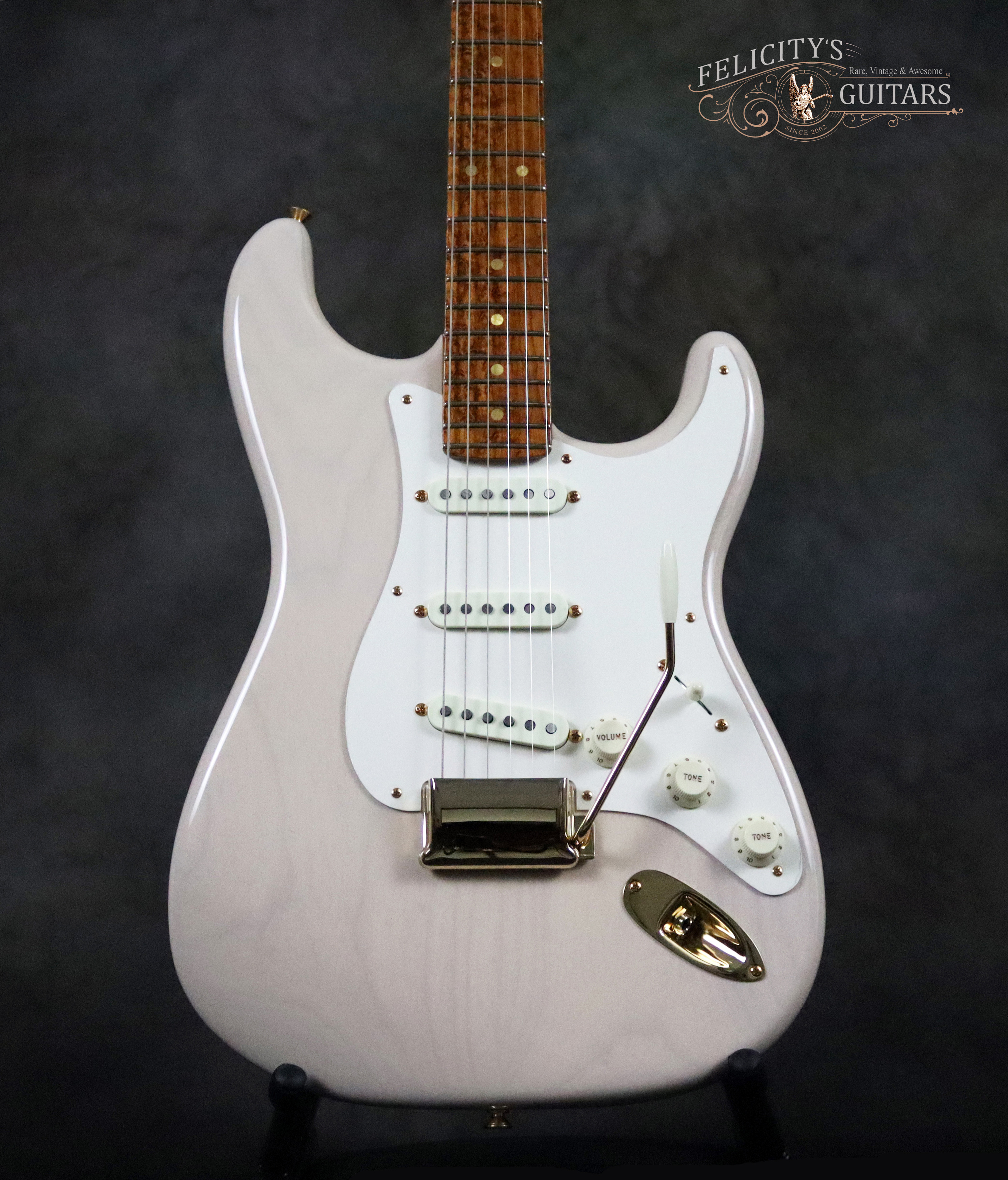

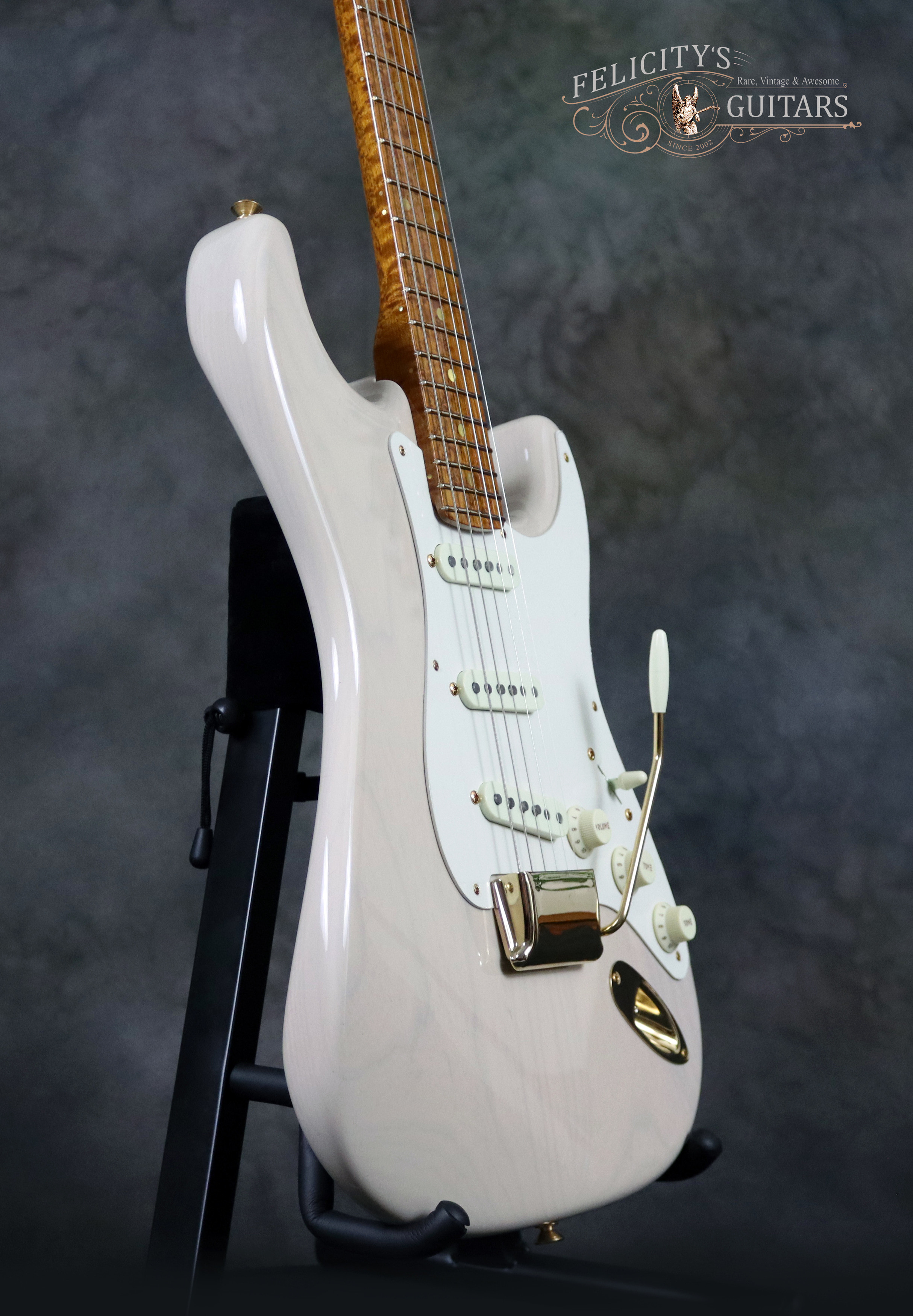

2017 FENDER CUSTOM SHOP NAMM LTD ROASTED ’56 STRATOCASTER IN VINTAGE BLONDE FINISH

Such a great example of what Fender Custom Shop is all about.

Her sweet Roasted Birdseye Maple neck not only adds to her amazing tone but also creates a neck that is ultra-stable. This beauty will play and sound fantastic for years to come. Let Her Rip, Baby!

The 2017 Fender Custom Shop NAMM Ltd Roasted ‘56 Stratocaster at a glance:

NOS Lacquer Finish; over lightweight Ash Body
Roasted AAA Grade Birdseye Maple Neck with 10/56 “V” Back-Shape
Compound 9.5”-12” Radius Fingerboard with 22 #6105 Frets
Hand-Wound 1969 Neck Pickup, Hand-Wound Reverse-Wound/Reverse-Polarity 1969 Middle Pickup, and Hand-Wound Texas Special Bridge Pickup
Hand-wired end-to-end with Master Volume, Master Tone and Strat Fat 50’s Hookup Wiring with Greasebucket tone control for bridge pickup

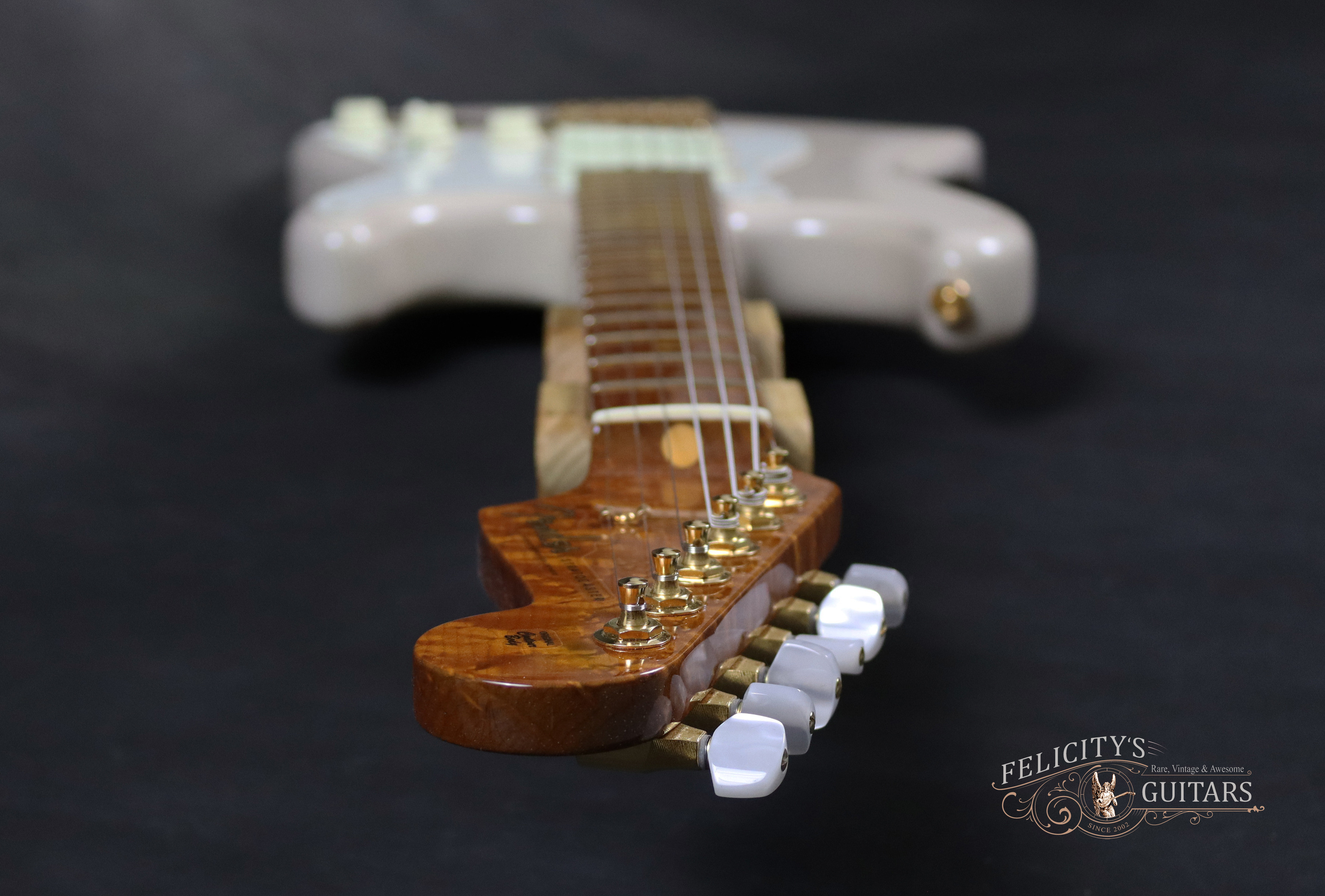

Classic appointments; Gold Tuning Machines with Pearl Buttons and bone nut

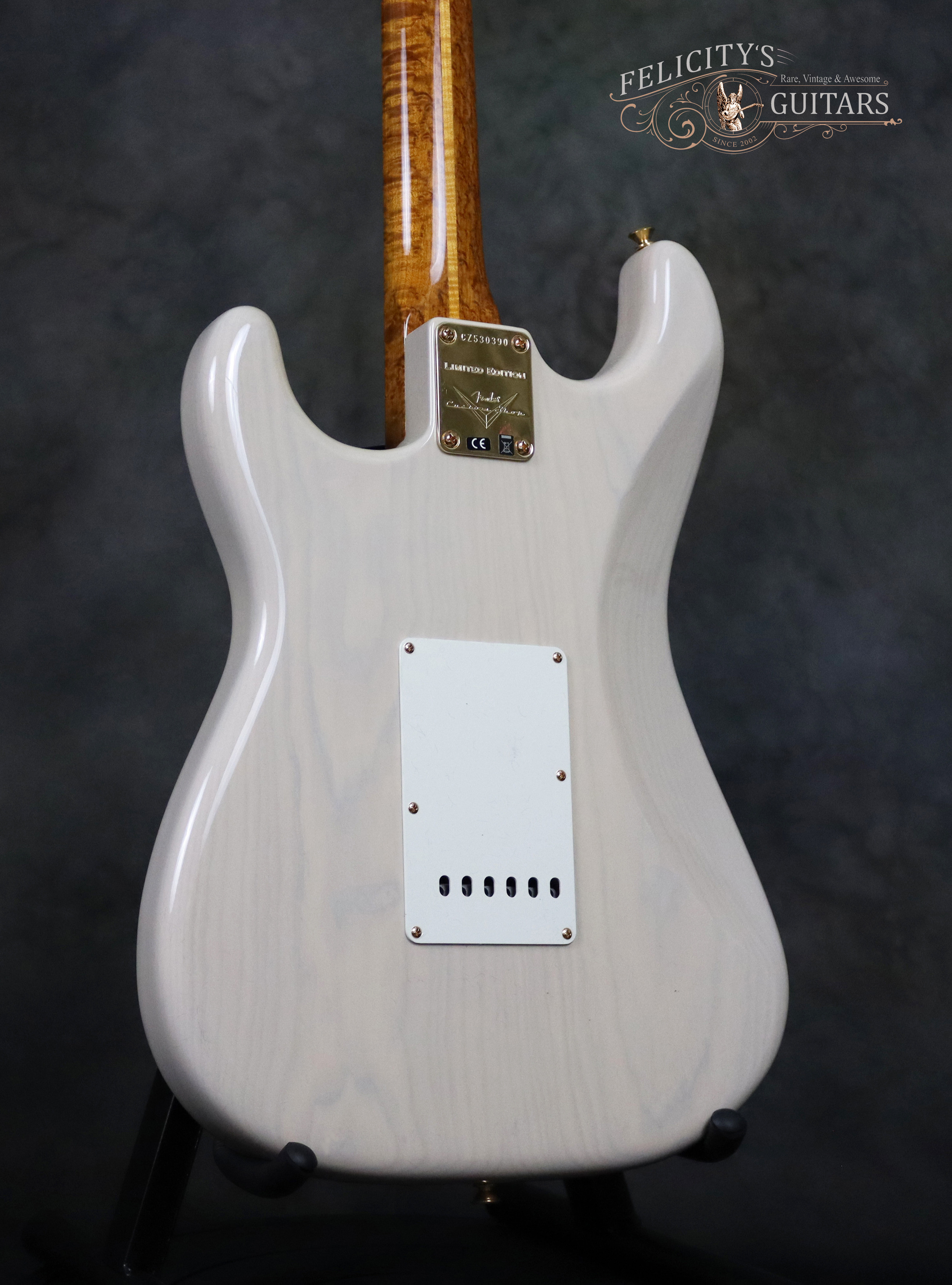

Limited Edition Engraved Neckplate, and Limited Edition Certificate of Authenticity

2017-Fender-Stratocaster-Custom-Shop-NAMM-White-Blond

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

Photo Gallery

description

This finely crafted guitar has some excellent specs. Roasted maple neck and lightweight Ash body with NOS Nitro lacquer finish, all hand-wound Pickups; 1969 Neck, Reverse-Wound/Reverse-Polarity 1969 Middle and Texas Special Bridge Pickups. This artisan class wiring offers bold tone with transparent bell-like bloom. And when dialed in using the Greasebucket tone circuit; reduces treble loss when adjusting the instrument’s volume. It also smooths the control tapers, avoiding the typical hotspots when adjusting your volume or tone.

The sound of Woodstock; Fender Custom Shop '69 Stratocaster pickups produce one of the most revered guitar sounds in popular music history-the full, punchy late-'60s blues rock tone that ruled the era from Monterey on the West Coast to Woodstock on the East Coast. Because of the clarity and transparency created by the unique coil wind and magnet structure, the '69 pickup design works especially well with pedals allowing the low end to thump and the high end to soar.

This guitar is in brand new, pristine condition and only taken out of the case once for our as-received inspection and then once again for our in-house photography. The original shipping box is also available. The guitar includes a wealth of unopened in-case extras and accessories. You can be the first person to play this guitar!

Specifications

General

Condition	Brand New (NOS)
Number of Strings	6
Orientation	Right-handed
Country of Origin	U.S.A.
Year	2017
Limited Edition / Series	Yes NAMM 2017 Ltd.

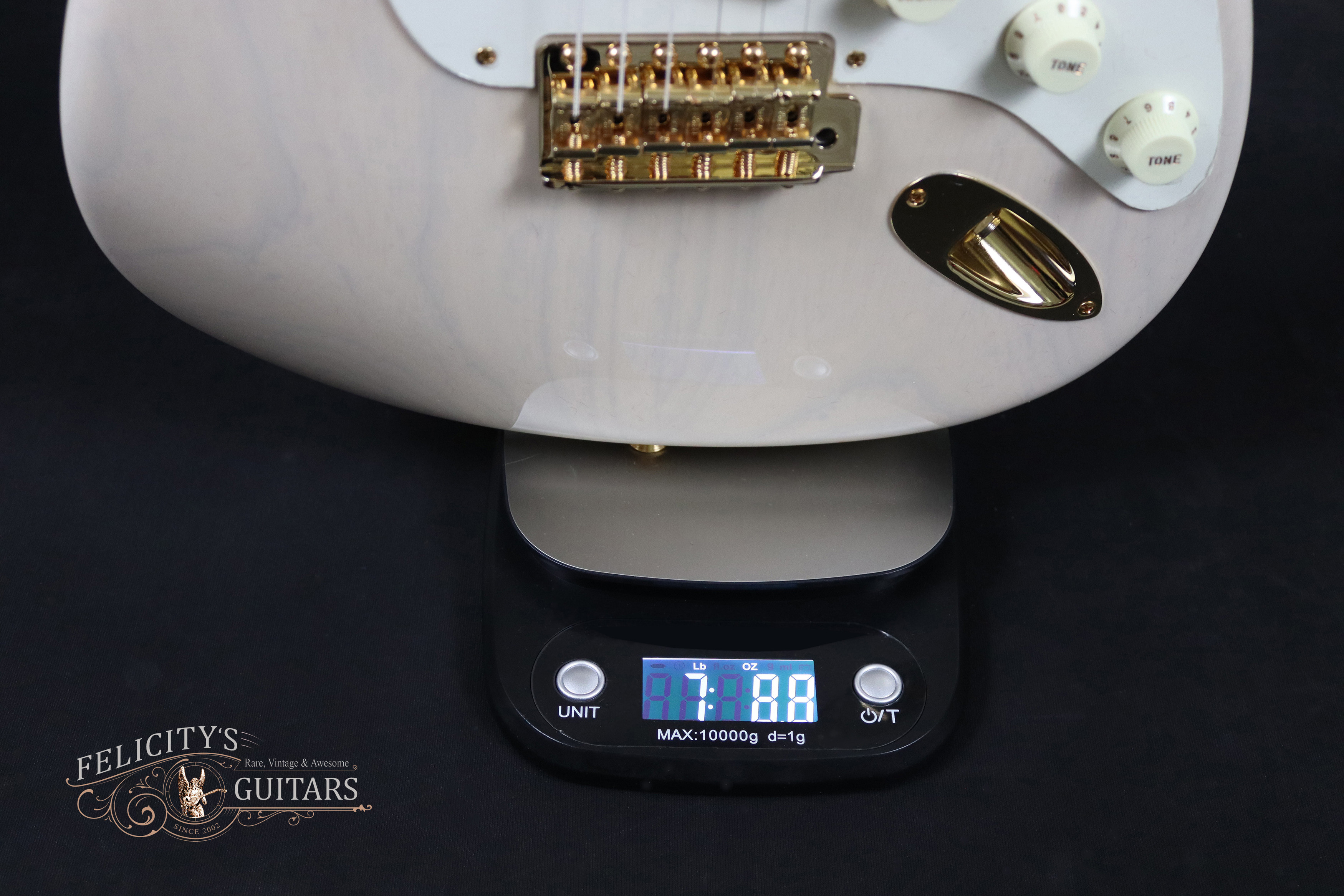

Weight	7-lbs 8.8-oz

body

Body Type	Doublecut Solidbody
Body Shape	1956 SSS Strat™

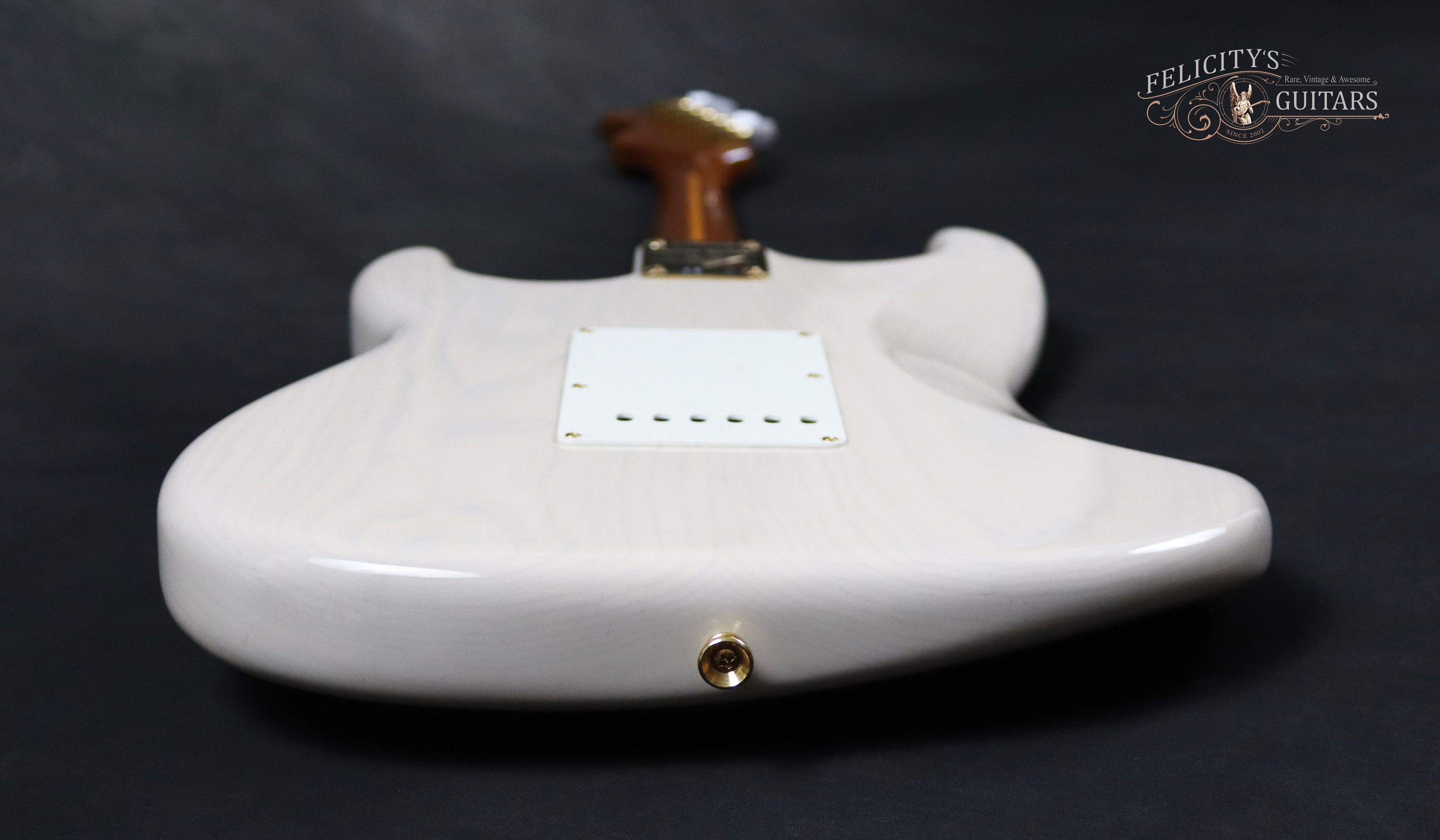

Body Material	2-pc Select Lightweight Ash
Body Carve	Front: Flat with Arm Contour	Back: Flat with Waist Contour
Body Binding	Front: No	Back: No
Weight Relief	Un-chambered
Body Finish Type	High-gloss Nitrocellulose Lacquer
Color	Front: Vintage Blonde / NOS Aging	Back: Vintage Blonde / NOS Aging

neck

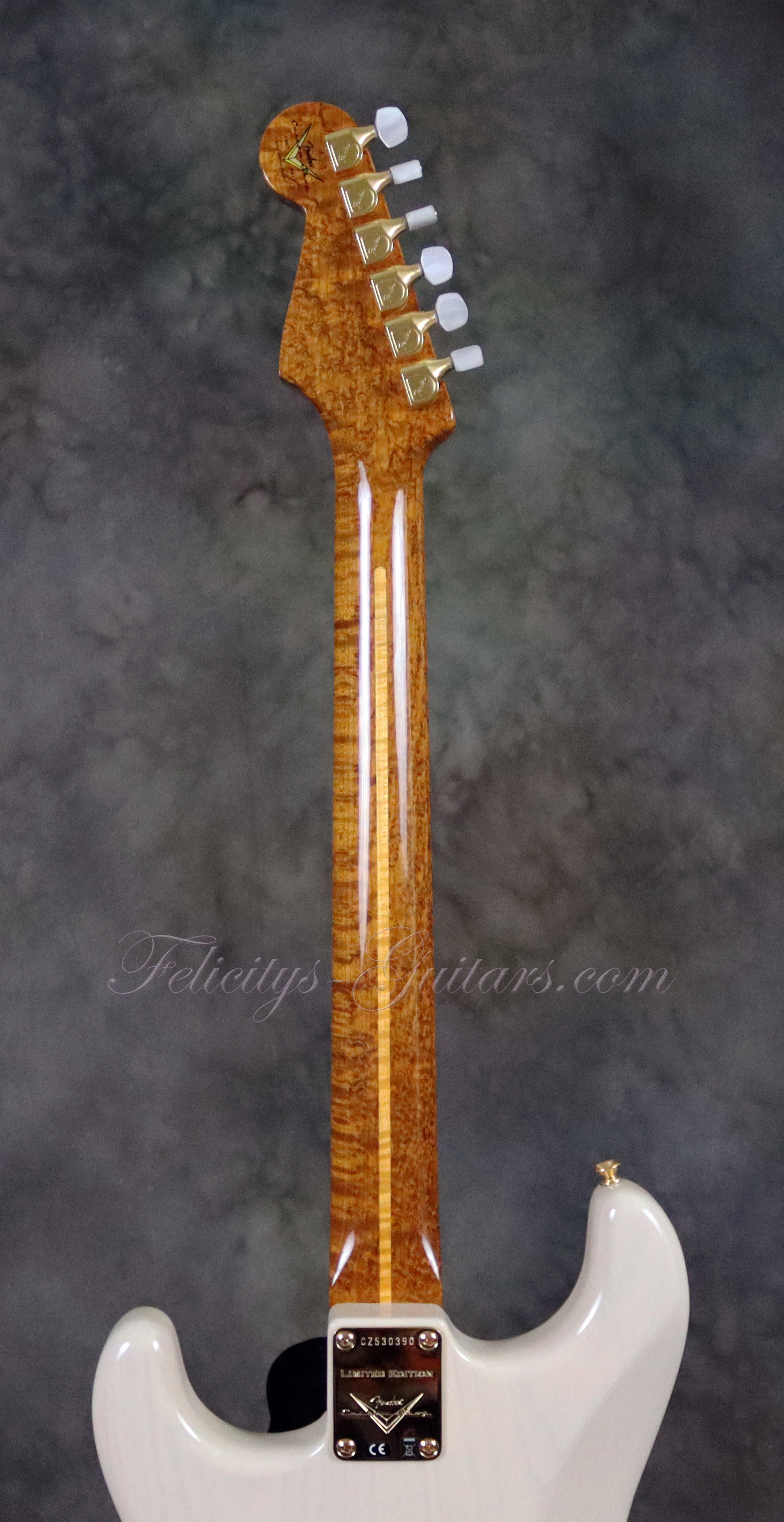

Neck Material	1-pc Roasted Birdseye Maple with Flamed Maple Stripe and Satin Urethane finish Back
Truss Rod	50’s 2-way Adjustable
Truss Rod Cover	No

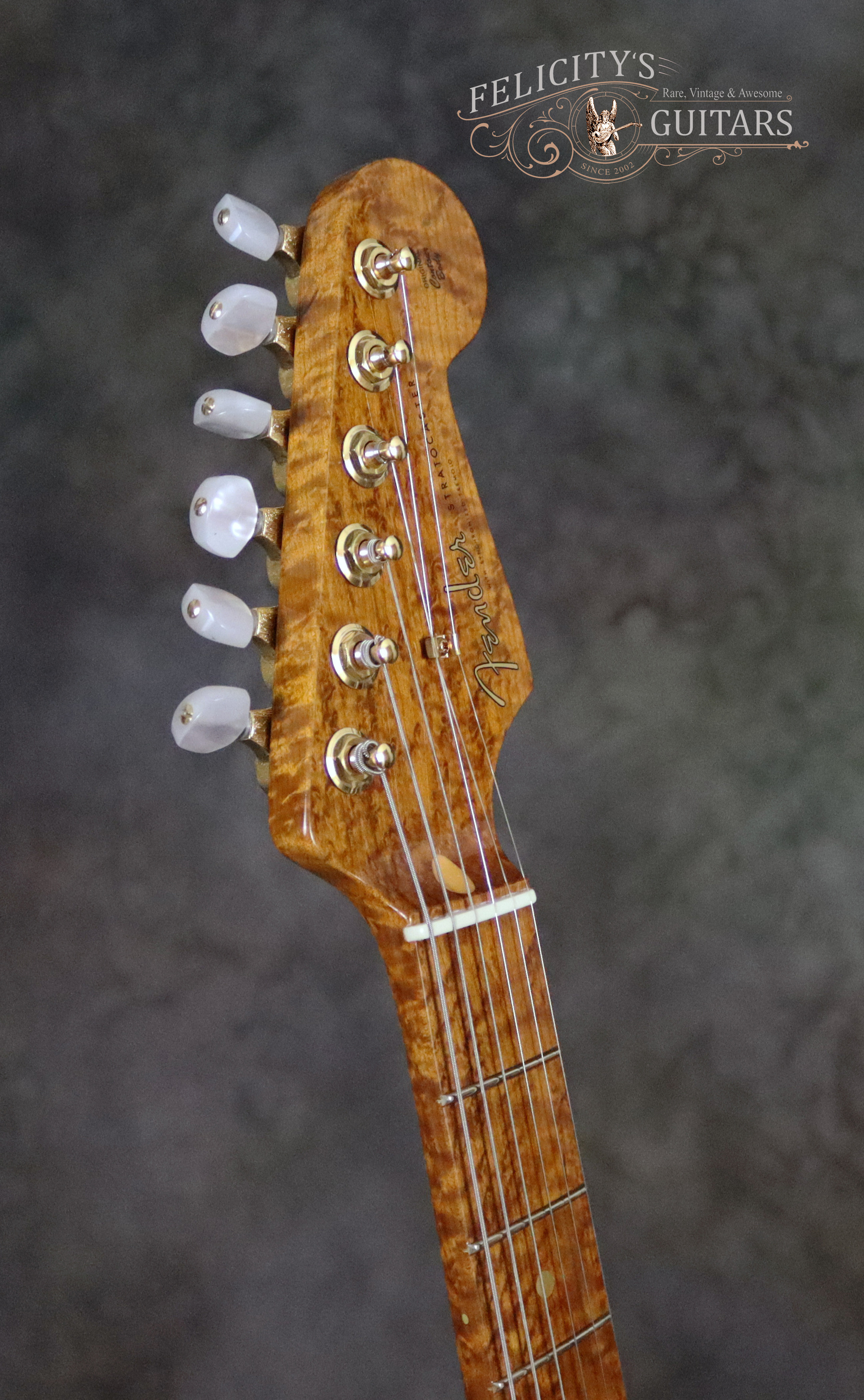

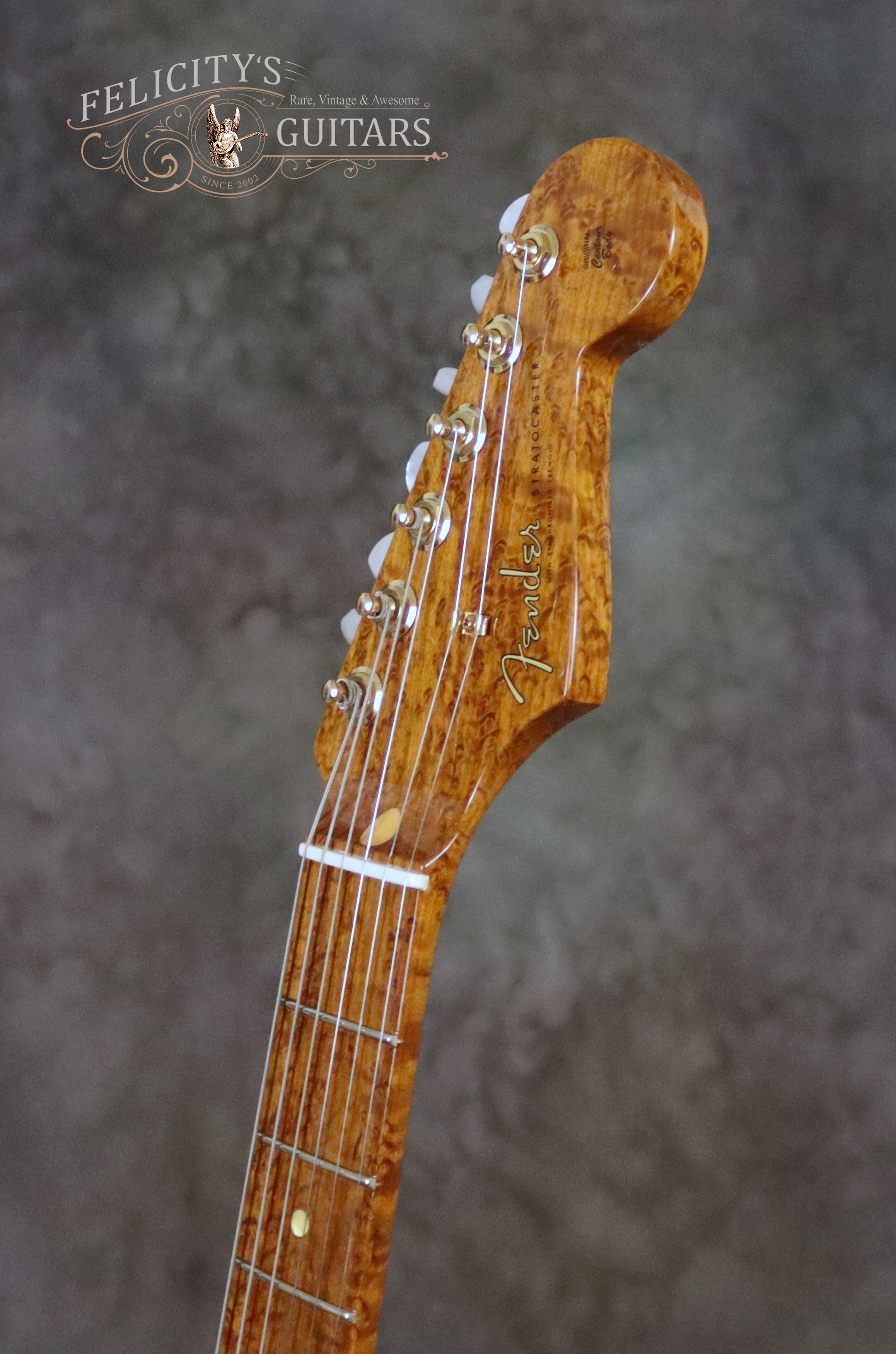

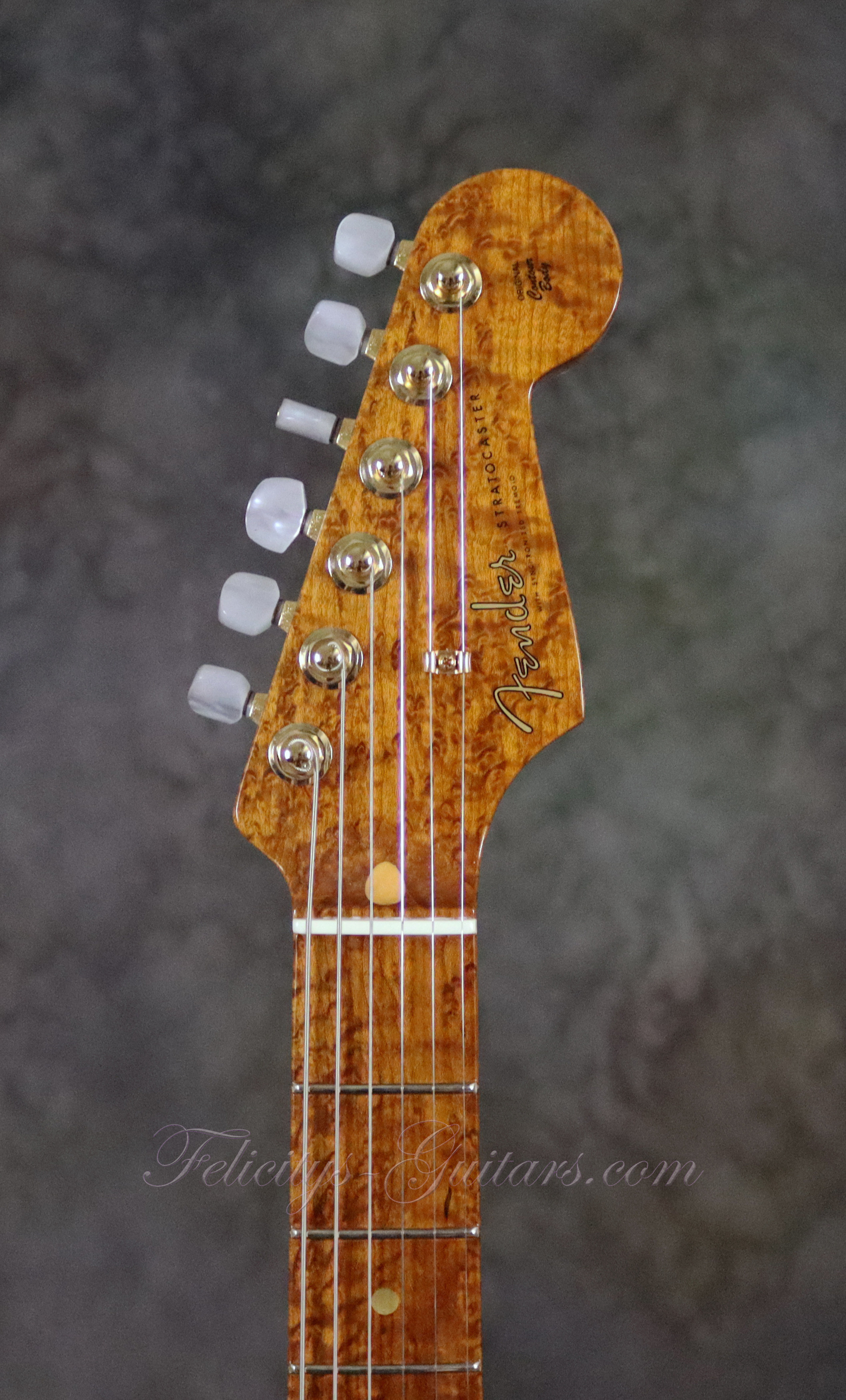

Peghead Particulars	Front: Birdseye Maple with Gold Fender® Logo, Stratocaster™ Synchronized Tremolo, 'Original Custom Body' Decals

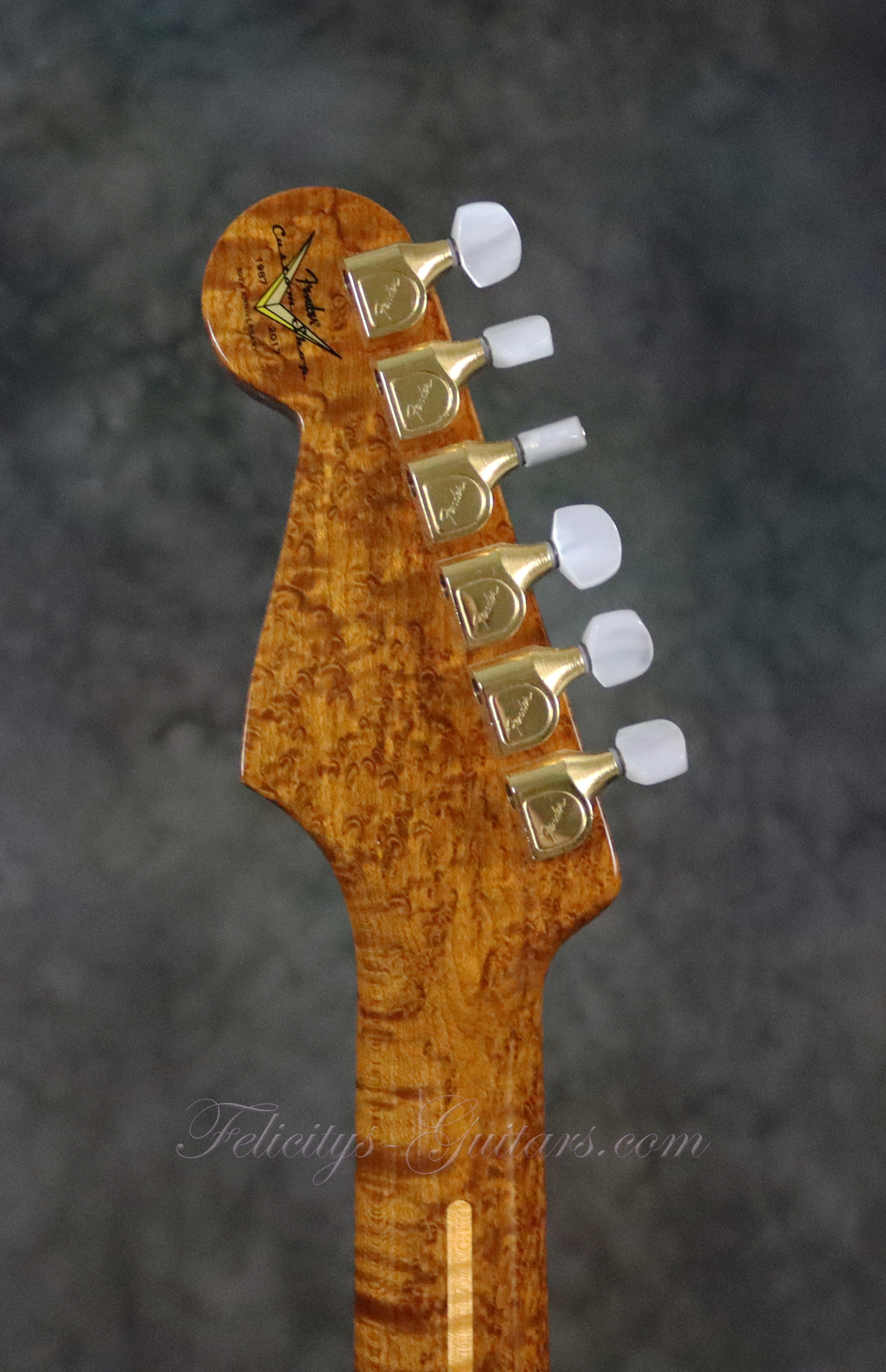

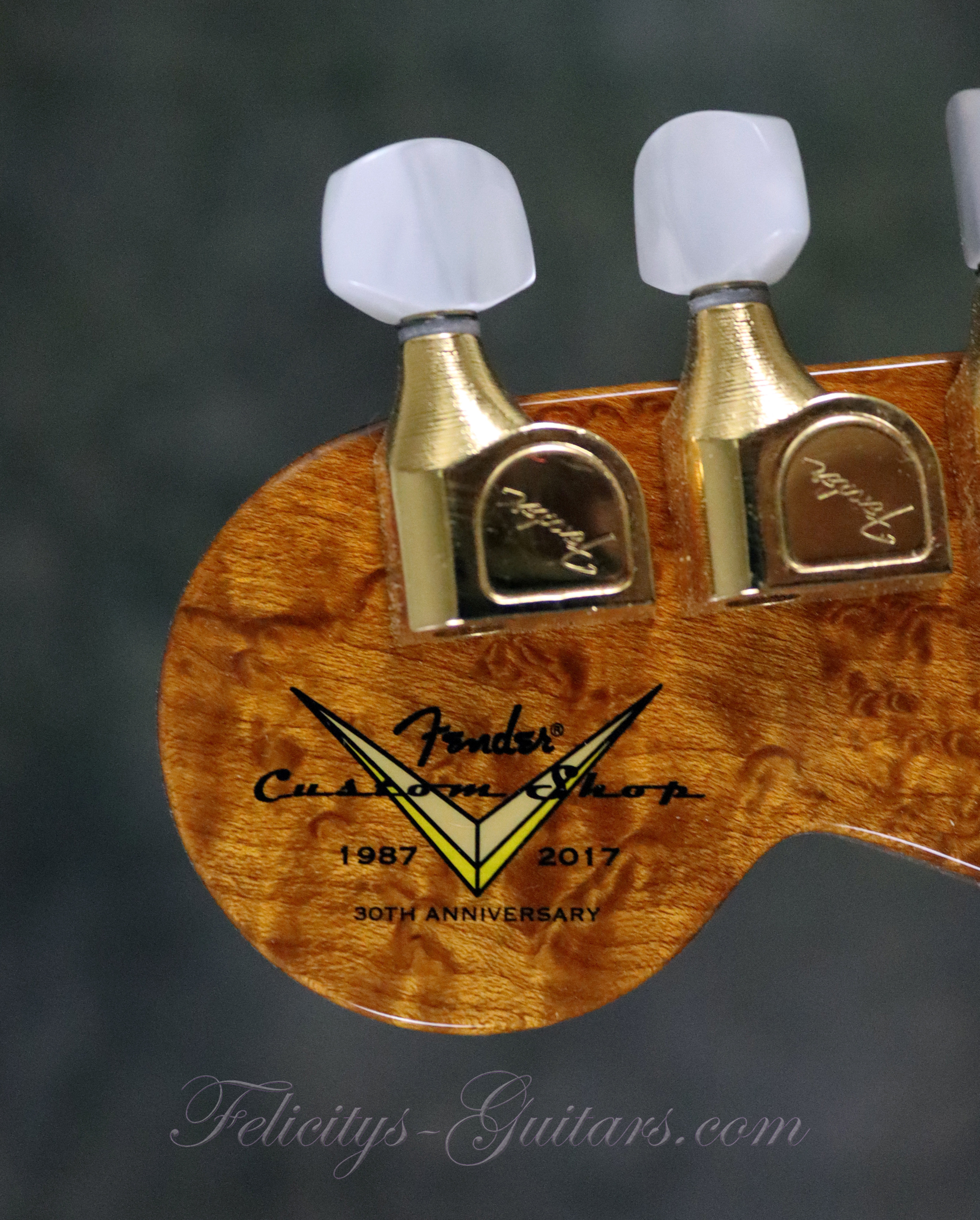

	Back: Fender® Custom Shop ‘1987-2017’ Decal
Neck Profile	1956 “V”

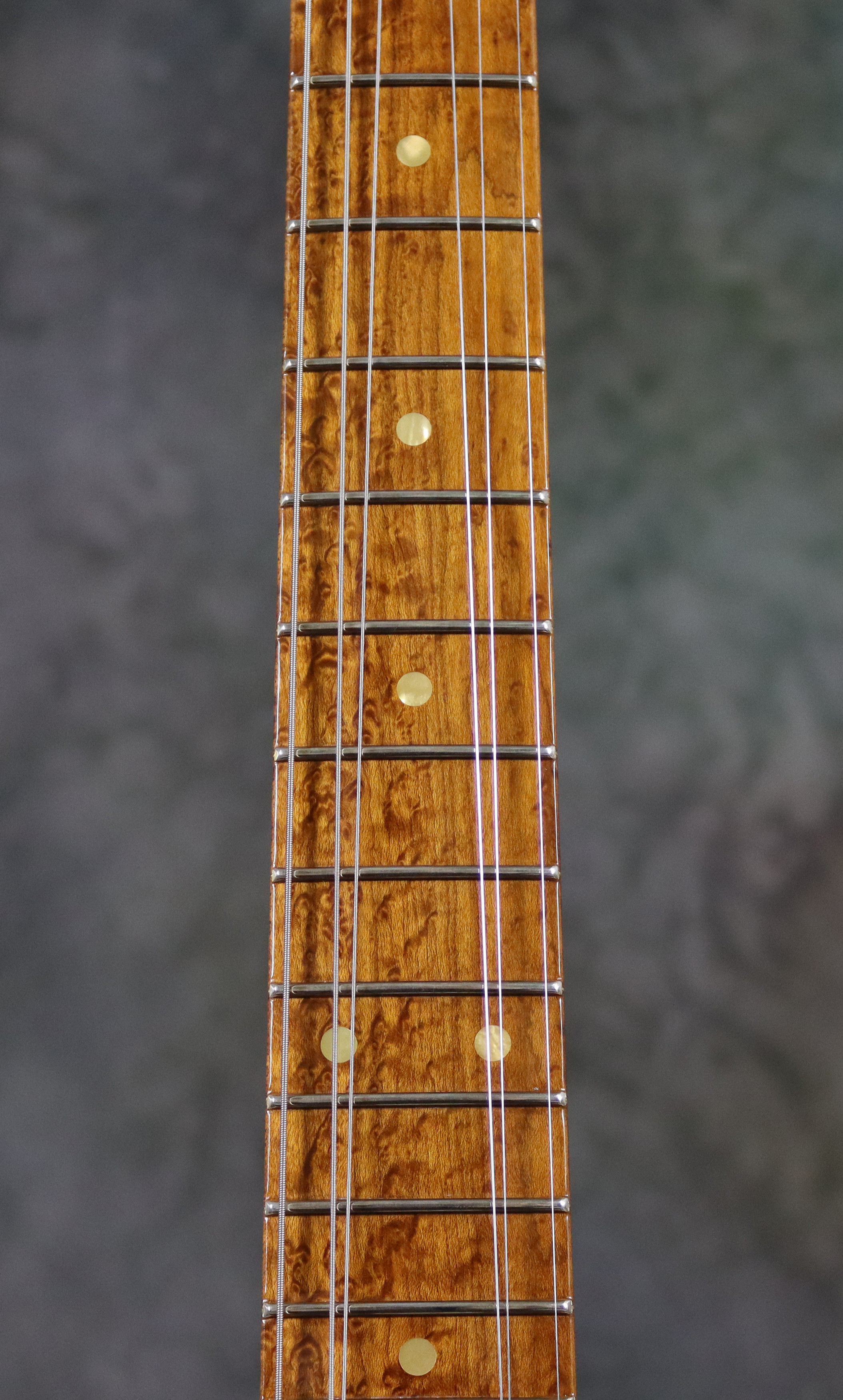

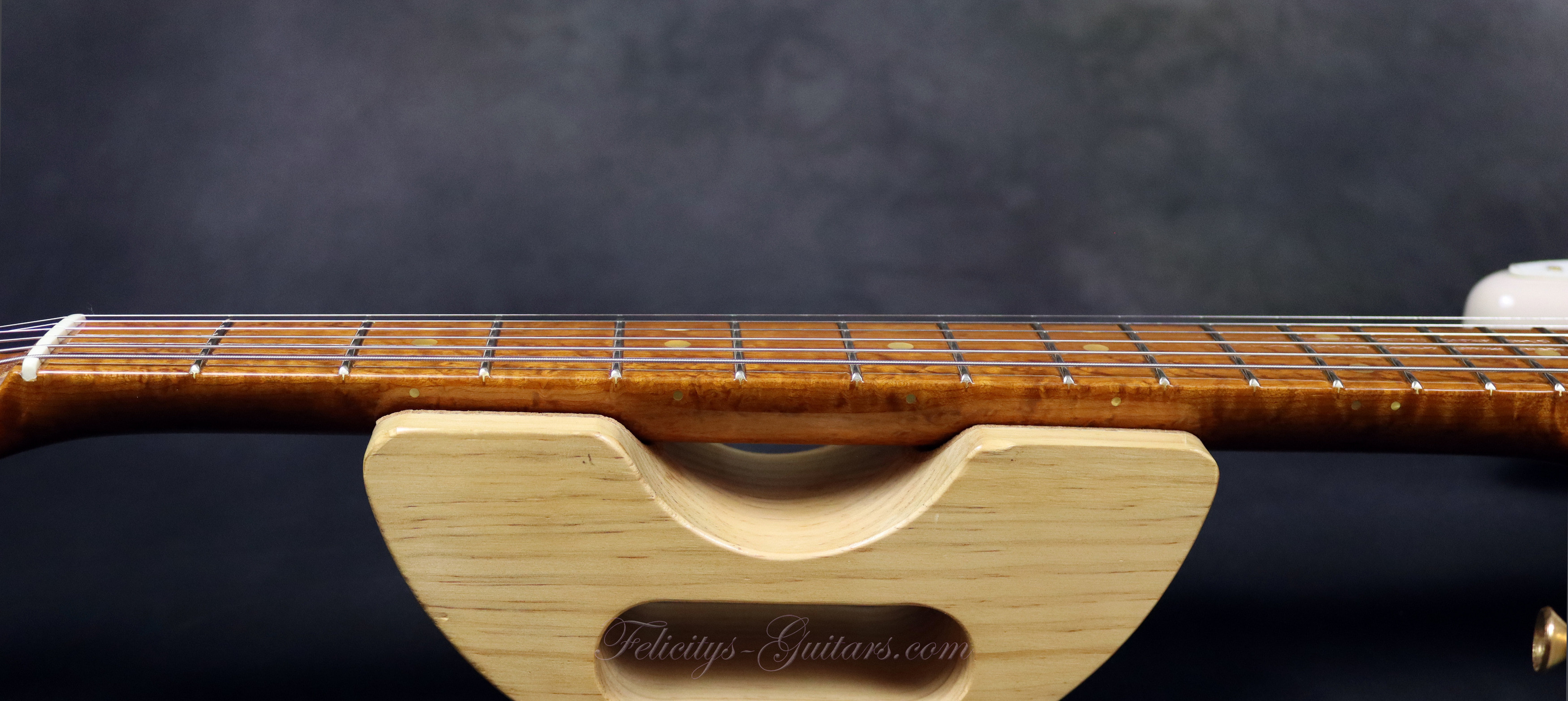

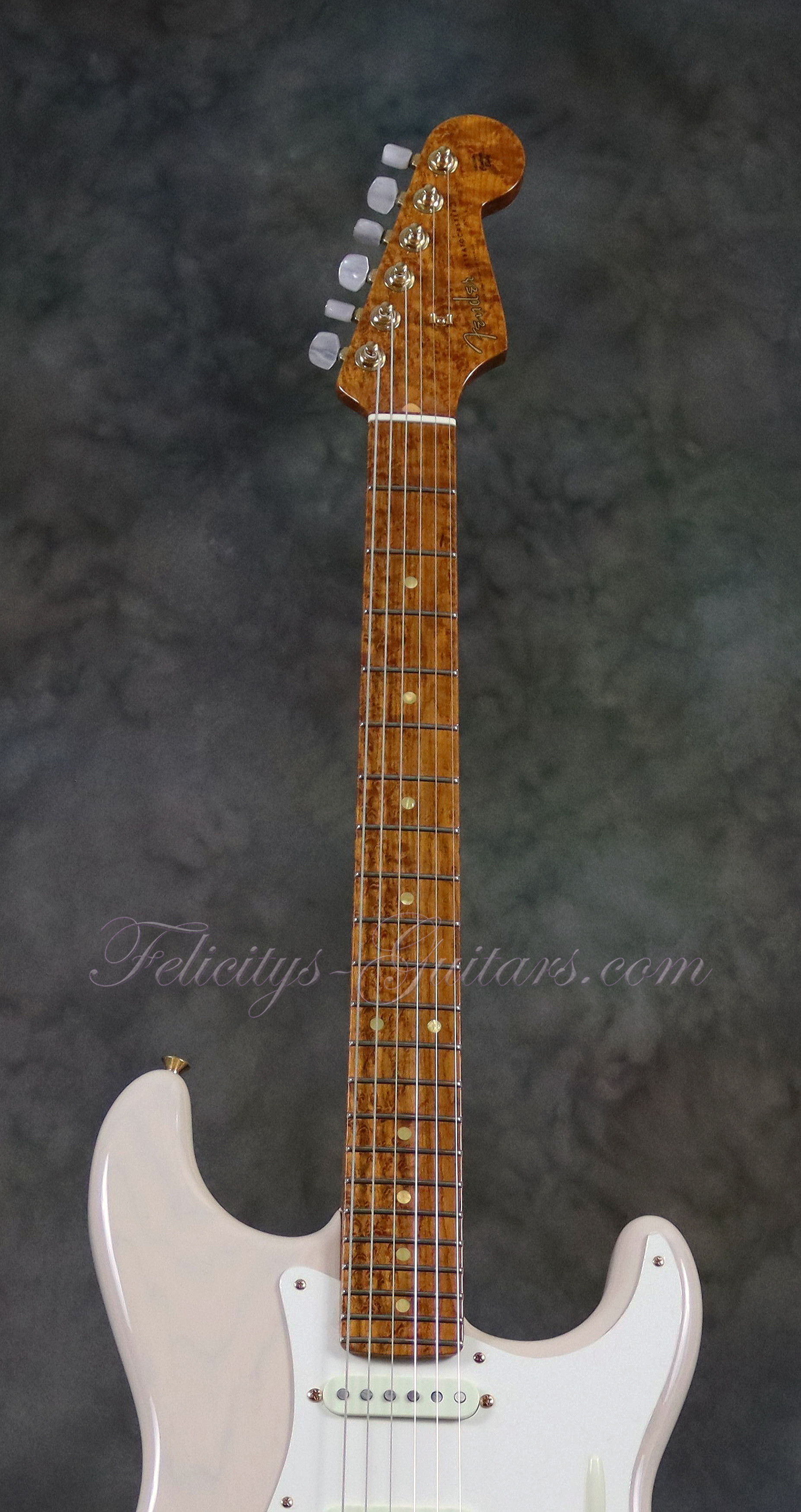

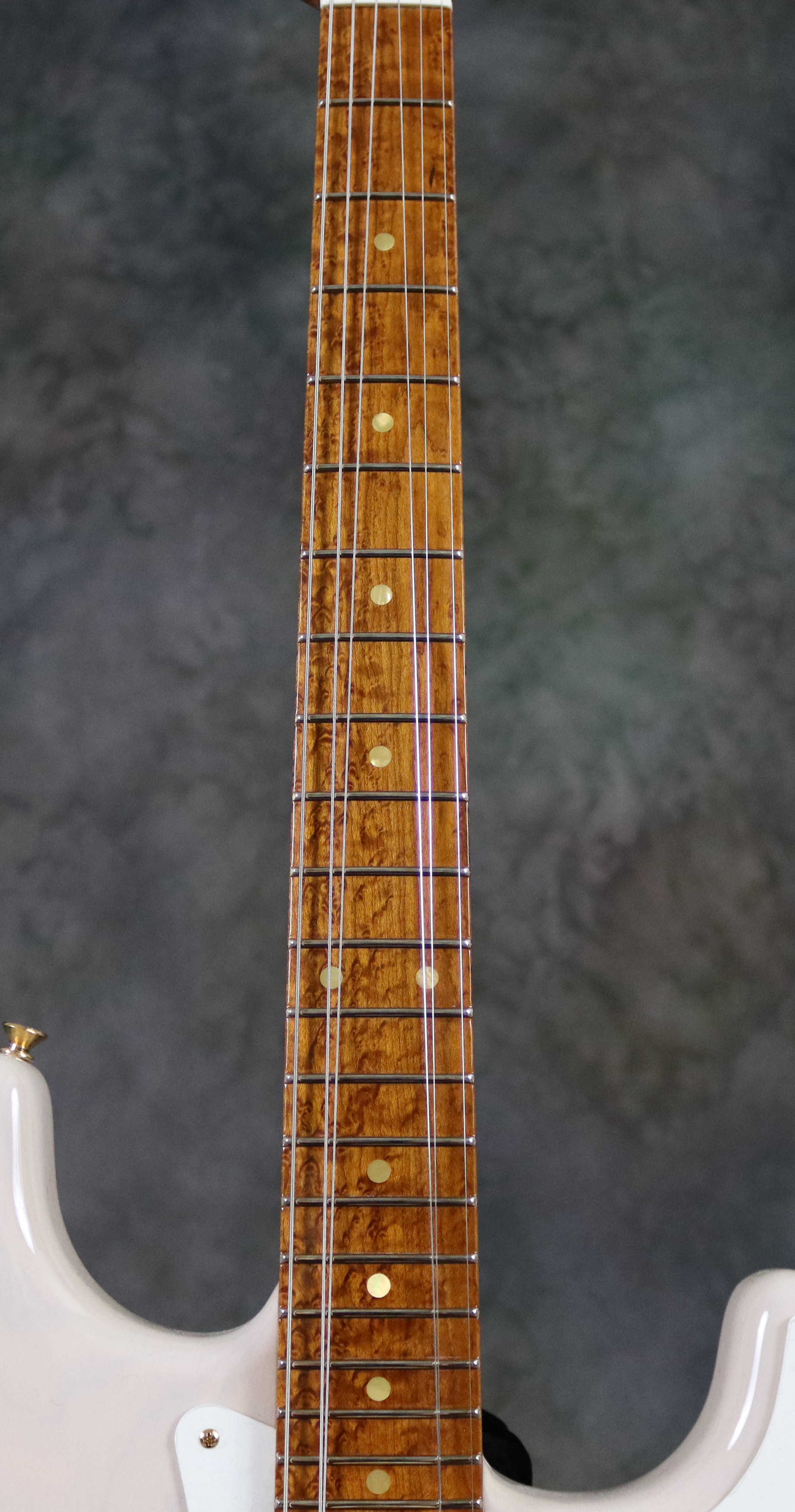

Fingerboard Material	Roasted Birdseye Maple
Fingerboard Radius	9.5”-12” Compound Radius
Scale Length	25.5"
No. Frets / Type	22 / Sanko 6105 (Medium Jumbo)
Nut Size / Material	1.6875” / Bone

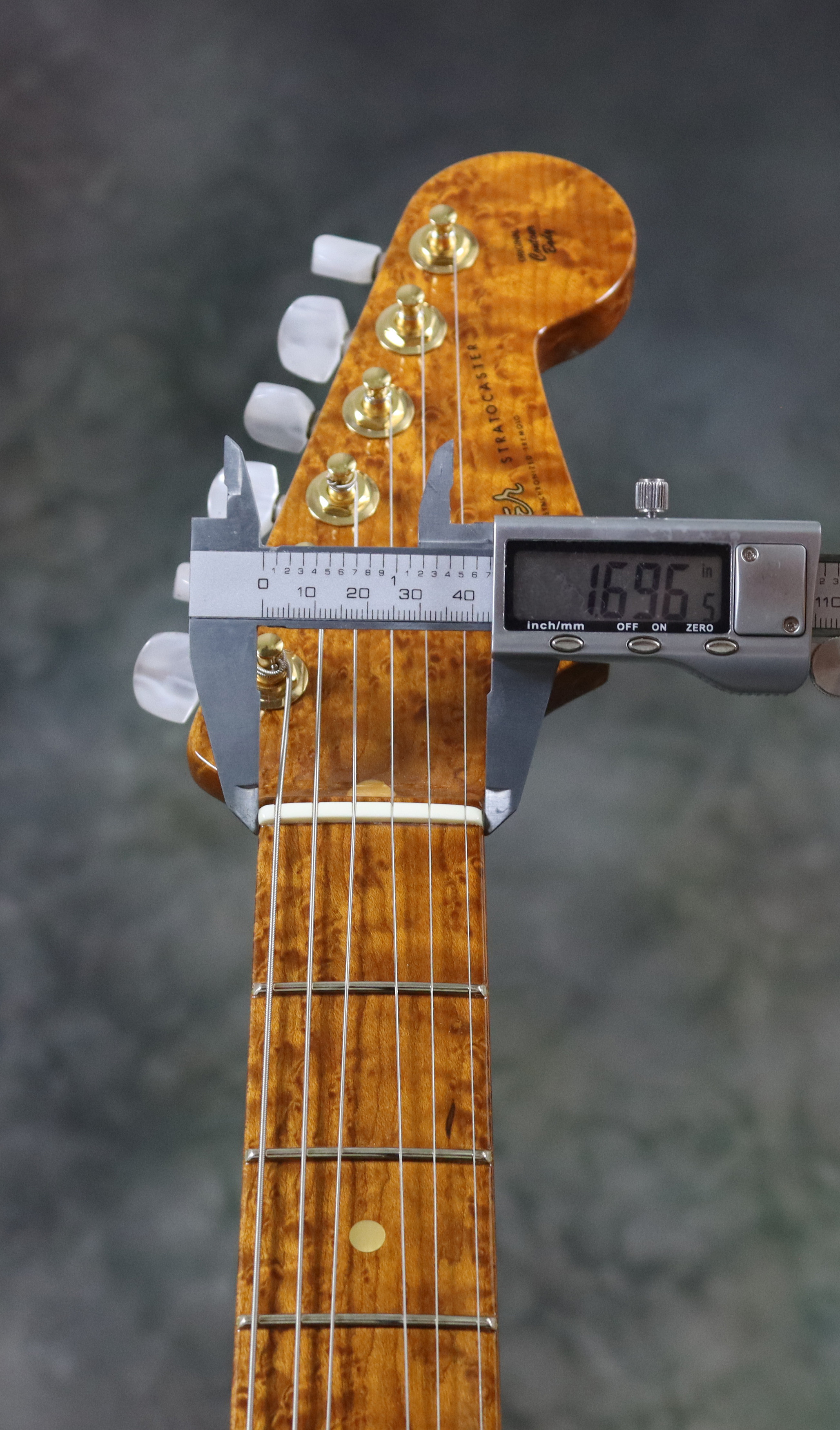

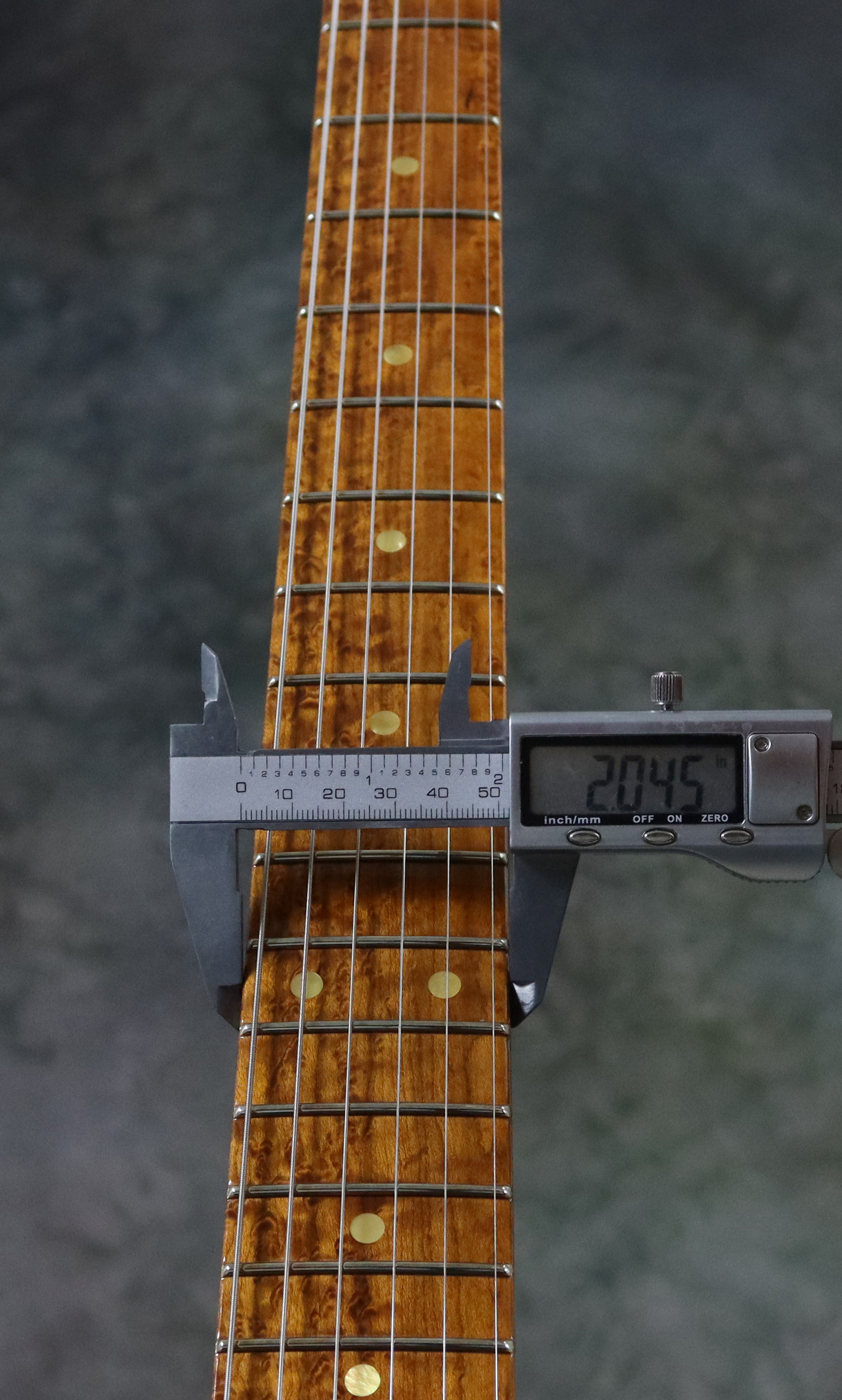

Neck Width	1.696” at 1st fret / 2.045” at 12th fret / E.O.B. 2.200”
Neck Depth	0.880" at 1st fret / 0.980" at 12th fret
Fingerboard Inlays	Mother of Pearl Dot
Neck Binding	No
Side Dots	White Pearloid
Neck Joint	Bolt-on

hardware

Bridge / Tremolo	Gold Plated, 6-Saddle American Vintage Synchronized Tremolo and ‘Ashtray’ Cover
String Tree	Gold Plated, ‘50s Style T-Tree

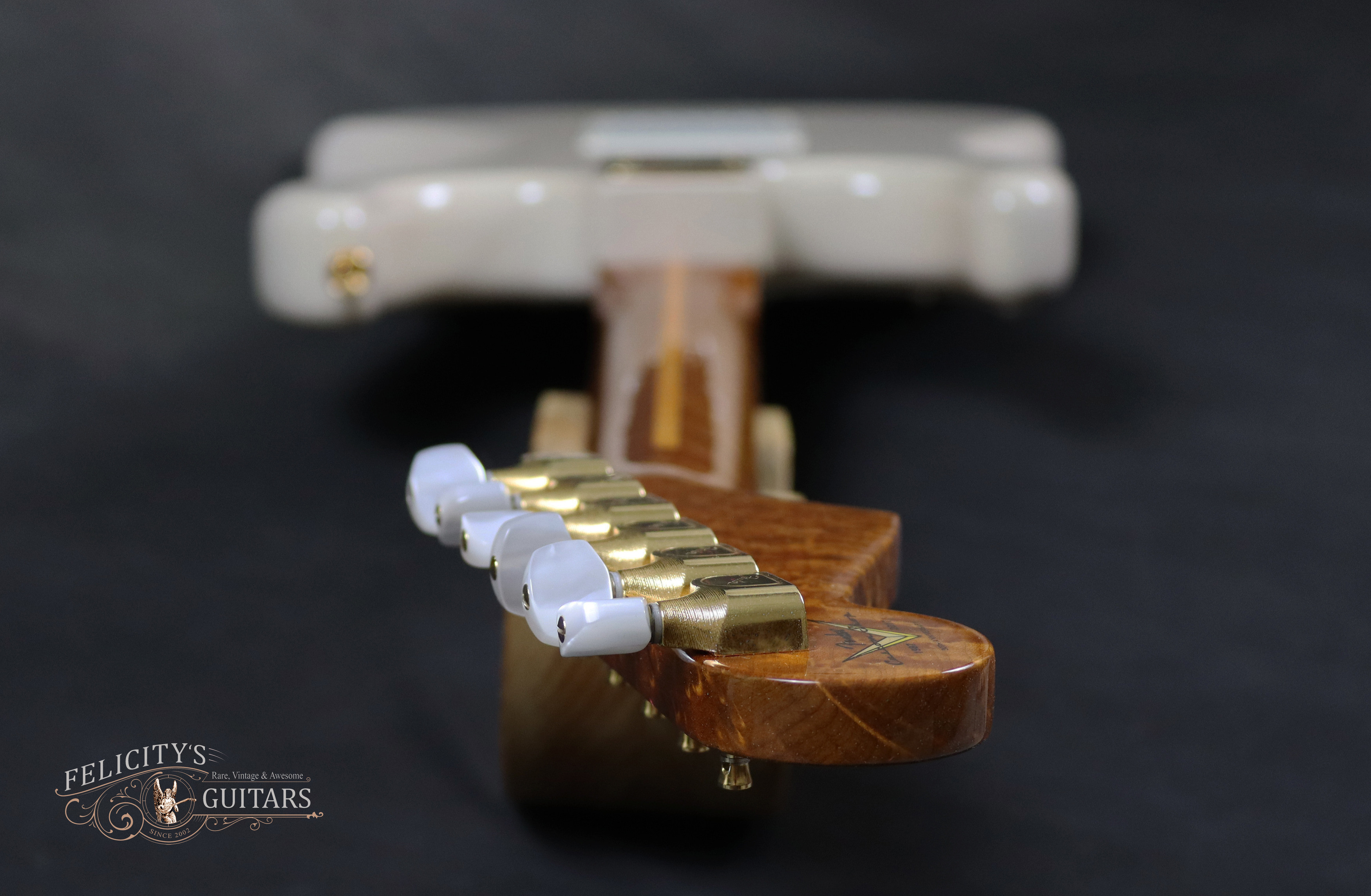

Tuning Machines	Gold Plated, Schaller® XGE-1G with Pearl Buds / 14:01 Ratio

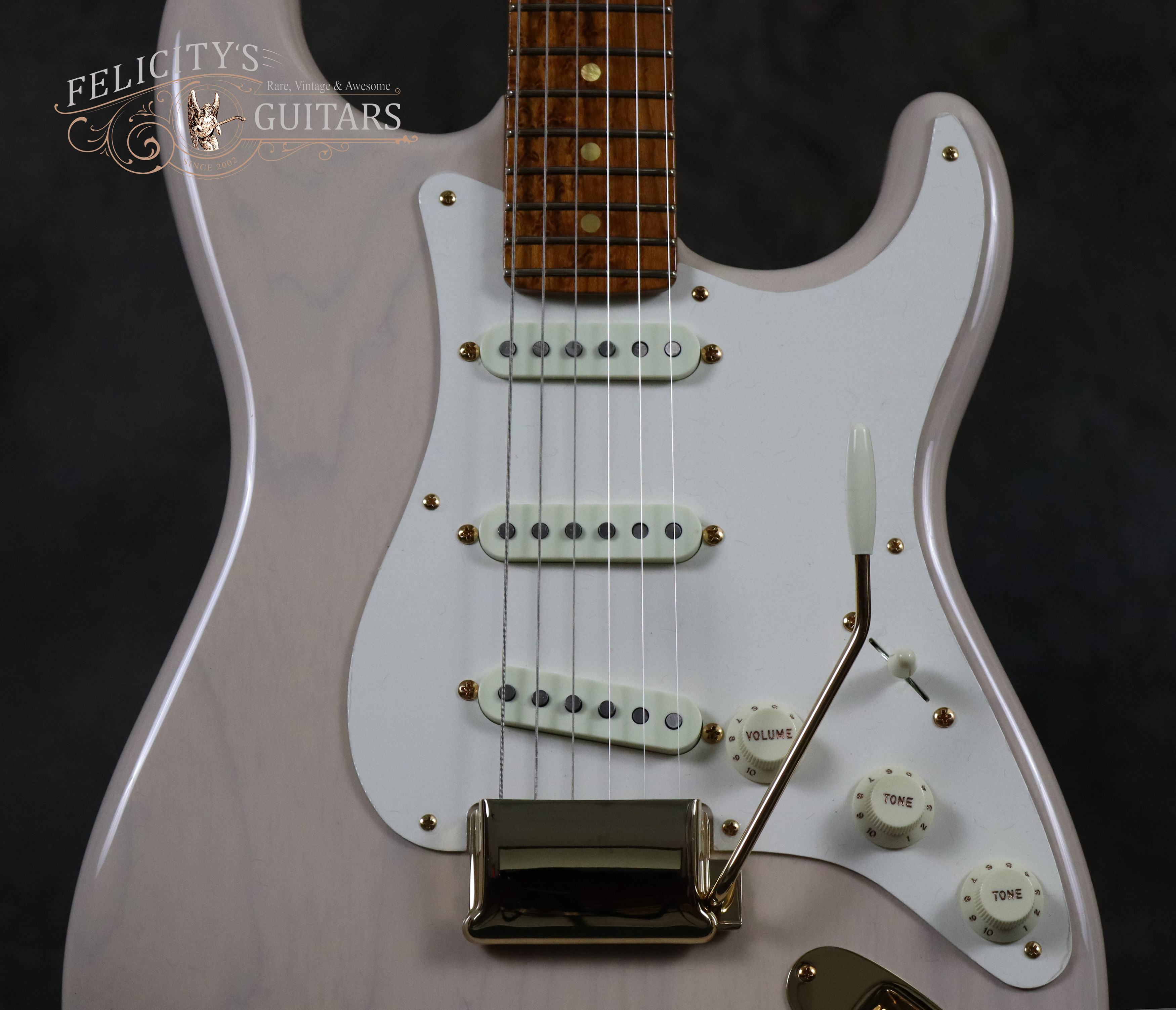

Pickup Cover / Ring	White Plastic, Exposed Pole, Pickguard-mounted SSS configuration / no Rings
Strap Buttons	Gold Plated, Aluminum End Pins

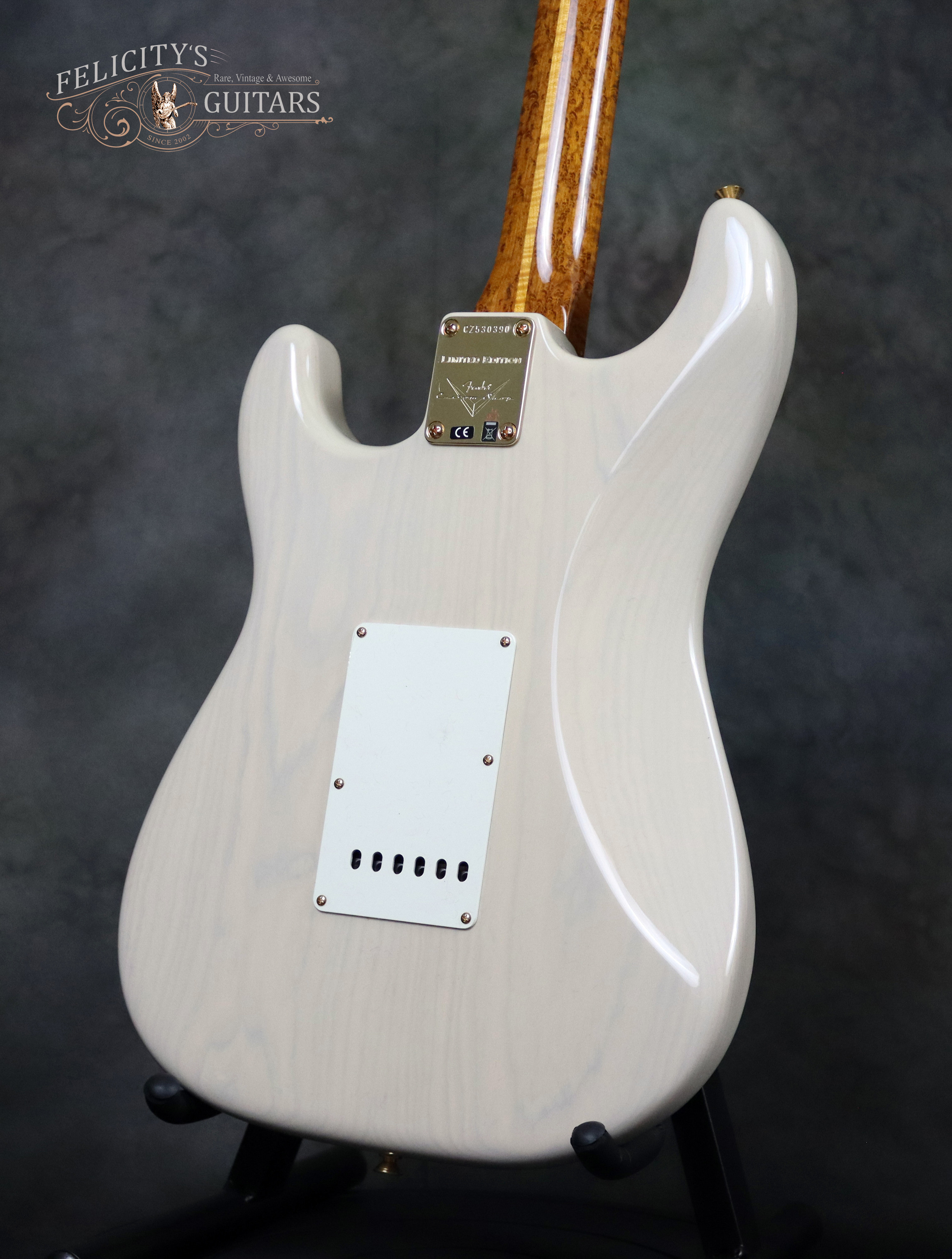

Pickguard	Single-Ply Parchment, Eggshell White, 8-hole (vintage) shielded
Control Knobs	White Plastic Strat™ Knobs with no Dial Pointers
Switch	White Plastic Blade Tip

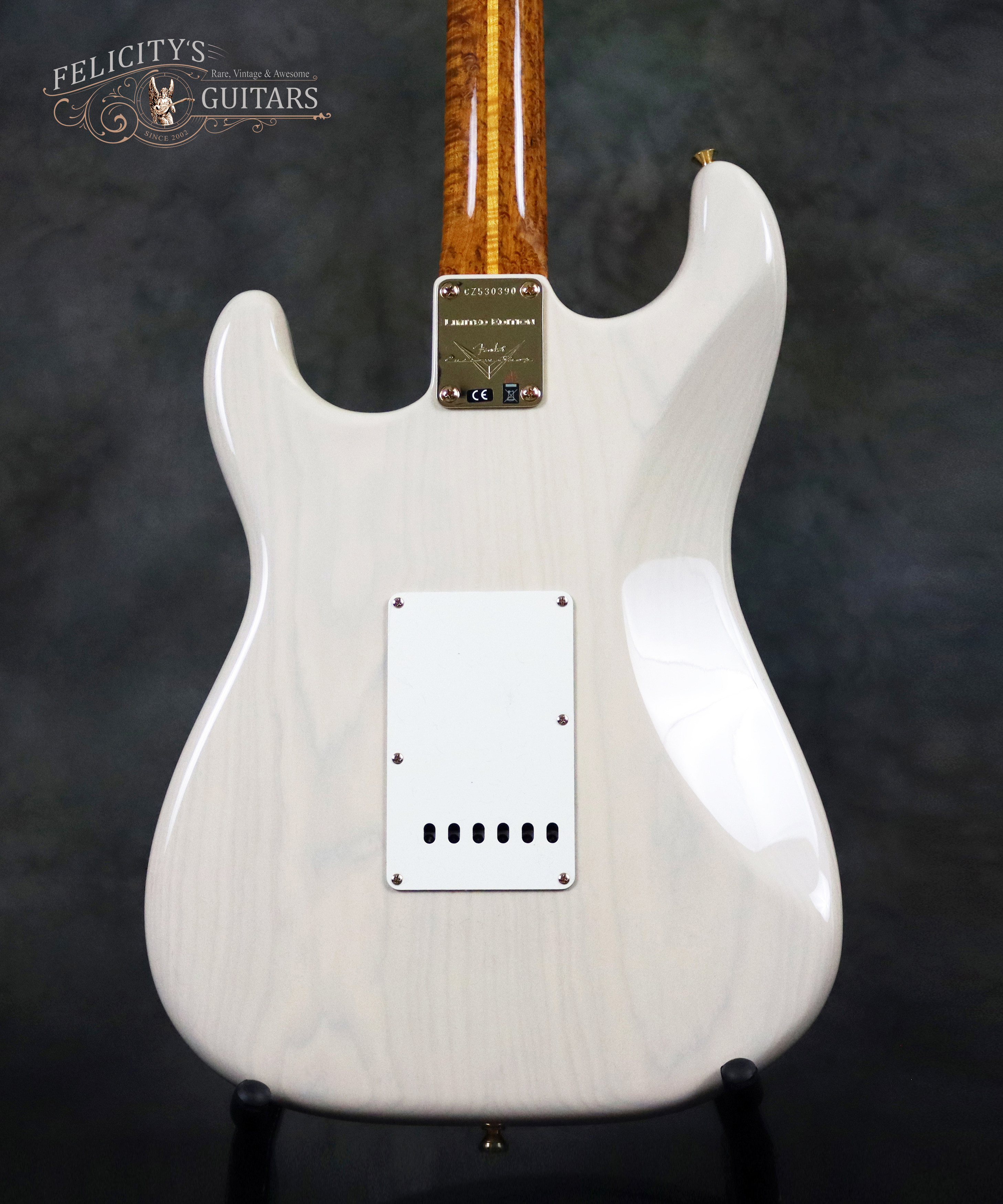

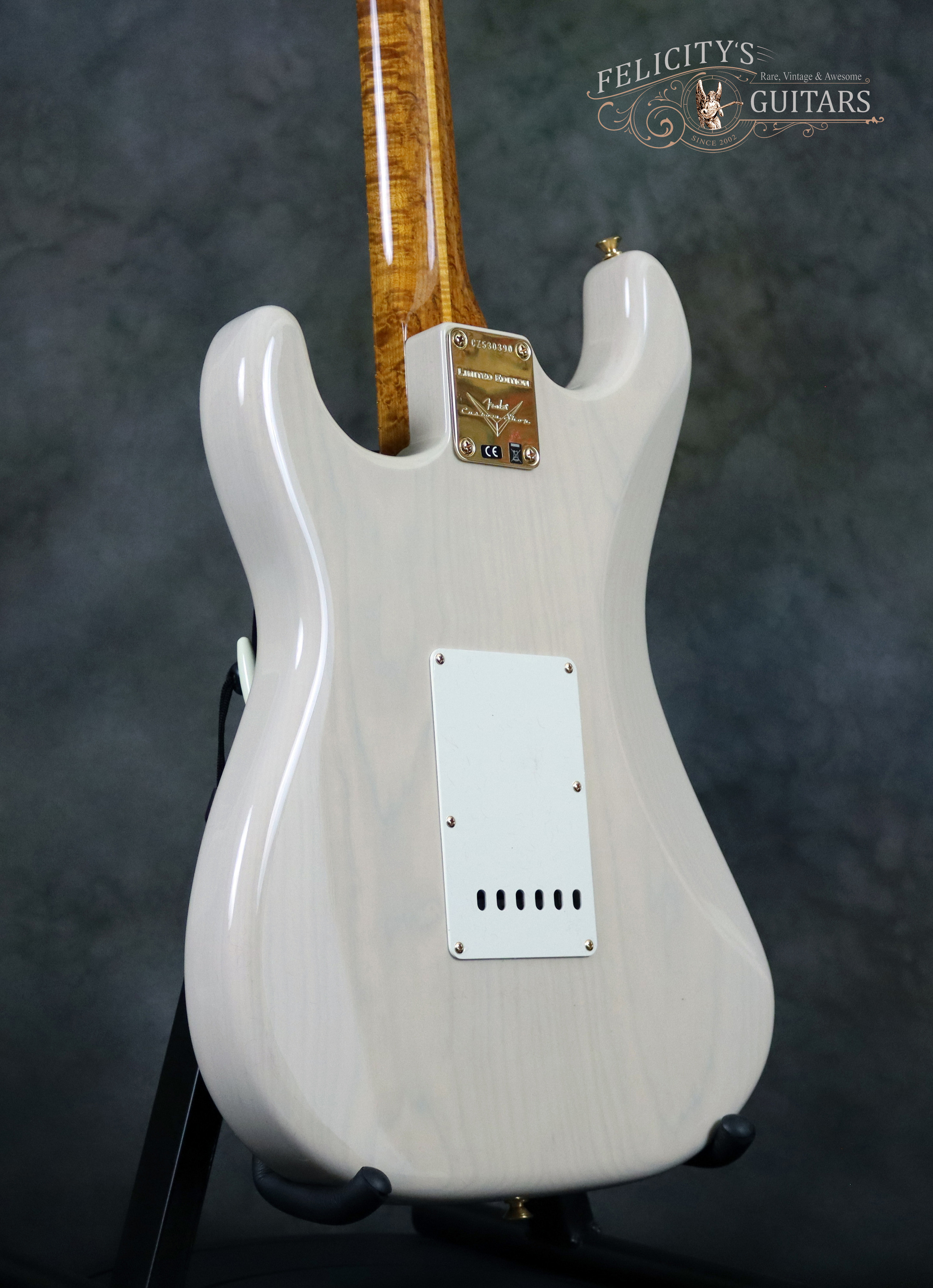

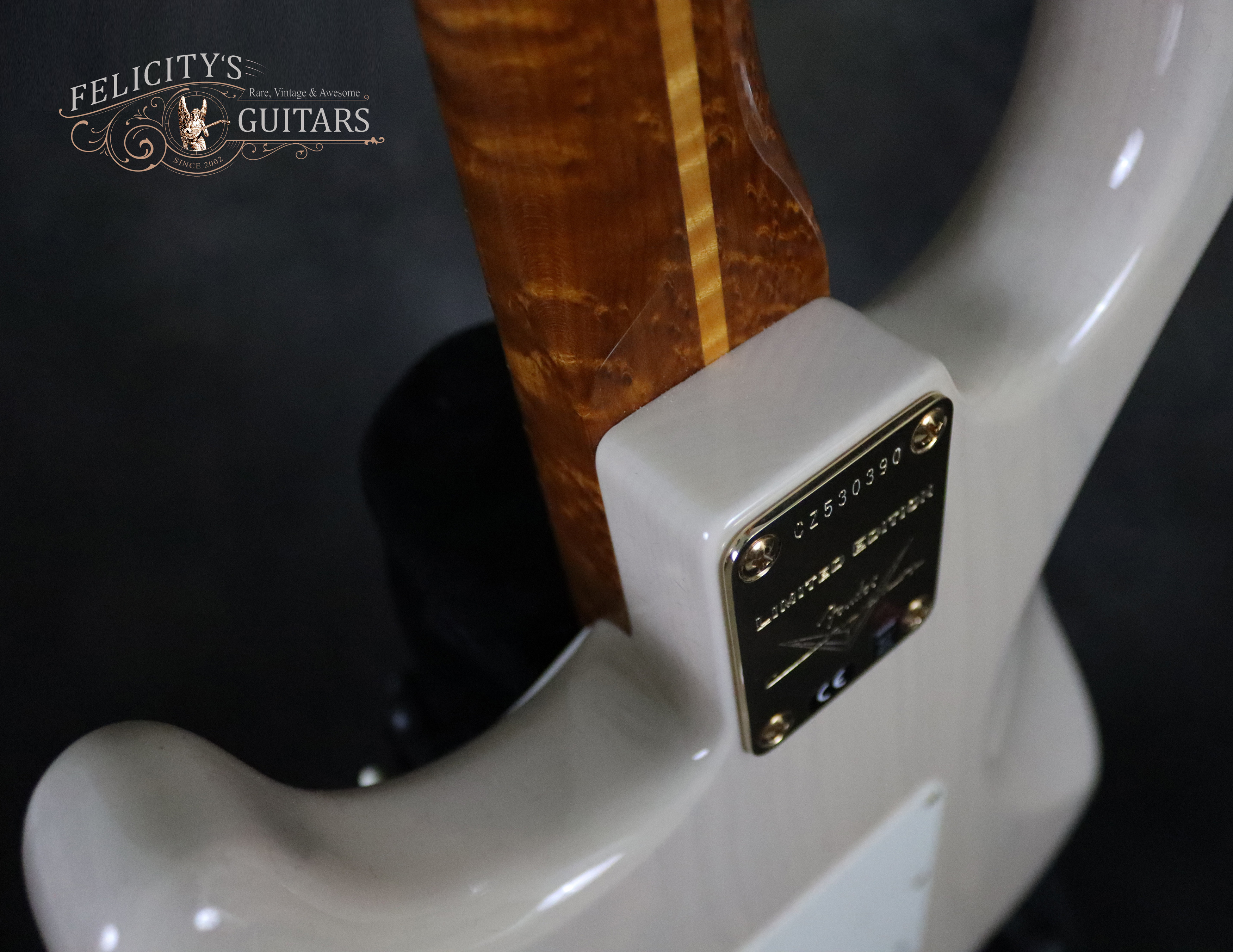

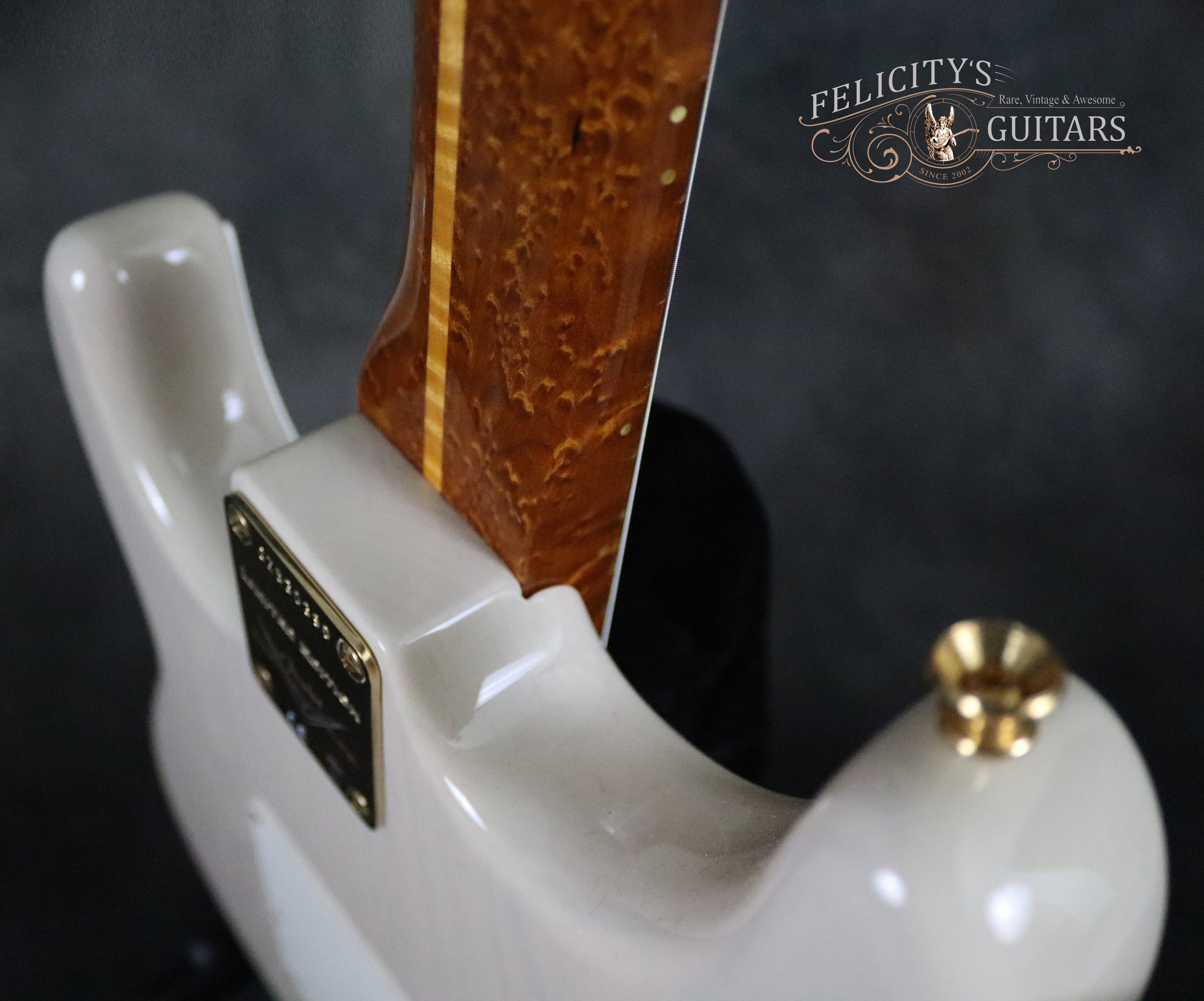

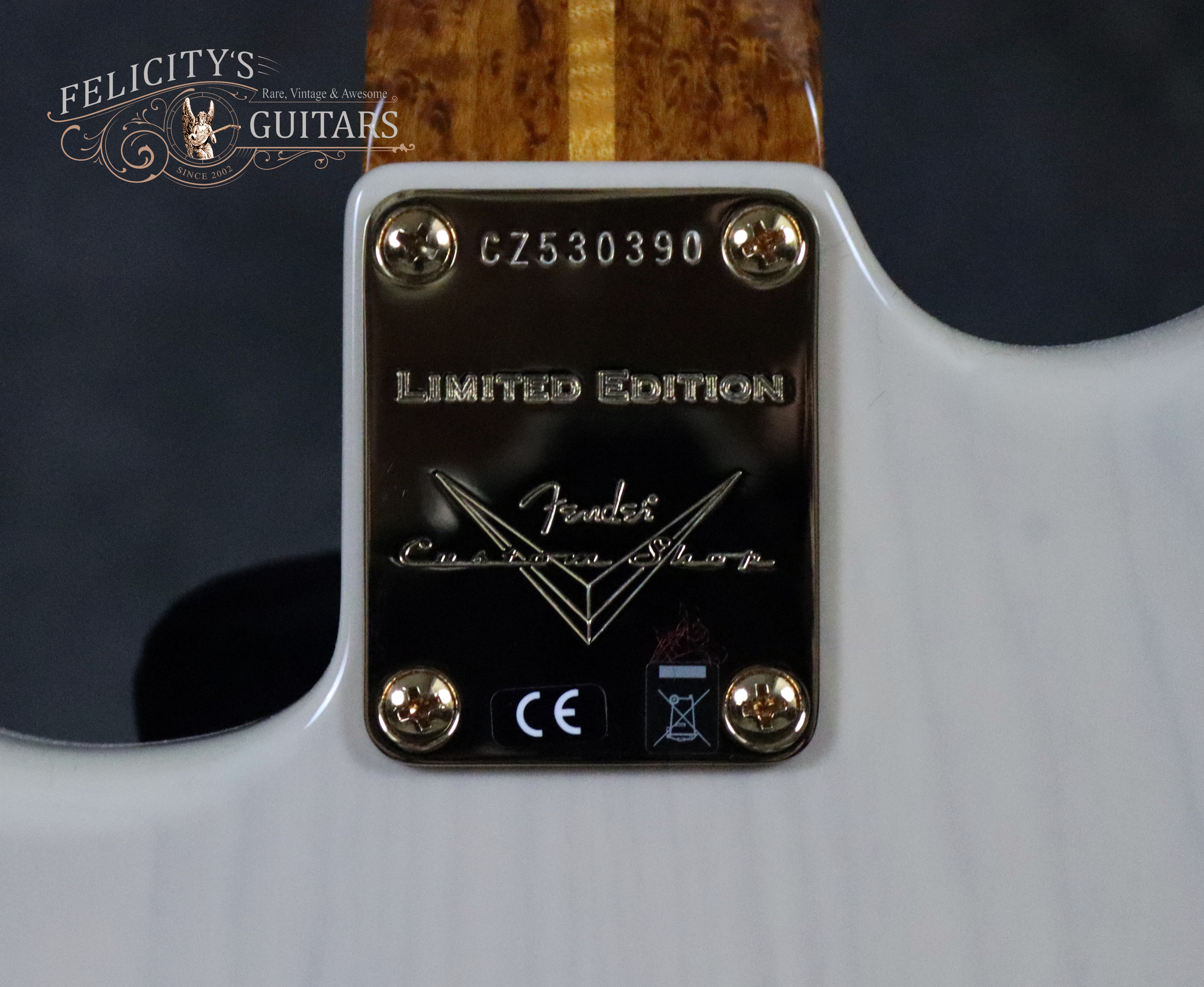

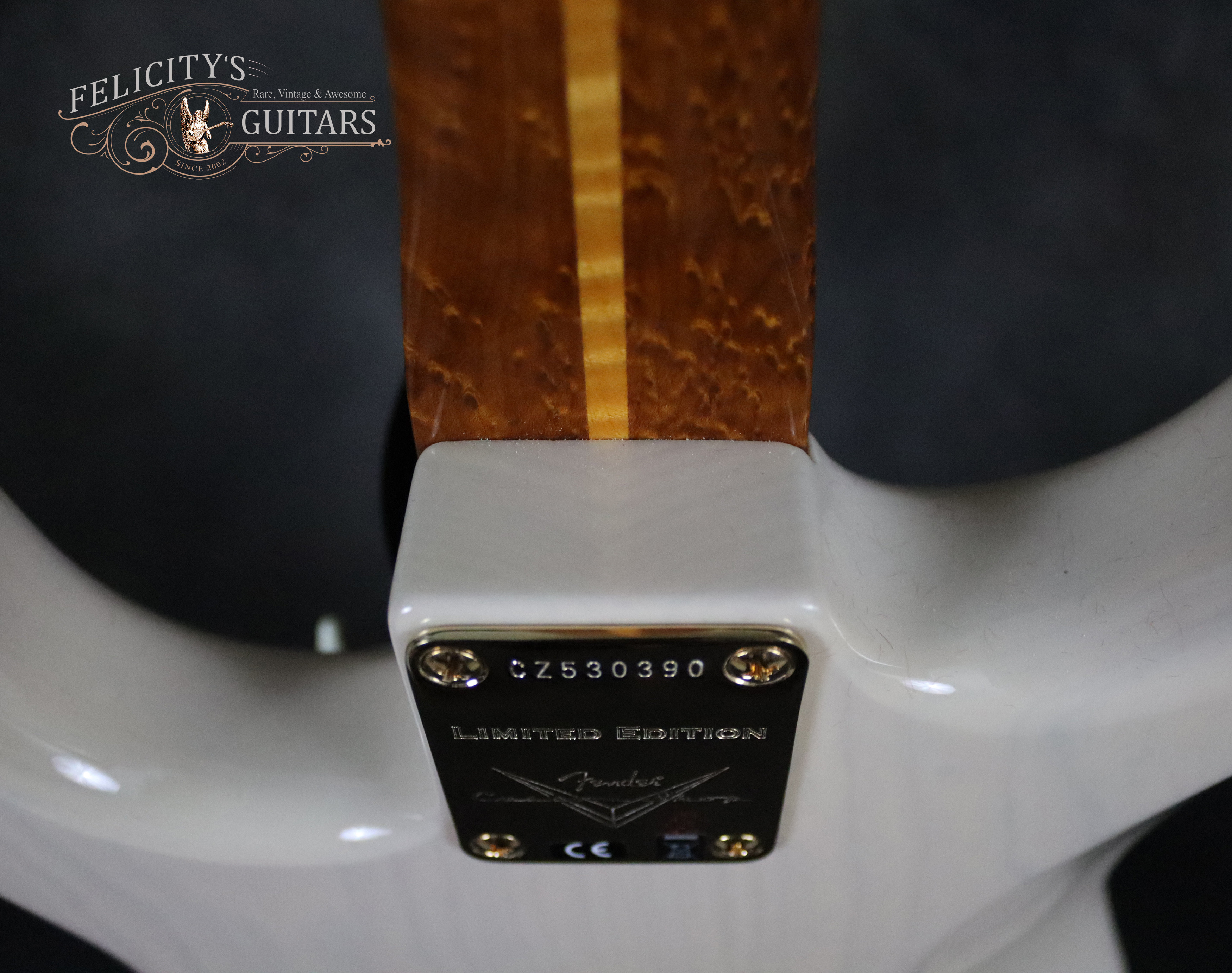

Neck Plate / Jack Plate	Gold Plated, 4-bolt, Custom Shop ‘Limited Edition’ / Gold Plated, ‘Boat’ Style

electronics

Bridge Pickup	Fender® Custom Shop Handwound Stratocaster Texas Special, Alnico V, DCR−6.7k
Middle Pickup	Fender® Custom Shop Handwound ‘69 Stratocaster RW-RP, Alnico V, DCR−6.5k
Neck Pickup	Fender® Custom Shop Handwound ‘69 Stratocaster, Alnico V, DCR−5.9k
Active / Passive	Passive
Series / Parallel	Series
Controls	1 Master Volume, 2 Tone, 5-position Blade Pickup Selector
Vol Potentiometer	250k
Tone Potentiometers	250k
Capacitor / Resistor	.022uF – 20% - 100v Values
Harness	Custom Shop Hand-wired end-to-end
S-1 Switch	No
Greasebucket T-Circuit	Yes
MDX/TBX Circuit	No
Active Electronics	No
Piezo	No
Kill Switch	No
Output Jack	Switchcraft™ 1/4" 2-Conductor

miscellaneous

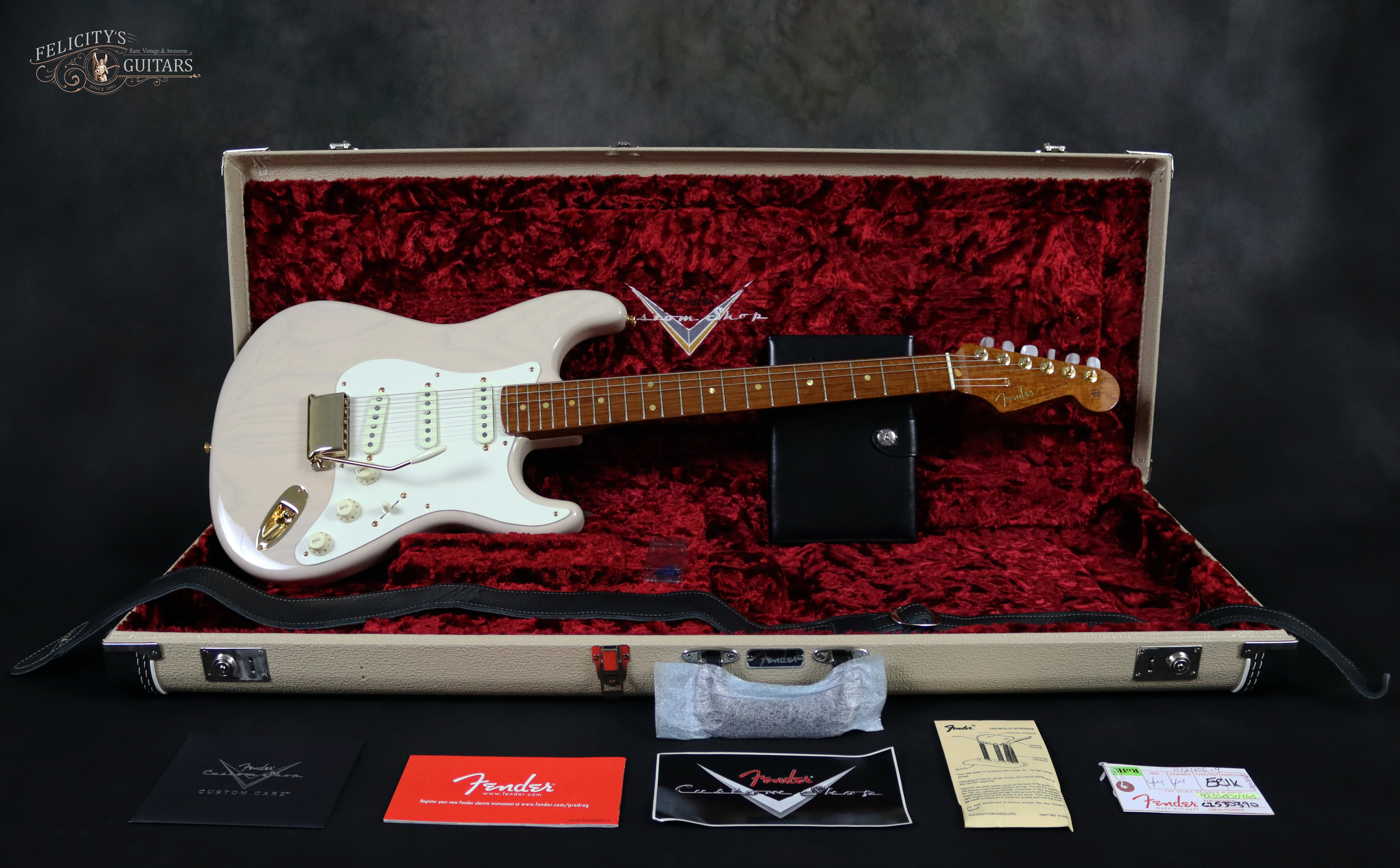

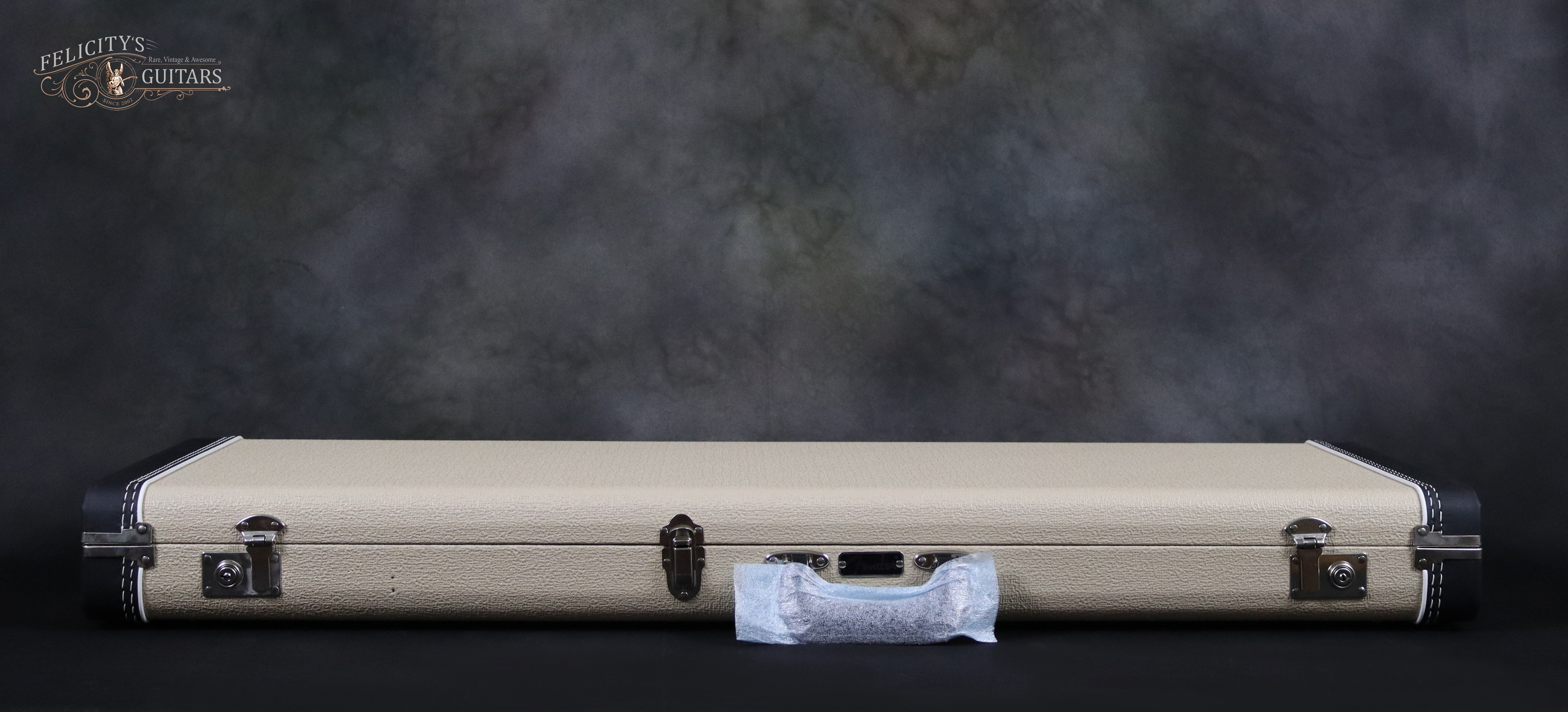

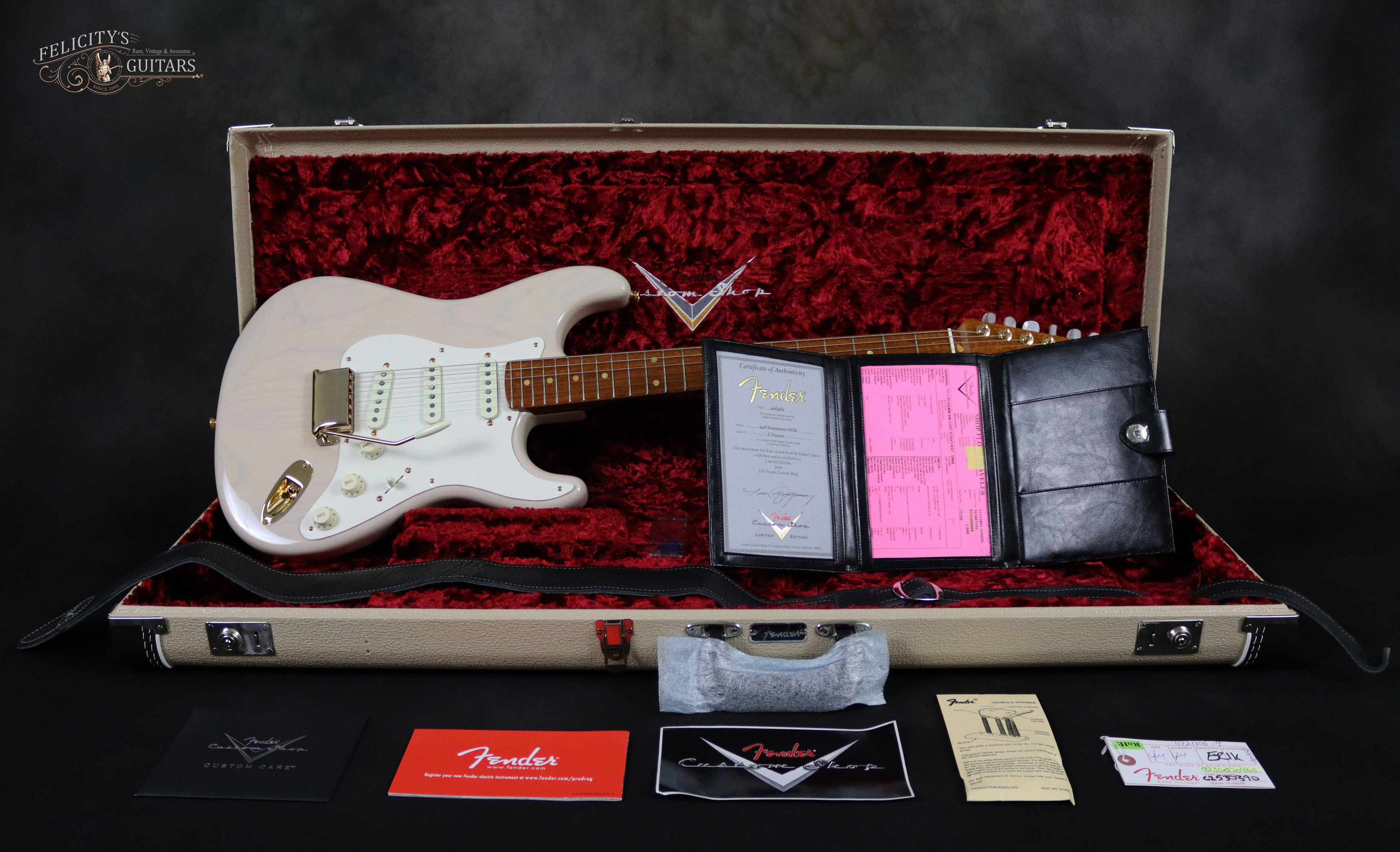

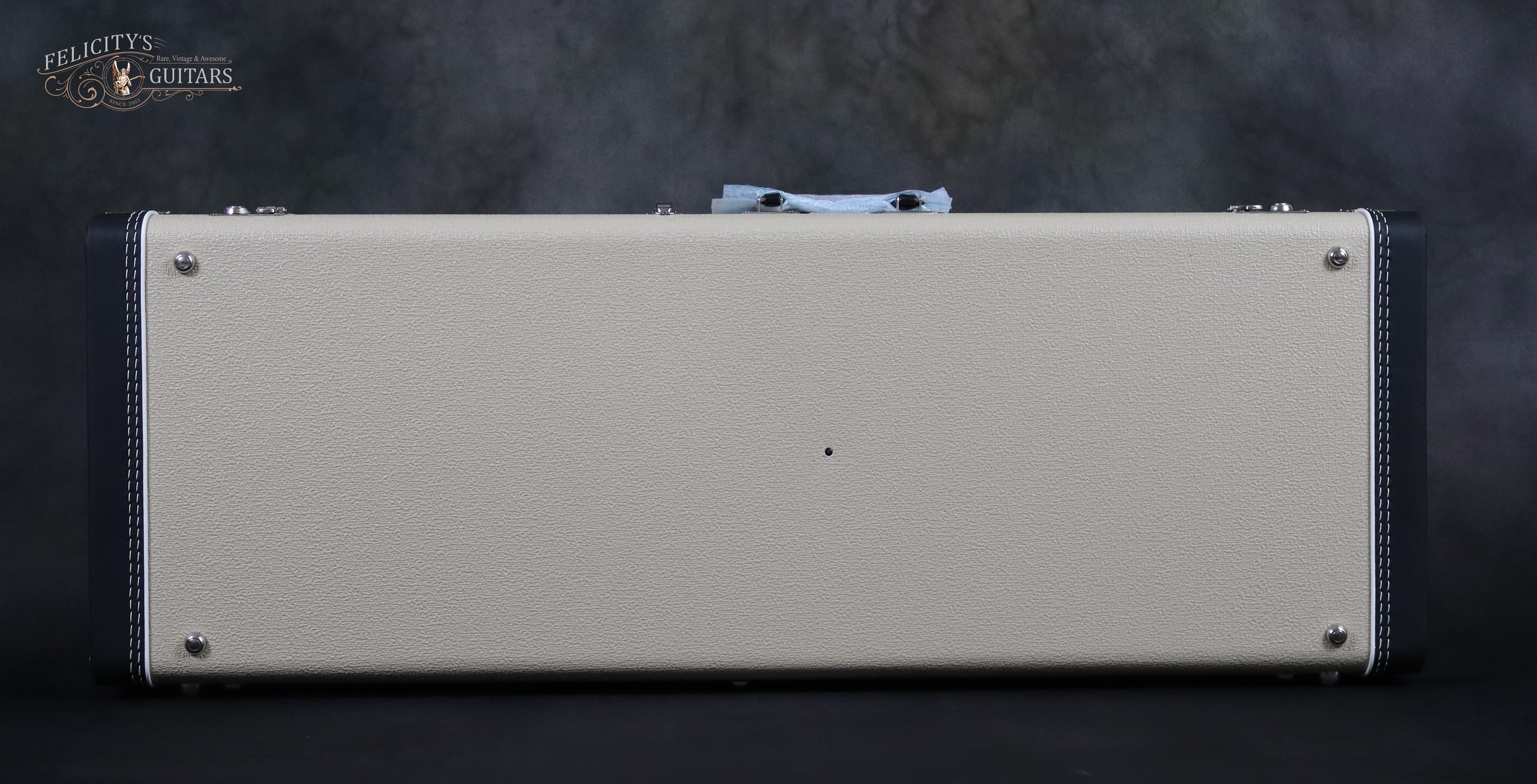

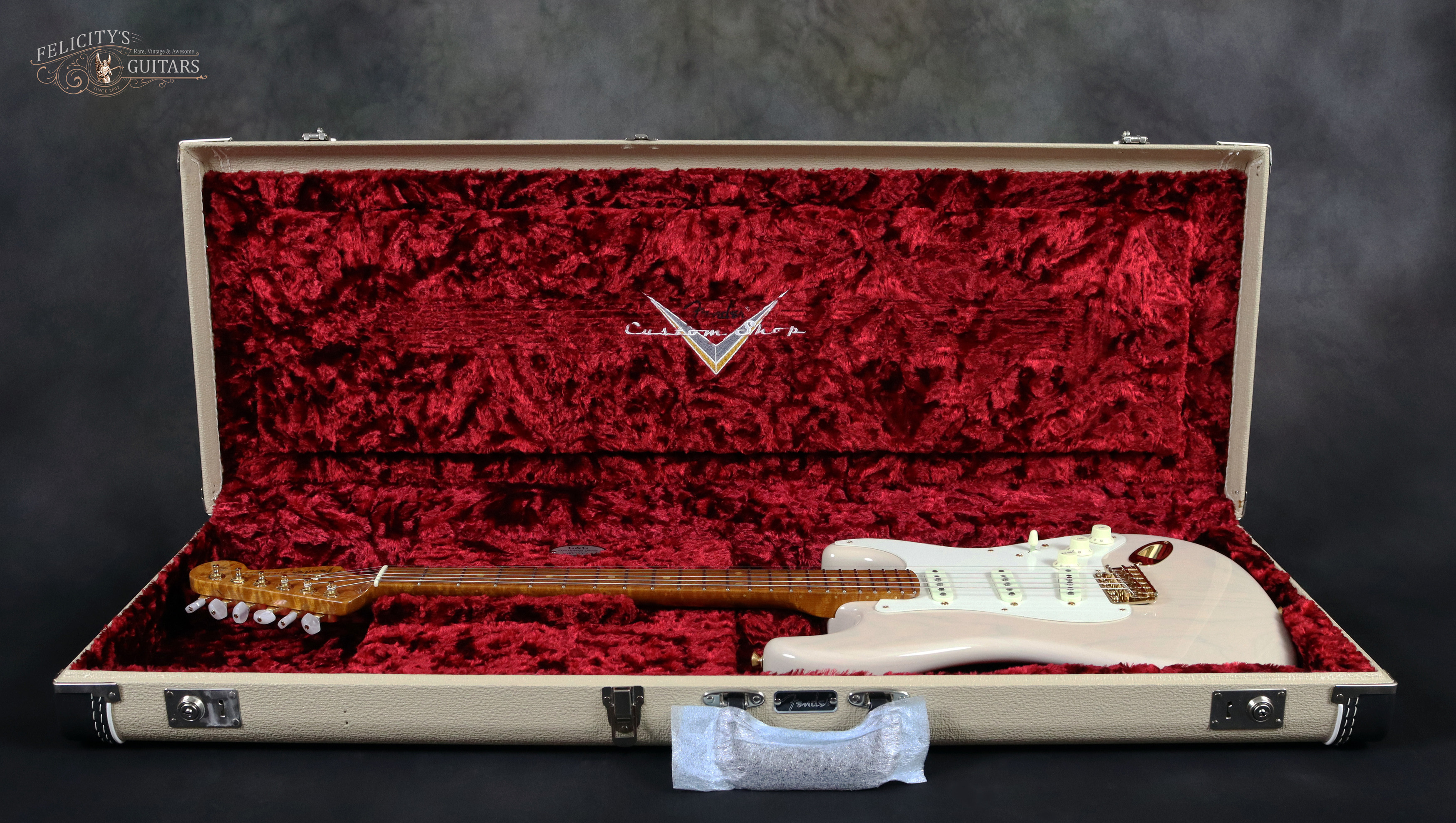

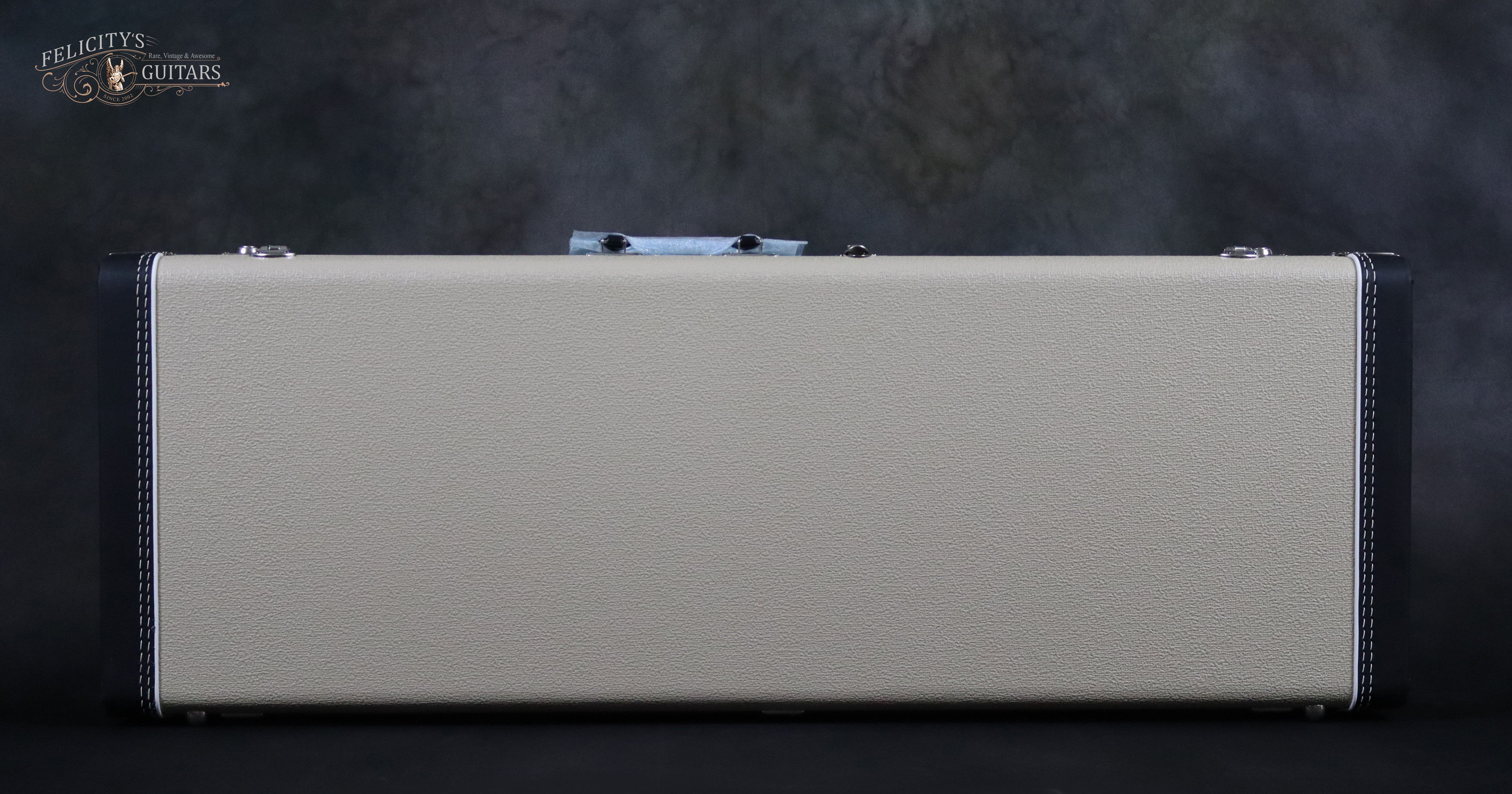

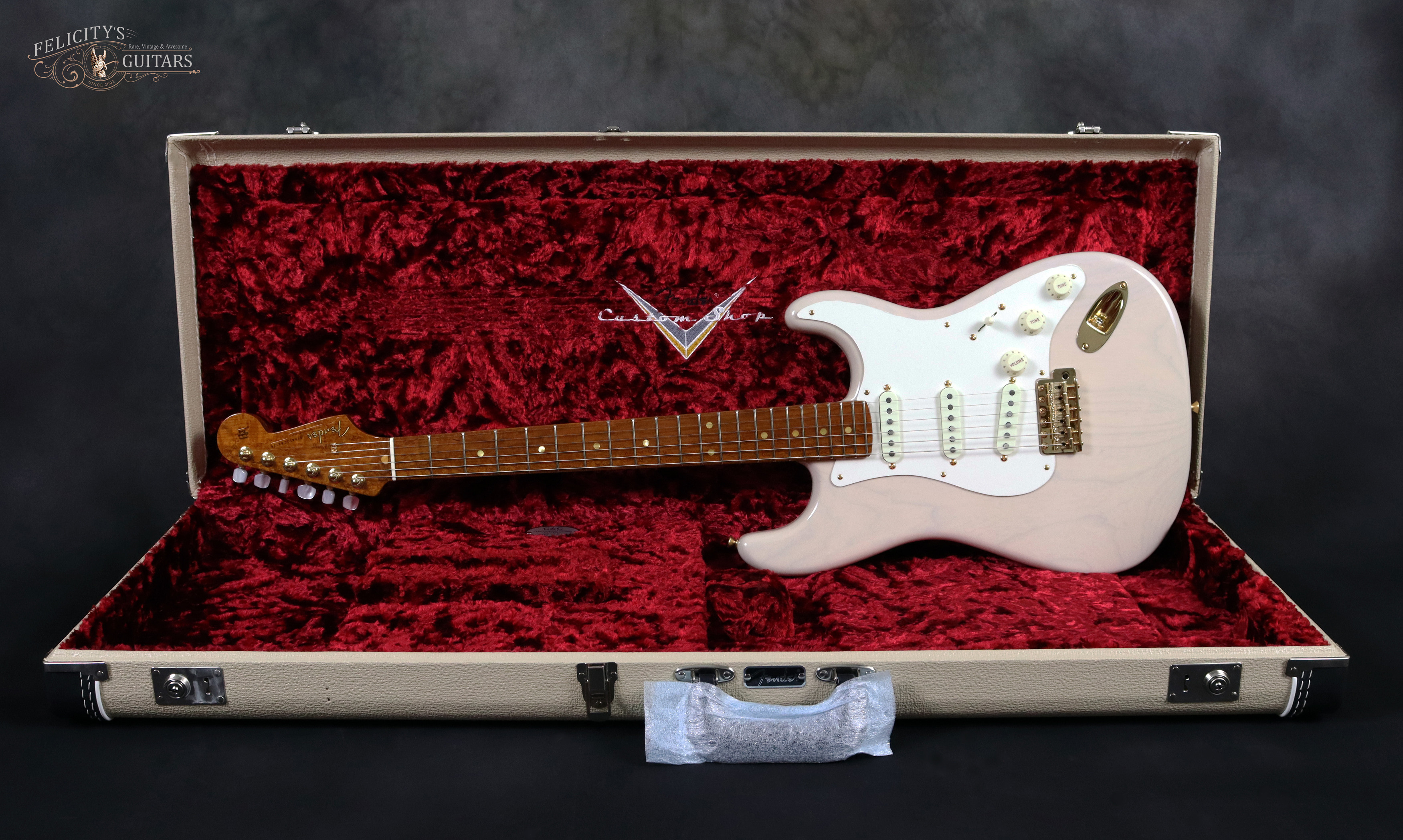

Case / Gigbag	Fender® Custom Shop Blonde Tolex Case with Crushed Velvet Crimson Interior & Lock
Strap Locks	No
Strings	Fender® U.S.A. 250R Nickel Plated Steel (.009 − .042 Gauges)
Tools / Accessories	Truss Rod & Saddle Allen Keys / Gold Vintage Style Bridge Cover & Tremolo Arm, Black Leather Strap, Extra Springs,
	Custom Shop Sticker, Custom Shop Plectrums & Case Keys
Manual / Literature	Fender® Custom Shop Owner’s Manual, Custom Care, Warranty and Hang Tags
C.O.A.	Leather-bound Fender® Custom Shop ‘Certificate of Authenticity’ & CS Build Sheet
Other	Fender® Custom Shop, Corona, California 1987−2017 ‘20th Anniversary’
Weight	Is the actual weighed-value in US Standard Units

Disclosure	Some technical Specs may have been extracted from Fender® Custom Shop website & internet archives. The words Fender® / Switchcraft™ / Schaller® and the associated designs are registered trademarks of the Fender Musical Instruments Corporation and the other named entities, respectively
