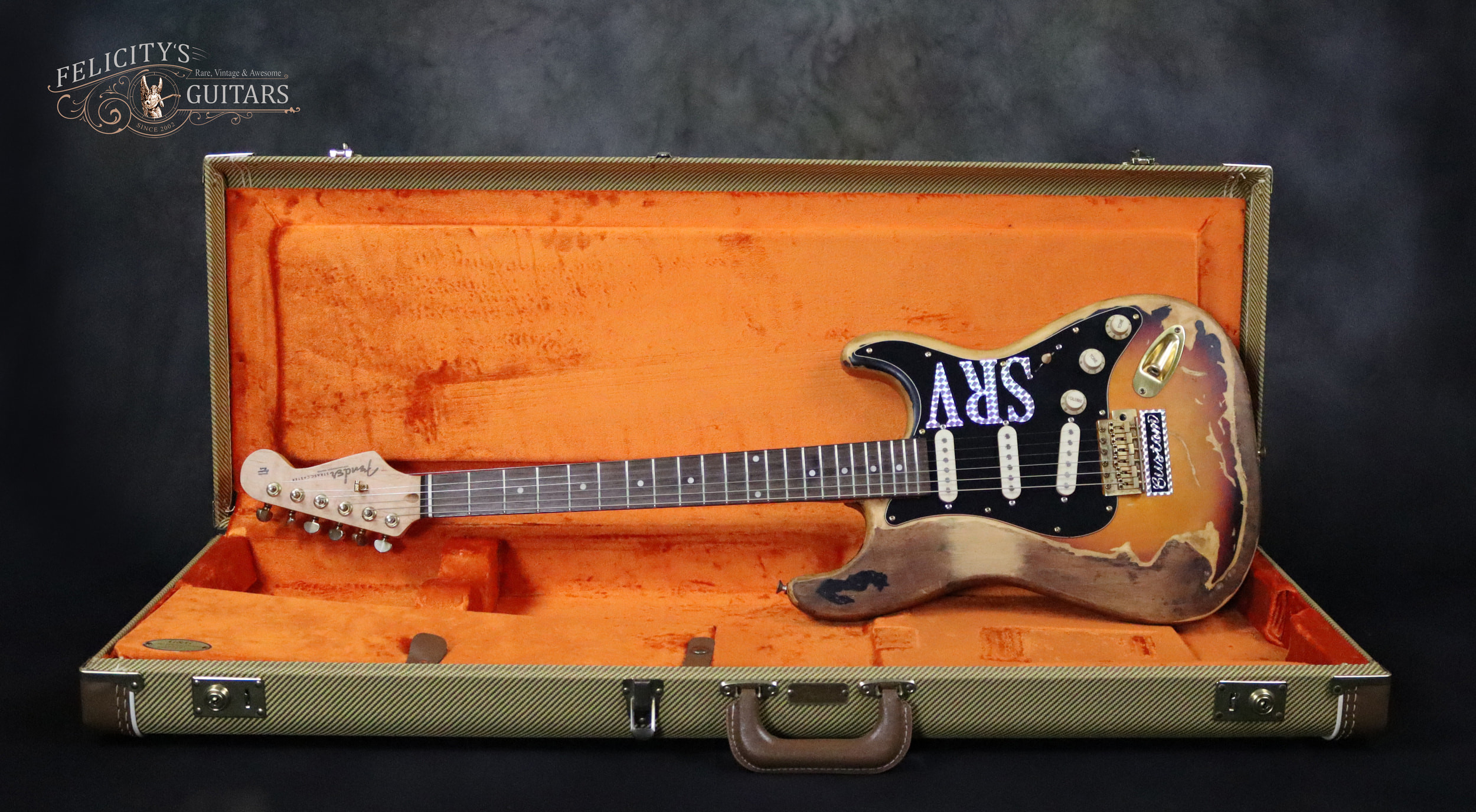

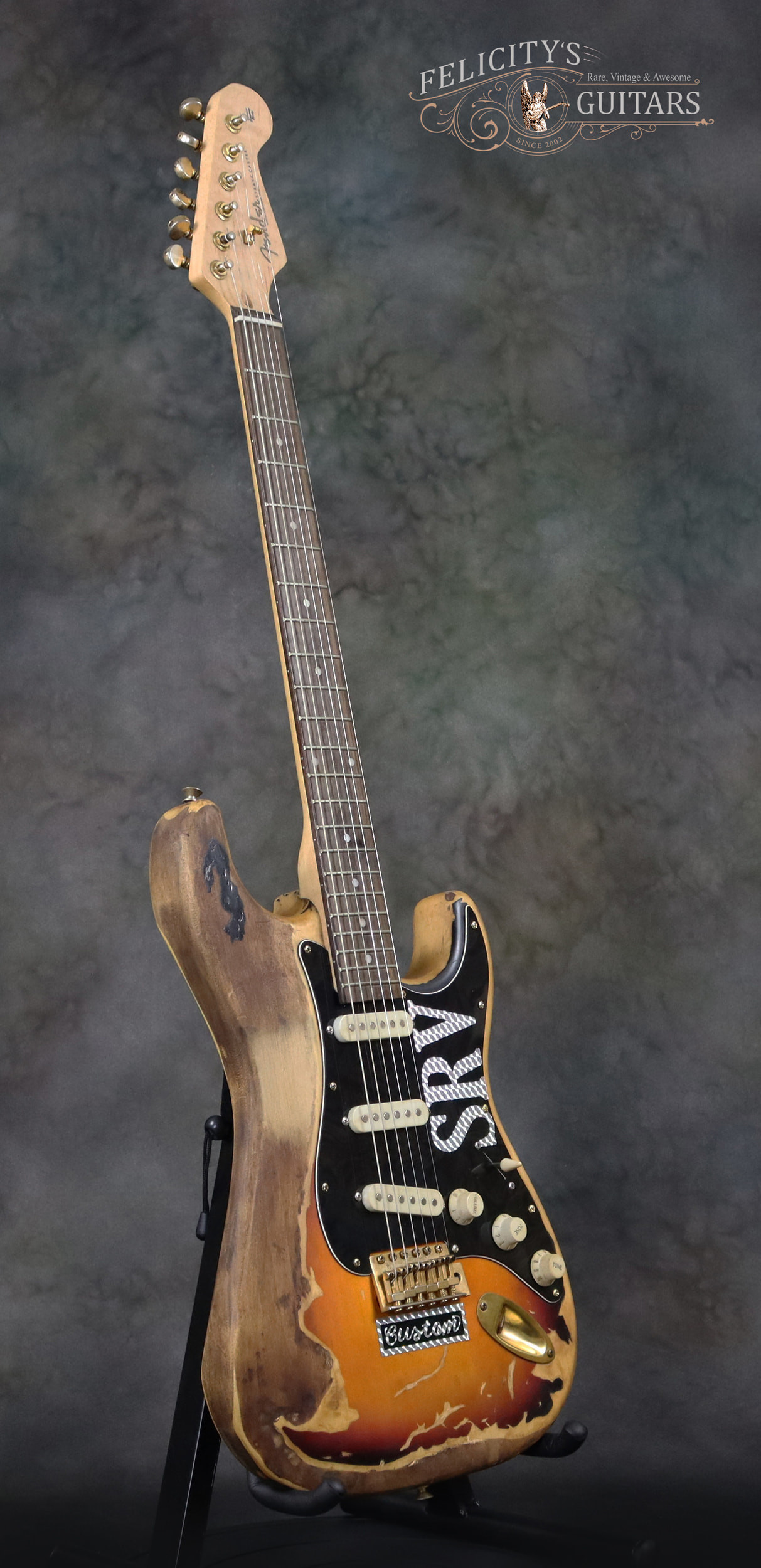

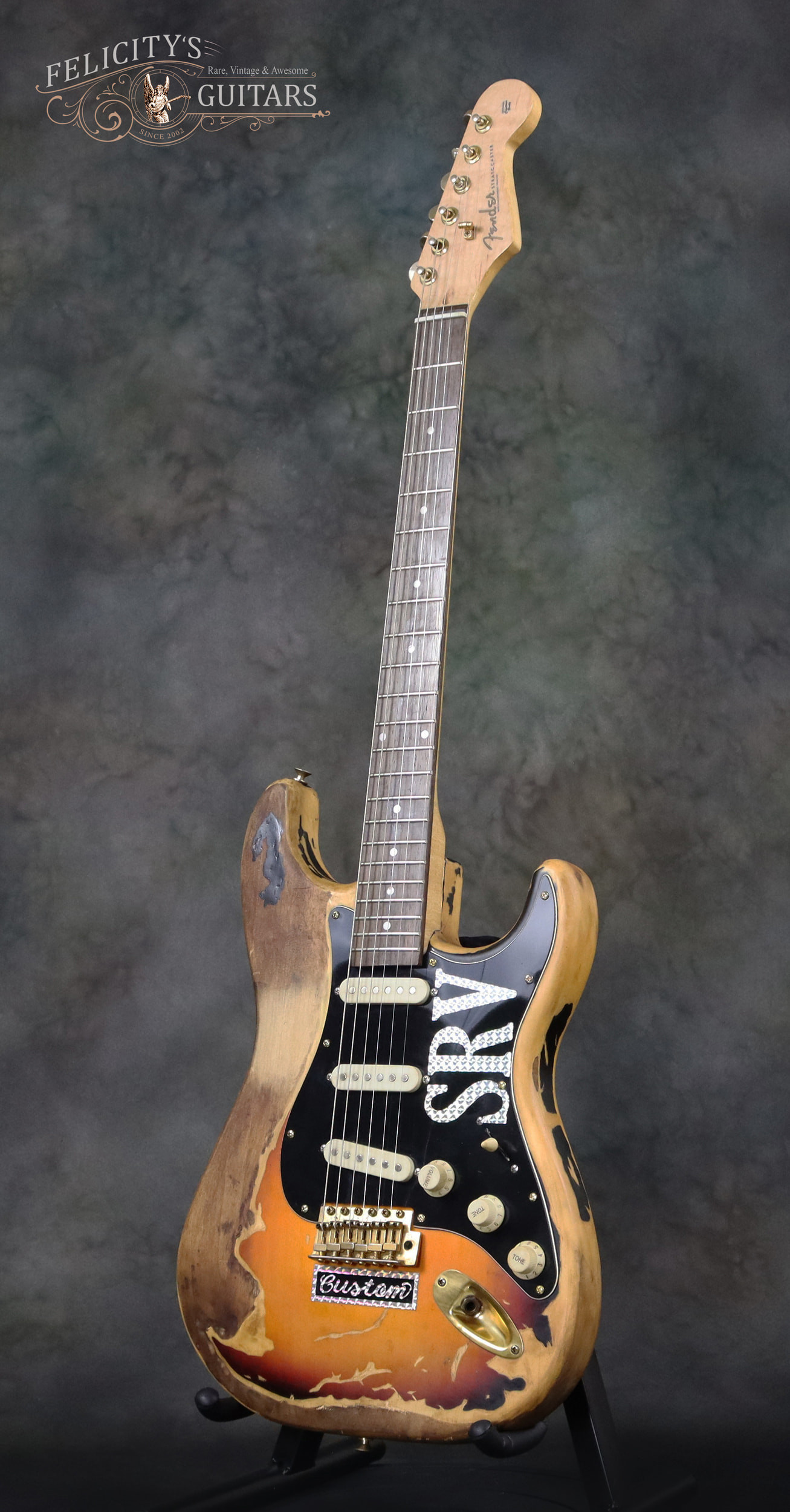

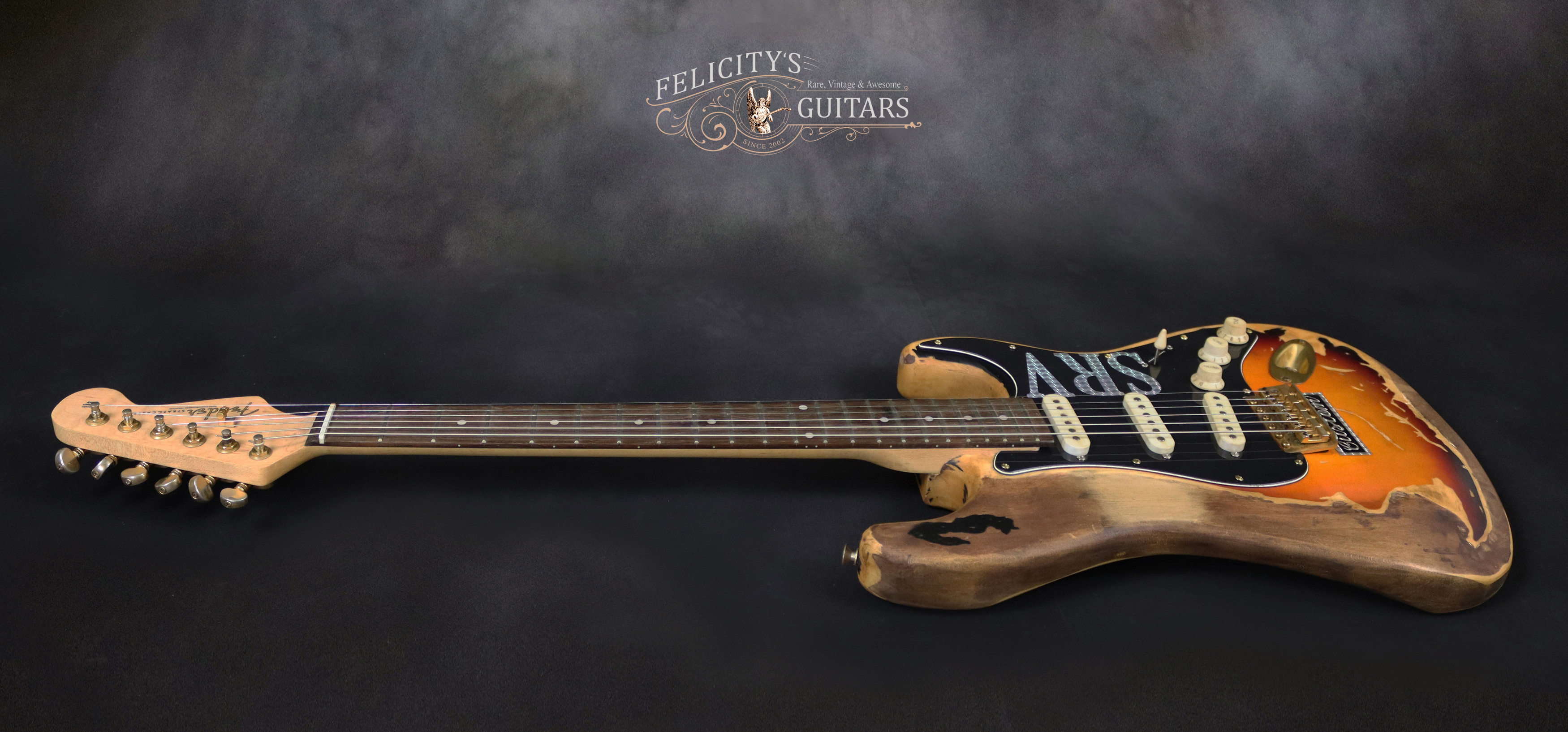

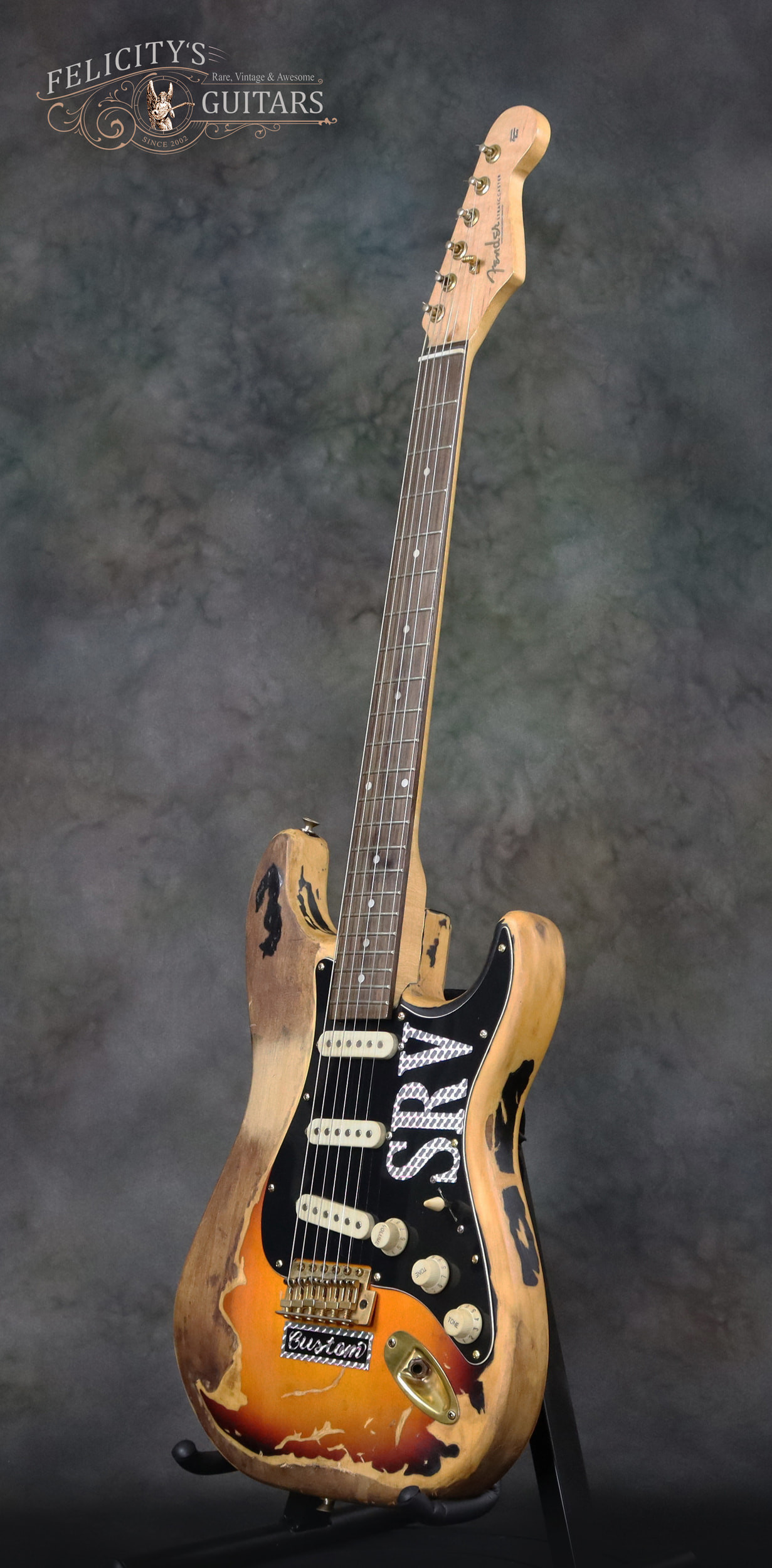

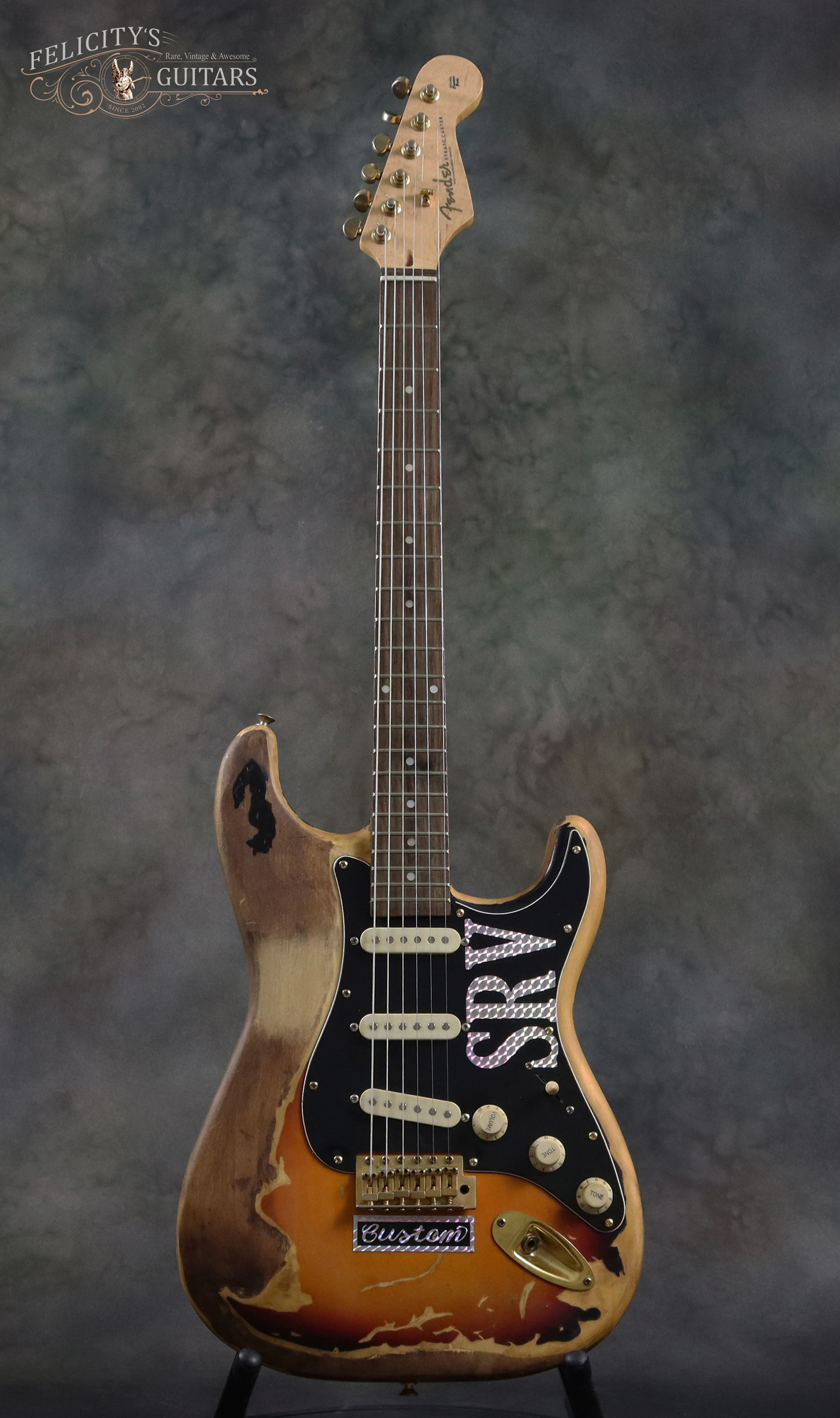

2016 FENDER "SRV NUMBER 1" STRATOCASTER HEAVY RELIC
This 1993–96 Heavy Relic was painstakingly hand-aged to Replicate Stevie Ray Vaughan’s famous “No. 1”
Stratocaster in exacting detail. This is a replica of the guitar in which Vaughan electrified audiences everywhere
with searing hot, scorching Texas blues licks right to the top of the charts.
- Thick “C” neck profile
- Pau Ferro fingerboard like Stevie’s No. 1
- Aged Fender Tex-Mex Strat Single-coil Pickups

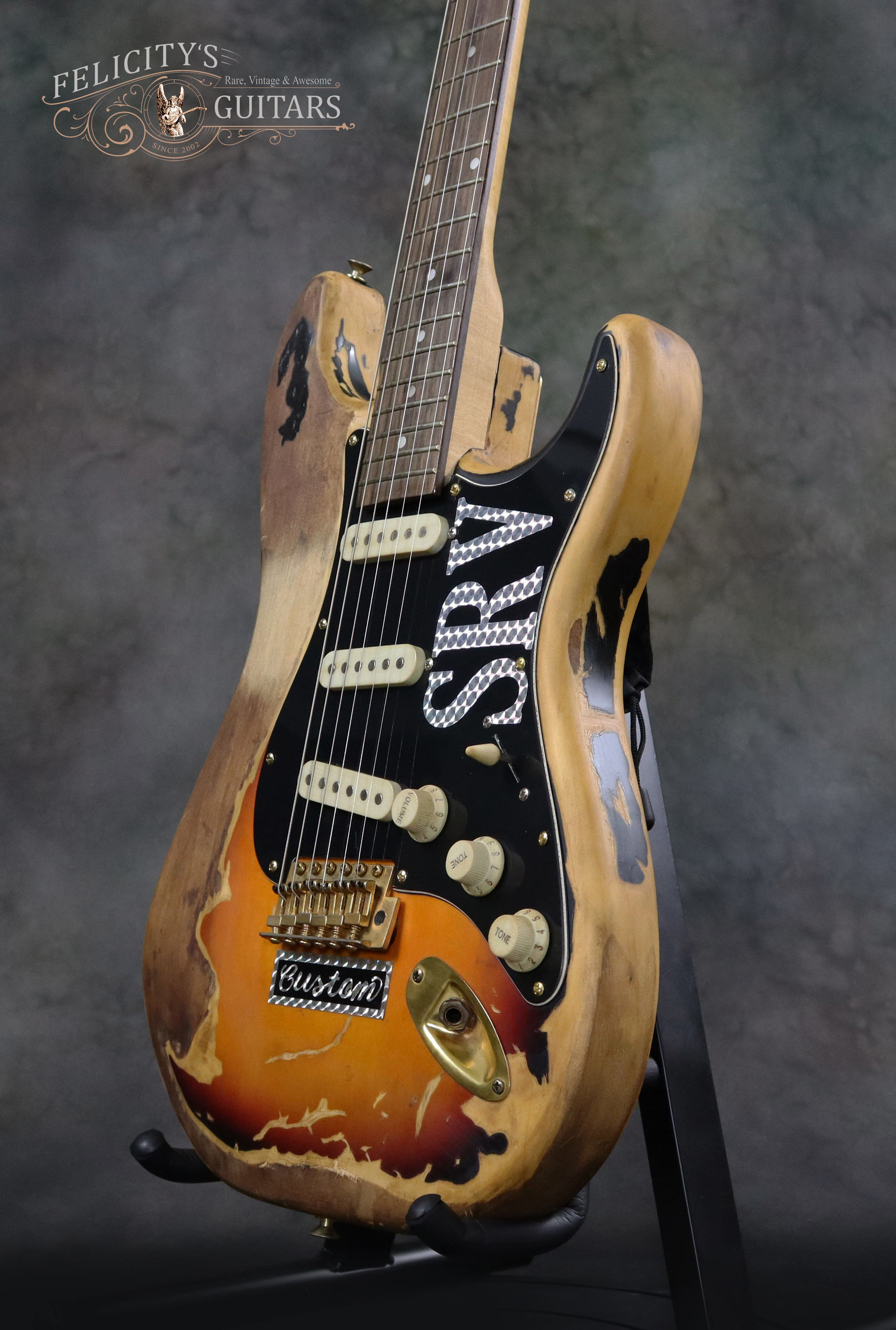

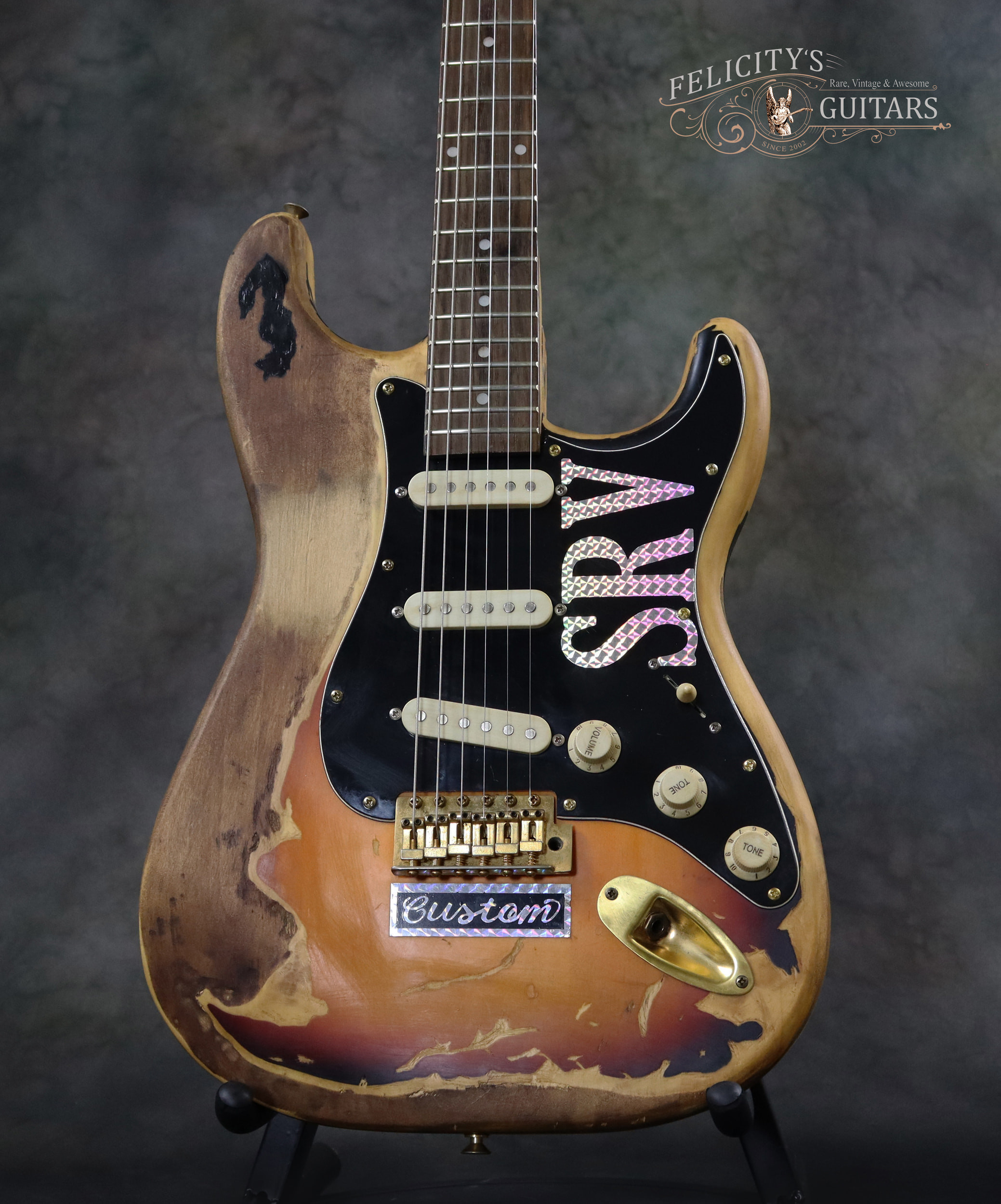

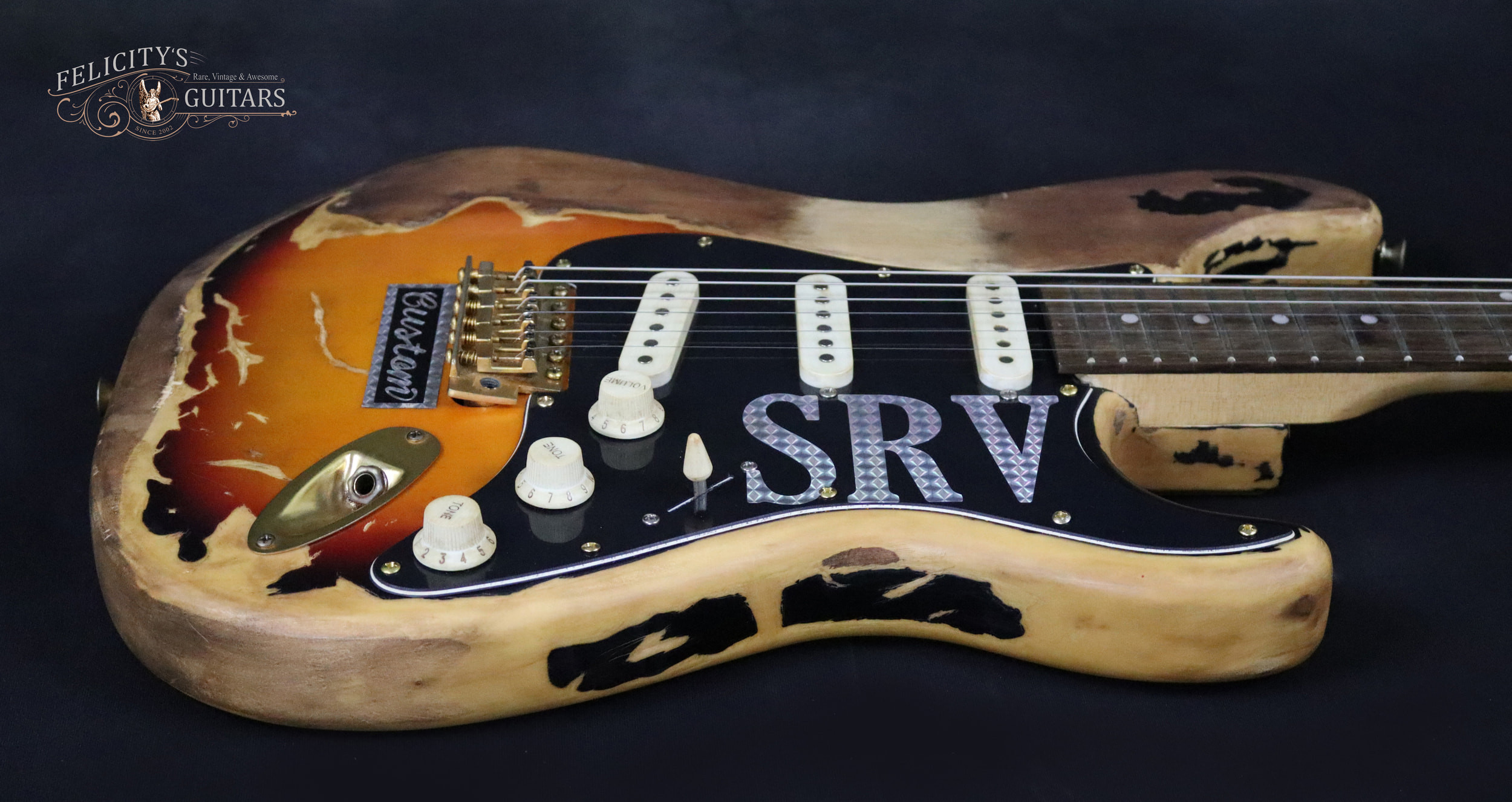

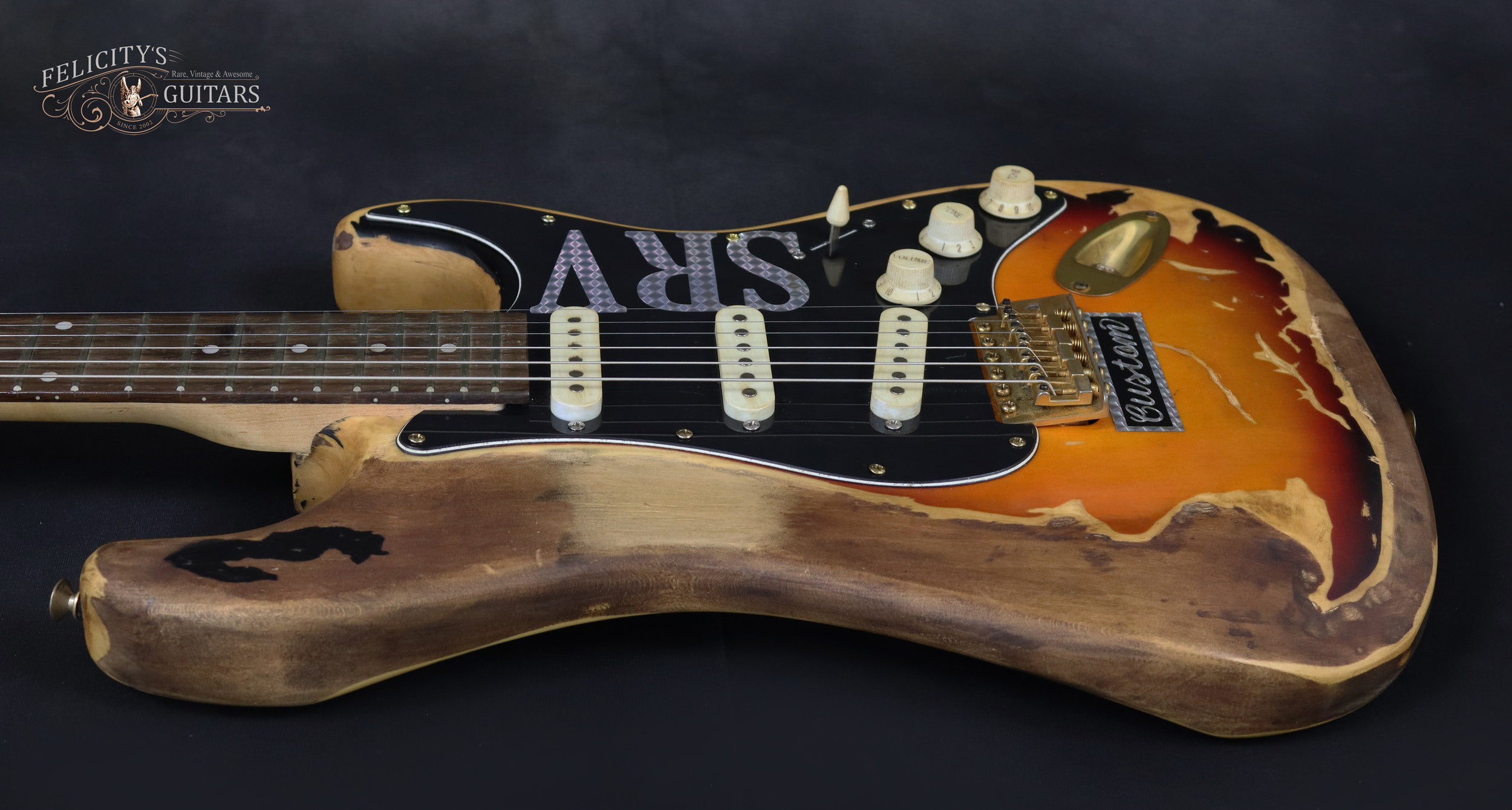

- Holographic Reflective “SRV” & “Custom” pre-worn decals on pickguard and body
- Aged Gold-plated hardware, including Grover™ tuning machines

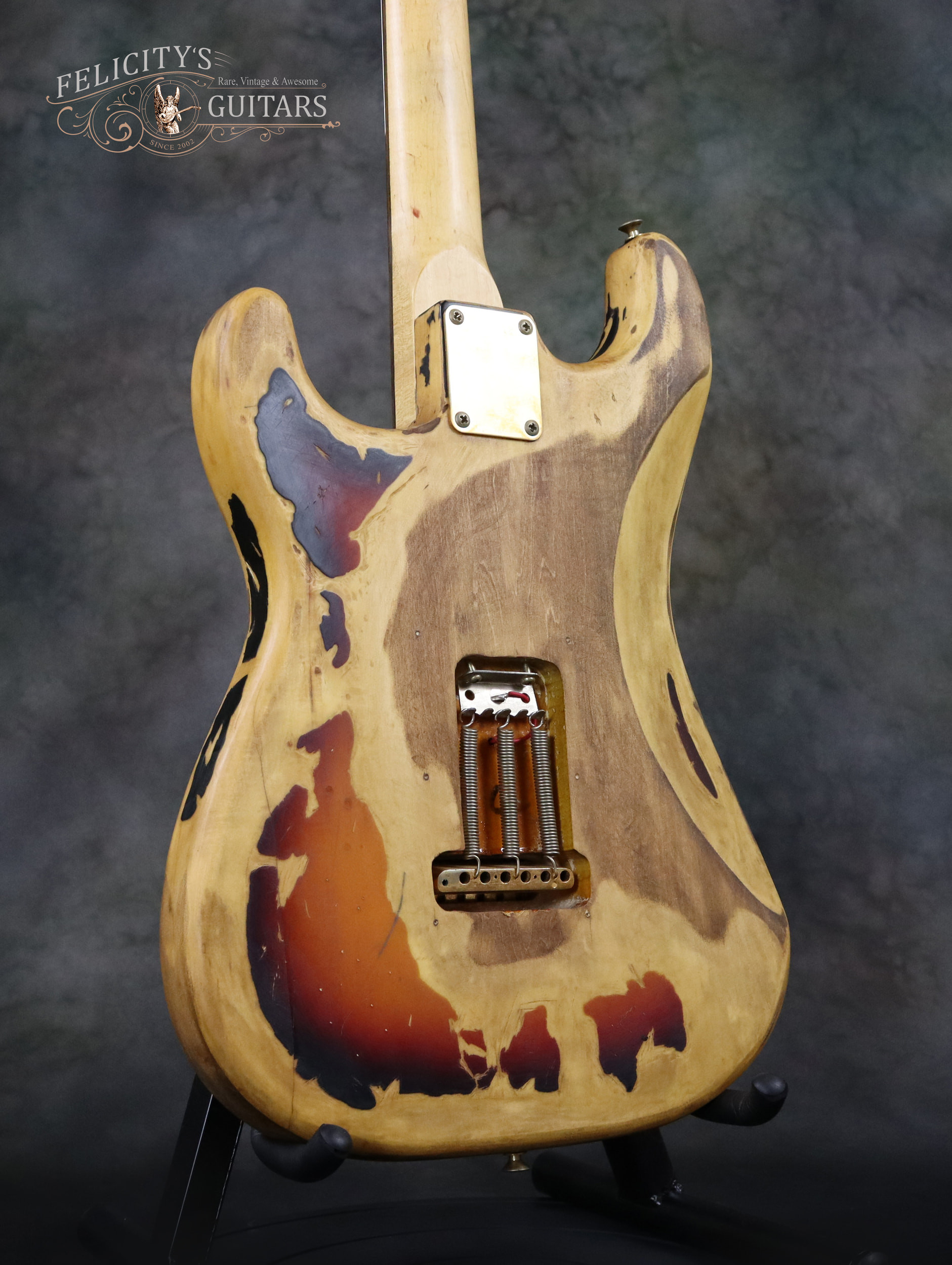

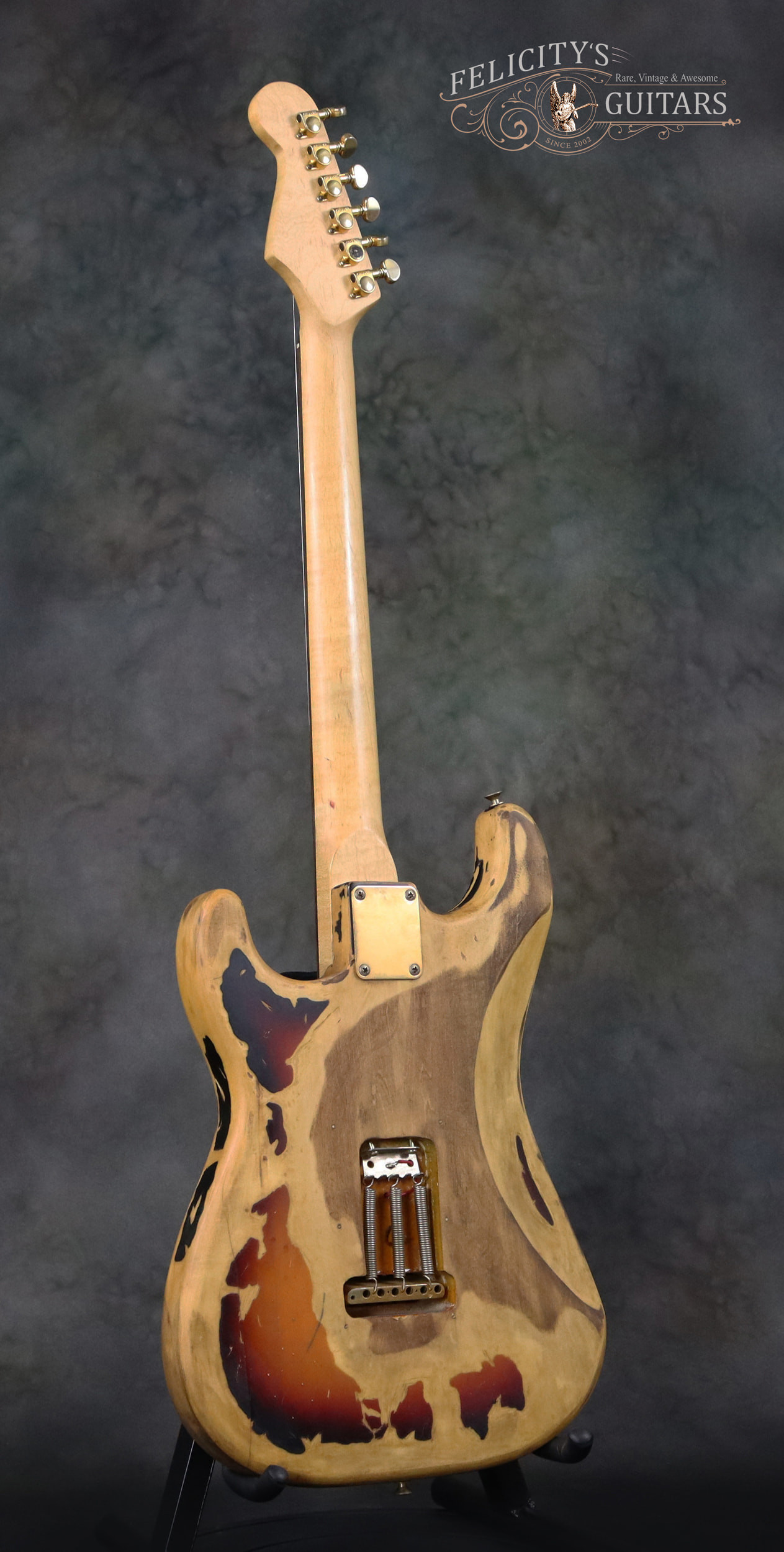

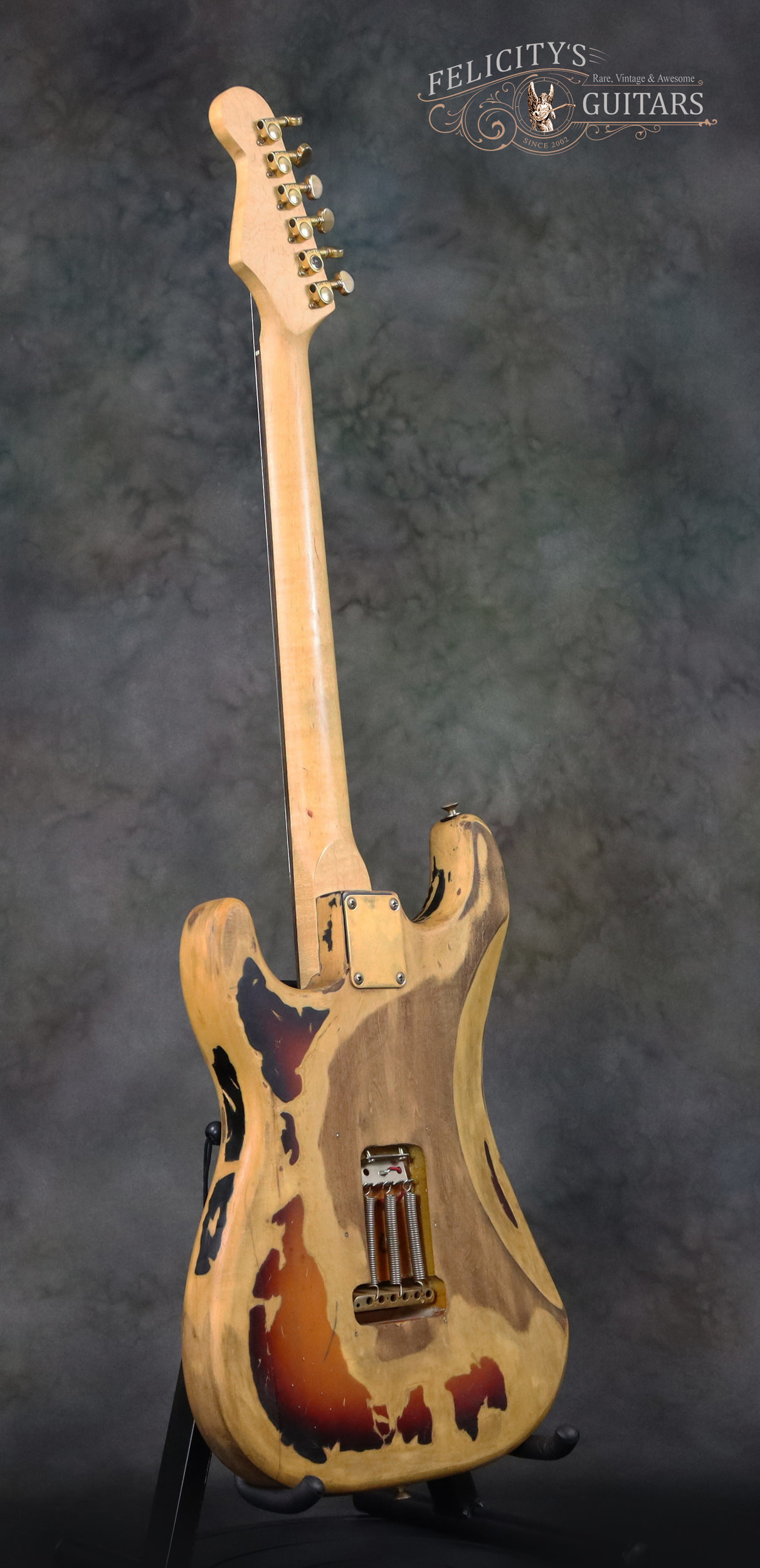

- Heavy Relic finish handcrafted in meticulous detail to replicate Stevie’s No. 1 Strat, front and back

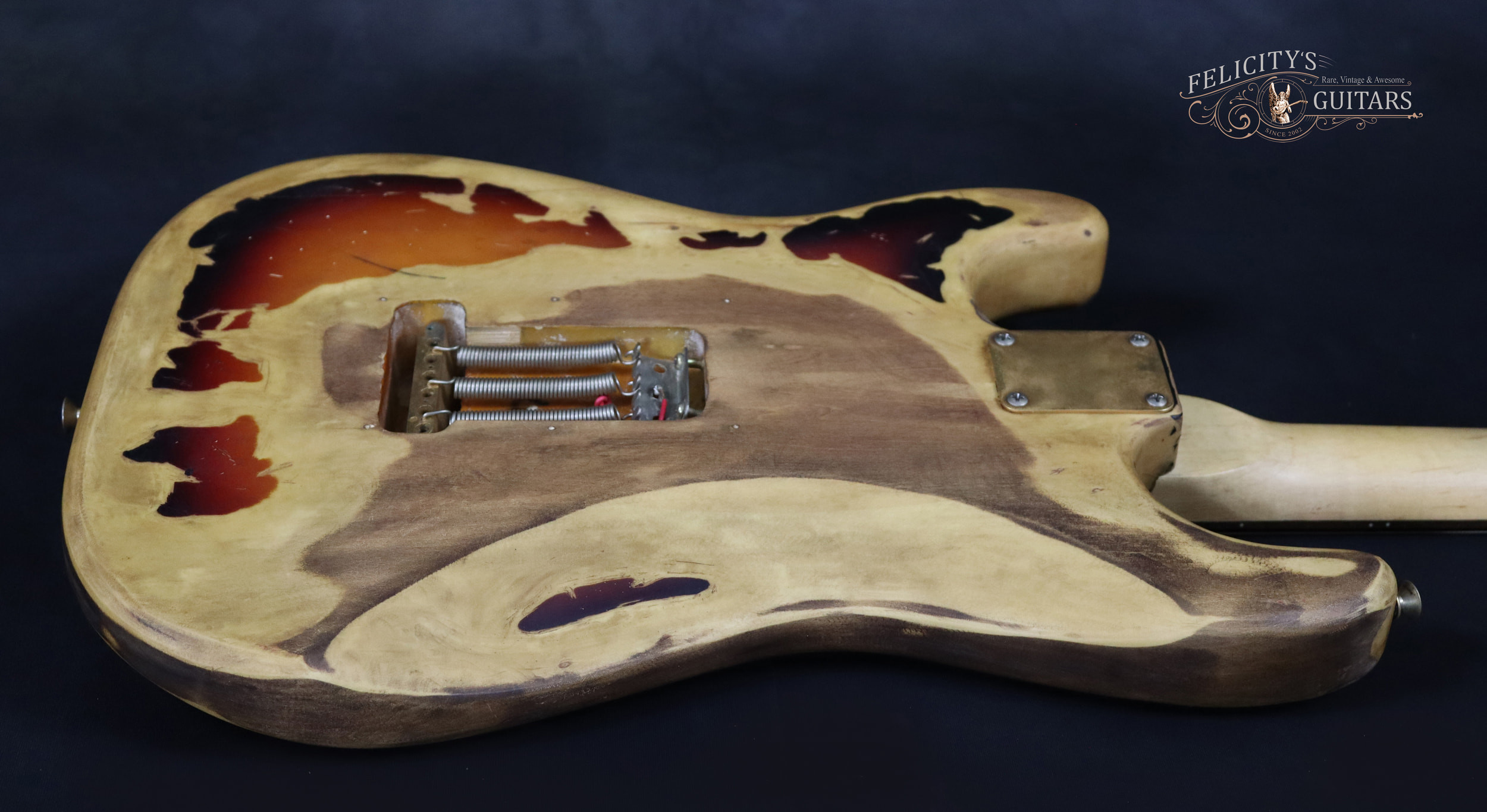

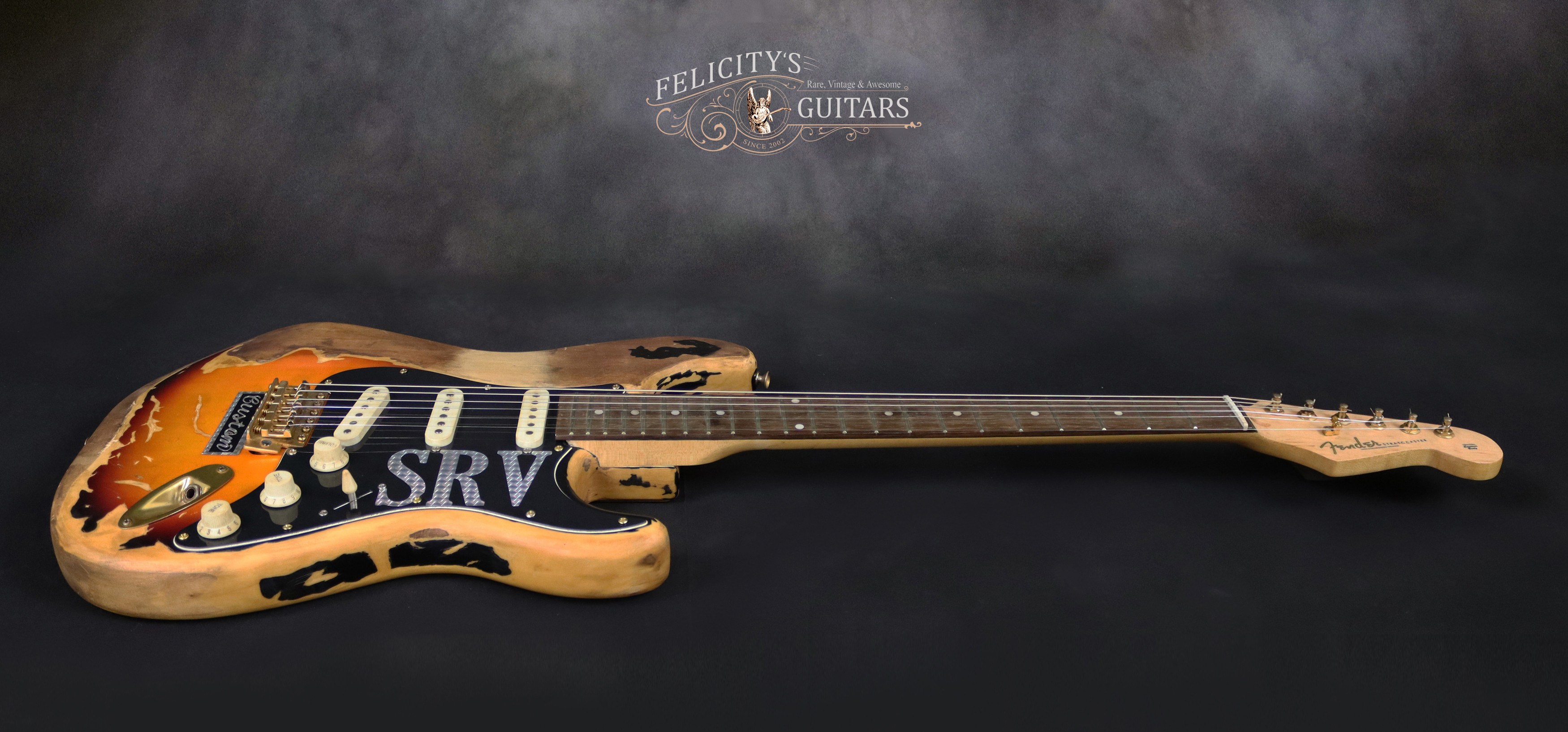

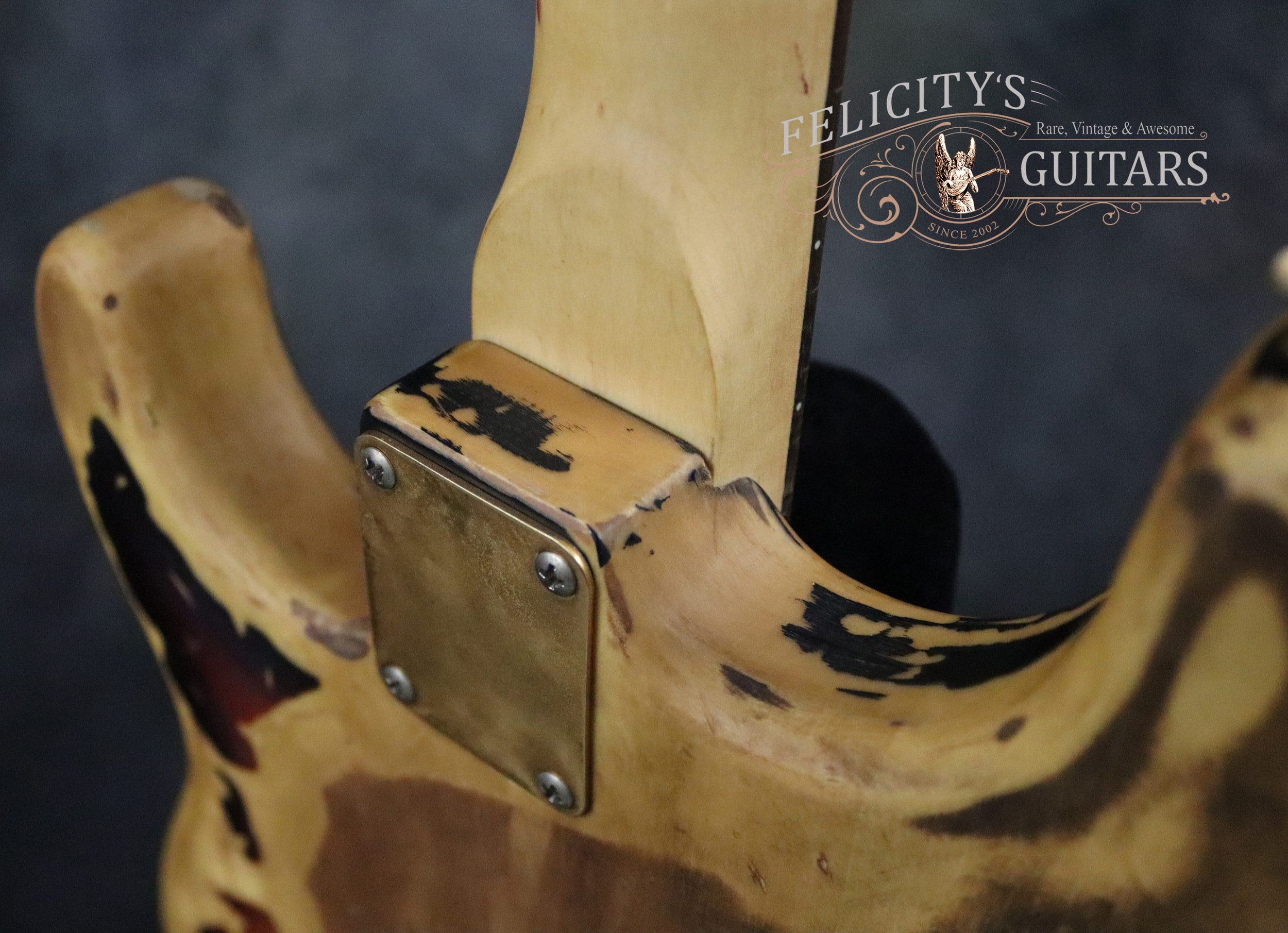

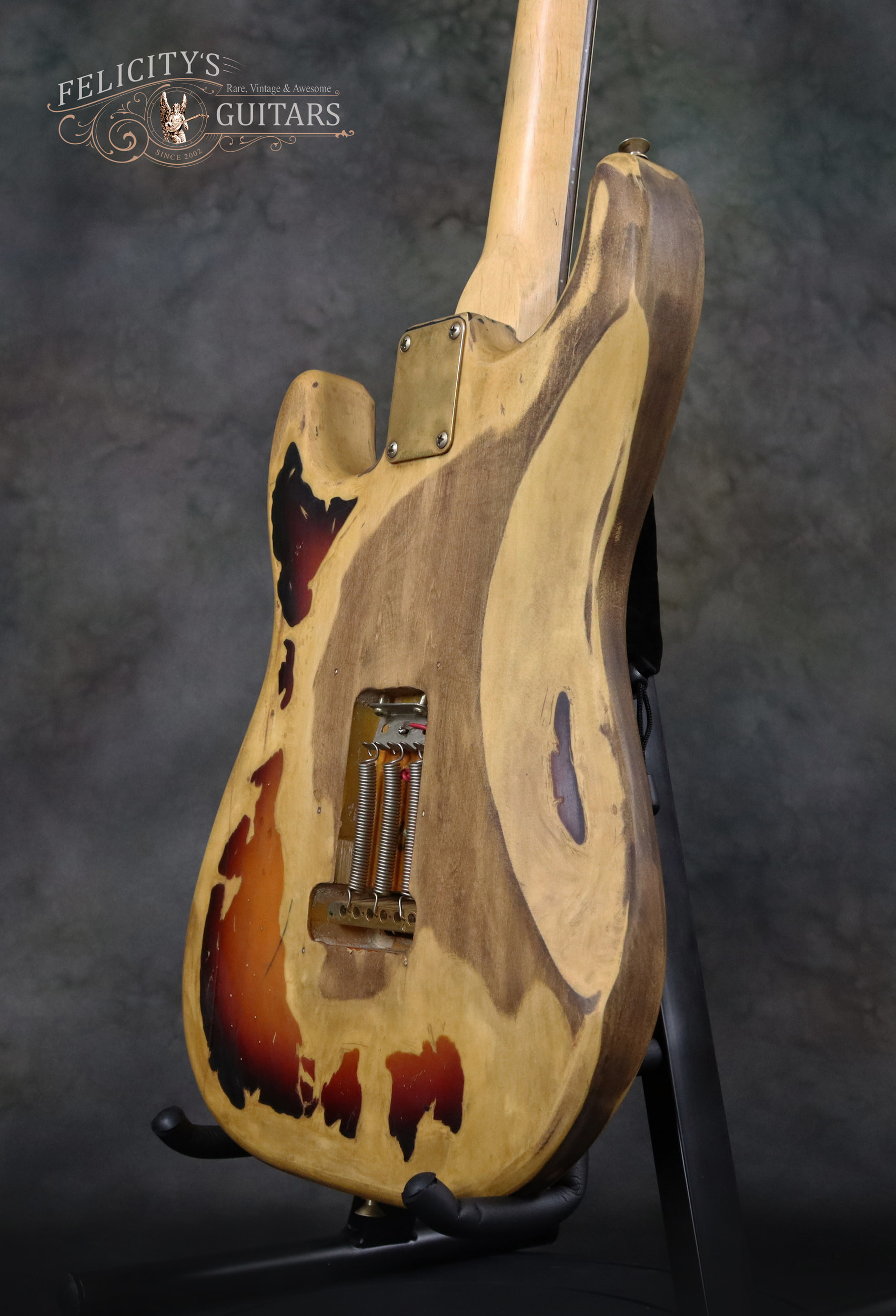

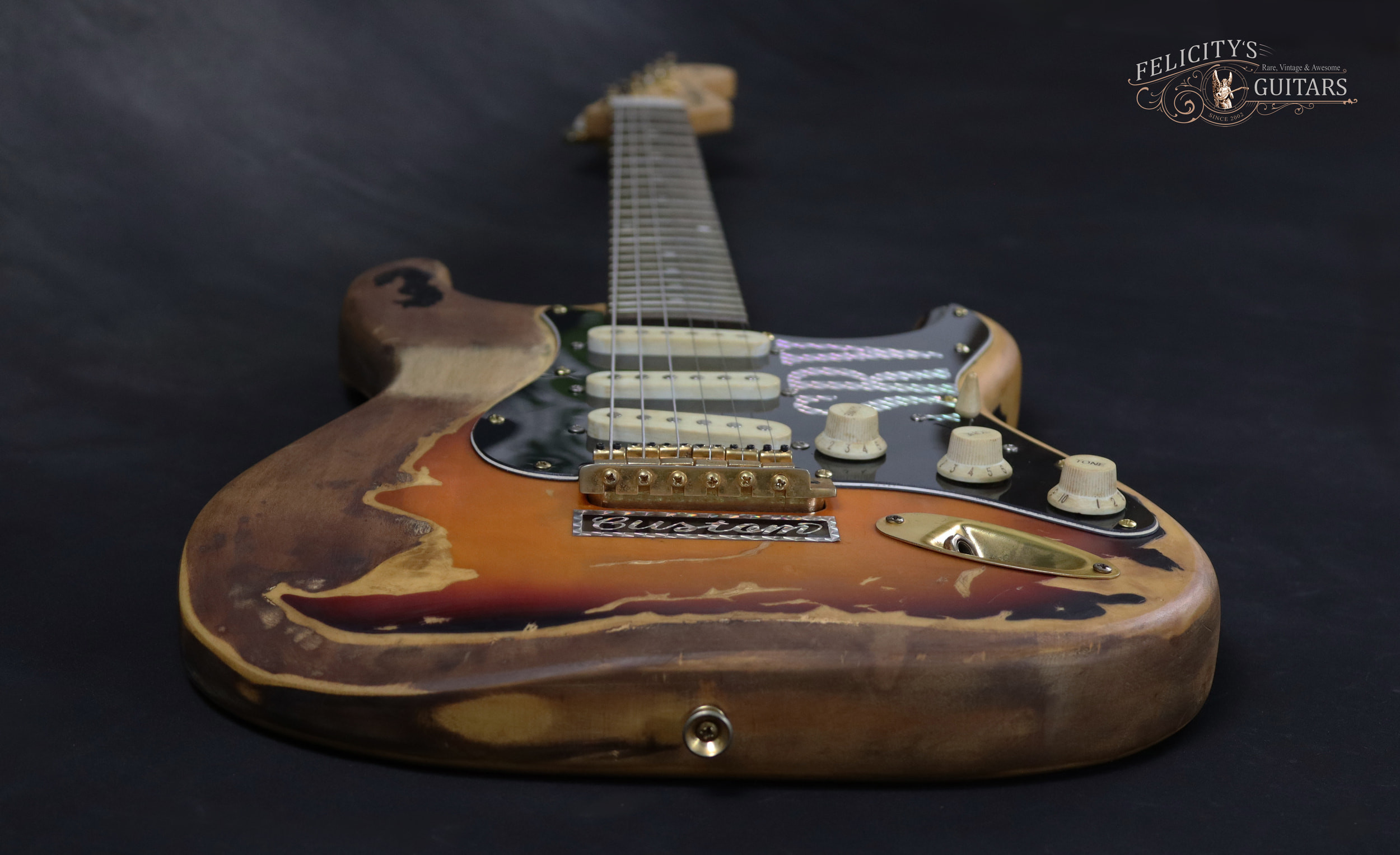

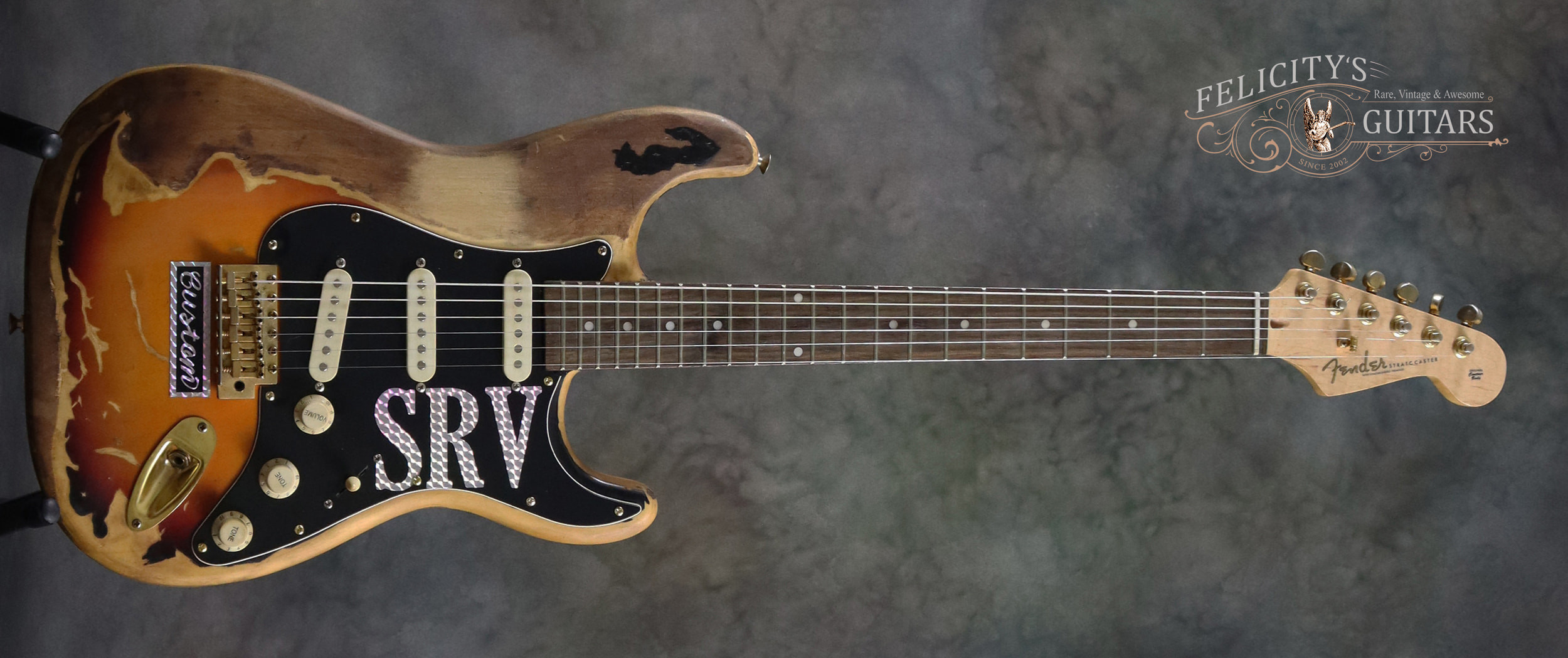

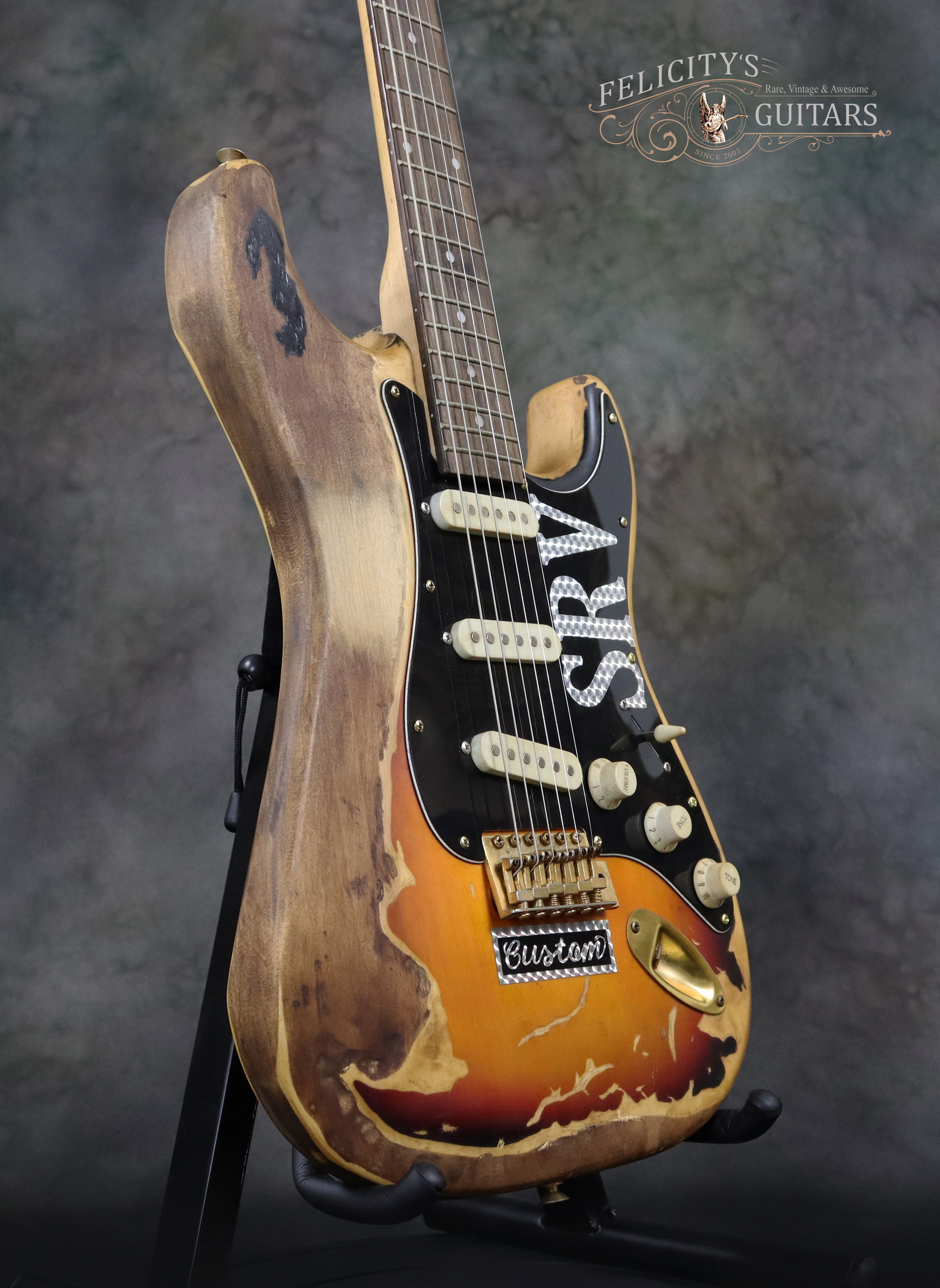

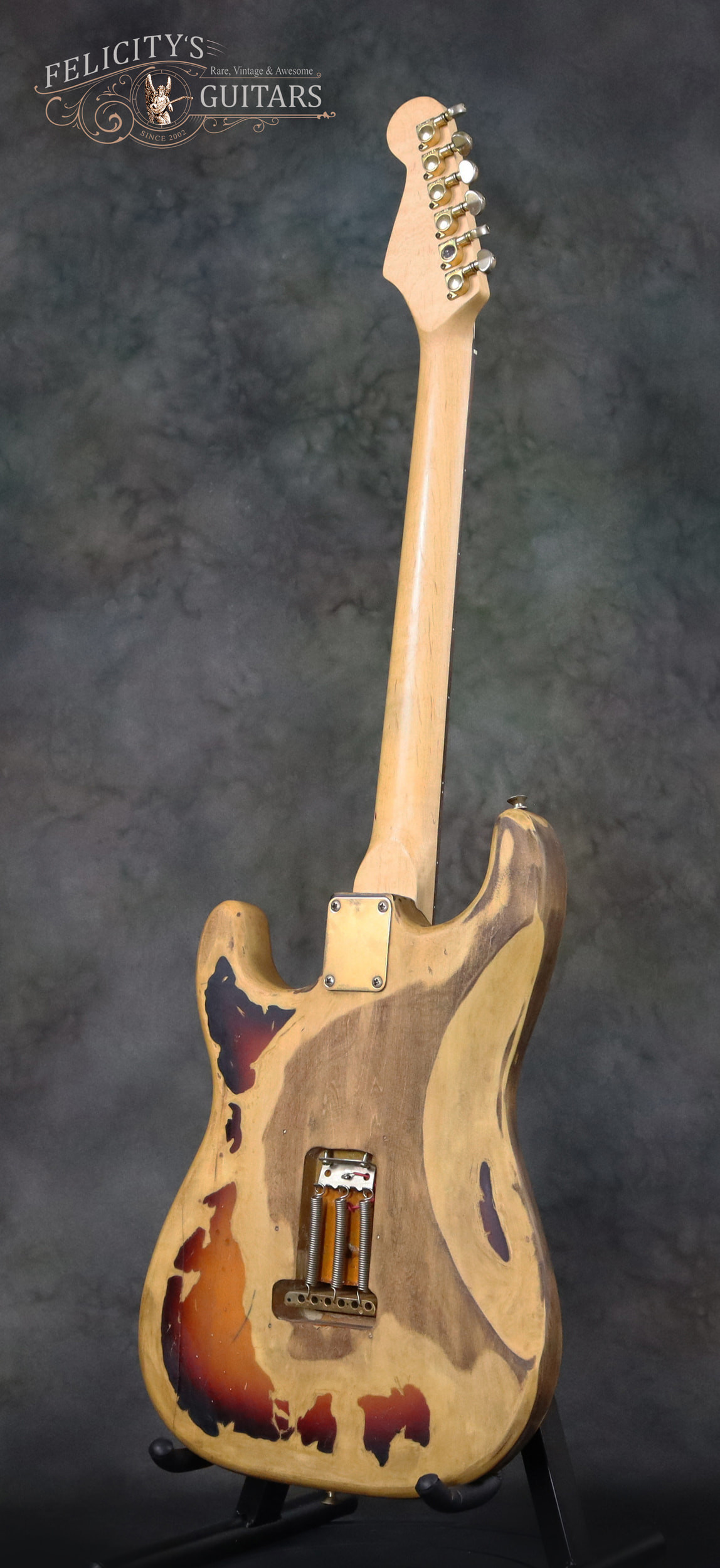

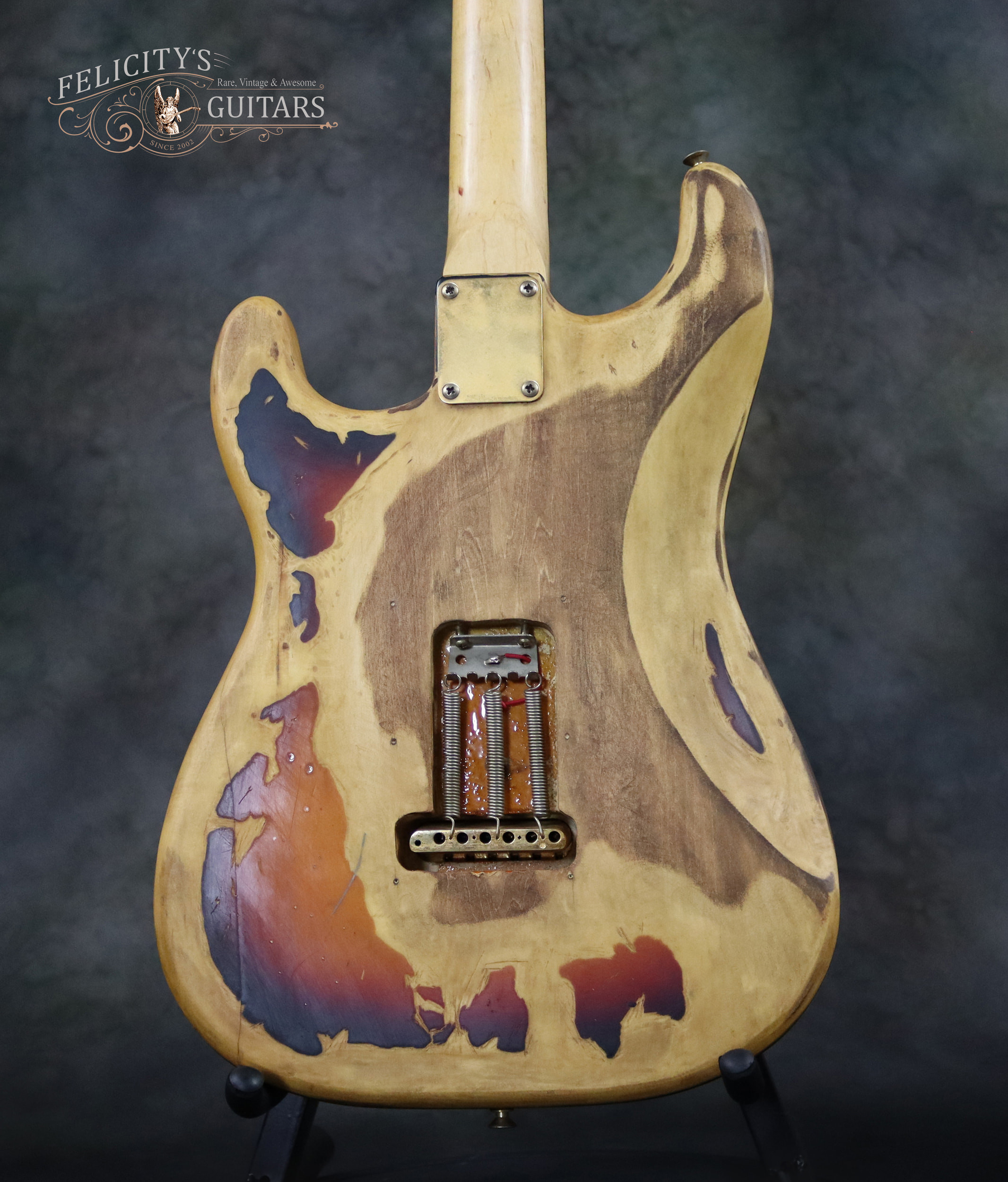

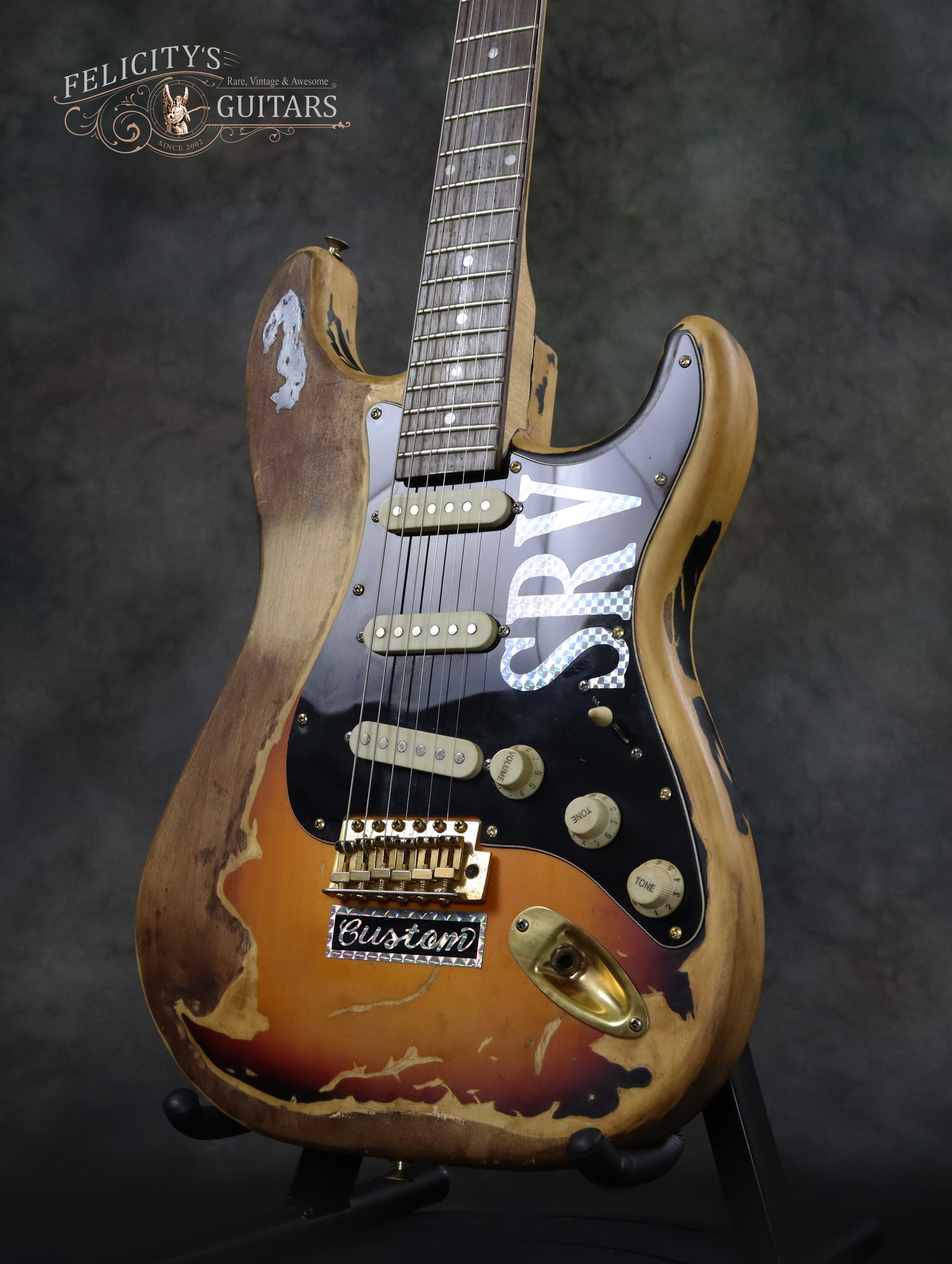

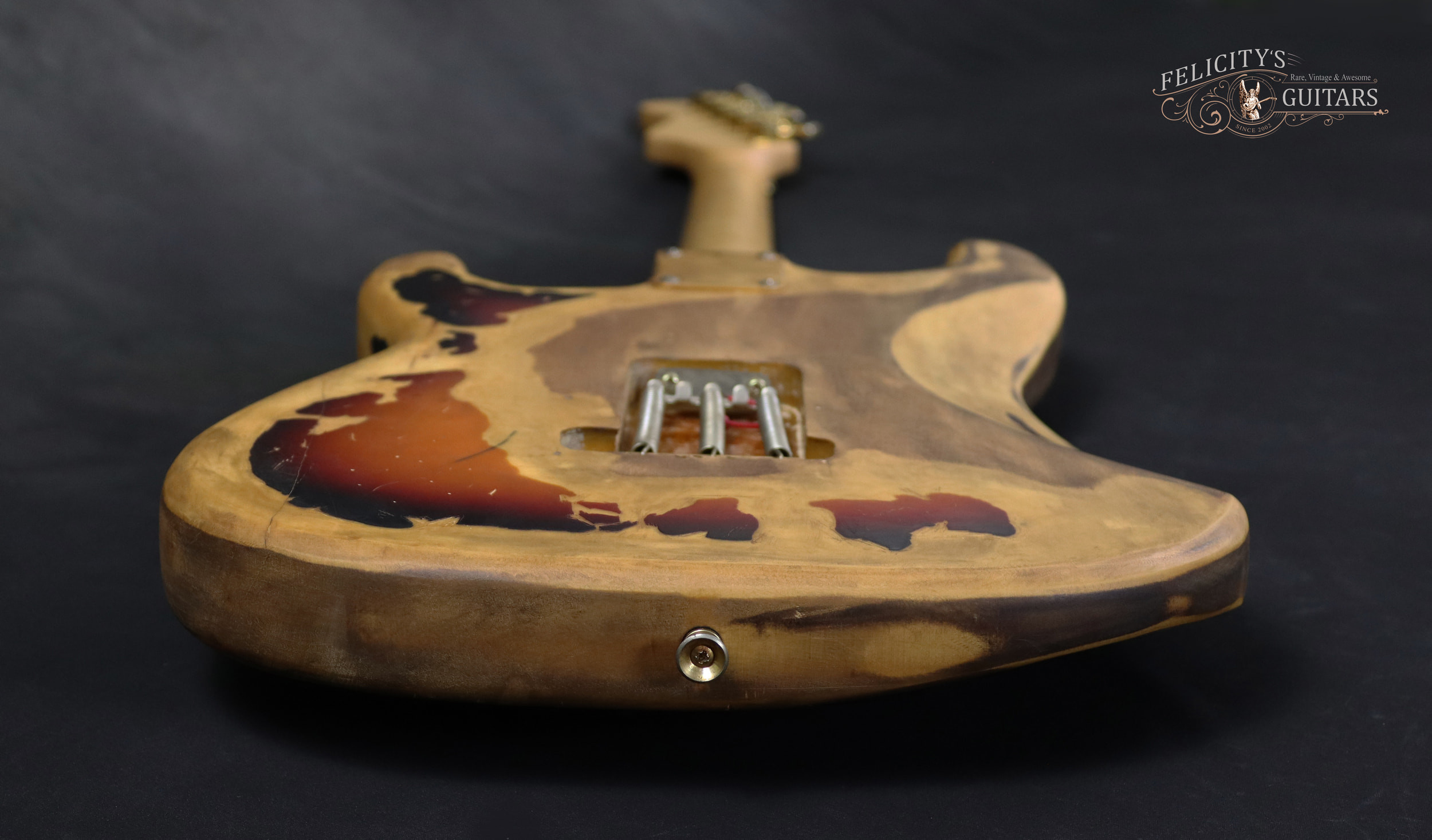

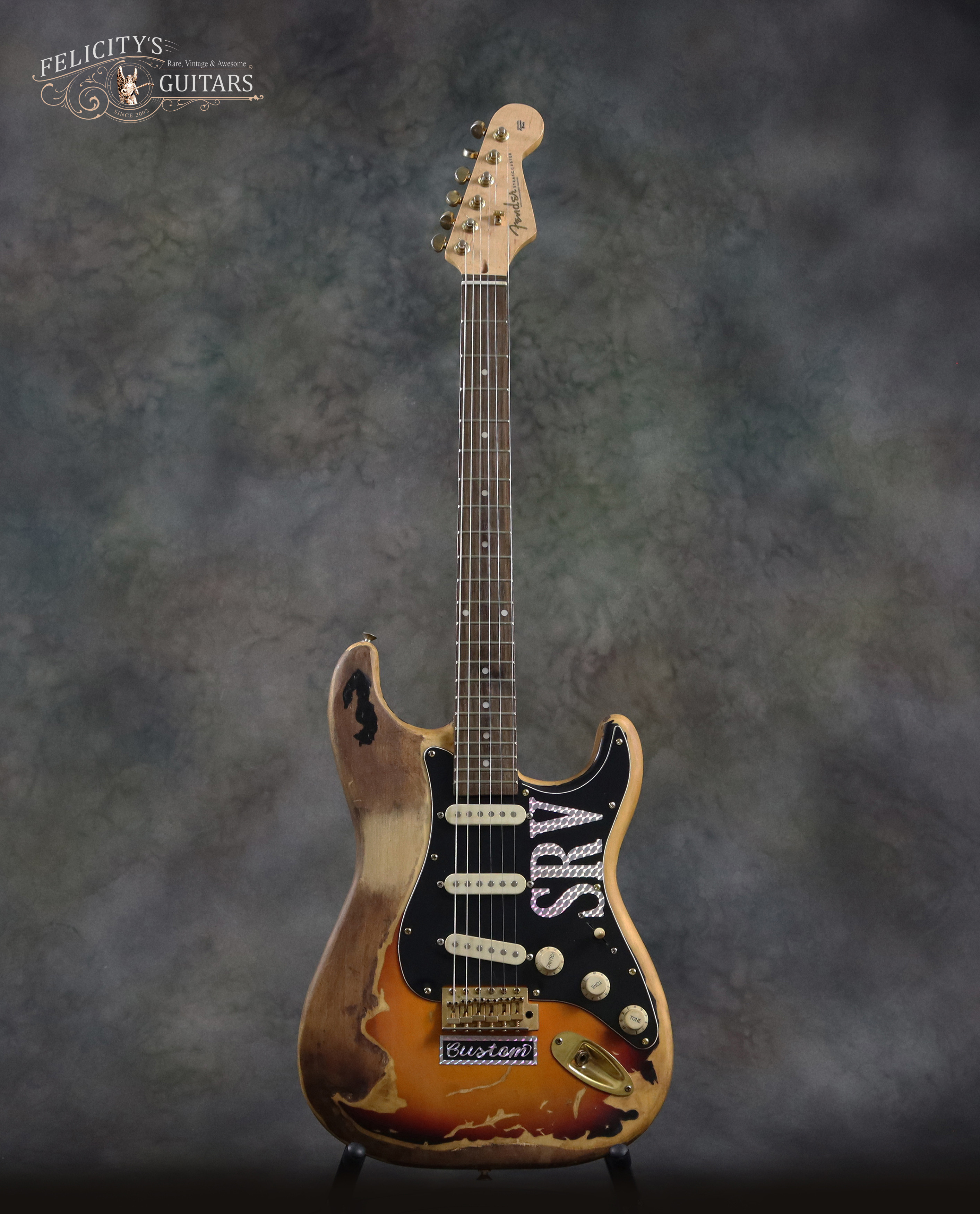

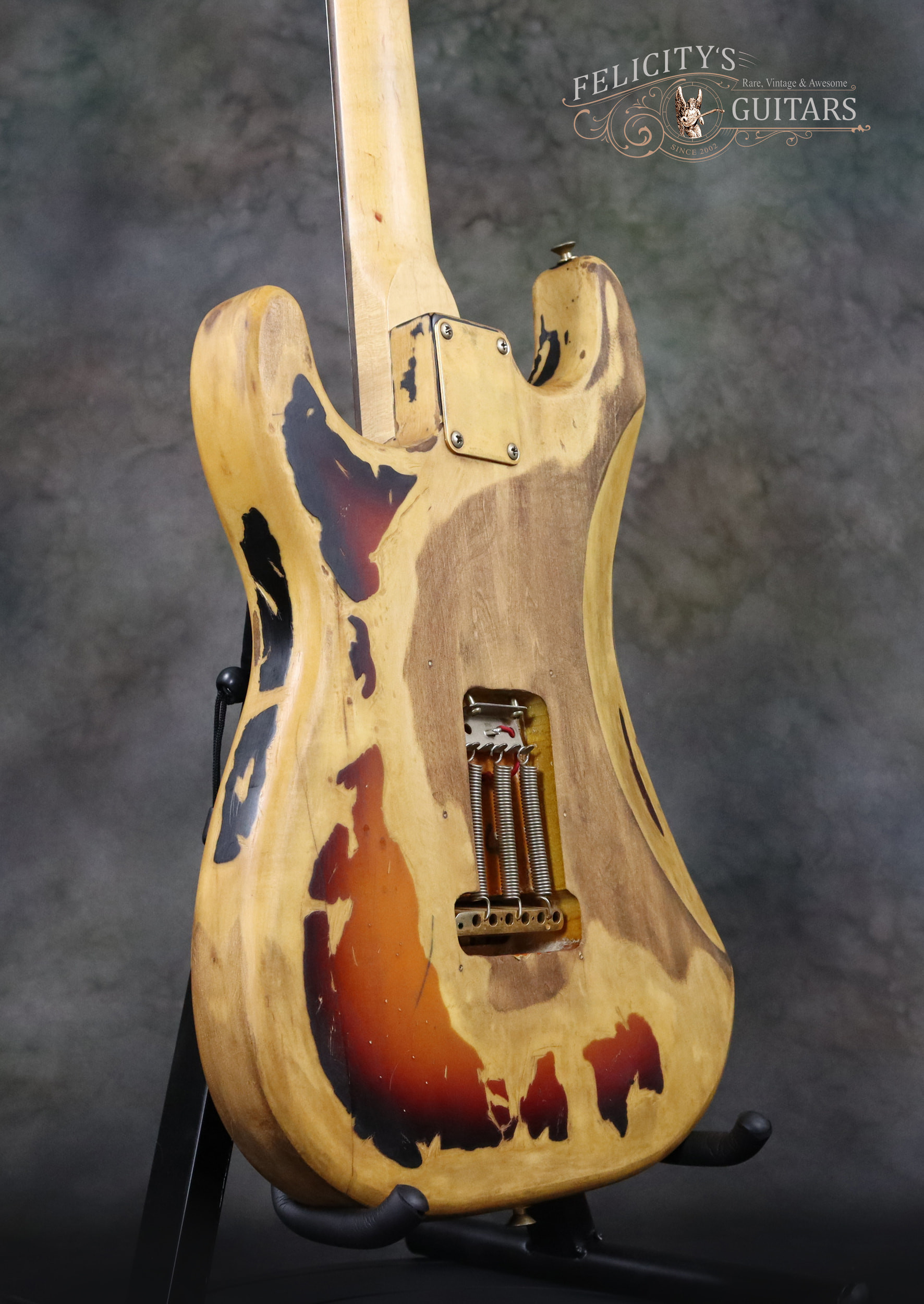

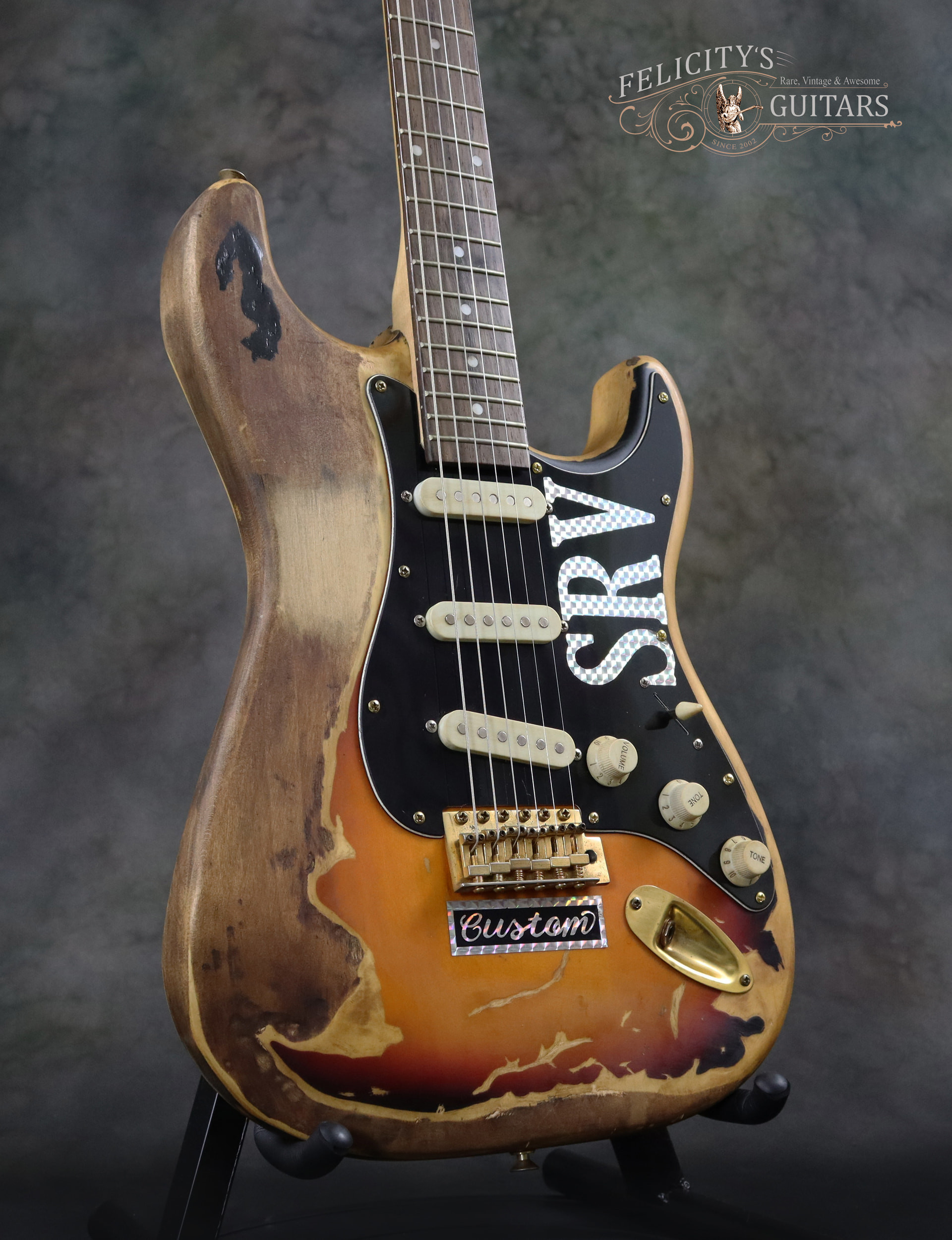

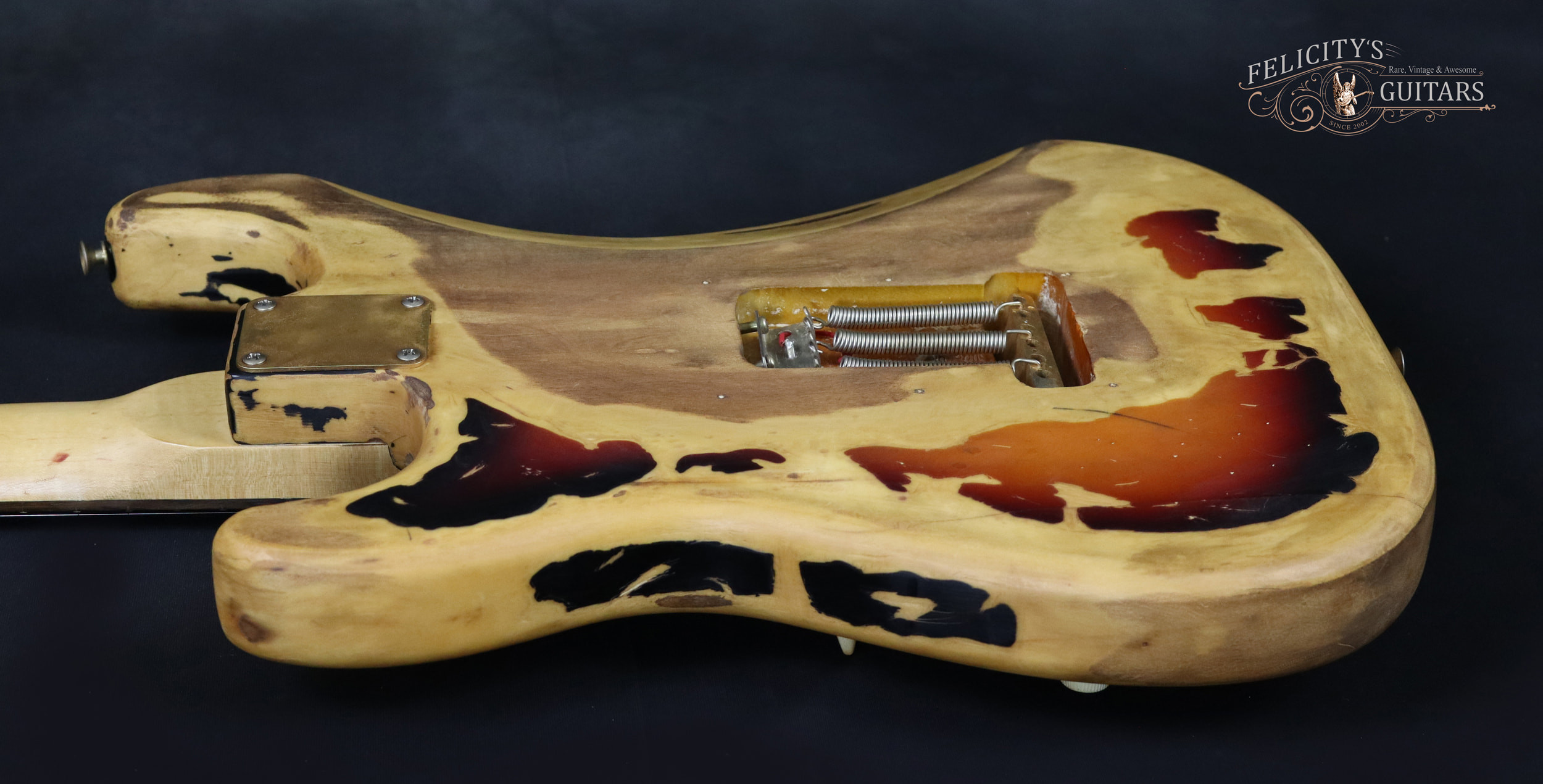

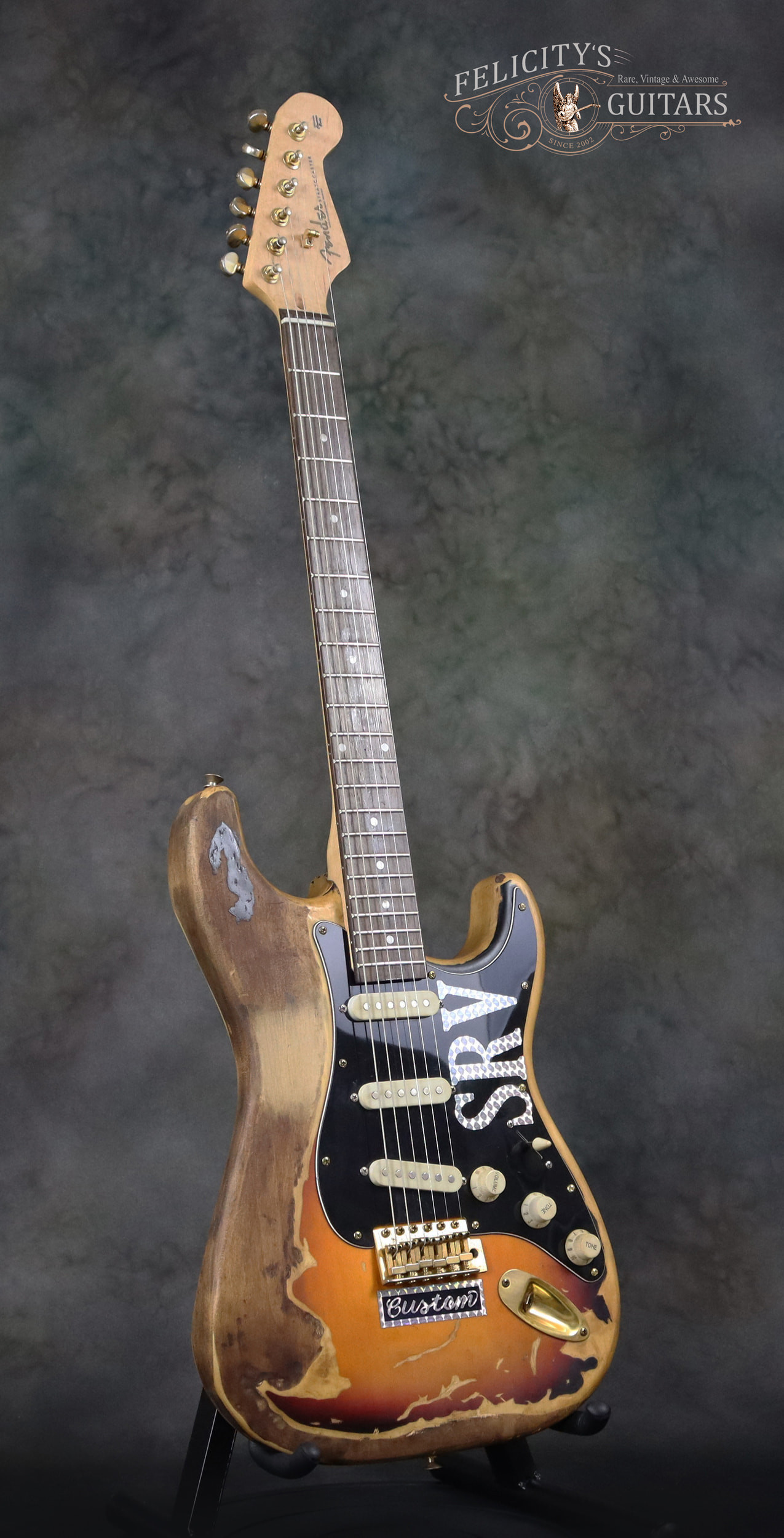

Photo Gallery
description
Stevie Ray Vaughan`s Stratocaster was one of the most recognizable guitars in the world. Over the years, “Number One” has undergone several changes and a few accidents—and even some abuse—all of which adds to its unique characteristics. The Luthier that created this DIY replica handcrafts these bodies to order one-at-a-time and takes, on average, about 14-16 weeks each to make. That being said, good things take time. The most highly regarded replicas of this legendary guitar made by Fender Custom Shop’s master luthier “John Cruz” –only 100 pieces worldwide– are currently selling for $50,000 each, if you can even find one for sale.
Have you wanted to own a replica SRV number one? This is your chance to own a work of art that will make you
feel like you are playing a true piece of blues history, and at an affordable price! Deluxe ‘tweed’ hardshell case is
included.
Specifications
General
|
Condition |
Used Heavy Relic |
|
Number of Strings |
6 |
|
Orientation |
Right-handed |
|
Country of
Origin |
U.S.A. |
|
Year |
1993-6 |
|
Limited
Edition / Series |
One Off |
|

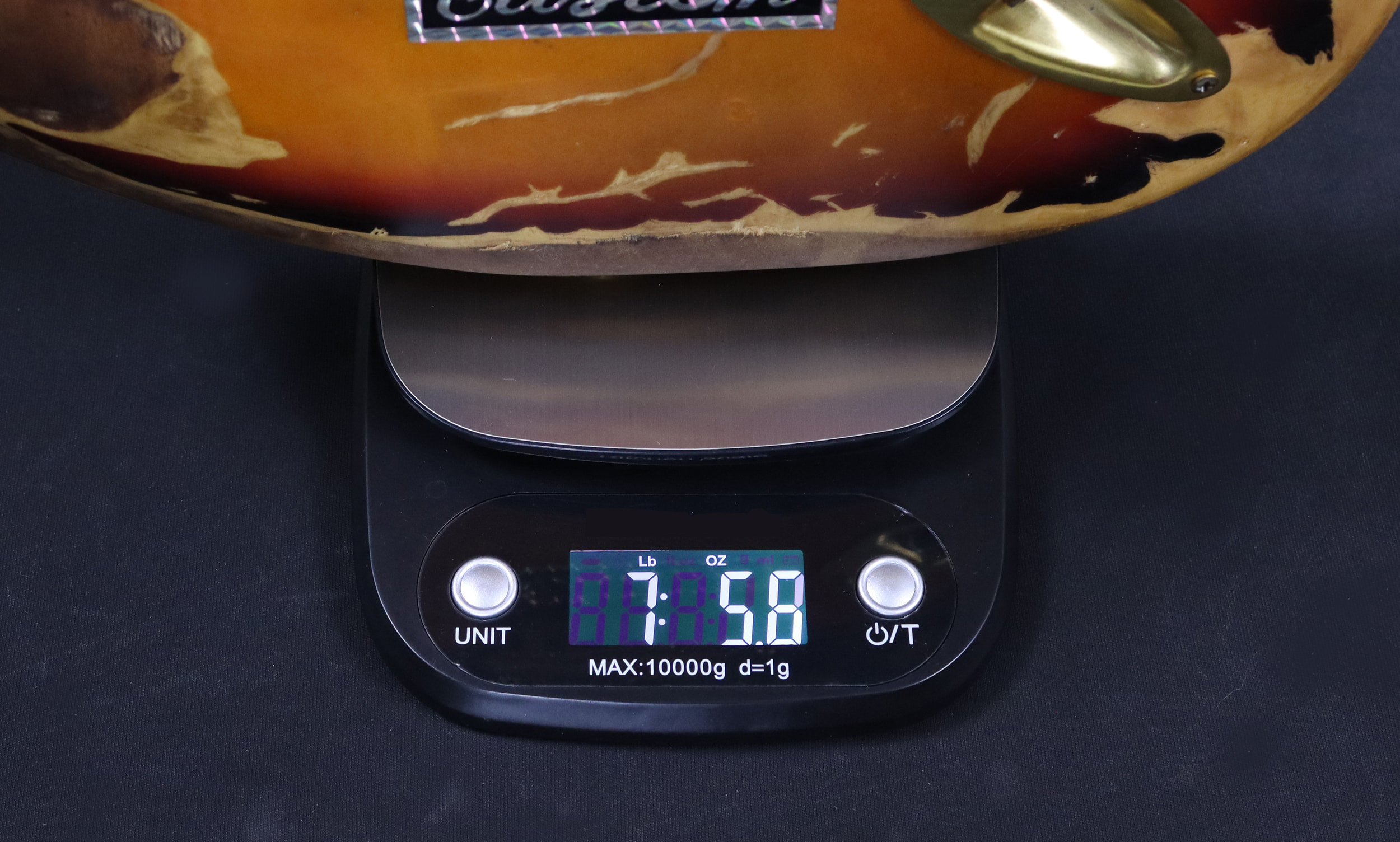

Weight |
7-lbs
5.8-oz |
body
|
Body Type |
Solidbody |
|
|
Body Shape |
Double
Cutaway SSS Strat™ |
|
|
Body Material |
2-pc Alder |
|
|
Body Carve |
Front: Arm Contour |
Back: Waist Contour |
|
Body Binding |
Front: No |
Back: No |
|
Weight
Relief |
Un-chambered
|
|
|
Body Finish Type |
High-gloss Polyurethane | |
Color |
Front: Heavy Relic 3-Color Sunburst |

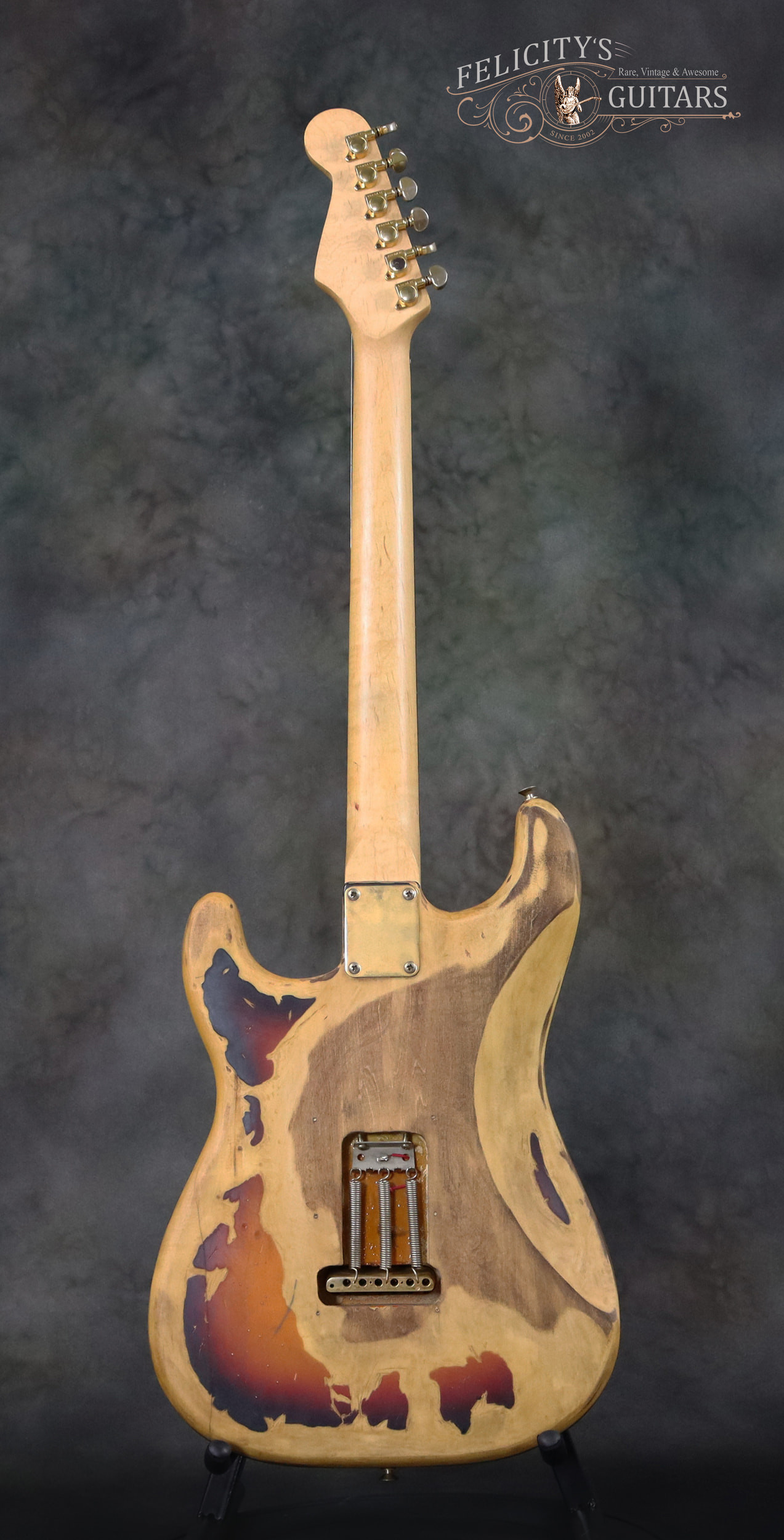

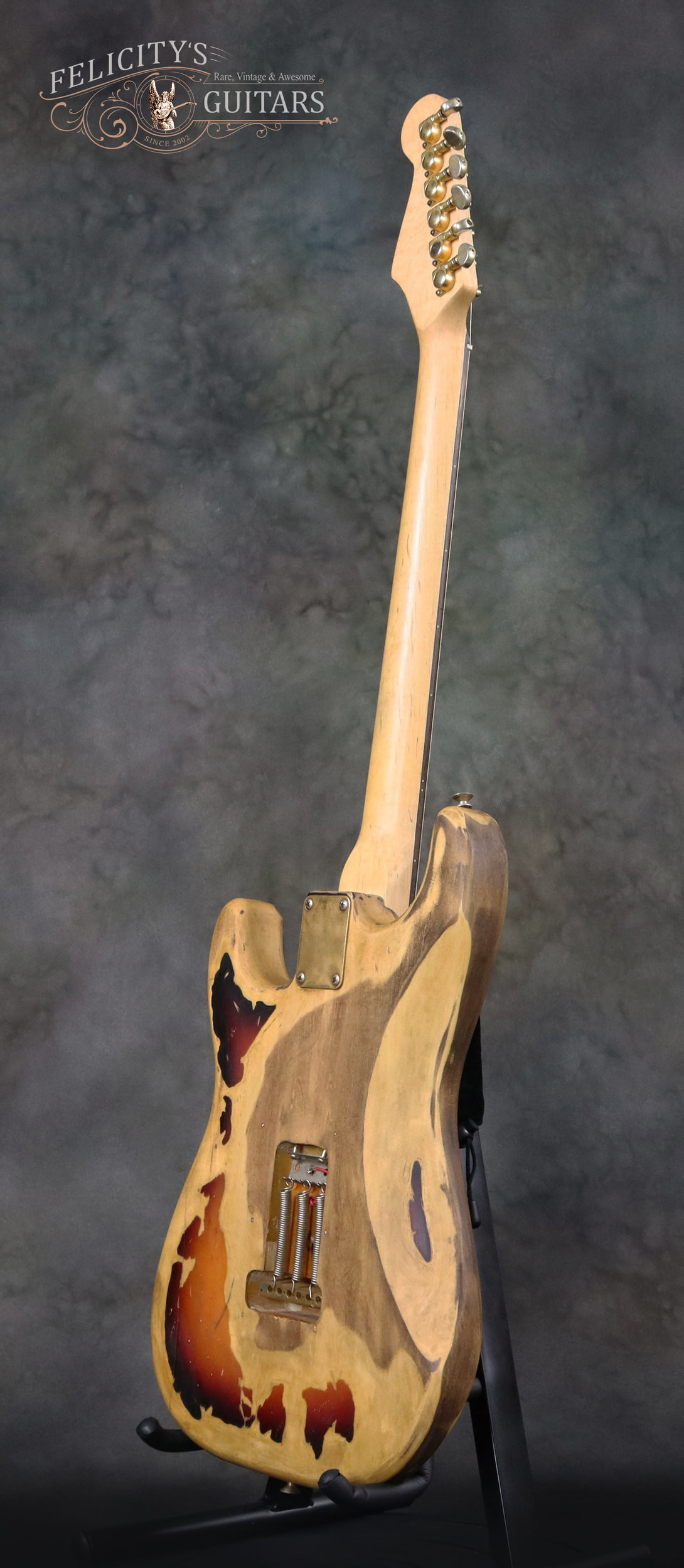

Back: Heavy Relic 3-Color Sunburst |
neck
|

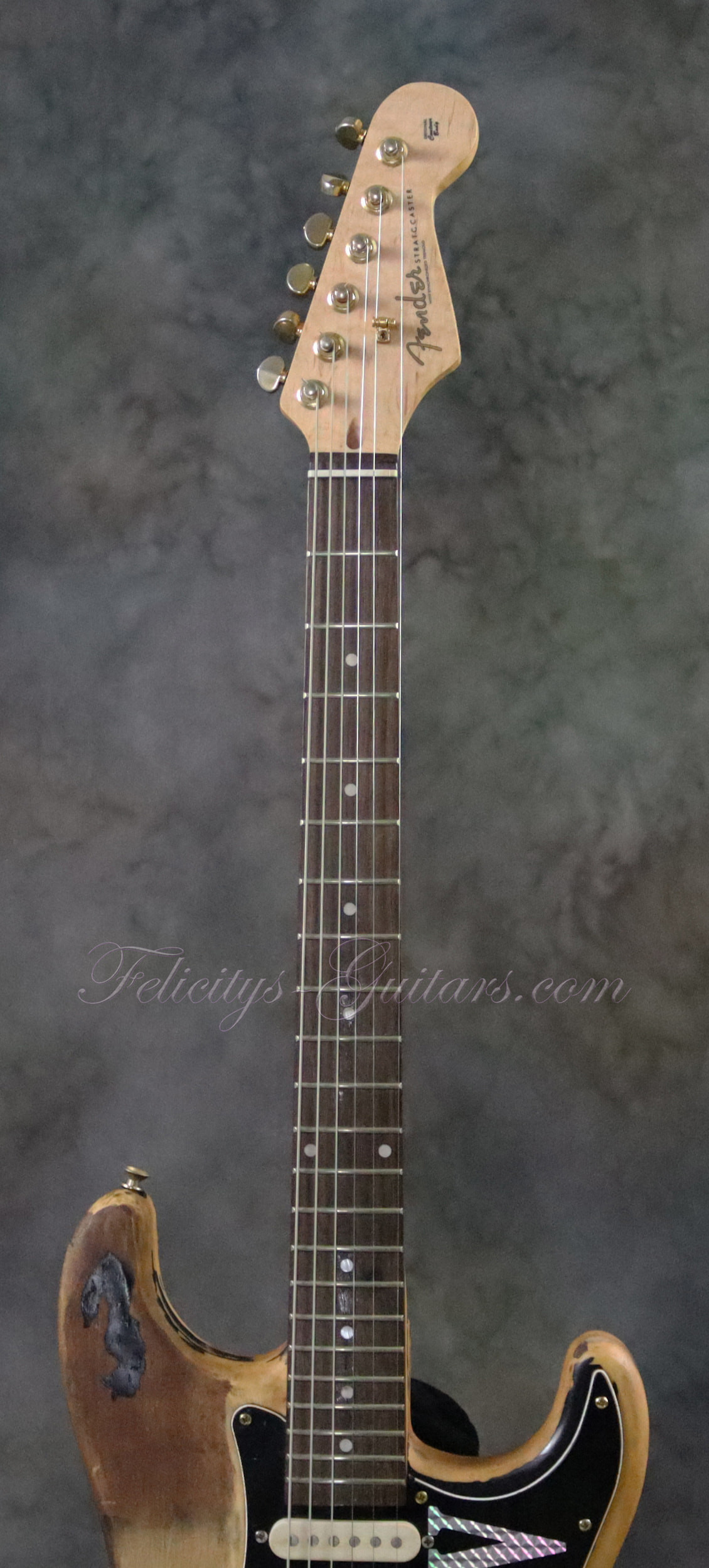

Neck Material |

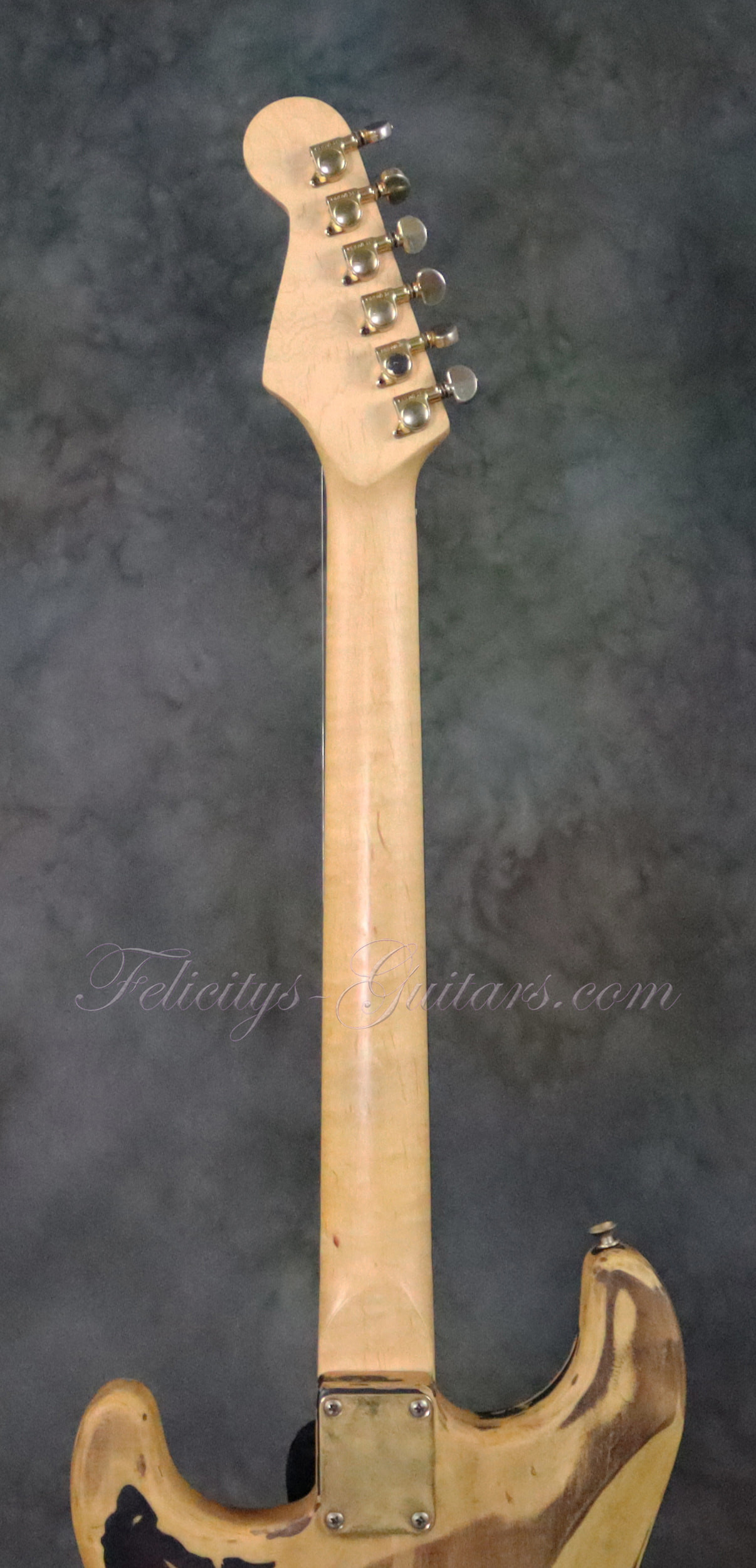

1-pc Maple with Skunk Stripe and worn/aged finish on back |
|
Truss Rod |
Bi-flex 2-way Adjustable |

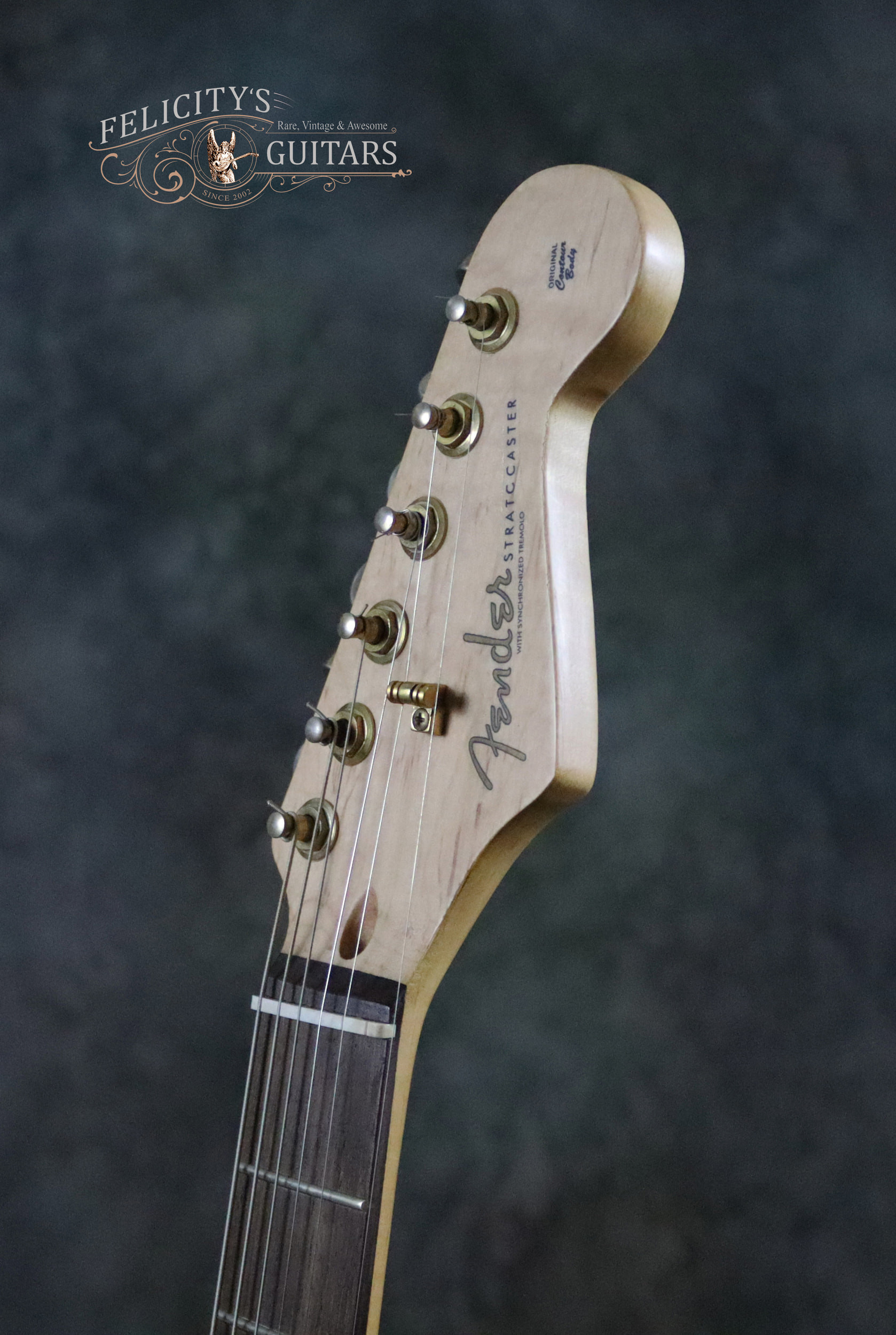

Peghead
Particulars |

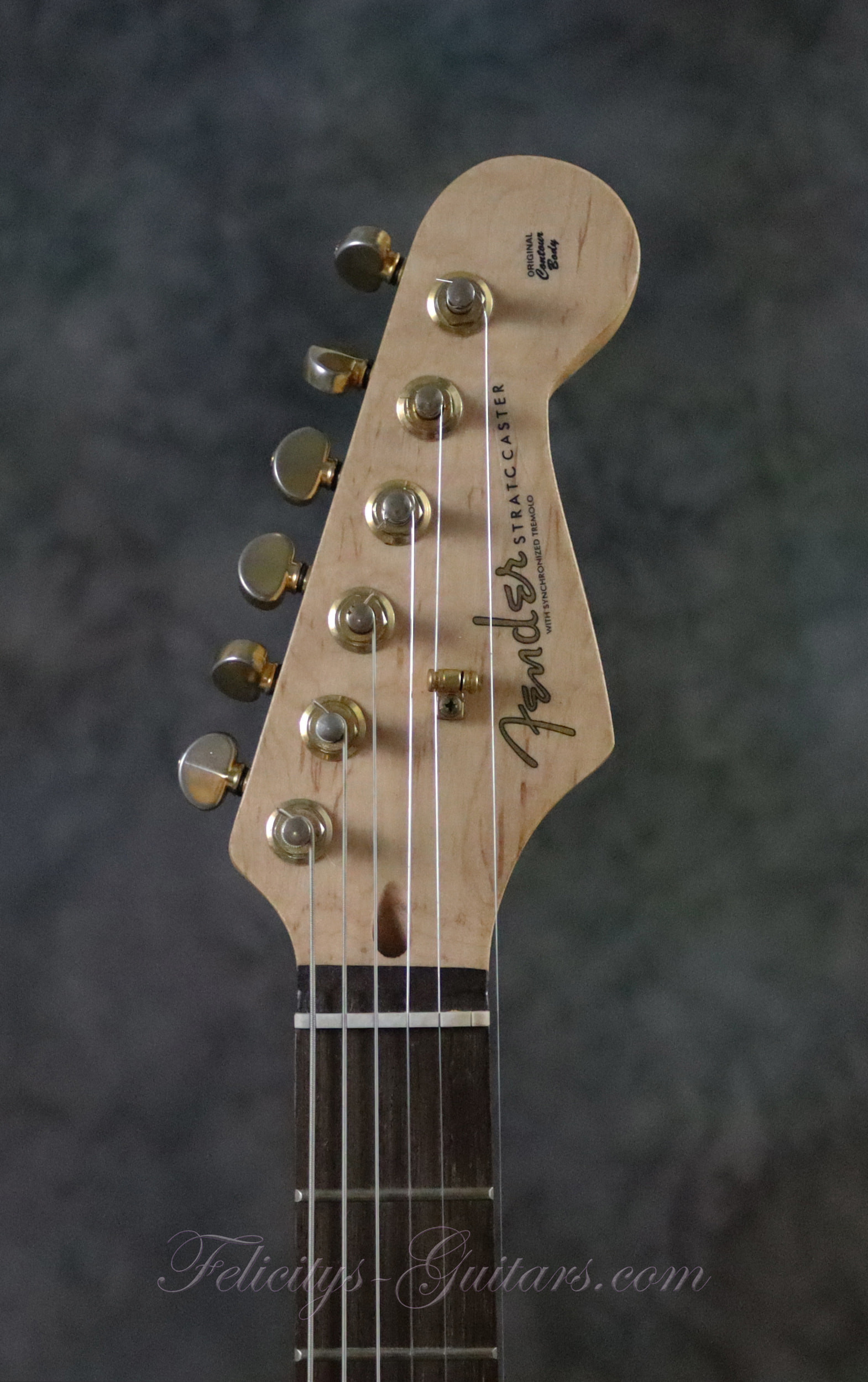

Front: Fender Logo / Stratocaster, Synchronized Tremelo, Original Custom Body Decals |
|
|
Back: Blank |
|
Neck
Profile |
Thick "C" |
|

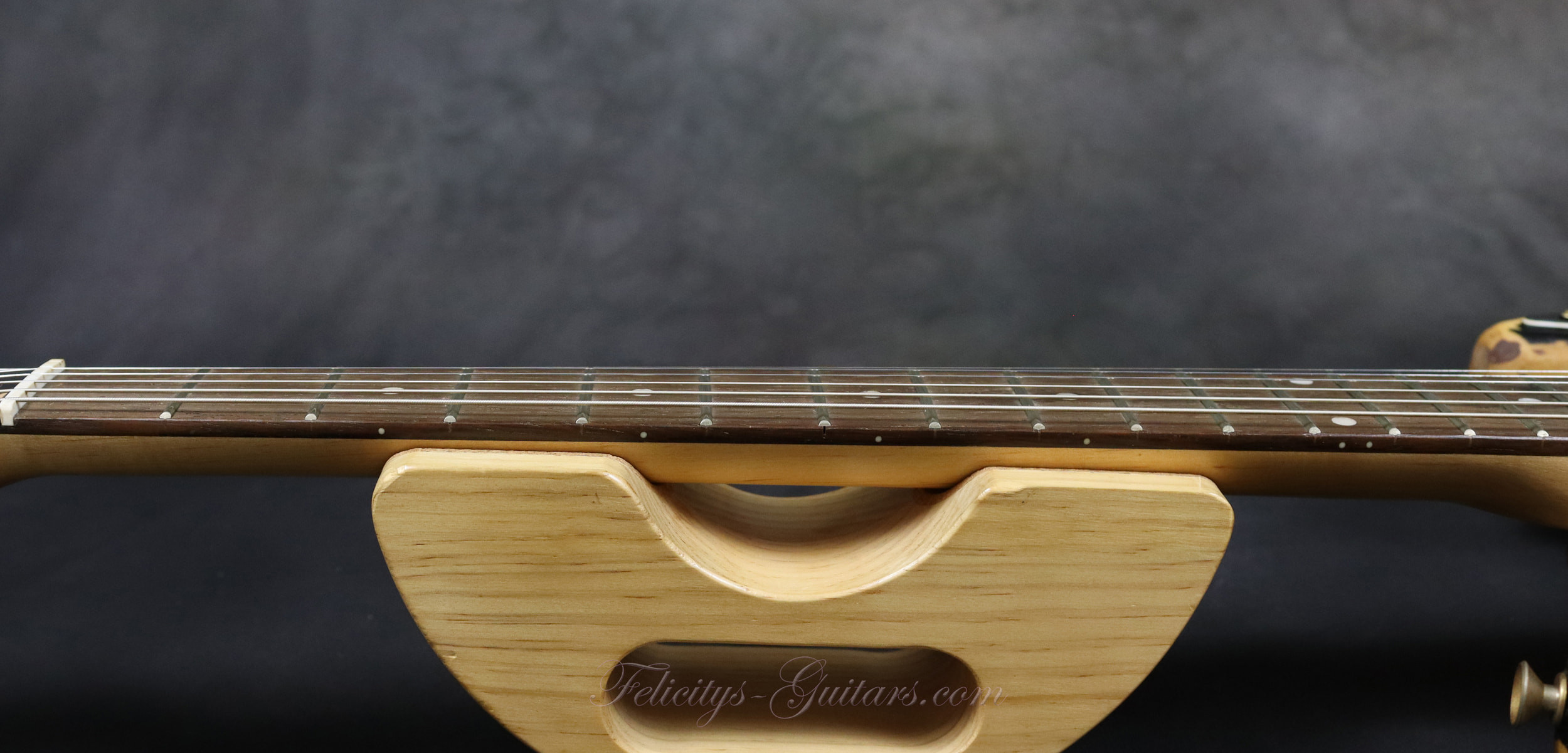

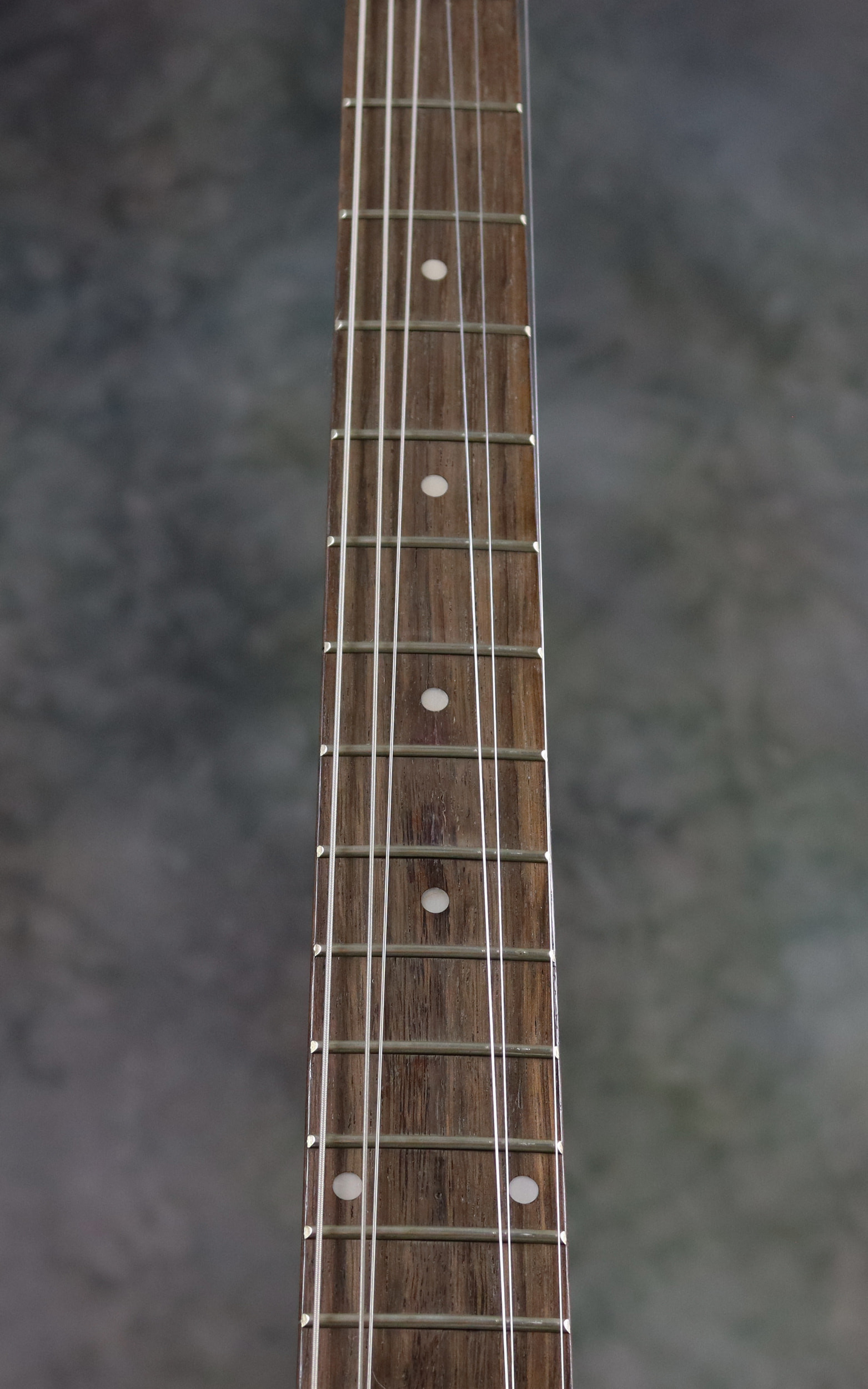

Fingerboard
Material |
Pao Ferro |
|
Fingerboard
Radius |
12” |
|
Scale Length |
25.5" |
|
No. Frets / Type |
21 Narrow
Tall (6105) |
|
Nut Size / Material |
1.650” / Synthetic Bone |
|

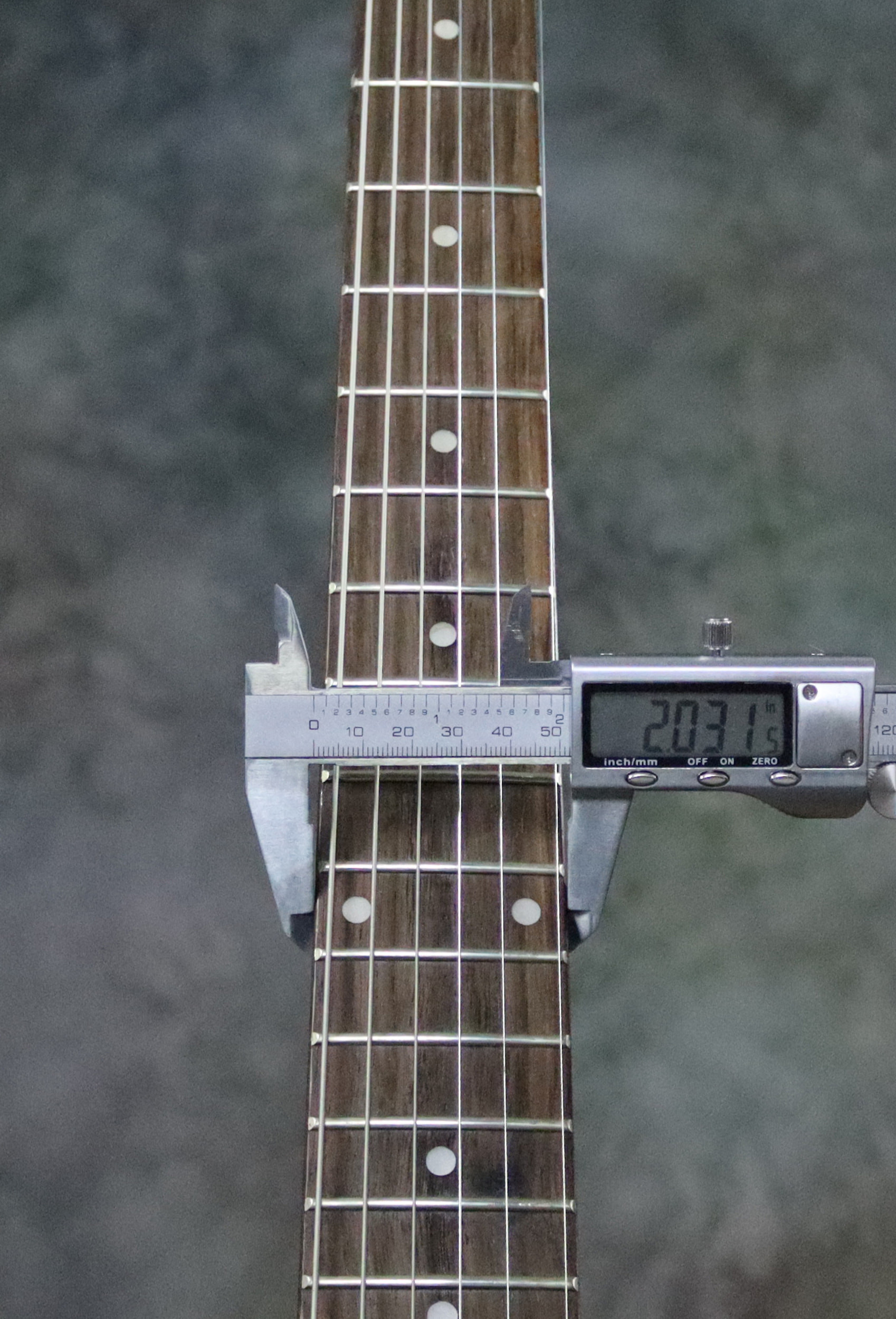

Neck Width |

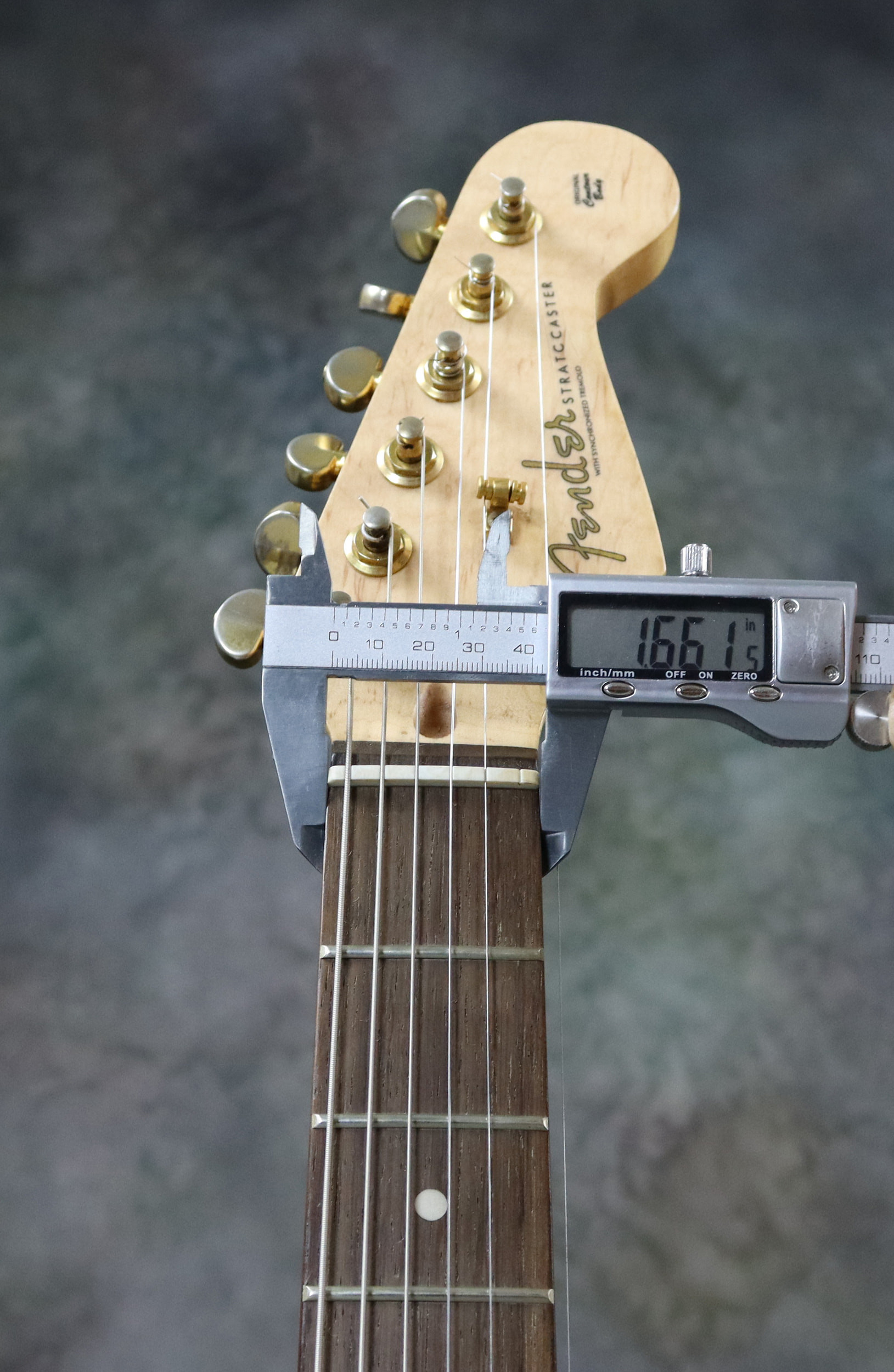

1.661” at 1st fret / 2.031” at 12th fret |
Neck Depth |
0.840"
at 1st fret / 0.970" at 12th fret
|
|
Fingerboard Inlays |
Acrylic White Dot |
Neck
Binding |
No |
|
Side Dots |
Ivory Dot |
Neck Joint |
Bolt-on |
hardware
|
Bridge / Tremolo |
Aged-Gold, 6-Saddle American
Vintage Synchronized (Right-handed) |
|
String Tree |
Aged-Gold, T-Tree |
|
Tuning Machines |

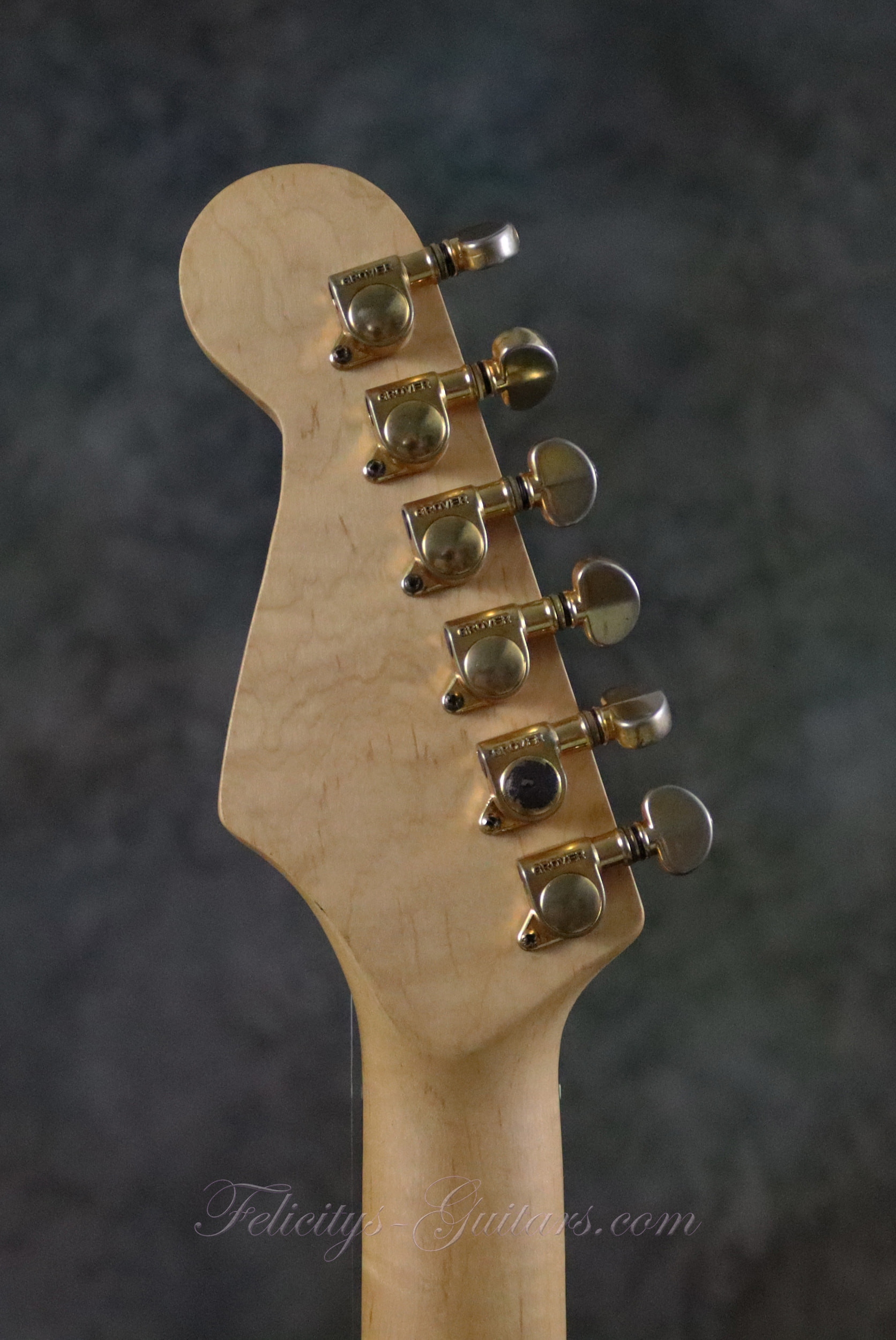

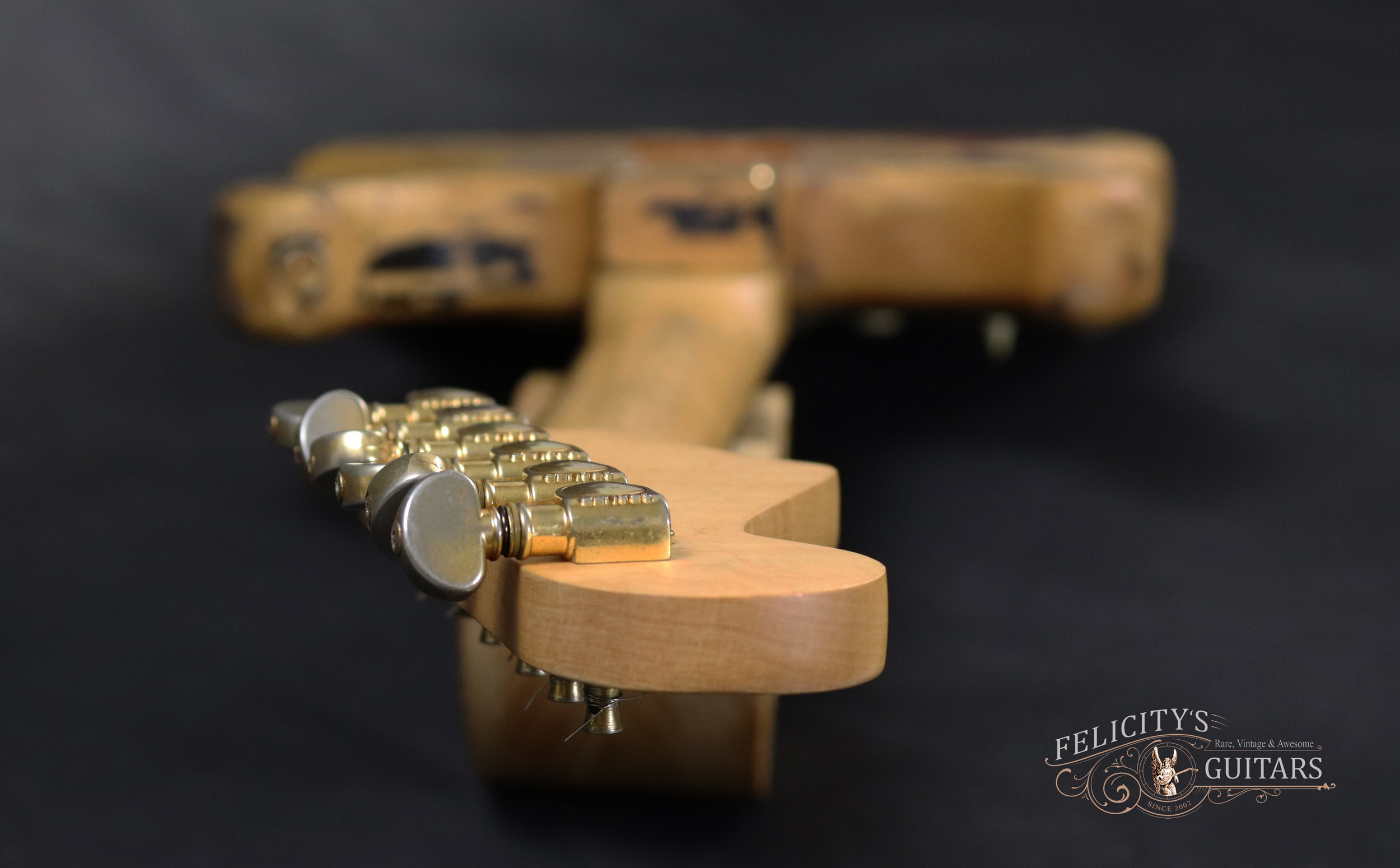

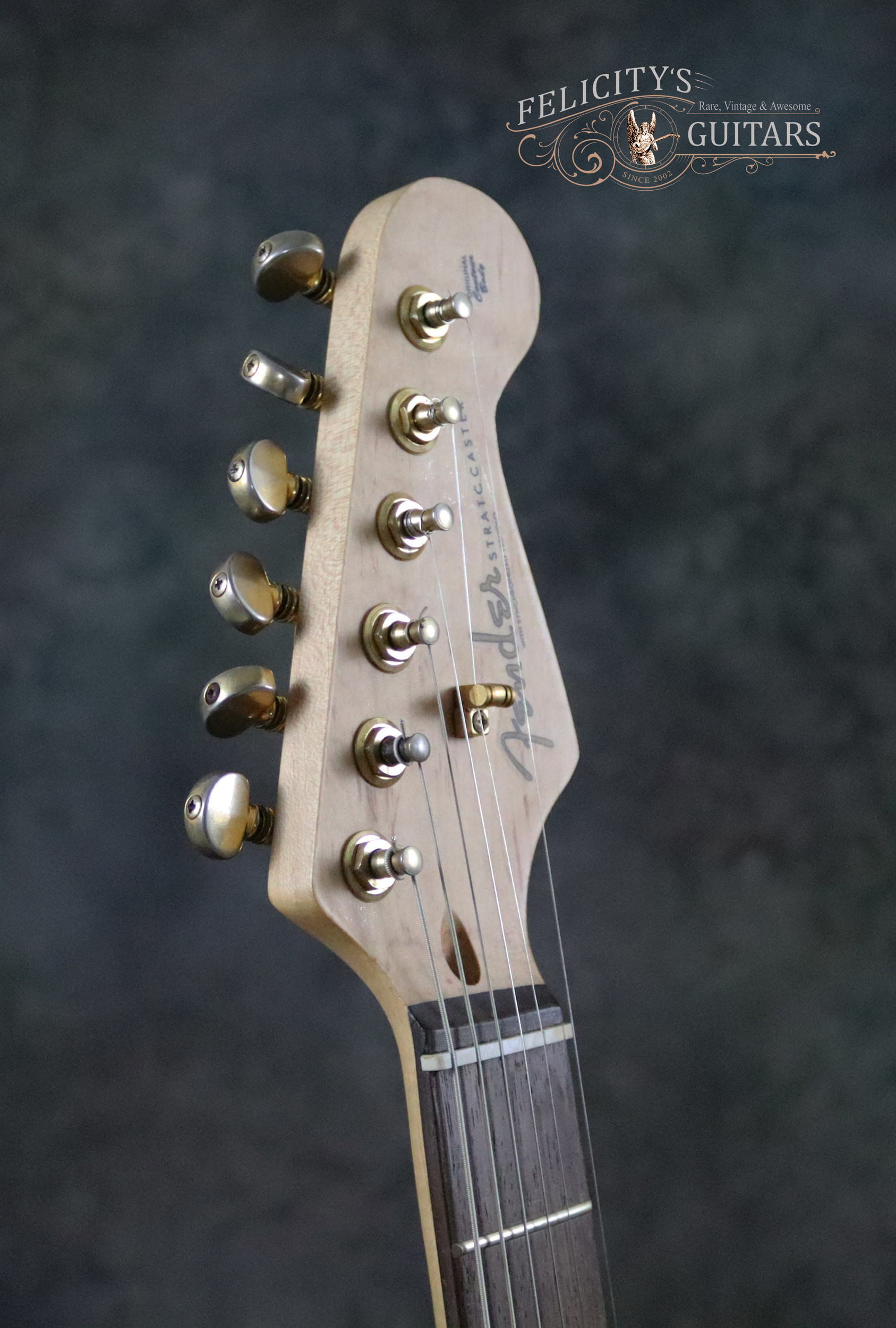

Aged-Gold, Grover Tuning Machines, 18:01 Ratio |
|
Pickup Cover / Ring |
Aged White Plastic, Exposed Pole, Pickguard-mounted SSS configuration / no Rings |
Strap Buttons |
Polished Aluminum End Pins |
Pickguard |
Aged 3-Ply Black with worn Holographic “SRV” Decals |
|
Control Knobs |
Aged White Plastic Strat™ Knobs with no Dial Pointers |
|
Switch |
Aged White Plastic Blade Tip |
|

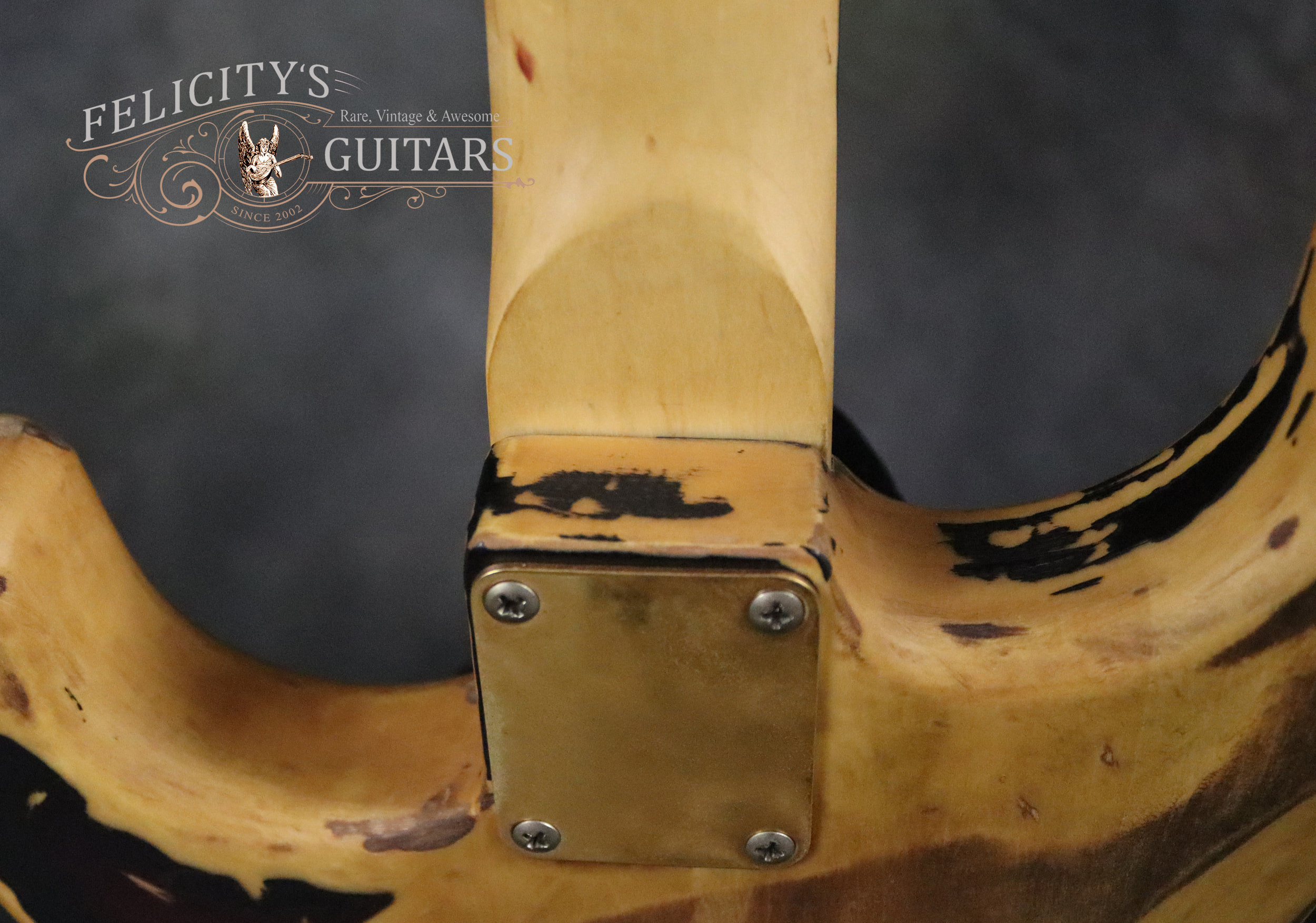

Neck Plate |
Aged-Gold, 4-bolt |
electronics
|
Bridge Pickup |
Fender® Texas Special Strat Single-coil Pickup, Alnico V, DCR 7.4k |
Middle Pickup |
Fender® Texas Special Strat Single-coil Pickup , Alnico V, DCR 6.4k |
Neck Pickup |
Fender® Texas Special Strat Single-coil Pickup , Alnico V, DCR 6.5k |
Active / Passive |
Passive |
|
Series / Parallel |
Series |
|
Controls |
1 Master Volume, 2 Tone and 5-position Blade Pickup Selector |
Vol Potentiometer |
250k
|
|
Tone Potentiometers |
250k
|
|
Capacitor / Resistor |
Texas Special™ Set
Values |
|
Harness |
Standard pickguard-mounted Strat™ Wiring |
|
S-1 Switch |
No |
|
Greasebucket T-Circuit |
No |
|
MDX/TBX Circuit |
No |
|
Active Electronics |
No |
|
Piezo |
No |
|
Kill Switch |
No |
|
Output Jack |
Aged, Switchcraft™ 1/4" 2-Conductor Mono |
miscellaneous
|

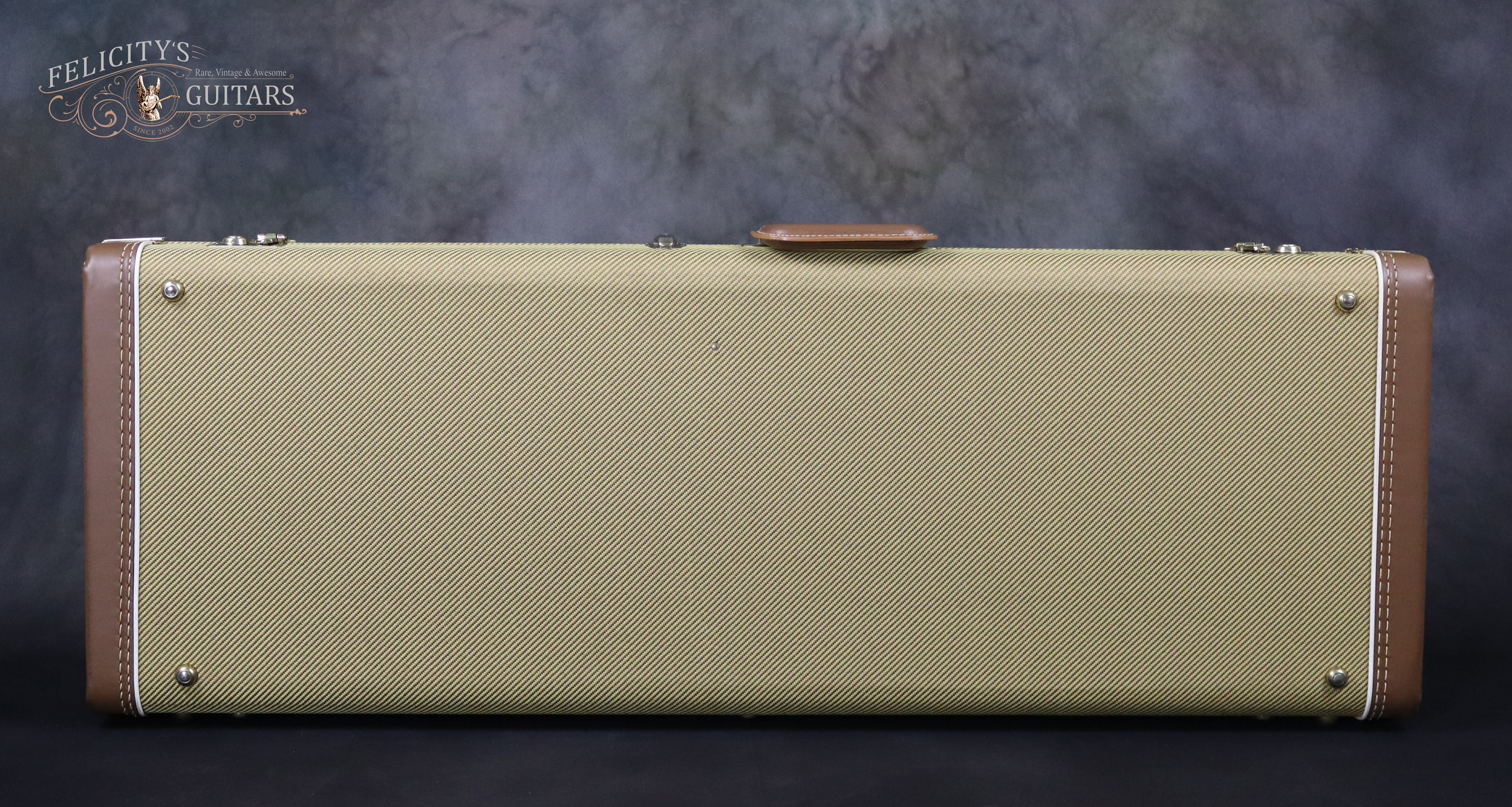

Case / Gigbag |

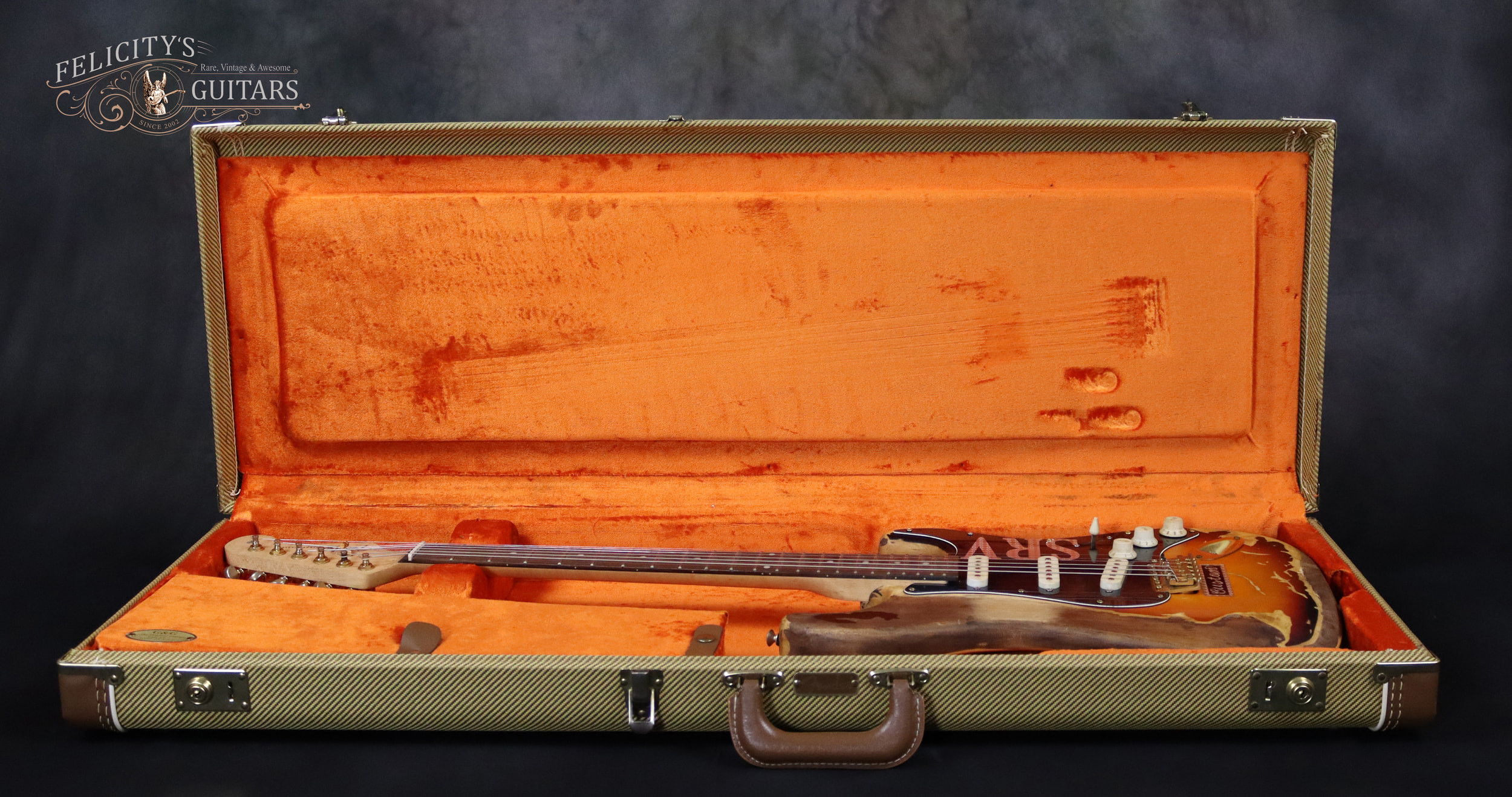

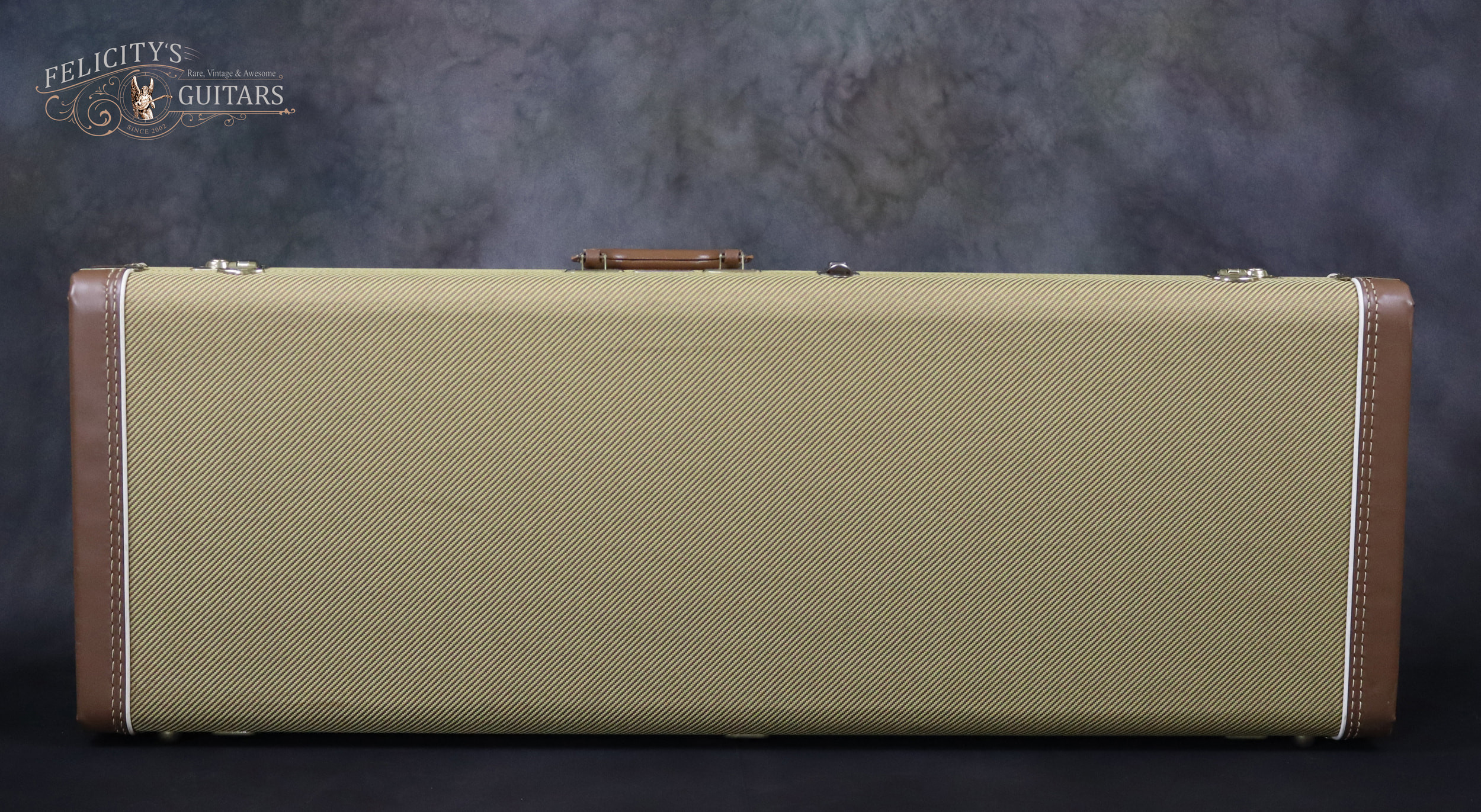

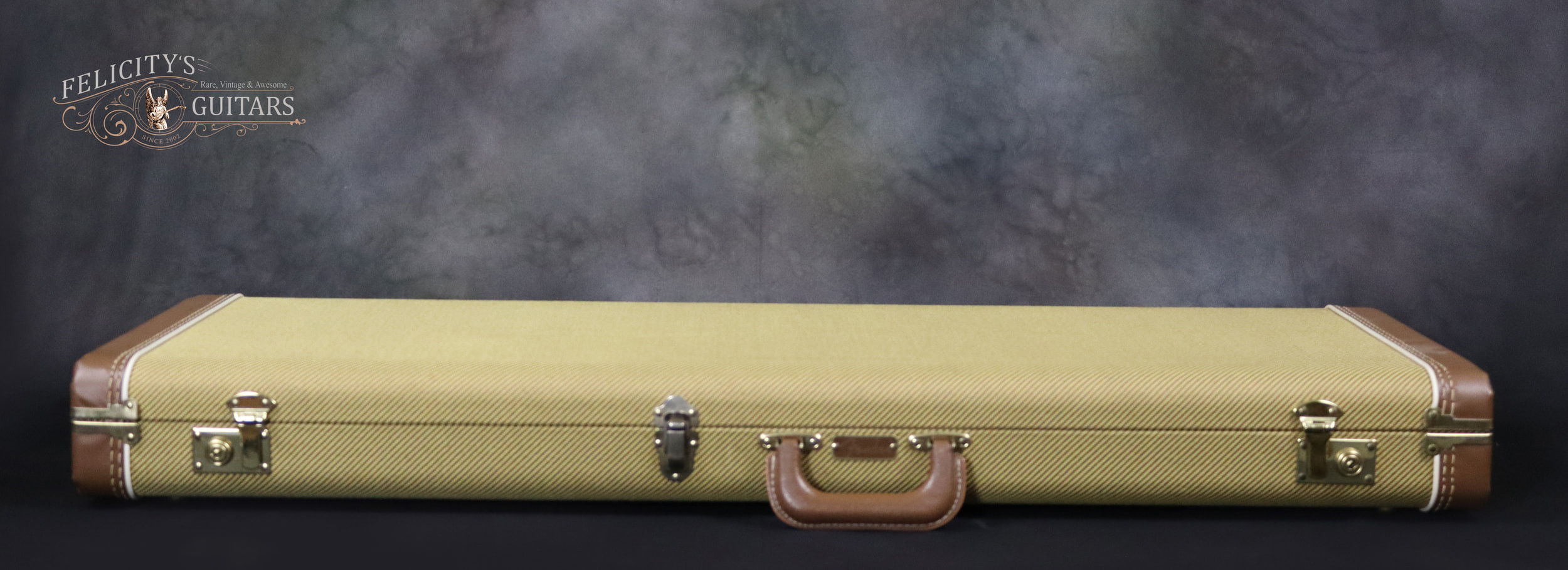

G&G Deluxe Tweed Hardshell Case with Tangerine Interior and lock |
Strap Locks |
No |
|
Strings |
Elixir® Polyweb Nickel Plated Steel (.010-.047 Gauges) |
Tools / Accessories |
Truss Rod Wrench / Case keys |
|
Manual / Literature |
No |
|
C.O.A. |
No |
|
Other |
No |
| Weight | Is the actual weighed-value in US Standard Units |
|
|
|
|
Disclosure |
Technical Specs above are taken from the physical Guitar itself. The words Fender®, Strat™,
Stratocaster® and the associated headstock designs are registered trademarks of the Fender®
Musical Instruments Corp, respectively. |
