VOX AC30HW2 30-WATT 2X12 HANDWIRED TUBE COMBO AMP, BLONDE
- 30-watt power output (8 and 16 ohms)
- Handwired turret board construction
- Birch plywood cabinet features solid bracing and a natural high-frequency diffuser
- All-tube design
- 2 x 12" G12M Greenback Speakers
- 3 x ECC83/12AX7 preamp tubes, 4 x EL84 power tubes, and 1 x GZ34 rectifier tube
- Fitted with matched Ruby Tubes for extended dynamic range
- Traditional VOX 2-channel design (top boost and normal) each with high and low inputs
- Normal channel provides an additional bright switch
- Top boost channel provides a hot/cool switch to achieve even more gain
- Master volume/bypass switch completely bypasses the master volume section
- OP mode switch cuts the output power level in half
- Vintage fawn-colored vinyl, reminiscent of the 1960 classic AC30
- 2 x 1/4" output jacks for extension cabinets
- Included VFS1 footswitch controls the top boost channel's hot/cool switch

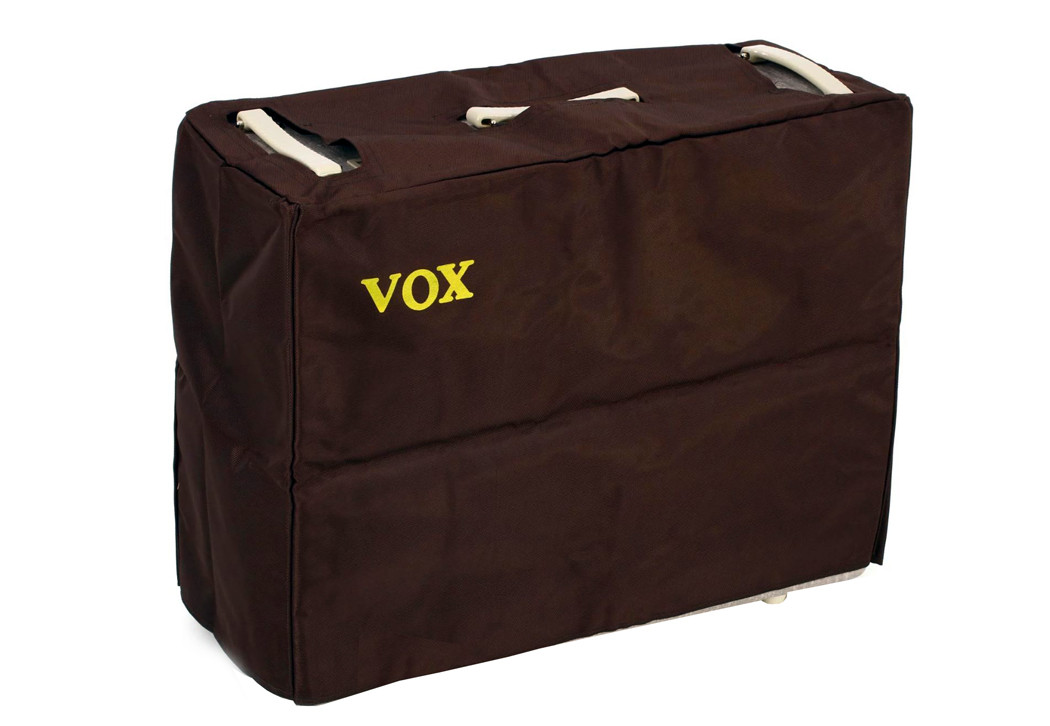

- Premium, custom-fit dust cover included
Photo Gallery
description
In VOX's history, there may never have been a series of amps boasting such a lofty and pure sound as the new Hand-Wired Series amps, which includes the AC30HW2 15W combo. The VOX Hand-Wired Series relies on the painstaking technique of turret board hand-wiring, a method requiring a high level of skill and craftsmanship. The result is wiring that's beautiful in its artistry and ensures an efficient signal path with minimal loss and no restriction in amplitude. In the AC30HW2 combo, tubes, transformers, speakers, chassis, and custom parts all join together in an ideal state to deliver the richest and most powerful sonic experience - the ultimate VOX amp. Not bound by tradition, the VOX Hand-Wired Series also provides a variety of new functions that keep pace with the needs of today's artists.

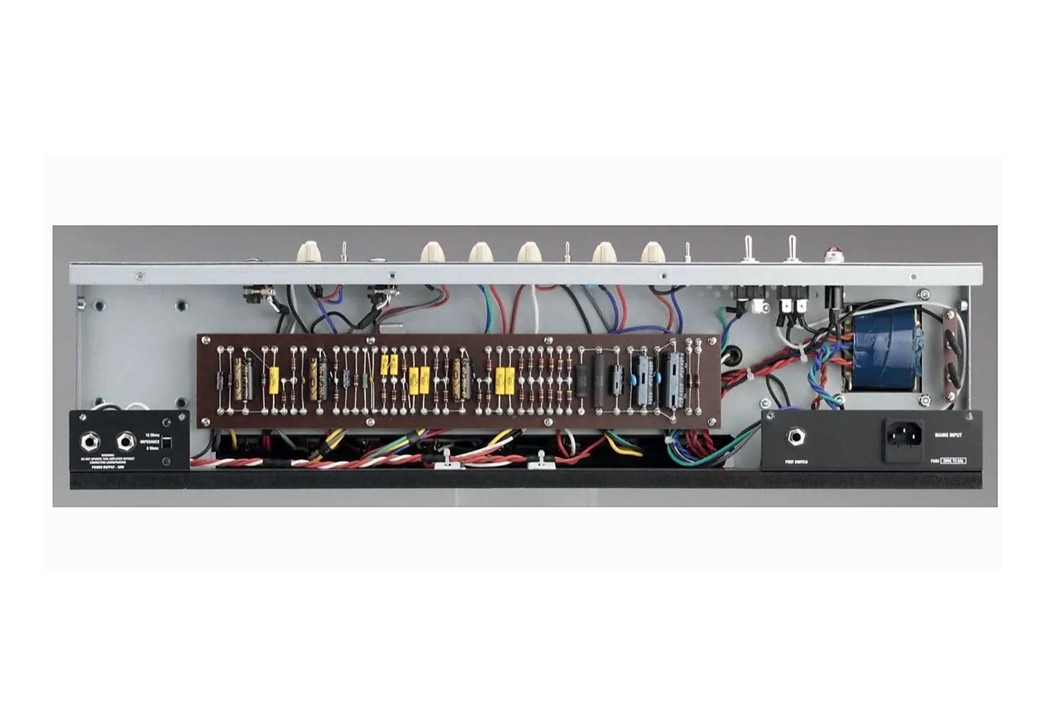

Turret board hand-wired amps are every amp designer's ideal and every guitarist's dream, representing the ultimate in amplifier construction. Hand-wired amps are assembled entirely by hand, requiring staggering levels of technical expertise and care, and as such are often exclusive to today's limited productions or high-end models. The VOX Hand-Wired AC30HW2 combo pairs these demanding methods with rigorously-selected custom parts. These premium components are wired with a truly artistic degree of perfection. The result is that the subtle nuances of the guitarist's touch, the guitar's audio signature, and the natural character of the vacuum tubes are passed with perfect transparency to its pair of 12" Celestion G12M speakers, noted for their broad midrange attack and restrained top-end, providing a punchy attitude when chording, and a searing lead tone when driven hard.

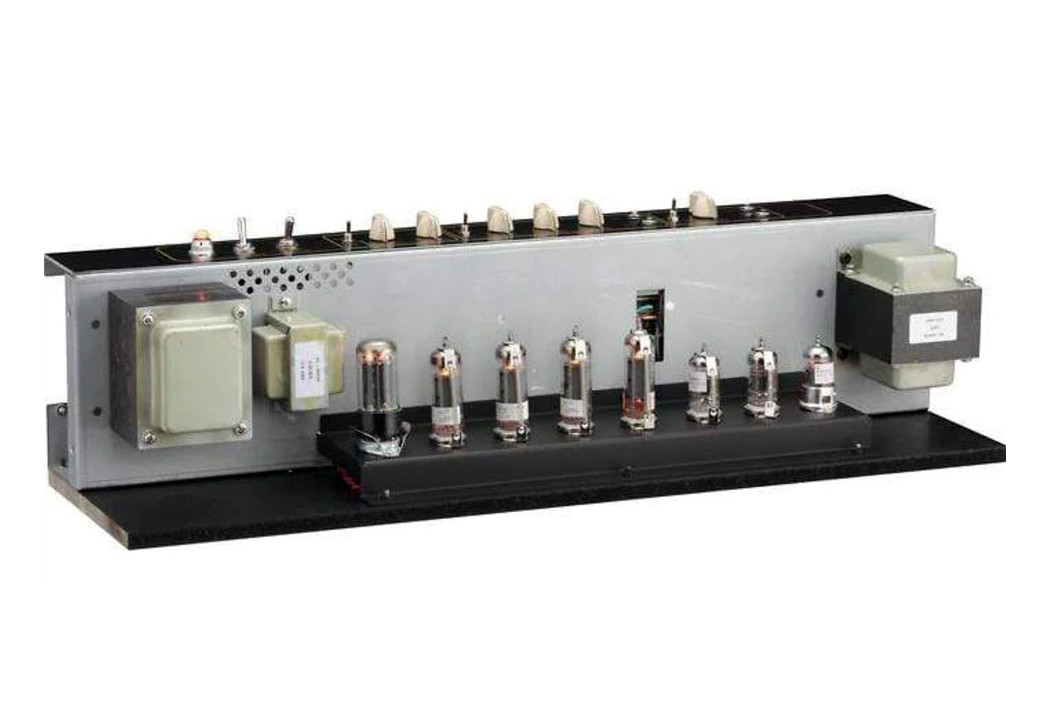

The VOX Hand-Wired AC30HW2 is a true all-tube amplifier, employing vacuum tubes in the preamp, power amp, and rectifier. The preamp uses three classic ECC83/12AX7 pre-amp tubes, while the power stage uses four EL84s, along with a GZ34 rectifier tube. Combined, these three elements provide the vibrant, organic, and unmistakable tone that is the heart of the classic VOX sound. The VOX Hand-Wired AC30HW2 amp preserves the traditional VOX two-channel design, providing a Top Boost channel and a Normal channel. True to form, the Top Boost channel delivers the legendary AC30 sound with a fully interactive tone stack. VOX has also added a new and unique Hot/Cool switch. The Cool setting produces the orthodox Top Boost sound, while the Hot setting bypasses the tone circuitry altogether to create a more pure sound to achieve richer gain. The OP mode switch lets you cut the output power level in half, which makes the AC30HW2 also an excellent recording/practice amp.
Specifications
tube complement
Tube Complement | Power: 4 x EL84, 1 x GZ34 (Rectifier) |
| Preamp: 3 x ECC83/12AX7 |
| |
Channels | 2 channels (Top Boost & Normal) |
| |
Inputs / outputs
Inputs / Outputs | Inputs 2 x 1/4" jack instrument inputs (Channel 1) |
| Inputs 2 x 1/4" jack instrument inputs (Channel 2) |
| Outputs 2 x 1/4" jack speaker outputs |
| Footswitch I/O: 1 x 1/4" (boost hot/cool) |
| No Effects Loop |
| |
Output Power | 30W RMS |
| |
Cabinet Construction | Birch plywood cabinet with solid bracing |
| |

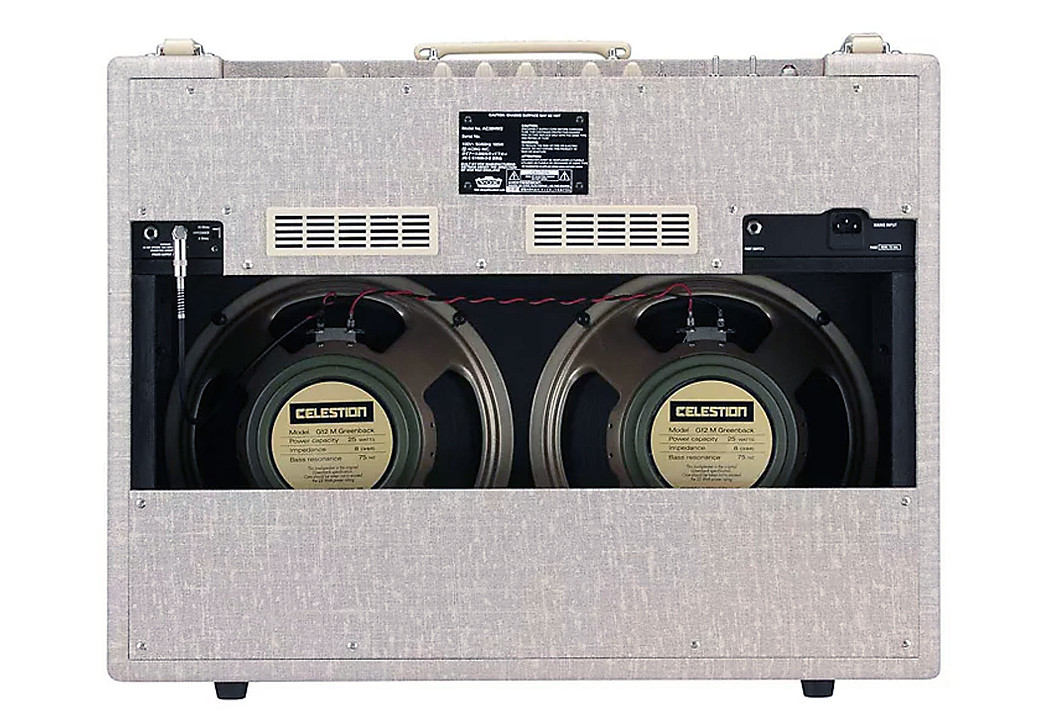

Speaker | 2 x 12" G12M Greenback Speakers |
| |
Dimensions (W x D x H) | 27.76 x 10.24 x 21.65 in. (705 x 260 x 549 mm) |
| |
Weight | 67.9 lbs. (30.79 kg.) |
| |
Included Accessories | VFS1 Footswitch included |
| Dust cover included |
| Detachable Standard IEC AC cable included |
| |
