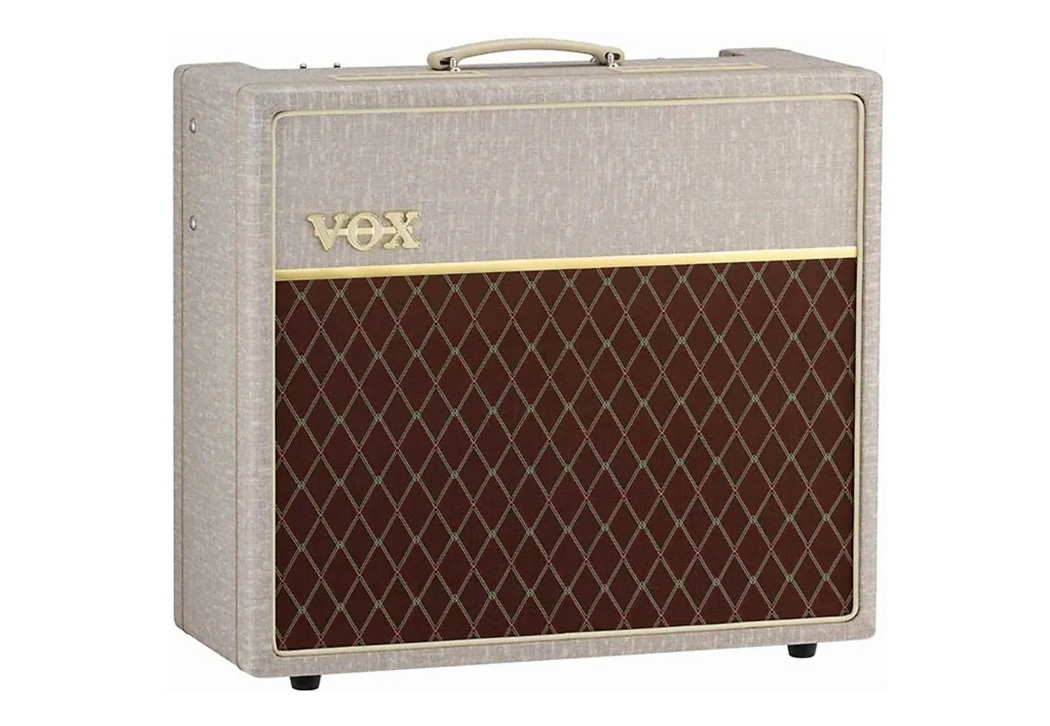

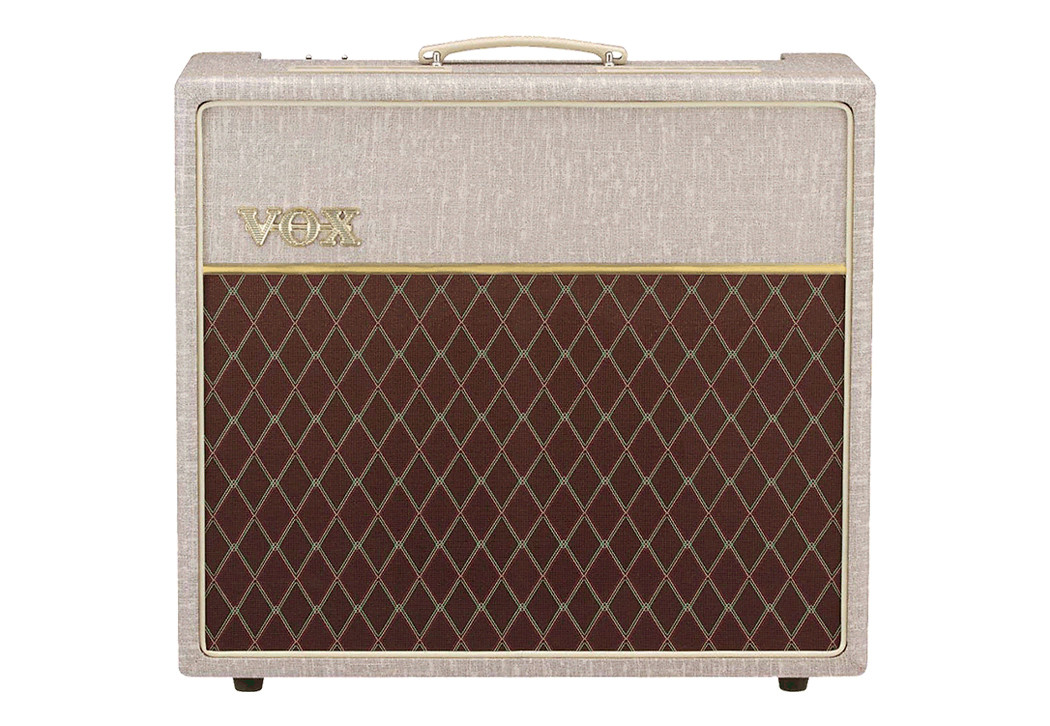

VOX AC15HW1 15-WATT 1X12 HANDWIRED TUBE COMBO AMPLIFIER, BLONDE
- 15-watt power output (8 and 16 ohms)

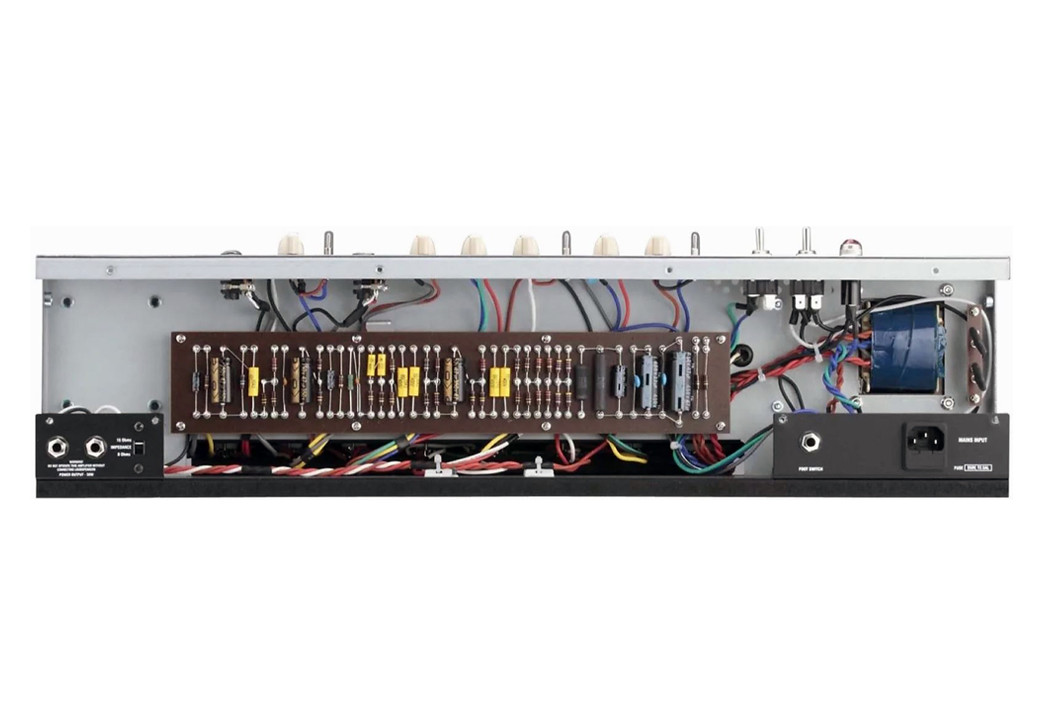

- Handwired turret board construction
- Birch plywood cabinet features solid bracing and a natural high-frequency diffuser
- All-tube design
- 1 x 12" G12M Greenback Speaker

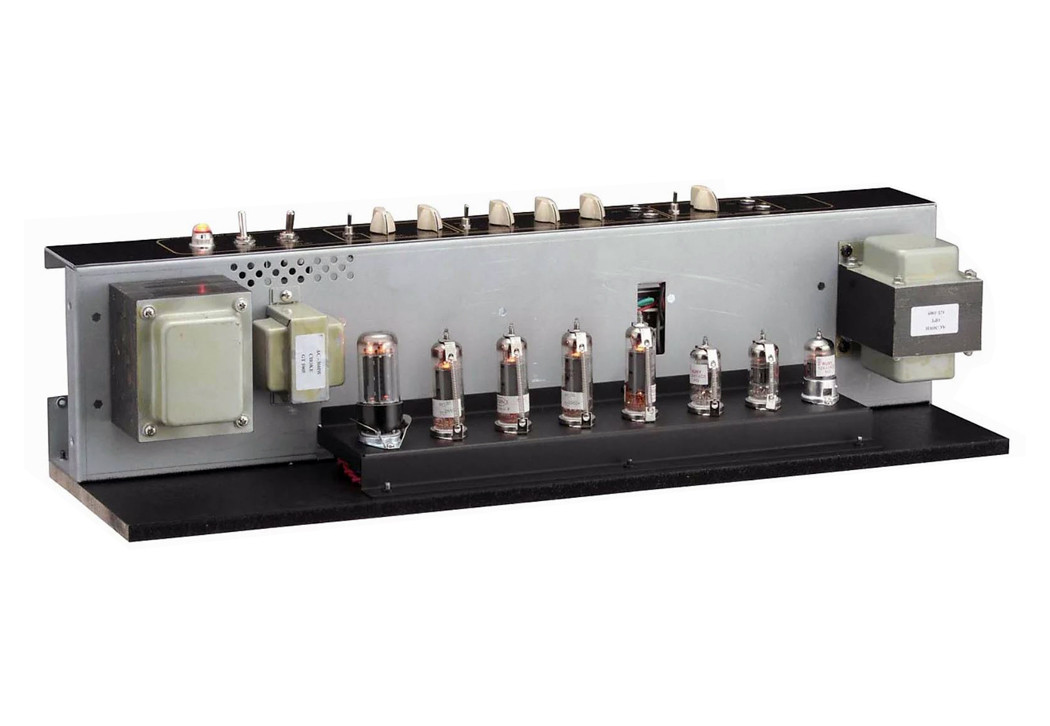

- 3 x ECC83/12AX7 preamp tubes, 2 x EL84 power tubes, and 1 x EZ81 rectifier tube
- Fitted with matched Ruby Tubes for extended dynamic range

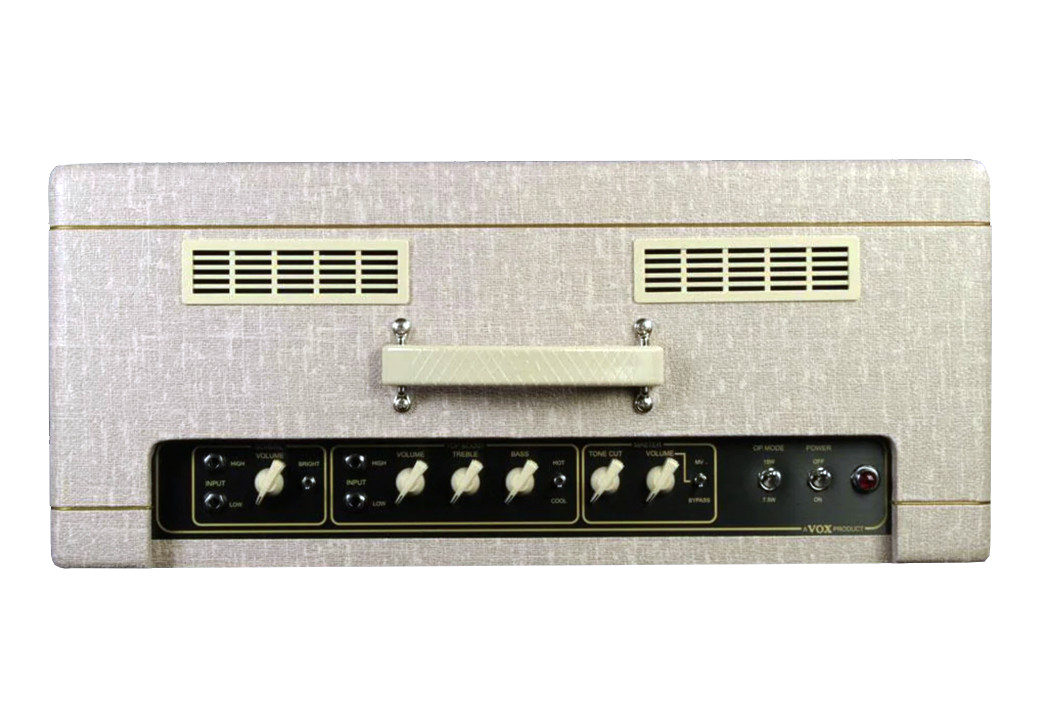

- Traditional VOX 2-channel design (top boost and normal)
- High and low inputs for each channel
- Normal channel provides an additional bright switch
- Top boost channel provides a hot/cool switch to achieve even more gain
- Master volume/bypass switch completely bypasses the master volume section
- OP mode switch cuts the output power level in half
- Vintage fawn-colored vinyl, reminiscent of the 1960 classic AC30
- 2 x 1/4" output jacks for extension cabinets
- Included VFS1 footswitch controls the top boost channel's hot/cool switch
- Premium, custom-fit dust cover included
Photo Gallery
description
In VOX's history, there may never have been a series of amps boasting such a lofty and pure sound as the new Hand-Wired Series amps, which includes the AC15HW1 15W combo. The VOX Hand-Wired Series relies on the painstaking technique of turret board hand-wiring, a method requiring a high level of skill and craftsmanship. The result is wiring that's beautiful in its artistry and ensures an efficient signal path with minimal loss and no restriction in amplitude. In the AC15HW1 combo, tubes, transformers, speakers, chassis, and custom parts all join together in an ideal state to deliver the richest and most powerful sonic experience - the ultimate VOX amp. Not bound by tradition, the VOX Hand-Wired Series also provides a variety of new functions that keep pace with the needs of today's artists.
Turret board hand-wired amps are every amp designer's ideal and every guitarist's dream, representing the ultimate in amplifier construction. Hand-wired amps are assembled entirely by hand, requiring staggering levels of technical expertise and care, and as such are often exclusive to today's limited productions or high-end models. The VOX Hand-Wired AC15HW1 combo pairs these demanding methods with rigorously-selected custom parts. These premium components are wired with a truly artistic degree of perfection. The result is that the subtle nuances of the guitarist's touch, the guitar's audio signature, and the natural character of the vacuum tubes are passed with perfect transparency to its 12" Celestion G12M speaker, noted for their broad midrange attack and restrained top-end, providing a punchy attitude when chording, and a searing lead tone when driven hard.
The VOX Hand-Wired AC15HW1 is a true all-tube amplifier, employing vacuum tubes in the preamp, power amp, and rectifier. The preamp uses three classic ECC83/12AX7 tubes, while the power stage uses a duet of EL84s, along with a EZ81 rectifier tube. Combined, these three elements provide the vibrant, organic, and unmistakable tone that is the heart of the classic VOX sound. The VOX Hand-Wired AC15HW1 amp preserves the traditional VOX two-channel design, providing a Top Boost channel and a Normal channel. True to form, the Top Boost channel delivers the legendary AC30 sound with a fully interactive tone stack. VOX has also added a new and unique Hot/Cool switch. The Cool setting produces the orthodox Top Boost sound, while the Hot setting bypasses the tone circuitry altogether to create a more pure sound to achieve richer gain.
Specifications
tube complement
Tube Complement | Power: 2 x EL84, 1 x EZ81 |
| Preamp: 3 x 12AX7 |
| |
Channels | 2 channels (Top Boost & Normal) |
| |
Inputs / outputs
Inputs / Outputs | Inputs 2 x 1/4" jack instrument inputs |
| Outputs 2 x 1/4" jack speaker outputs |
| No Effects Loop |
| Footswitch (Boost Hot/Cool) |
| |
Output Power | 15W RMS |
| |
Cabinet Construction | Birch plywood cabinet with solid bracing |
| |
Speaker | 1 x 12" G12M Greenback Speaker |
| |
Dimensions (W x D x H) | 24.02 x 10.24 x 21.65 in. (610 x 260 x 549 mm) |
| |
Weight | 48.9 lbs. (22.18 kg.) |
| |
Included Accessories | VFS1 footswitch |
| Dust cover M-COVR-00046 |
| Detachable Standard IEC AC cable included |
| |
